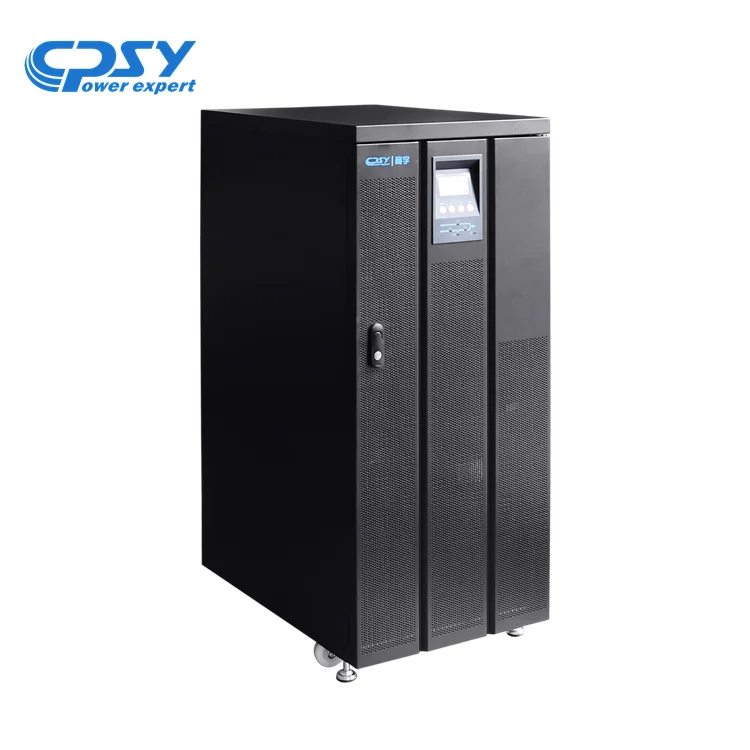

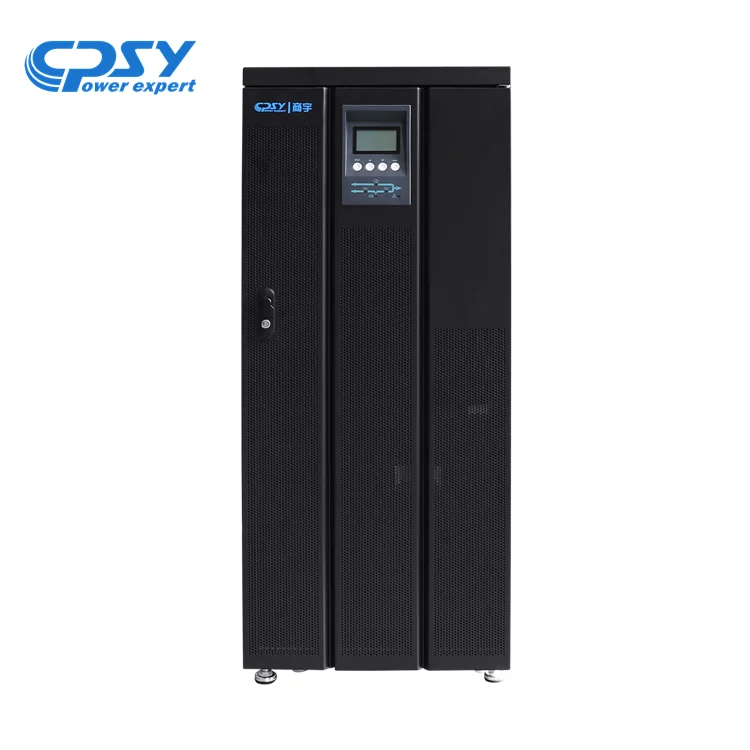

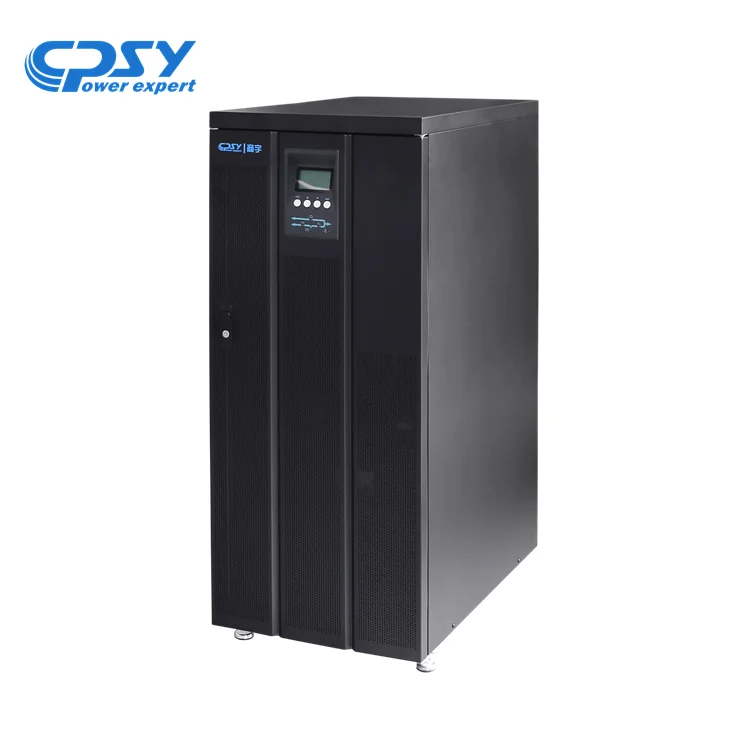

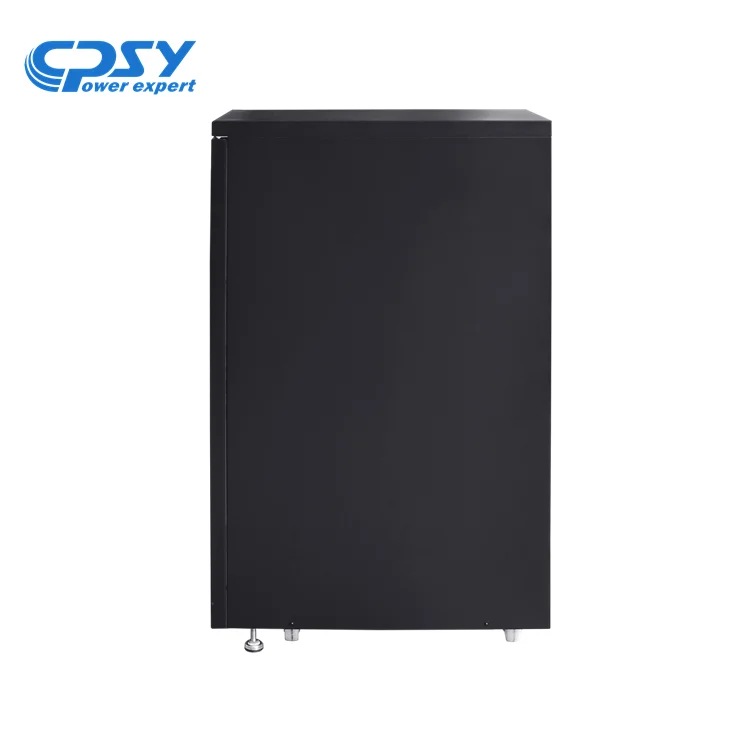

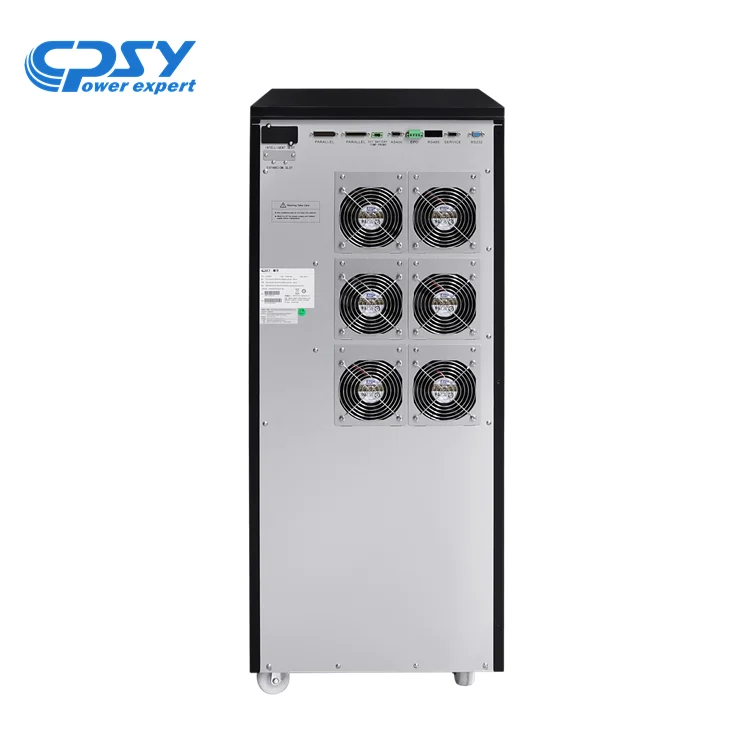

OEM 10kva 20kva 30kva 40kva 3 фазы isoaltion трансформатор дополнительно Макс 8 блок параллельно онлайн

Model

HP3330H

HP3340H

HP3360H

HP3380H

Capacity

30KVA/24KW

40KVA/32KW

60KVA/48KW

80KVA/64KW

Phase

3 Phase in and  3 phase out

Input

Voltage Range

210-475 VAC

Frequency Range

40Hz~70Hz, 56/60Hz(AutoSensing)

THDI

<3%

Power Factor

>0.99

Double mains input

Support

Battery

Battery Type

Valve regulated lead acid(VRLA) battery

DC voltage

±192VDC(defult),±168,±180(adjustable)

Output

Output voltage

380V/400V/415VAC (1±1%) VAC

Frequency

50/60 Hz

Power Factor

0.8

Overload Capability

125%10min

150%1min

Machine efficiency

93%

93%

94%

94%

ECO Mode

98%

Others

Speed adjustable fan

Support

LCD indicators

UPS Status and instructions in both English and Chinese

input/output voltage,current,frequency,battery voltage,charging current value,discharging current value,fault display,fault,warning

LED

UPS running condition

Warning device

Indicator flash and Buzzer sound

Communication ports

RS-232,AS400,RS485,Service,EPO,EXT.BATTERY TEMPPROBE,Intelligentslot

Environment

Temperature

0-40℃

Humidity

10-95%

Physical

Net.Weight

110KGS

114KGS

282KGS

306KGS

Gross Weight

160KGS

164KGS

365KGS

380KGS

Size(mm)

470X710X1150

600X800X1850
