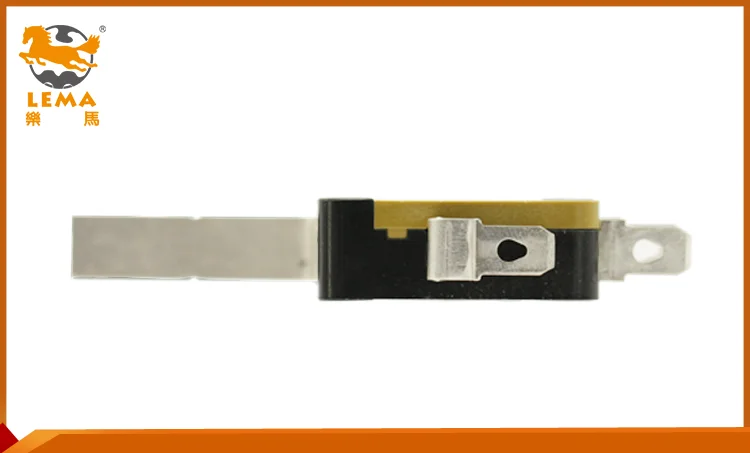

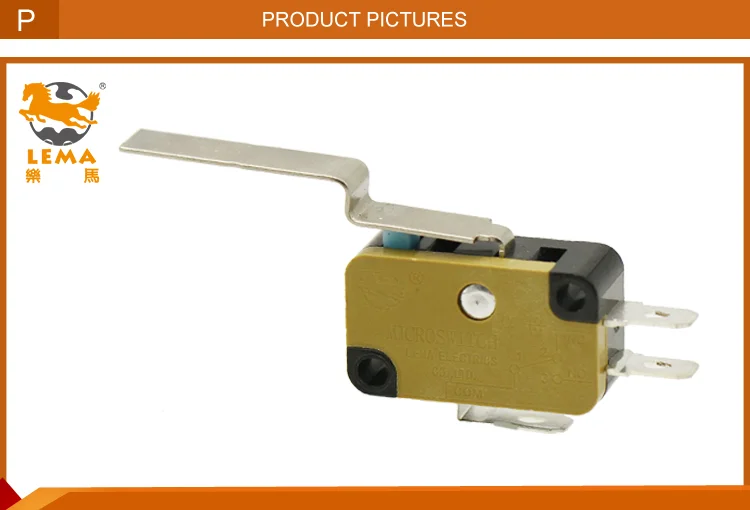

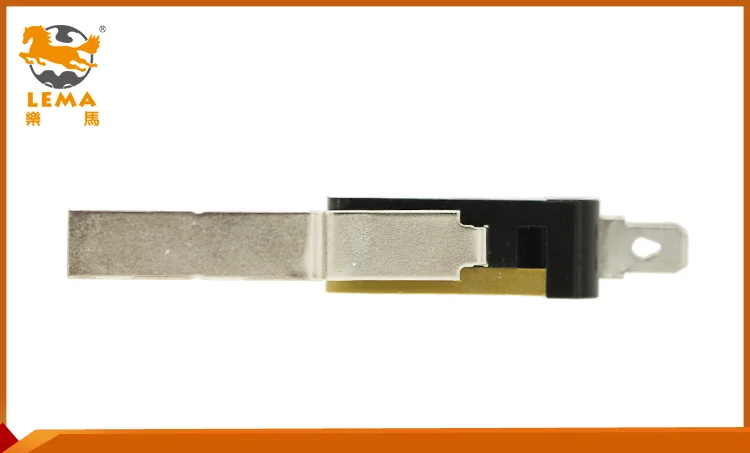

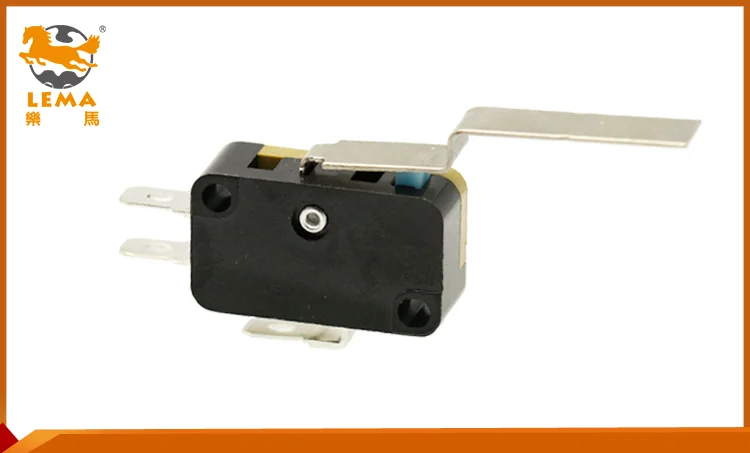

High Quality KW7N-9I2R SPDT Sensitive 16A 250VAC Microswitch for Door Cabinet

Operating speed		0.1mm-1m/s
Operating frequency		Mechanical:60 times/min
		Electrical:25 times/min
Initial insulation resistance		100MΩmin.(at 500VDC)
Initial contact resistance		25MΩmax.
Dielectric  strength	Between non-consecutive  terminals	1,000Vrms, 50/60Hz for 1 min
	Between non-current carrying metal parts and each terminal	1,500Vrms, 50/60Hz for 1 min
	Between ground and each  terminal	1,500Vrms, 50/60Hz for 1 min
Vibration resistance		10-55Hz,1.5mm double amplitude
Shock resistance	Destruction	O.F.>0.5N:1000m/s2(Approx.100G)max. O.F.≤0.5N:400m/s2(Approx.40G)max.
	Malfunction	O.F.>0.5N:200m/s2(Approx.20G)max. O.F.≤0.5N:100m/s2(Approx.10G)max.
Operating  life	Mechanical life	1,000,000 operations min.
	Electrical life	50,000 operations min.
Weight		Approx.6.2g (no lever)
