12 дюймов 2000 Вт Bldc Hub моторное колесо Электрический скутер электрический мотоцикл

12 дюймов 2000 Вт Bldc Hub моторное колесо Электрический скутер электрический мотоцикл

Цена:85,00 $ - 92,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

YM-12*4.5 2000W Brushless DC

Hub Motor For Two Wheel Electric Scooter

Products Display

.jpg

Yuma Motor Specification:

Motor Type	Brushless Direct Current Motor(BLDC Motor)
Axle Configuration	Double
Wheel Rim	12 inch
Rated Speed	70km/h
Voltage	72V
Magnet Height	35mm
RPM	850
Brake System	Disc Brake
Hall Sensors	1/2
Hall Sensor Phasing	120°
Number of motor phases	3
Max Efficiency	90%
Rated Out Power	2000w
Number of Pole Pairs	24
Cross Section of Phase Wire	6 square
Waterproof Grade	IP65
Color	Black/white etc.
Package	Carton

Notice:

Yuma Motor could work 120 ℃ in half an hour without damage.

Suggestion (Setting of Controller)

When it's 130 ℃ inside of motor (in 30s), the current should be limited 50%.

When it's 150 ℃, the controller shut down. When it drop down to 110℃, the controller work again.

More Yuma Motor Informaiton:

Optional Appearance

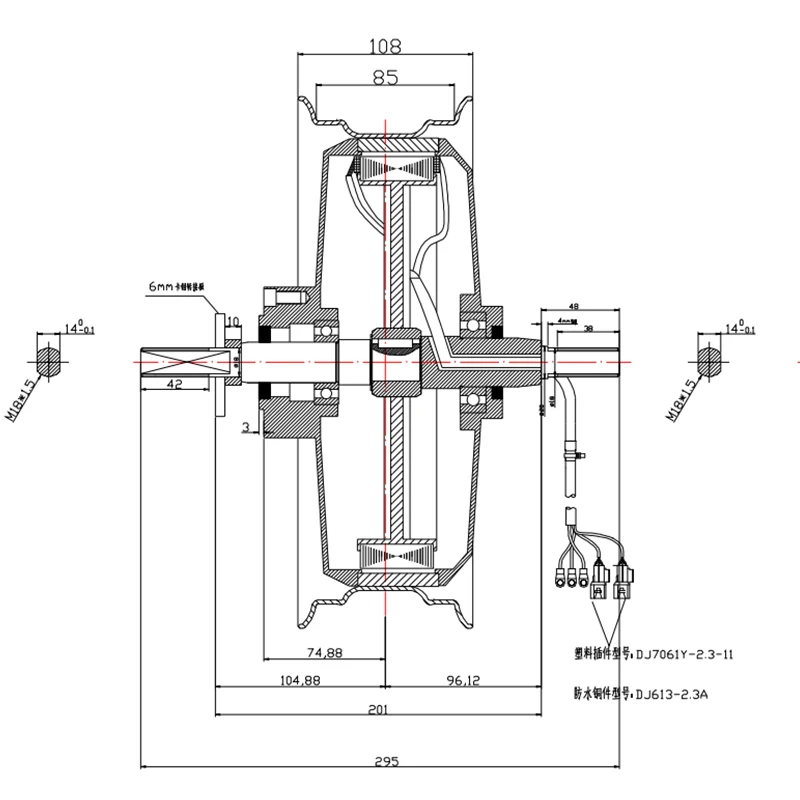

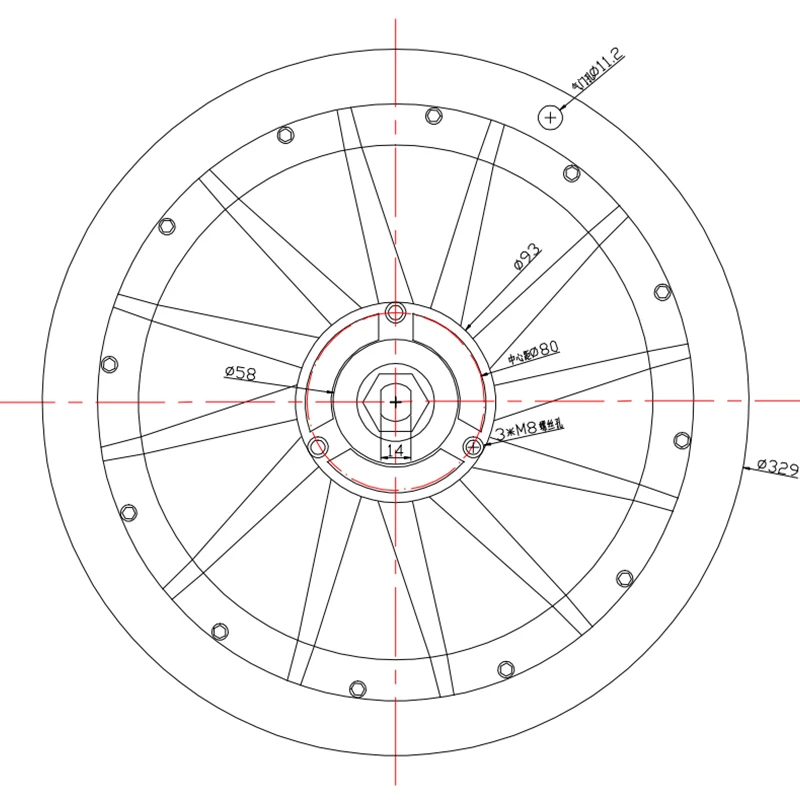

Motor Details, drawing, performance curve (refer to attachment in PDF).

For more information, please feel free to contact with us.
