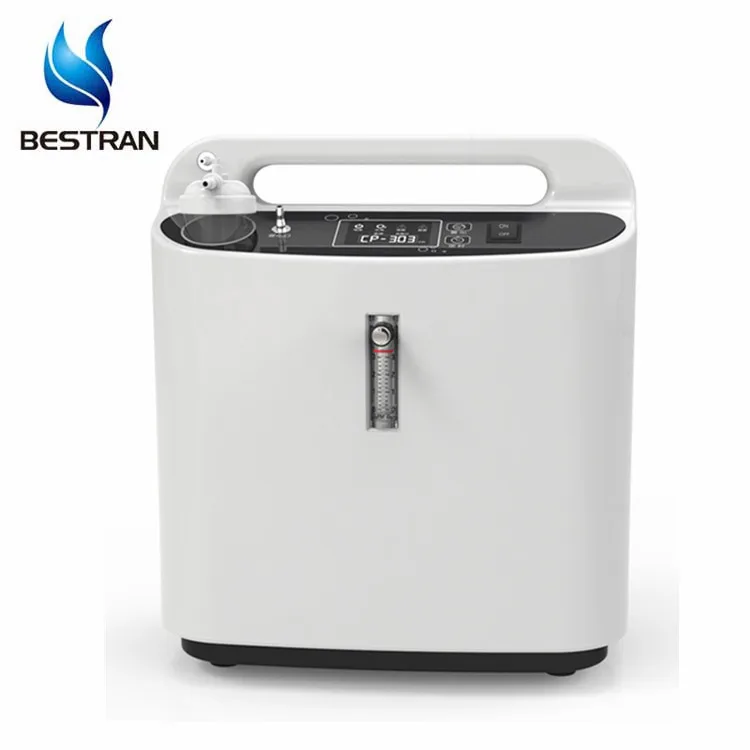

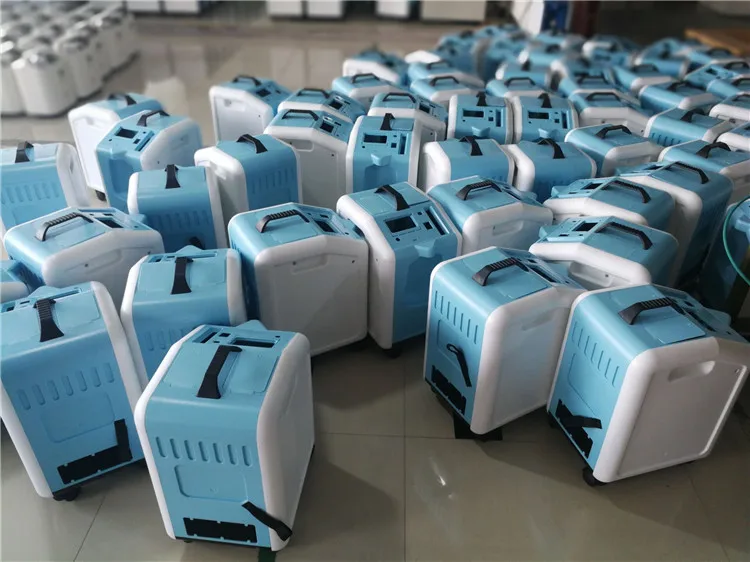

BT-OC03 0.5-3 LPM mini portable oxygen concentrator making machine
Advanced Feature:
1. Adopt PSA(pressure swing adsorption) technology: physical oxygen-making, without adding any chemical accessories.
2. Swiss imported sieve analysis
3. low noise: noise is lower than 43db. Adopt multilayer noise reduction design.
4. High purity oxygen :93%±3%,3 layers filter system to make sure high purity oxygen.
5. Excellent performance: can work 24 hours continuously around the clock.
6. Easy for operation: one button for control
7. Easy for transportation: aged man and patient can move it easily for its handle and wheels.
8. Energy-saving: less that 1 degree electricity for two hour inhaling oxgyen.
9. Safe: circuit breaker can protect user from electric shock in case of high voltage.
10. Brilliant cooling system: large area of cooling system and there are two highspeed fan can reduce the temperature of compressor, extending the service life of the compressor.
Working principle:
MIC oxygen concentrator uses air as raw material and high-quality molecular sieve as adsorbent, and adopts the principle of pressure swing adsorption (PSA) to directly separate oxygen from nitrogen at normal temperature, oxygen of high purity is thereby produced.
People who be suit for using oxygen concentrator:
Oxygen absorption can improve physical oxygen supply condition and achieve the purpose of oxygenating care. It is suitable for the middle-aged and elderly, people with poor physical fitness, pregnant women, students and other people who suffer different degrees of physiological hypoxia. It can also eliminate fatigue and restore somatic function after heavy physical or mental exertion.
Function:
1.Big LCD display the total working hours & present working time
2.Automatic alarm system: power failure alarm, low voltage alarm, low purity alarm.
3.Overload protection to protect the machine.
Volume | 3L |
Flow | 0.5-3 LPM |
Pressure | 40-60kPa |
Input Voltage | 220±22V/50Hz 115V/60Hz |
Purity | ≥90% |
Noise | ≤45dBA |
Power Consumption | 210W(AVER) |
Net weight | 8.8kg |
Dimension | 390*360*240mm |
Equipment class& type: | Class II,BF |
OCSI indicator (optional) | 82% below yellow,72% below red |
Suction mode | Ear hanging type,nasal suction |
Accessories | humidification bottle,oxygen tube,air filter,mask,nebulizer equipment,power line |
Warranty | 2 years, compressor 3 years |
Operation environment | Temperature 5-40°C, Humidity≤80%, Atmospheric pressure 86kPa-106kPa |
Transportation/Storage condition | Temperature -20-55°C, Humidity≤93%, Atmospheric pressure 86kPa-106kPa |
