0 5 Шаг 20pin i-pex 20453-220T-03 сборный кабель
- Категории: Wiring Harness >>>
- Поставщик: Shenzhen,Sino-Media,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

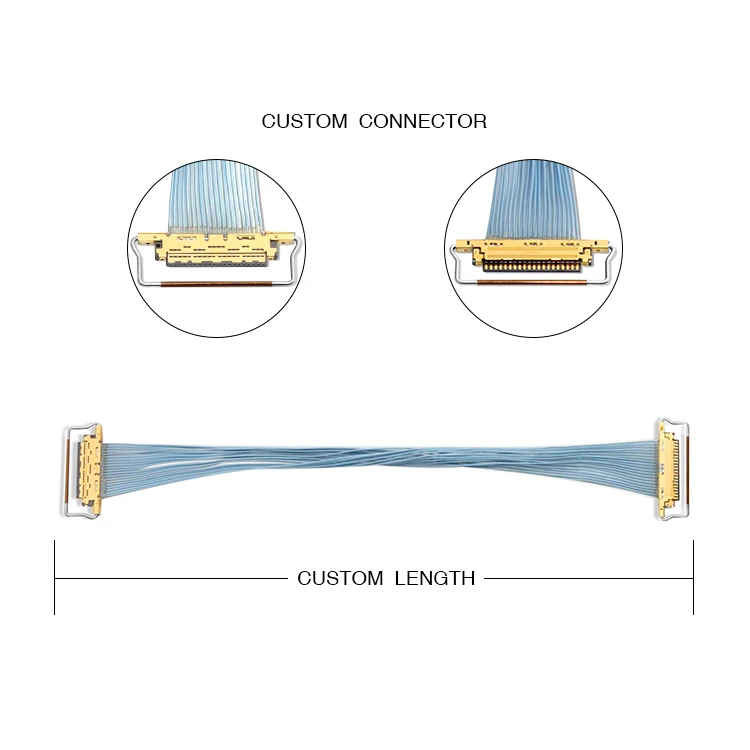

0.5pitch 20pin i-pex 20453-220T-03 lcd tv assembly cable | ||
Product Name | 20453-220T-03 i-pex cable fo kel cable | |
Wire | lcd tv assembly cable | |
Cable type | micro coaxia cable | |
Processing methods | OEM/ODM | |
Connector brand | i-pex | |
Features | High data rate transmission | |
Performance Testing | Define test | |
Maximum current per contact | 0.25A per contact | |
Contact pitch | 0.5mm Pitch | |
This I-PEX cable is suitable for high-speed LVDS applications. Especially for 16:9 panel or display applications.

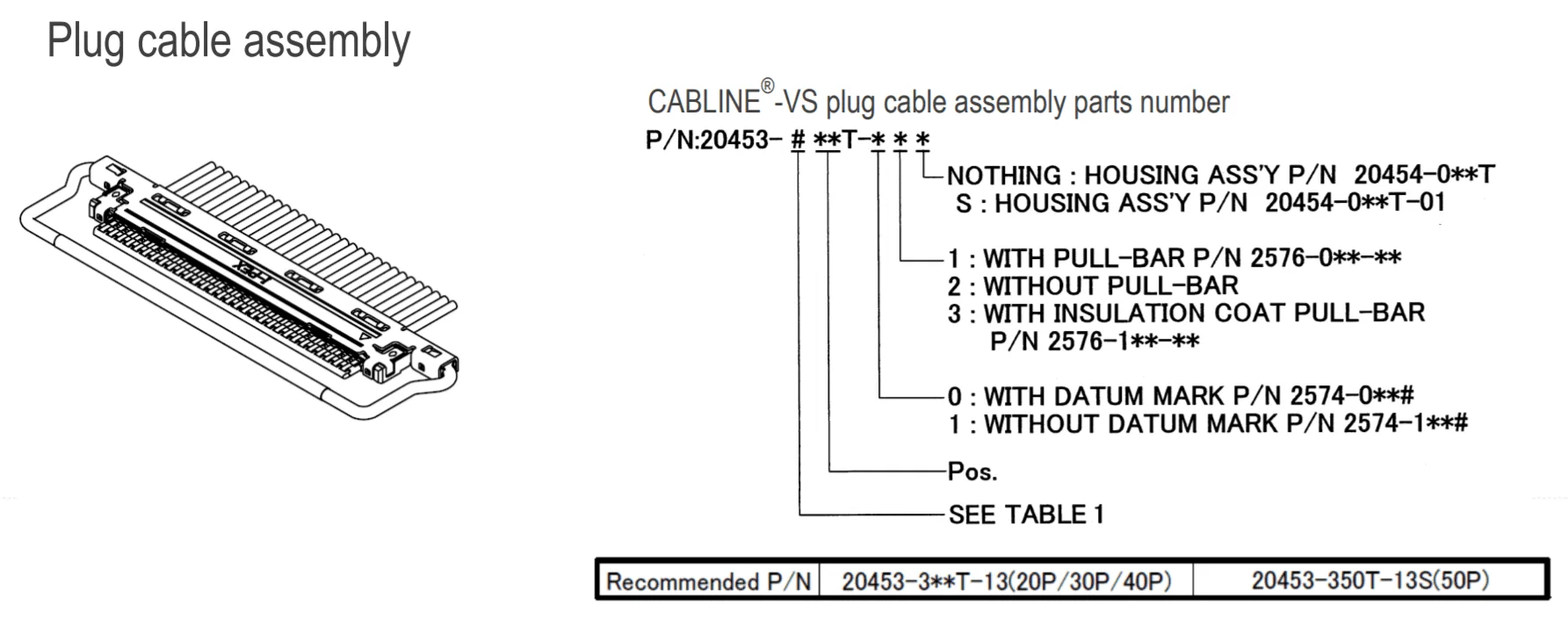

Technical specifications:side 1: 20453-040T, R = 0.50 mm
side 2: 20453-040T, R = 0.50 mm
cable: AWG40, Micro-Coax, assignment 1:1, L = 100 mm
mated height: max. 1.10 mm (1.00 mm nominal)
depth: 5,8 mm
halogen-free
REACH and RoHS compliant
* mating type: horizontal
* temperature range: -20 °C to 85 °C
Company Profile
Shenzhen China Media Technology Co., Ltd. was established in 2007 and is committed to providing professional customized solutions.Production of various cable assemblies in the field of micro coaxial cables, such as drones, AR/VR,
carradar/navigation,cameras,security monitors, facial recognition payment, have established cooperative relations with
customers.Wehave a strong and experienced technical team to provide you with efficient solutions. With advanced
equipment,first-classtechnology,modernmanagement system and professional team, we can quickly meet various needs. Prepare drawings within 1 day, quotewithin 1hour,send samples within 2 weeks, and delivery time is about 3-4 weeks.
carradar/navigation,cameras,security monitors, facial recognition payment, have established cooperative relations with
customers.Wehave a strong and experienced technical team to provide you with efficient solutions. With advanced
equipment,first-classtechnology,modernmanagement system and professional team, we can quickly meet various needs. Prepare drawings within 1 day, quotewithin 1hour,send samples within 2 weeks, and delivery time is about 3-4 weeks.
Our Advantages
FAQ
Q1. Is it a factory?
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A:We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq 1000PCs. Mould fee will be chargedaccording to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delivery, and shipment time
dependsonclients' choice, fastest 7 days and longest 1 month.For big order, as we need to confirm all things include
materielpreparation, production, this procedure will take 5 to 21 workingdays according to order quantity, testing 1 to 3 working days,and finally, packing 1 day, so fastest 7 days and longest 25 dayswithout shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market and promote it, and you will
have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3% to 0.5% backup for
defectivesent with order, so if you order 1000PCs, that means you can get 1003pcs with backup. If you get faulty more than 5pcs,and lessthan 0.1%, please contact sales and offer images, and we will solve your problem in the way of replacing with neworder orrefund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
A:Yes,we have more than 15 years of design and manufacturring experience!
Q2. How long does it take to place an order?
A: 3-4 weeks
Q3. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q4. What is our specialty?
A:We can design products on the application.
Q5.Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq 1000PCs. Mould fee will be chargedaccording to design.
Q6. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delivery, and shipment time
dependsonclients' choice, fastest 7 days and longest 1 month.For big order, as we need to confirm all things include
materielpreparation, production, this procedure will take 5 to 21 workingdays according to order quantity, testing 1 to 3 working days,and finally, packing 1 day, so fastest 7 days and longest 25 dayswithout shipment.
Q7. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market and promote it, and you will
have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q8. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3% to 0.5% backup for
defectivesent with order, so if you order 1000PCs, that means you can get 1003pcs with backup. If you get faulty more than 5pcs,and lessthan 0.1%, please contact sales and offer images, and we will solve your problem in the way of replacing with neworder orrefund.
Q9. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
