Product Description

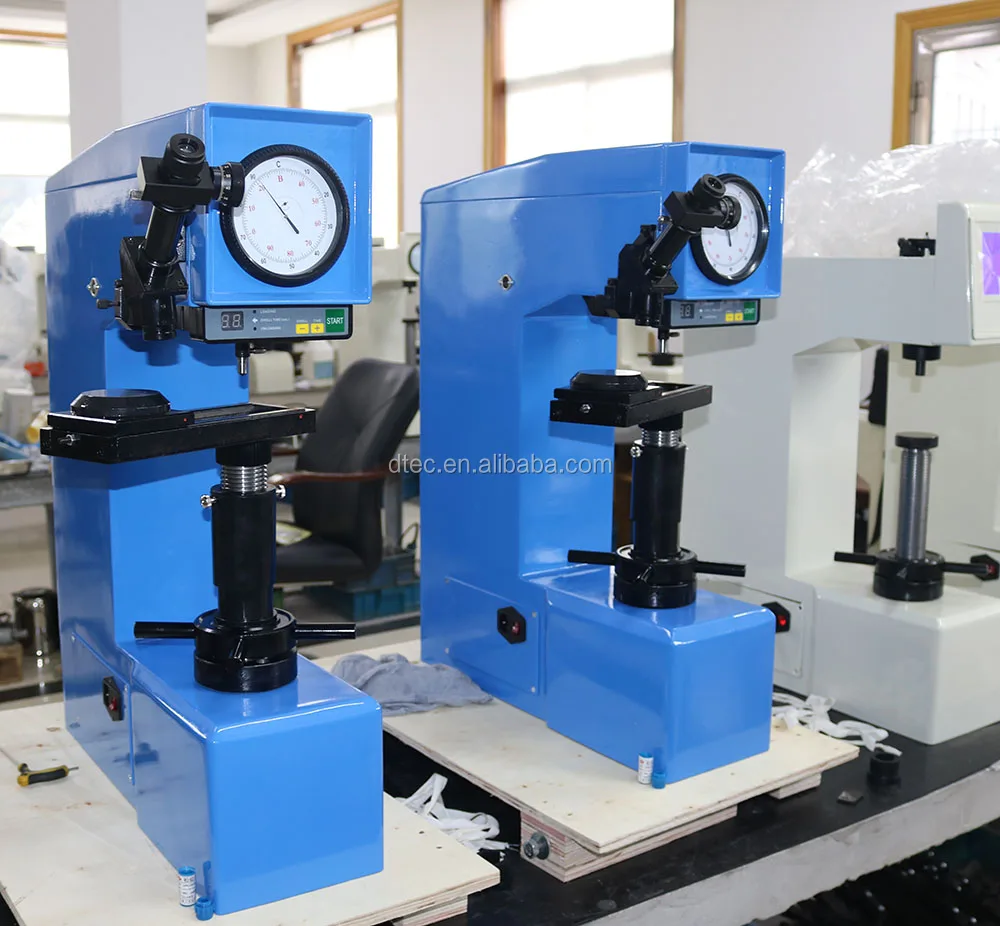

Equipped with Brinell, Rockwell and Vickers hardness testing modes, level 7 testing force,DHBRV-187.5 Motorized Brinell,Rockwell & Vickers Hardness Tester is a multi-purpose, and multi-functional hardness testing equipment, which satisfies your various hardness measuring requirement.

Using Scopes:
Surface hardened steel, hardened steel, alloy steel, various QT and annealed steel,non-ferrous metal, hardened steel sheet, also suitable for soft metals, surface treatment metals and chemical processing metals.





DTEC Advantages
  • Multi-purpose, and multi-functional hardness testing equipment, which satisfies your various hardness measuring requirement;
  • Automatically loading,keep and unloading testing force;
  • Brinell,Rockwell and Vickers hardness testing modes,widely used and easy operated,no man made error;
  • High sensitivity and stability.





Specification





Model
DHBRV-187.5
Testing Force
10 -187.5kgf,Level 7 Force
Brinell Scales

HBW2.5/31.25  HBW2.5/62.5  HBW2.5/187.5  HBW5/62.5

Brinell Force

31.25kgf(306.5N) 62.5kgf(612.9N) 187.5kgf(1839N)

Rockwell Scales

HRA  HRB  HRC  HRD  HRE  HRF  HRG  HRK  HRH

Rockwell Force
60kgf(588N)  100kgf(980.7N)  150kgf(1471N)
Vickers Scales

HV30   HV100

Vickers Force
30kgf(294.2N)   100kgf(980.7N)
Min.Testing Unit

Brinell:0.004mm   Vickers:0.002mm

Max.Testing Height

Rockwell:175 Brinell,Vickers:145mm

Dwell Time
2~60s
Testing Range
Rockwell:20~100   Vickers:8~2900  Brinell:8~650HBW
Power Supply
AC220+5%,50~60Hz(Power consumption:60W)
Dimension(cm)
64*40*81
Packing Weight
100kg

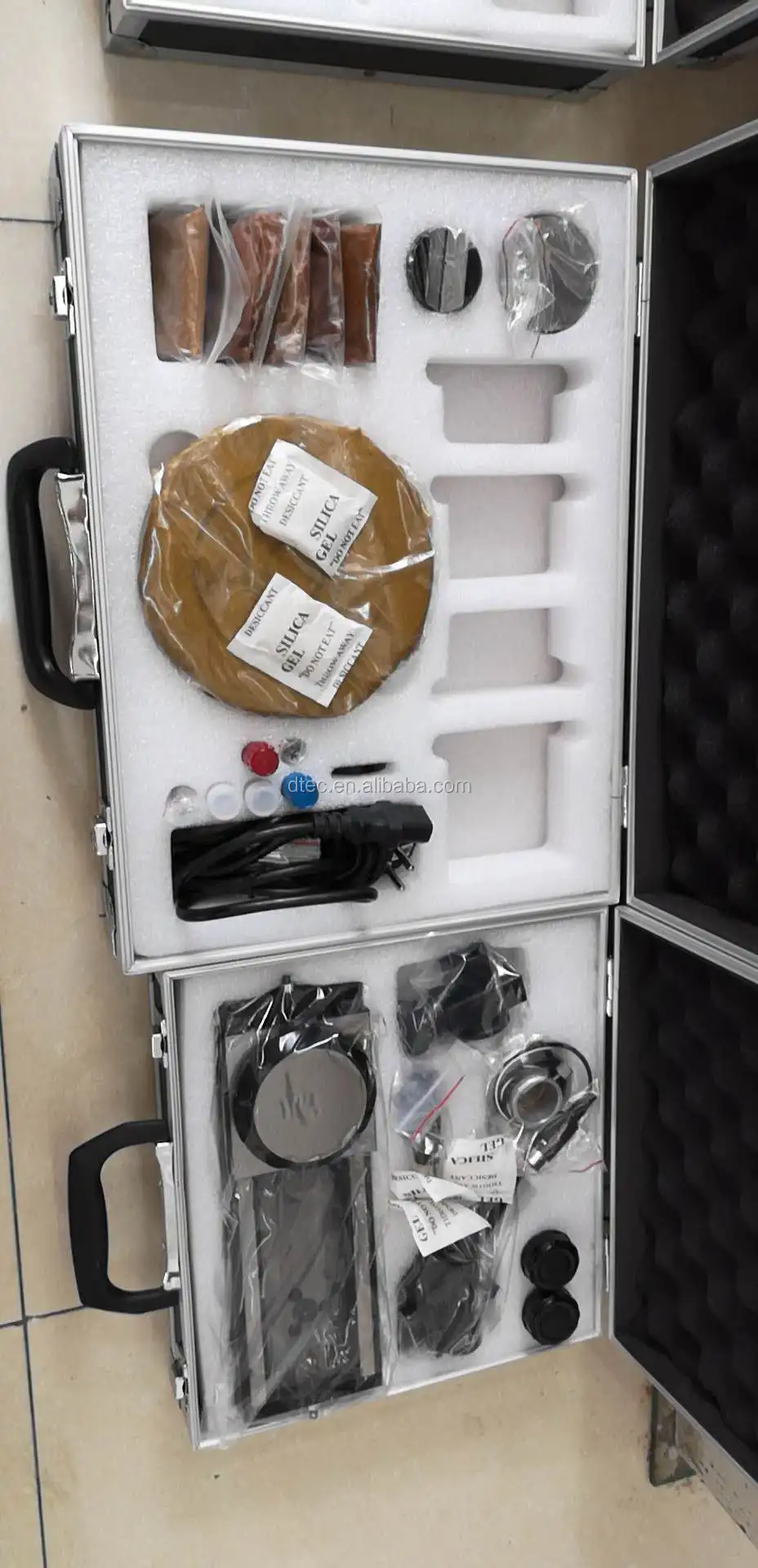

Packing List & Accs

 Standard Packing List:






Items

Qty.

Items

Qty.
Rockwell,Vickers Indenter
1

Brinell Indenter:Dia.1.5875,2.5,5mm Alloy Ball Indenter

1 each
Microscope
1
light
1

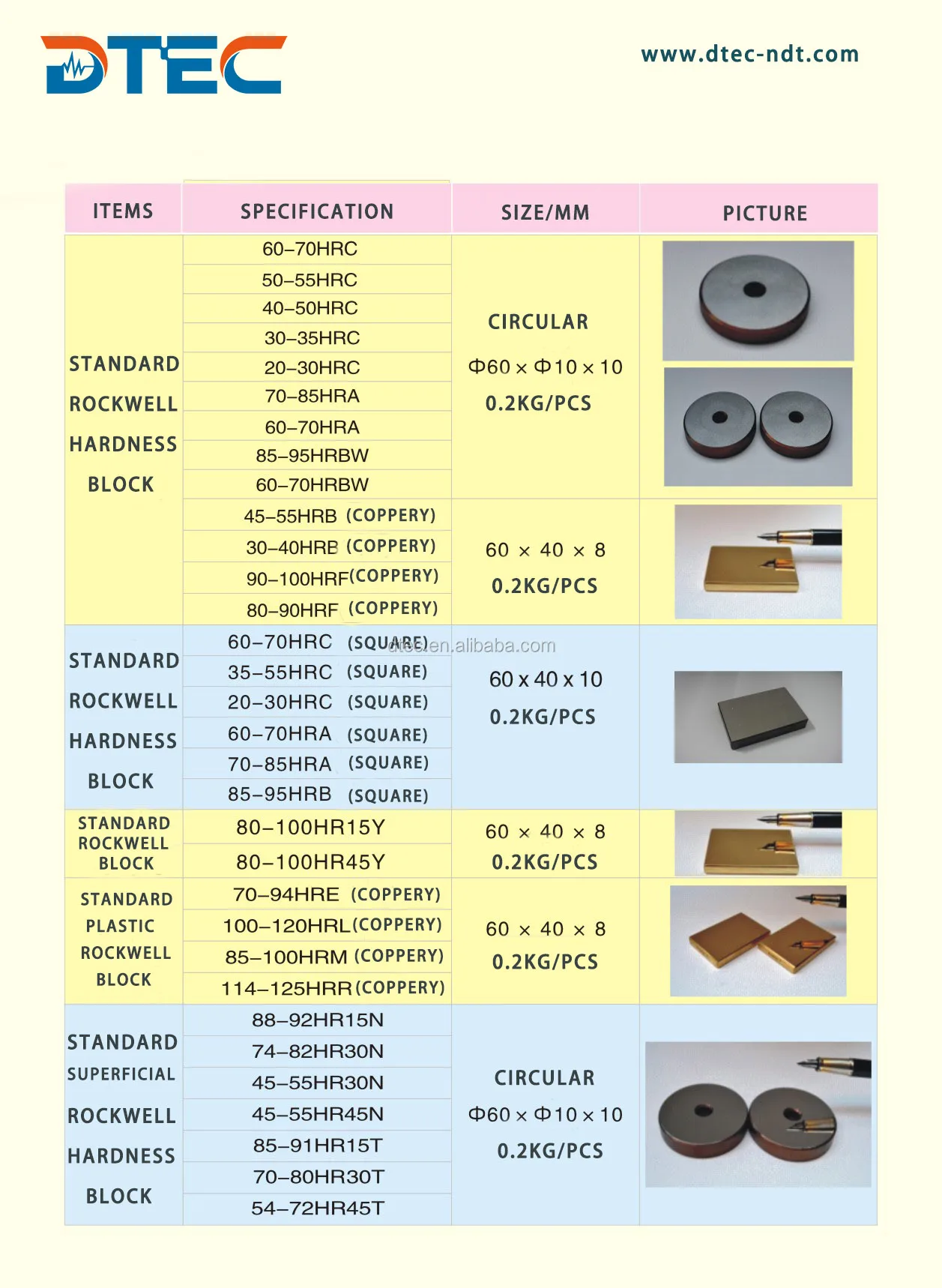

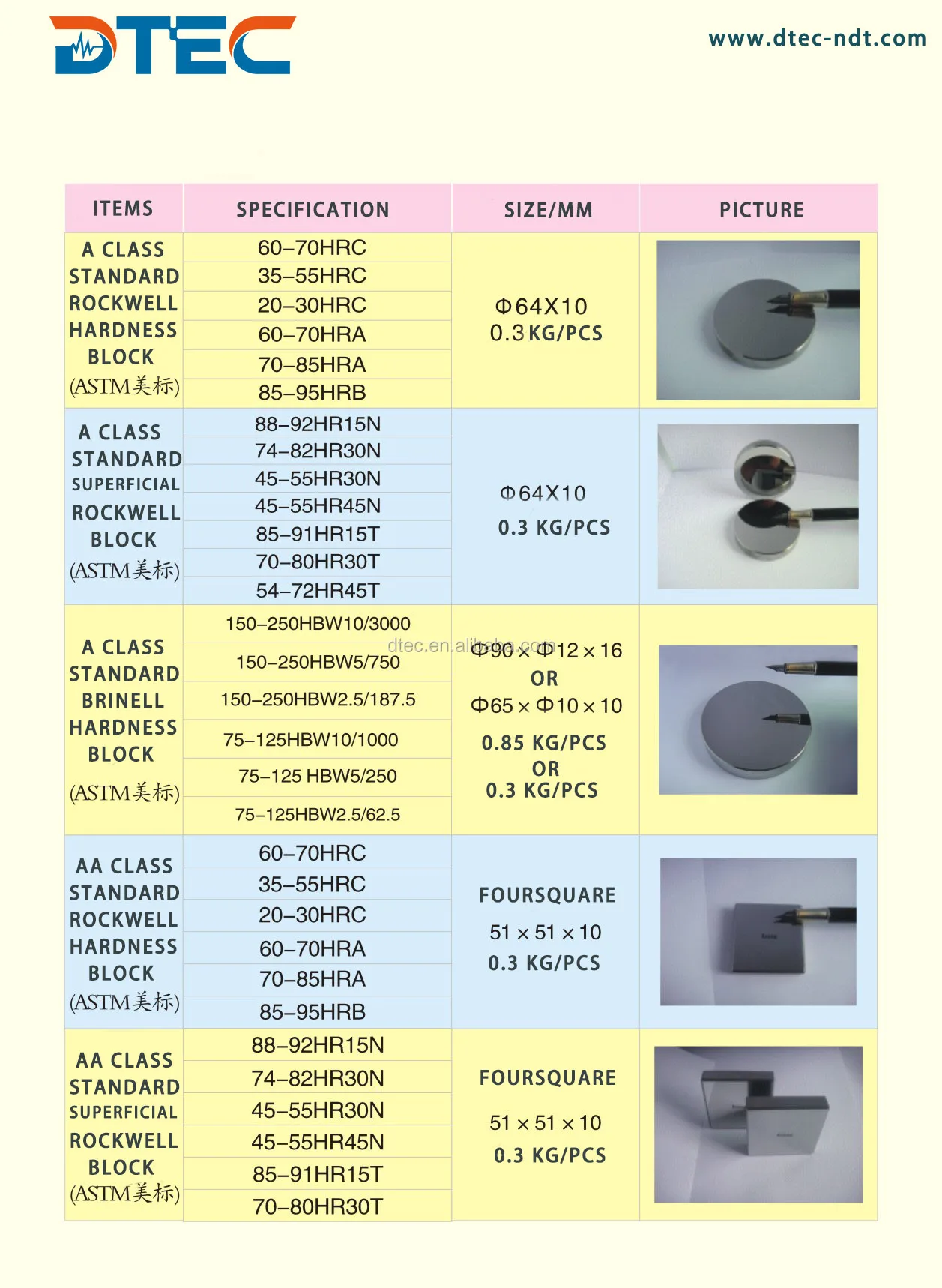

Standard Blocks
5
Big,Medium,V Type Testing Platform
1 each
Power Cable
1
Movable Testing Platform
1
Objective
2
Manual Book
1

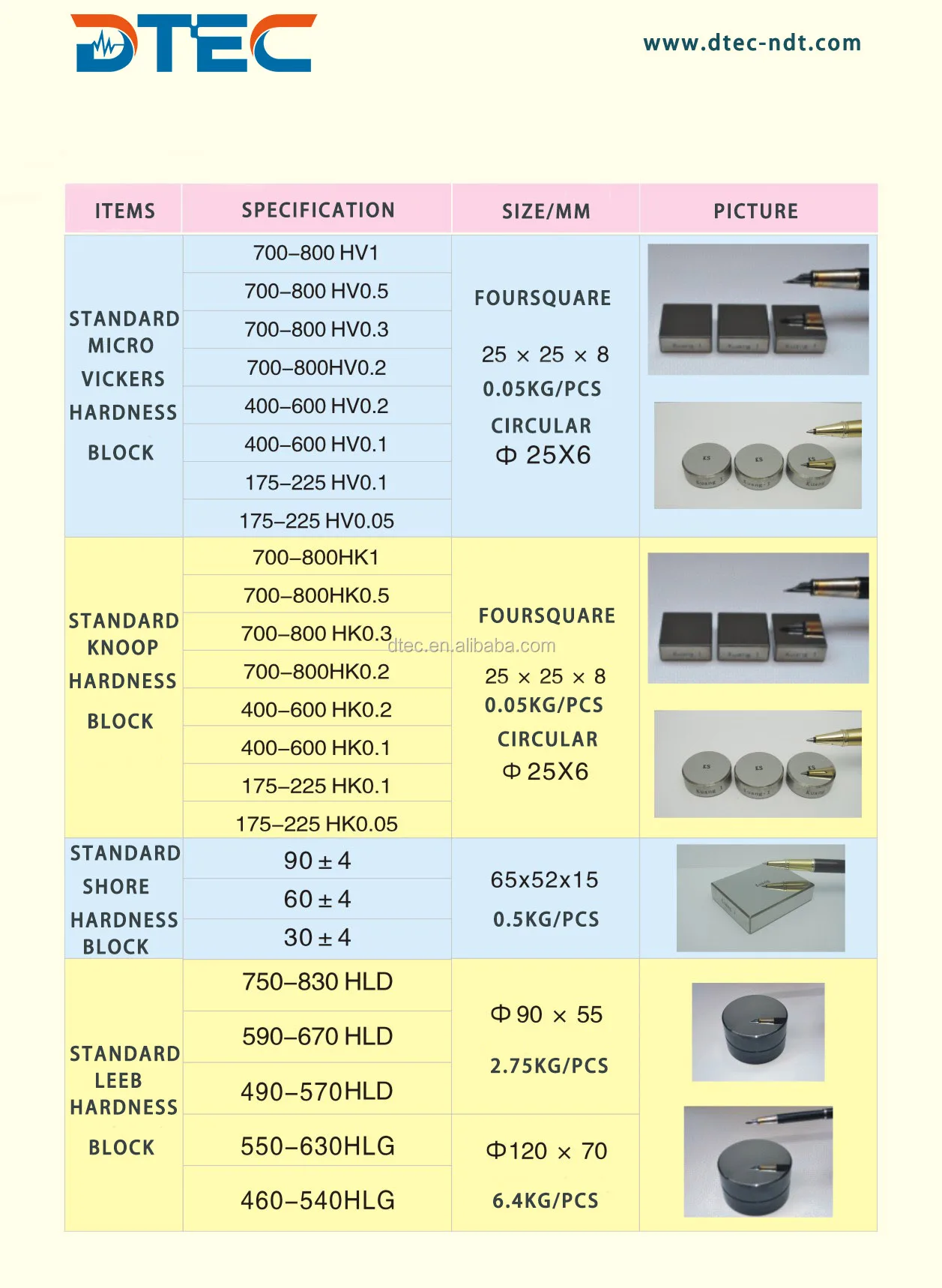

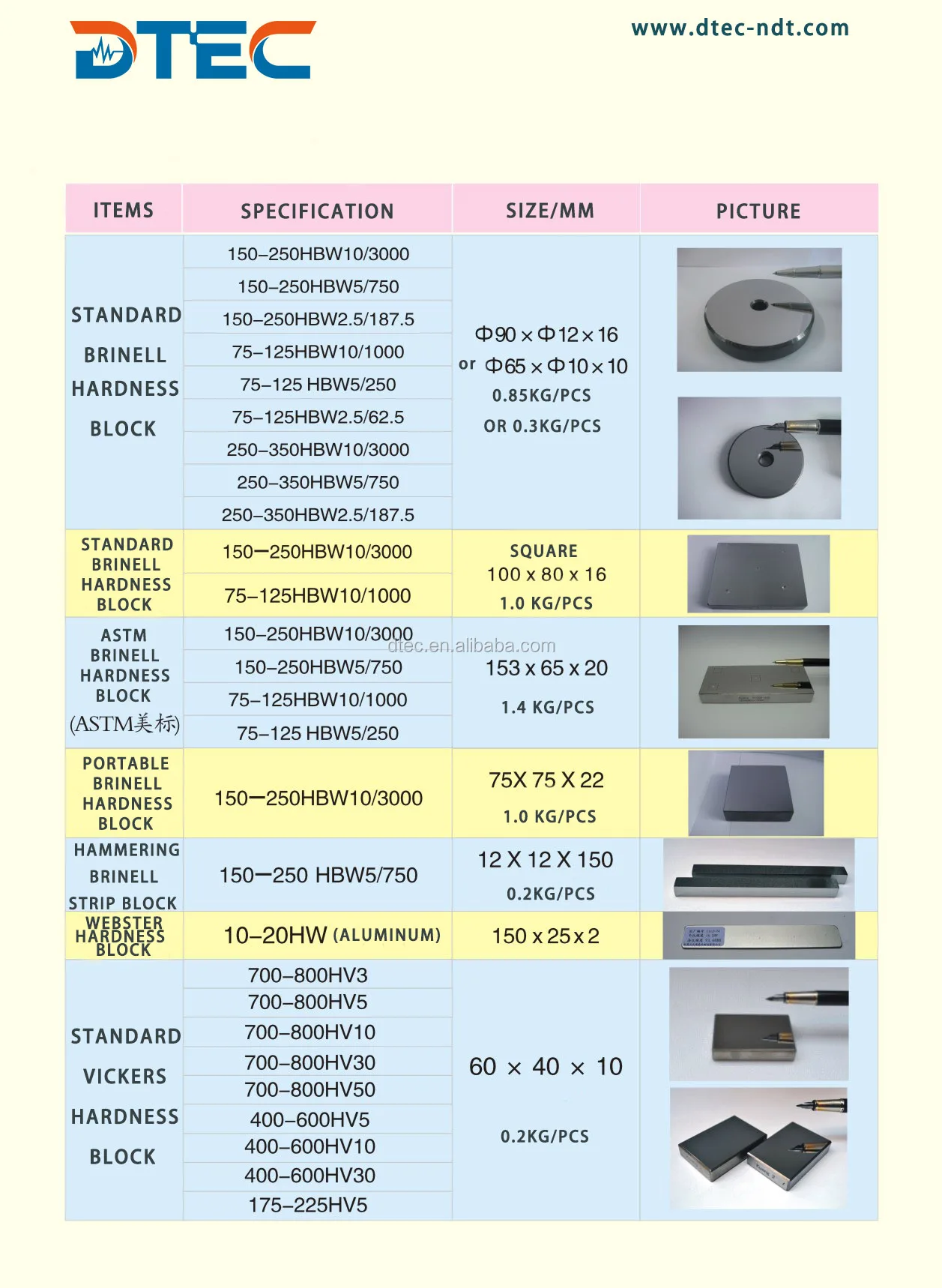

Optional Accessories:

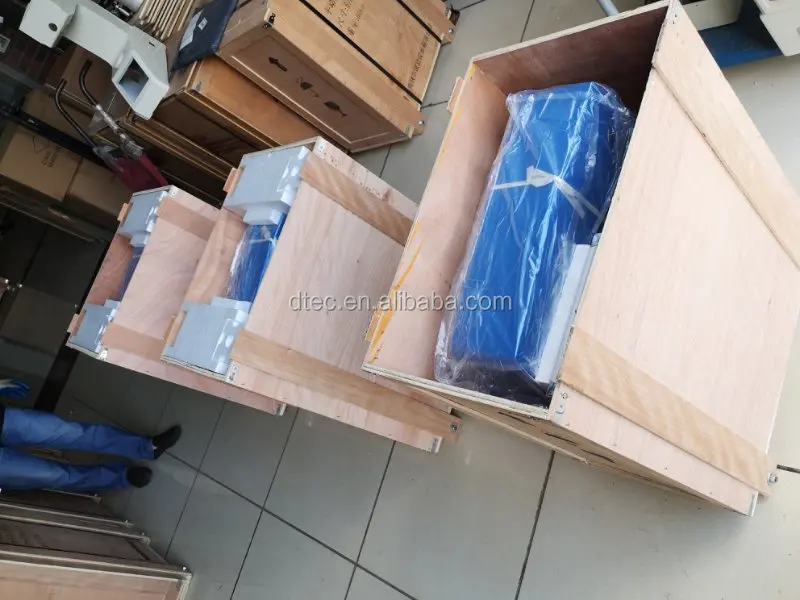

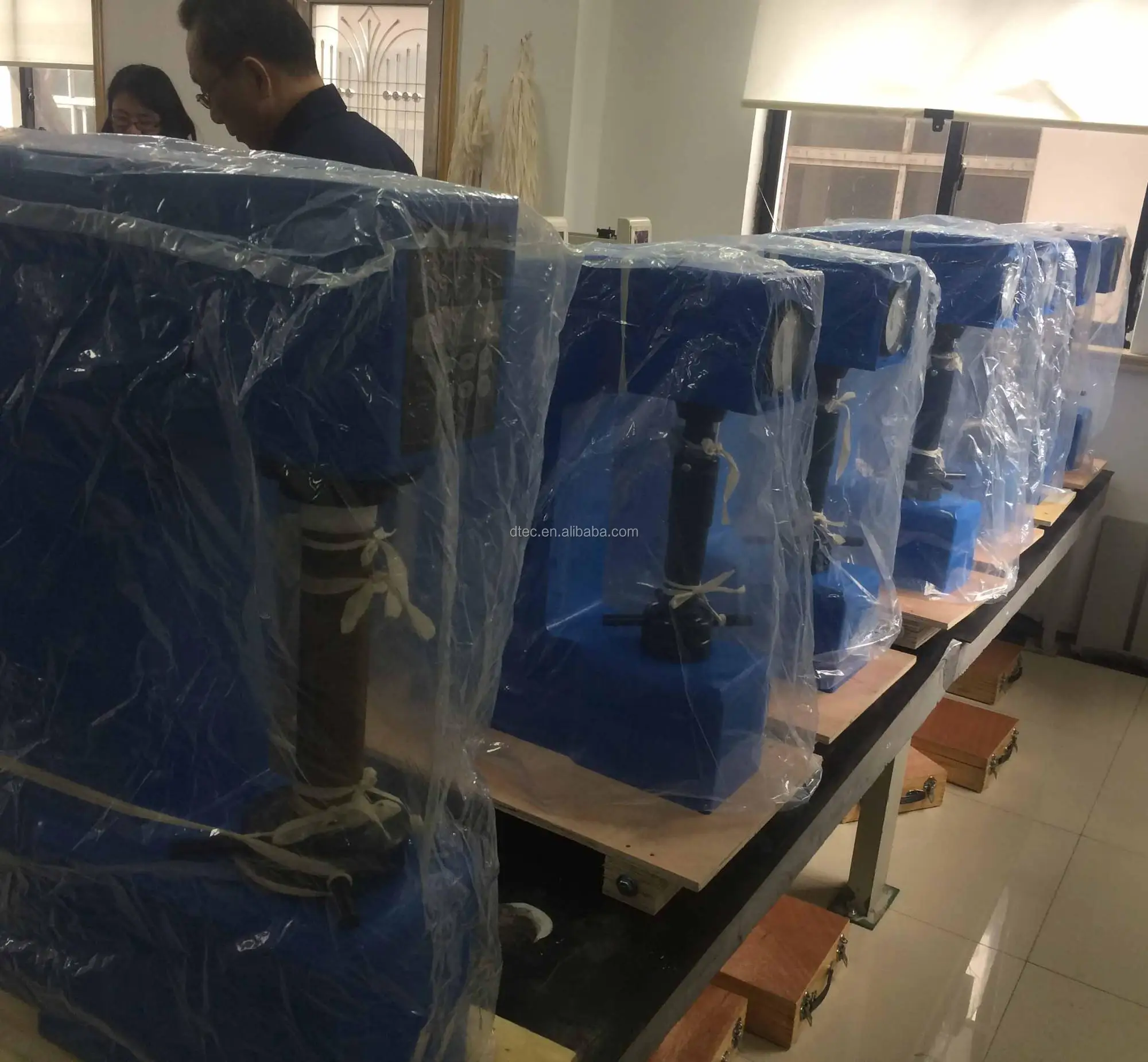

Packaging & Shipping

Every set of our equipement will be carefully tested and double checked steps by steps before being packed and delivery,as we all know that among such fierce international competition,only 100% good quality and stable performance can finally attain the customer's trust.Hence,we will always put the equipment calibraton job in the first place while manufacturing.

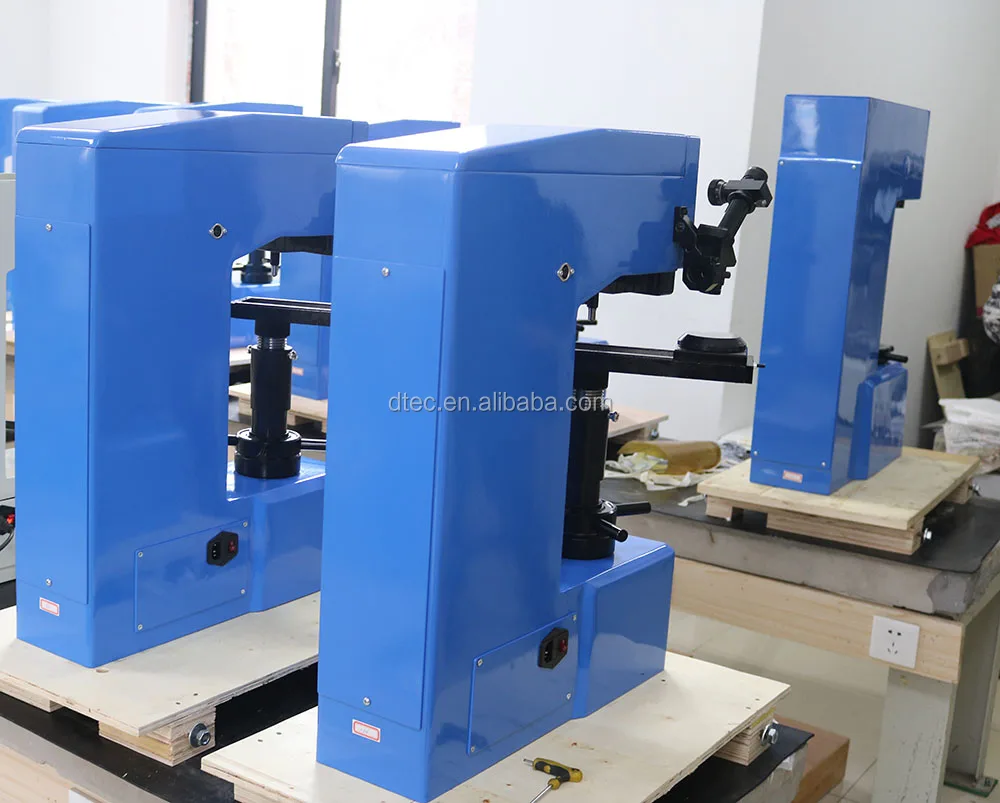

Production Line

We are orginal manufacturer of desktop hardness tester in china,we have own production worshop which contains the full manufacturing procedure,from the beginning of hardness test shell forging and welding,to the processing of spars parts such as main bearings,weights,testing platesm,all these manufacturing procesure is devided into several different sections as see below pictures:

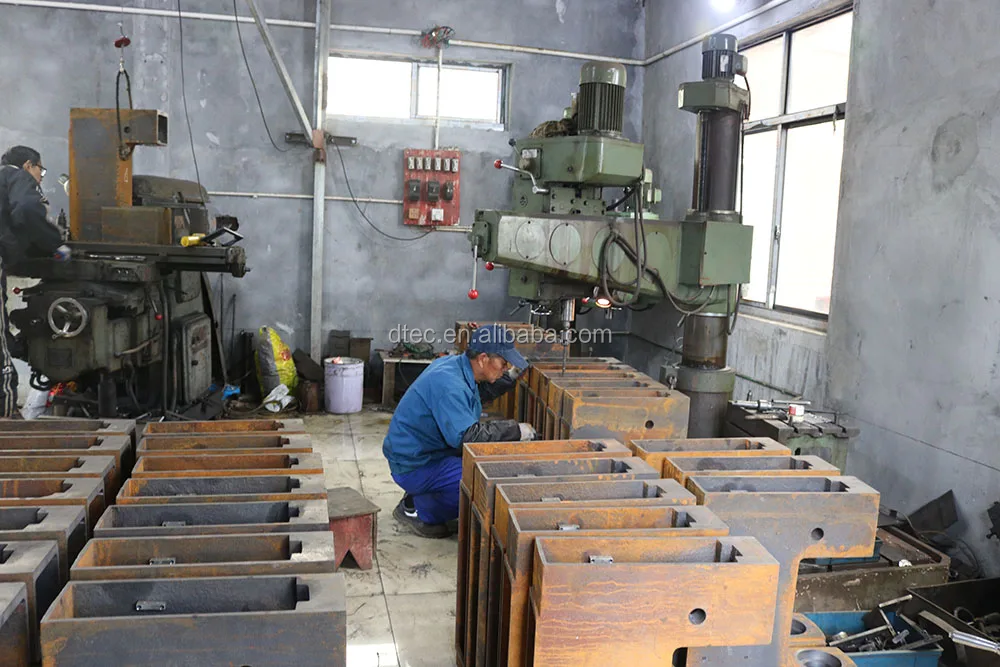

Processing of Hardness Tester Shell(sheet metal):

.jpg

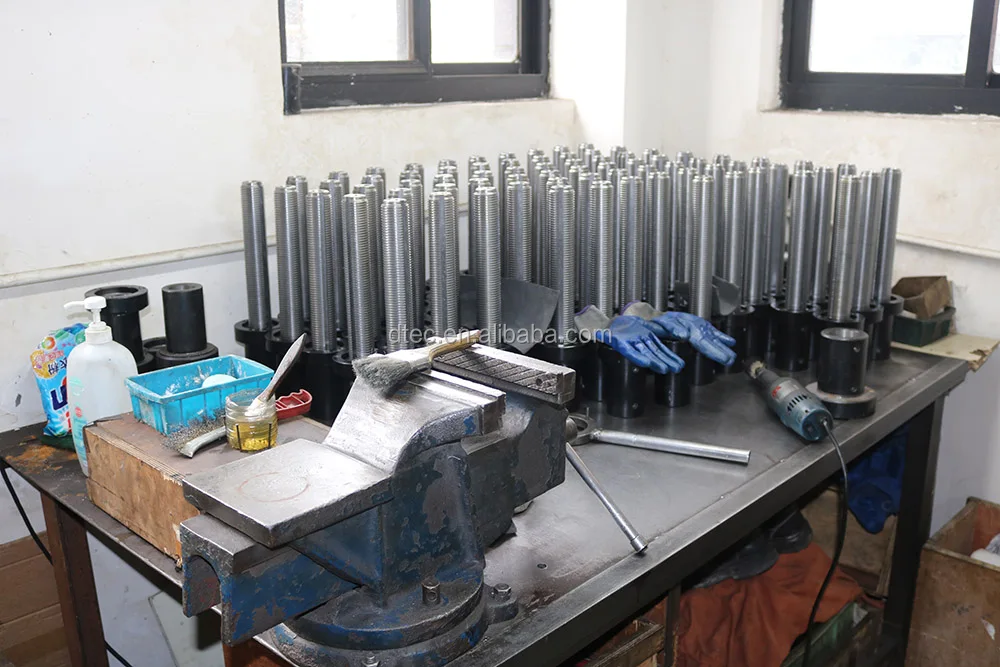

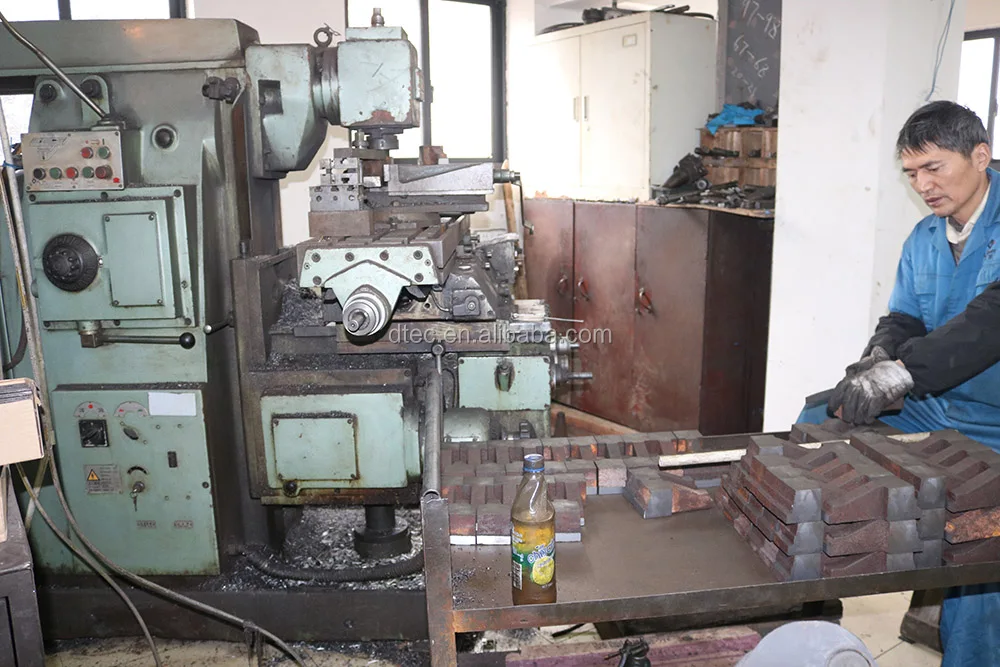

Processing of main bearings:

.jpg





.jpg

After-Sales Service
  • 36 Months Quality Warranty from the day customers receive our goods;
  • Offer customer video of machine installment,handle,operation if they need;
  • If neccessory,we can provide on site adjustment and installment;
  • Lifetime Technical support and solution offered by means of vedio,telephone call,or remote assistance via teamview;
  • Free supply certain spare parts within warranty period;
  • Free offer customer machine trainning in our factory,help to book hotel and air ticket in advacne;
  • Arrange considerate and 100% satisfed customer entertainment for coming visitor.
