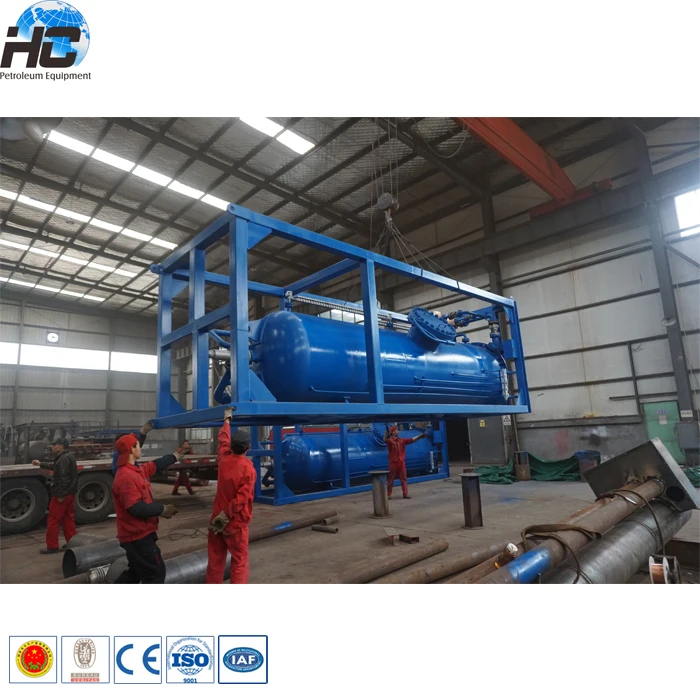

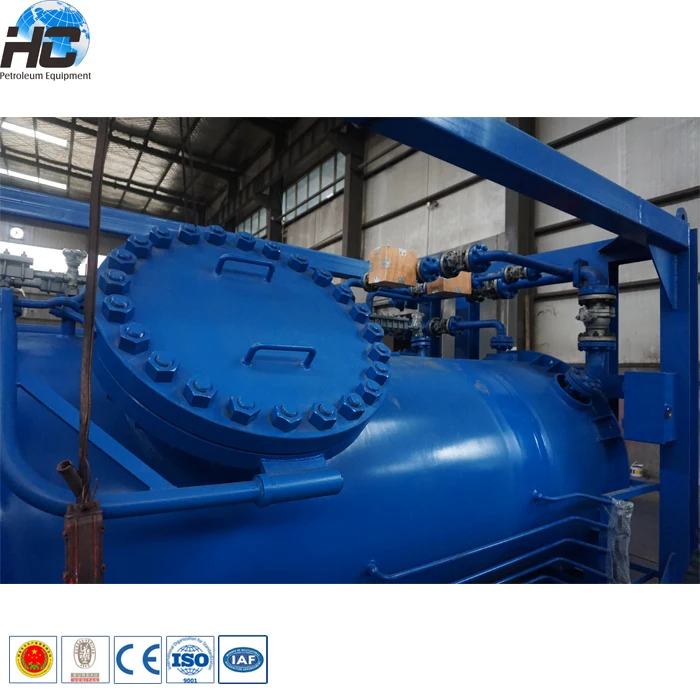

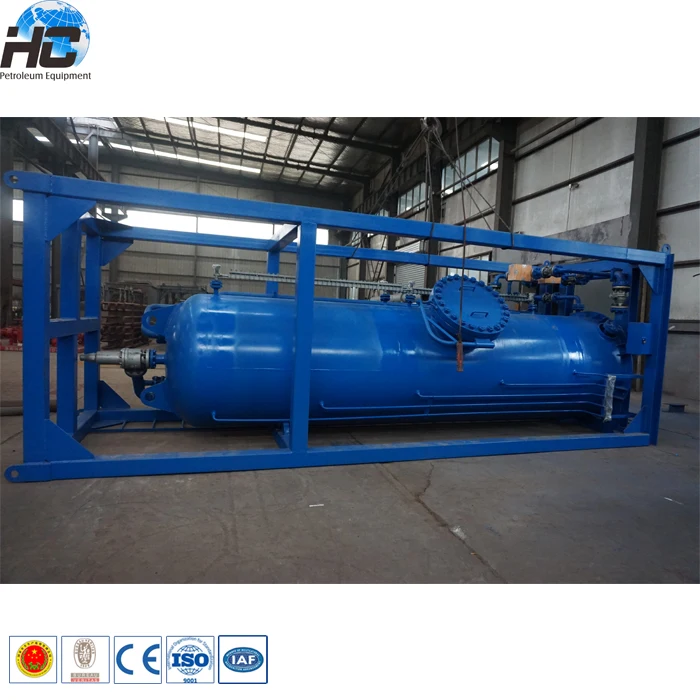

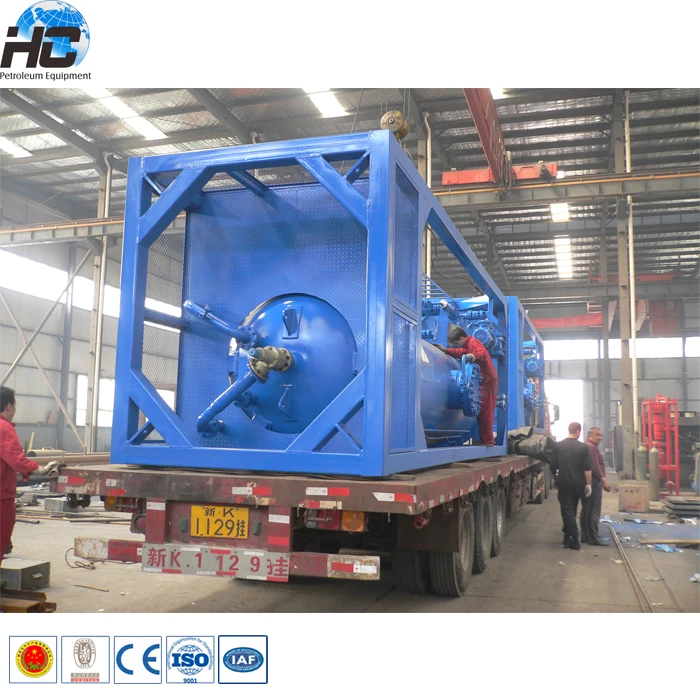

ASME U stamp buffer tank / well test  buffer tank manufacturer from China






Product Description

Buffer storage is a service vessel designed to store liquid hydrocarbons after separation. It is used to verify the accuracy of the oil flow gauge of separator, measure oil output, and further proceed separation from the crude oil which is separated from the separator in oil or gas field with poisonous gas.


buffer tank51.jpg





Technical parameters of our ASME U stamp buffer tank / well test  buffer tank manufacturer from China :

































Handling capacity
/bbls(M3)



Working pressure
/psi(bar)



Working temperature/℉(℃)



Inlet and outlet thread type



Weight
/lbs(kg)



Dimension  H*L*W /ft(m)



2×50
(16)



50(3.5)



 -20/100
(-29/38)



2'' / 3''fig602 inlet
2'' / 4'' fig602 outlet
4'' fig206 t gas outlet
4'' fig 206 release outlet
2'' fig206 relief outlet 2''150#spare top



14300(6486)



18.8×9.9×8
(5.7×3×2.5)



2×50
(16)



150(10.3)



  -50/250
(-45/21)



4'' fig 602 inlet
4'' fig602 outlet
6'' fig206  gas outlet
6'' fig 206 release outlet  2'' fig206 relief outlet
3'' 150 # spare top



17000(7711)



  18.8×9.9×8
(5.7×3×2.5)






buffer tank55.jpg





buffer tank56.jpg





Feature of our ASME U stamp buffer tank / well test  buffer tank manufacturer from China  as below:





• Single or dual compartment
• Sight glasses or magnetic level indicators
• High-level and low-level alarm system
• Automatic pressure-control valve normally open on gas outlets
• Fitted with sampling points and pressure and temperature ports
• Protected against overpressure by relief valves
• Shock-protected by a outer frame




buffer tank43.jpg

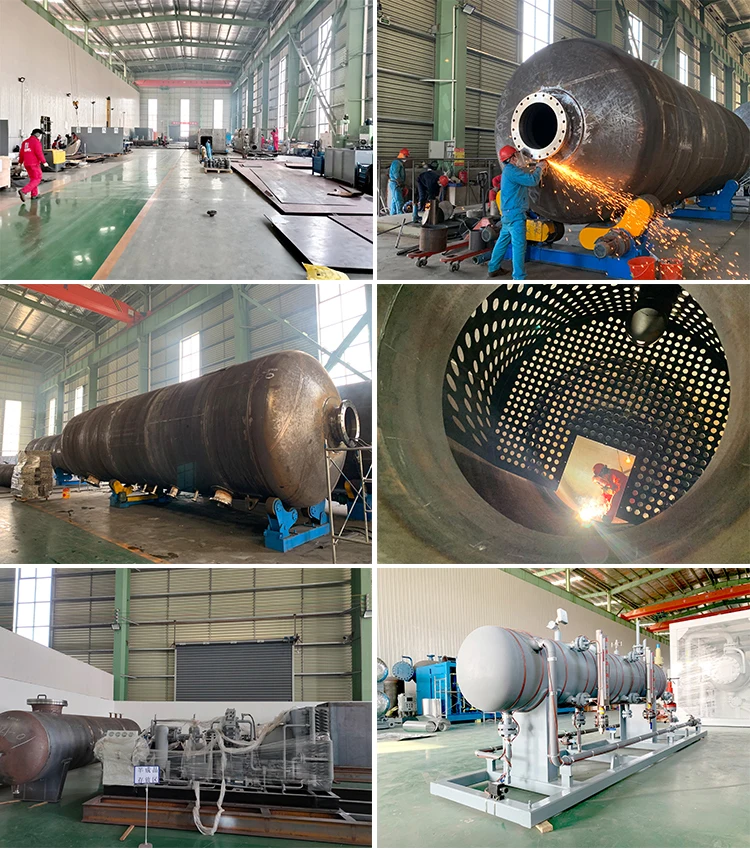

Company Information


company profile.jpg certification 750.jpg












Our Services


our service.jpg





Related Products


We design ,manufacture and sell  a series of well testing equipments, welcome customization of multiple configuration, sizes, and pressure ratings to meet individual customer needs.























Contact Us


 Any question or interest about our ASME U stamp buffer tank / well test  buffer tank manufacturer, please don't hesitate to contact with us. It's our honor to help and support your business.








Just send your inquiry in the textbox below!
