\t\t\t\t\t\t\t\t\tProduct Introduction \t\t\t\t\t\t\t

Nickel Cadmium  Battery

Industrial battery Alkaline battery series is equipped with a regulated valve to keep its pressure in a suitable limit, it also prevents the electrolyte from absorbing the CO2 in the air. This ensures the battery not need to replace the electrolyte during the operation. The battery is characterized with long life, strong construction, low self-discharge, wide operating temperatures , high reliabilities and resistance to over change and discharge. The batterys maintenance interval may be 1-4 years at the various float charge voltages.

Specifications:

1.Stable Quality

2.High Reliability

3.Sealed Construction

4.Low Self Discharge


Features:

1.Stable Quality.

2.High Reliability

3.Sealed Construction

4.Long Service Life, Float or Cyclic

5.Low Pressure Venting System

6.Maintenance-Free Operation

7.Low Self Discharge

8.Heavy Duty Grids

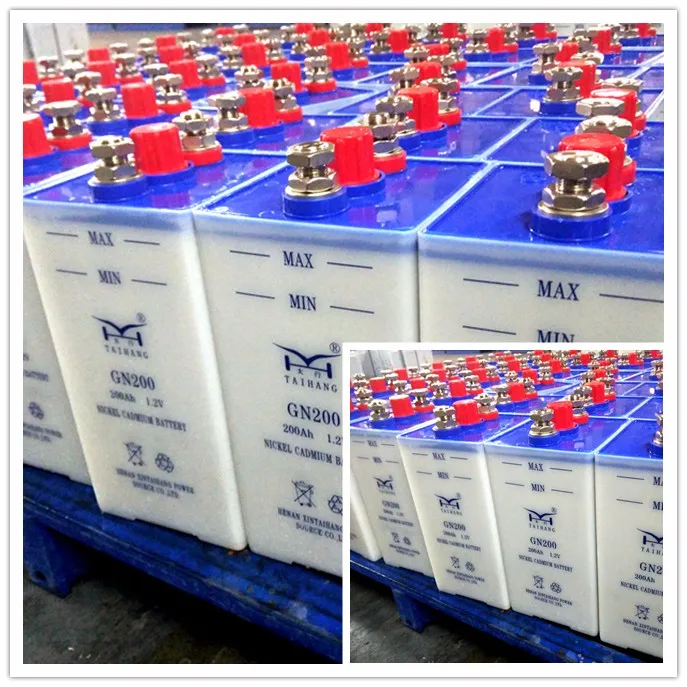

Battery picture
\t
Item
\t
Normial Voltage
\t
Rated Capacity
\t
Maximum Dimension (mm)
\t
Weight(kg)(with electrolyte)
\t
Screws of terminals
\t
Container Material
\t
GN 200 or KPL 200
\t
1.2V
\t
200AH
\t
167*162*343
\t
13.0KG
\t
M20*1.5
\t
ABS






\t\t\t\t\t\t\t\t\tProduct Feature \t\t\t\t\t\t\t

Good performance of discharge
Charge/discharge efficiency: 80% Max. discharge current to 3CA.


Strong resistance to overcharge/overdischarge
Constant voltage charging or constant current charging.Not damage the batteery if full discharge.


Good flame retardancy
It adopts flame retardant engineering material and has high reliability.


Large range of working temperature
It is ok to discharge by constant current in -18° to +50°.


High safety performance
Wih the design of two safety valve , the container explosion won’t accur. At the same time, the water can be added at any time to prolong the service life of the battery, and the service life is the longest.


Long service life
The plate is box type so that nickel plated steel belt coated with active material inside. The active

material does not fall off and no corrosion, therefore, the actual service life is more than 30 years in floatcharging usage.


Strong structure
The container is made of PP or ABS material .


Low rate of self discharge
The teminal of batteries are are using nickel plated metal parts, and the connection between batteries are using nickel plated bridge plates. So the internal resistance is small.

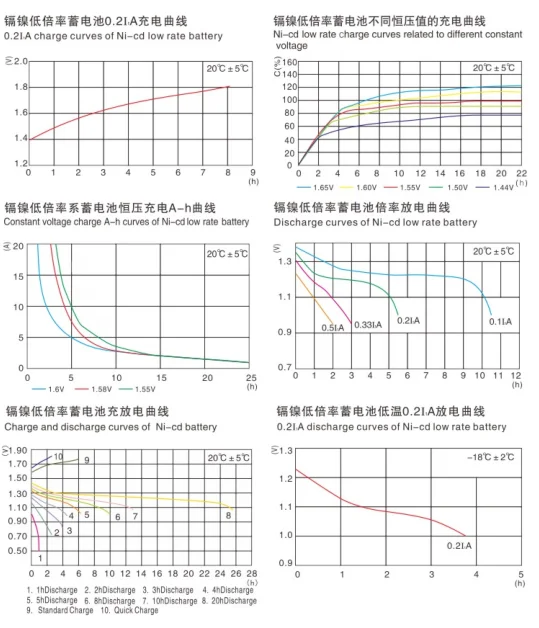

\t\t\t\t\t\t\t\t\tBattery Parameters \t\t\t\t\t\t\t



Comparison with Lead Acid Battery



Charge

Initial charge
The new battery which stored for more than 6 months
should be charge at 0.2C5A for 12hours, then discharge
at 0.2C5A to 1v/cell. Repeating above charge and
discharge for 3-5 cycles. If the discharge duration isn’t
less than 5hours and the battery voltage isn’t less than
1v/cell, the battery can be put into operation according
to normal charge.

C5 means the output capacity of the battery discharged
to cut-off voltage at 1.0V with 5 hours rate at 20°C.
Namely-norminal capacity
Under normal circumstances, the battery should be
charged by normal rate (0.2C5A). In the case of
emergency, the fast charge method ( 0.5C5A ) can be
used . The battery must be charged at n ormal rate
(0.2C5A) for 12 hours when it is overcharged.

\t
Charge Regime
\t
Charge Current
\t
Charge Duration
\t
Reference Temperature
\t
Normal charge
\t
0.2C5A
\t
8
\t
25±5°C
\t
Overcharge
\t
0.2C5A
\t
12
\t
Fast Charge
\t
0.5C5A
\t
4

Discharge

Please choose the discharge method according to the following table.

\t
Discharge Method
\t
Discharge Current
\t
Discharge Cut-Off Voltage
\t
Discharge Duration
\t
1 hours
\t
1 C5
\t
≥0.5
\t
≥1h
\t
2 hours
\t
0.5 C5
\t
≥0.7
\t
≥2h
\t
3 hours
\t
0.33 C5
\t
≥0.9
\t
≥3h
\t
5hours
\t
0.2 C5
\t
≥1.0
\t
≥5h
\t
8 hours
\t
0.125 C5
\t
≥1.1
\t
≥8h
\t
10 hours
\t
0.1 C5
\t
≥1.1
\t
≥10h
\t
20 hours
\t
0.05 C5
\t
≥1.15
\t
≥20h
\t\t\t\t\t\t\t\t\tBattery Structure \t\t\t\t\t\t\t
Positive Plate

High prosity nickel plated metal belt coating NiOOH
active material. Forming the positive plate by 40ton
pressure. This plate is strong , corrosion resistance,
low internal resistance and not easy off power.


Negative plate

High prosity nickel plated metal belt coated FE3O4
active material. Forming the positive plate by 40ton
pressure. This plate is strong , corrosion resistance,
low internal resistance and not easy off power.

Battery Container

Flame retardant and high strength ABS or PP
material container. Sintered plates with good
strength and shock resistant vibration. It is
easy to watch the level of electrolyte.


Electrolyte
Alkaline KOH or LiOH mixed electrolyte. It is suitable
for high or low temperature.

Terminal

The terminal is made of metal material. There is
electroplated corrosion resistant nickel coating
on surface. The structure is external screw thread.
Nut is six angle flat type. This kind of structure lower
the Ohmic resistance, and make the battery suitable
for different current discharging.



Accessories
