Cheap VMC Mini CNC Vertical Machine Center with ATC VMC740
Product Description
1.Cheap VMC Mini CNC Vertical Machine Center with ATC VMC740 is with linear guideways on X,Y,Z axes.
2.The tool magazine can beTaiwan round disc type tool magazine or drum type tool magazine with capability 16 tools;
3.The spindle is Taiwan 8000rpm spindle, and ballscrew is Hiwin ballscrew.
VMC740
Table size
mm
920x400
T slot no./width/distance
mm
3/14/120
Max. load of worktable
kg
300
Longitudinal travel
mm
700
Cross travel
mm
400
Vertical travel
mm
500
spindle nose to table surface
mm
120-620
spidle axis to column surface
mm
425
Spindle taper
BT40
Speed Range
rpm
40-6000
Max.spindle torque
N.M
26.3/48(Servo)
spindle motor power
kw
5.5
cuttiing feed X/Y/Z
mm/min
1-10000
rapid feed X/Y/Z
m/min
30/30/24
tool magazine capacity
qty
16
tool magazine type
drum type
Max. dimension of tool
mm
Φ80/130x300
Tool changing time (tool-tool/cut-cut)
sec
3/7
positioning accuracy
mm
±0.005/300 JIS
repeat positioning accuracy
mm
±0.003 JIS
overall dimensions(LxWxH)
mm
2180×2052×2600
N/W
kg
3200

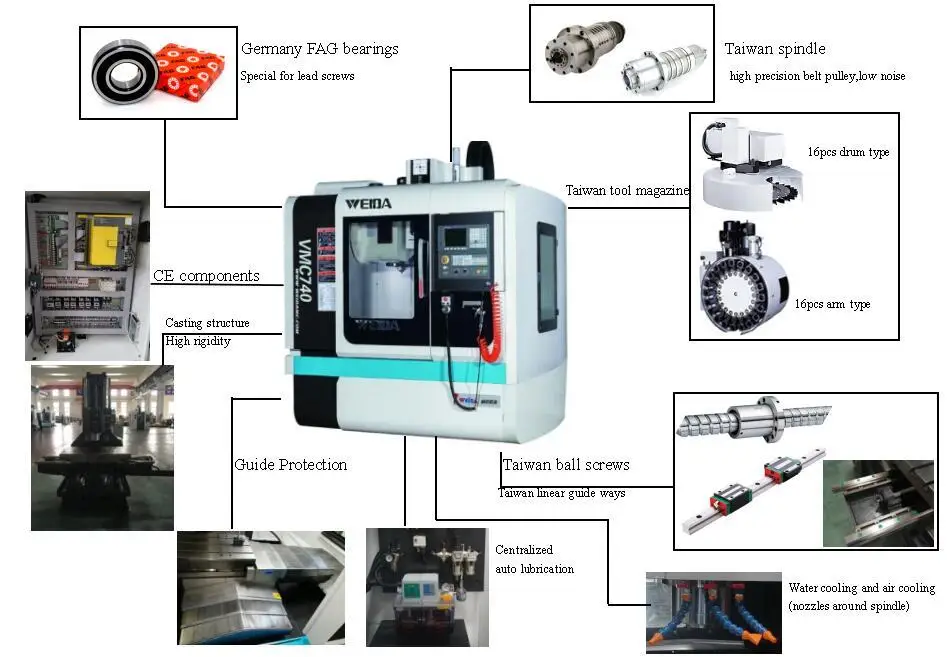

Detailed Images
Cheap VMC Mini CNC Vertical Machine Center with ATC VMC740 is a newly developed mini type CNC machining center. which has fully enclosed guard, automatic tool
change function, automatic lubrication system and cooling system.It has SINUMERIK ,FANUC system and so on. The structure of whole machine is reasonable, and quality of machine is reliable. It is suitable for auto,internal combustion engine,textile machinery, chemical industry, petroleum, electron and other industry.
Quality Inspection
We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine, Shanghai C N C gantry guide rail grinding machine, Beijing C N C gantry type boring milling machine and automatic powder coating line .Besides, C N C machine tool project laboratory with advanced testing equipments is built for quality control.
Packaging & Shipping
Our package for the machine is plywood case, this is the case without fumigation. To European market, all the wooden case should be fumigated. Our package is very convenient. And for customers, it can save a lot fumigation cost. The package is suitable for sea transportation.
Inside our package, to protect the machine well, we will use plastic cover to protect it which is water proof. And for Cnc machines, besides plastic cover, it’s also vacuum packing inside. So do not worry about our package. We will protect the machine well when delivery.
Detail package information as following:
Machine: VMC740 WEIDA fanuc or Siemens cnc controller 3 axis linear guideway cnc vertical machine center
Type of package: Plywood case
Packing dimension: 227x240x255cm
Optional accessories
The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be
equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be
equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can
also choose screw type chip conveyor or chain type conveyor.
You can choose all the optional accessories according to your demand. If you need any other accessories, we can
talk in details, we will try our best to satisfy all your request.
Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams,
molds, connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc.,
for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and
machining center can meet the basic processing requirements
From the moment we recieve your confirmed order,we will begin to arrange the production. First, we will prepare
the castings. We have our own castinng factories,we can make sure its quality.Casting will decide your machine
quality. When the castings are ready, we will process it on large equipments, during the period of processing, our
purchasing deparment will buy other machines that will be used on the machine, such as spindle, tool magazine,cnc controller,and maybe some other optional equipments you need.
Processing equipment
We owns more than 632sets of production equipments, some world famous brand like Germany DMG horizontal
machining center, Germany Trumpf laser cutting machine and bending machine, America floor tye boring machine,
Shanghai cnc gantry guide rail grinding machine, Beijing cnc gantry type boring milling machine and automatic
powder coating line .Besides, Cnc machine tool project laboratory with with advanced testing equipments is built for quality control.
Company Information
Shandong Weida Heavy Industries co., ltd. is a large scale joint enterprise with the right of import&export.It covers an
area 500,000square meters,the building zone is about 350,000square meters,and the total assets is more than RMB500
million, there are 365 engineers and 632sets of production equipment&measuring test instrument in the company.
We are the biggest manufacturer of machine tools in the south of Shandong Province. Our main products have developed
to 8 series:cnc gantry type machining center, XH7132A Factory sales WEIDA precision vertical cnc vmc machine center,cnc milling machine,horizontal boring machine,radial drilling machine,universal knee type milling machine,
vertical milling machine, milling drilling machine,altogether more than 90 specifications.
We also have passed through ISO9001:2008 certification of CQC,and got CE certificate in 2006.
Shandong WEIDA heavy industries Co., Ltd.wish to cooperate sincerely with friends at home and abroad to realize
mutual development.
We have different workshops to produce different machines.For cnc workshop as above, we will produce vertical
Every year we will produce hundreds of machining centers for abroad customers. Our brand is well-known in many
markets. And in every exhibitions in home and abroad, we will avertise them. And we get great effect from exhibition.
For milling machine workshop, we produce conventional milling machine, cnc milling machine. We have more than
15 years experience on conventional milling machines. We have great experience and professional engineers, the
quality for them is good, you can trust.And our brand for conventional milling machine has been popular in abroad
market. We supply the machines to many famous companies, such as Germany KNUTH company, Germany OPTIMUM company, Russia JET company, American companies etc.

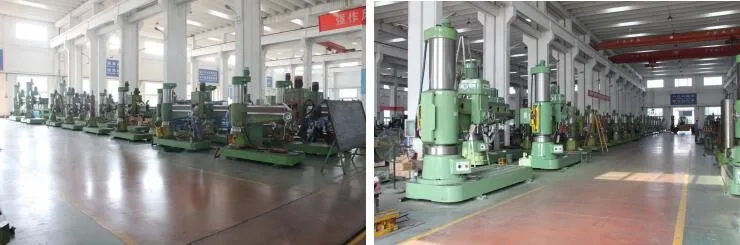

For radial drilling machine workshop, we mainly produce five models Z3032,Z3040,Z3050,Z3063,Z3080.We also
have more than 15 years experience on such machines. We can make sure our machines' quality and supply our
best service. From the castings to machines, we will control every step. We have our own casting factories, we have
also special processing departmemt. Choose our machine, choose our company, we will be your good supplier.
All our machines have been passed CE certification,such as cnc vertical center machine,vertical machiningcenter,drilling machines etc.. Besides, we also have ISO9001 certificate. Our company complies with
Europeanstandard. We always export our machines to European market,such as Poland, Russia, Italy, Germany,America etc.
Every year, there will be many customers from different countries to visit us. Some of them are our regular customers. We meet with each other as good friends and talk about our cooperation for next year. Some customers are our potentional customers, they visit us to see our factory for future cooperation. Everyone will satisfy with our factory after visiting. Because we are a large manufacturer with good reputation. We have the alibity to supply best machines . So we warm welcome for everyone's coming. After visiting, you will trust us.
