SKYLAB eddystone ibeacon Nordic nRF52832 VG02 Dustproof/Waterproof Indoor Positioning BLE Beacon
Product Description
VG02 is a Bluetooth Beacon device. Bluetooth Beacon is a broadcasting protocol which is based on BLE protocol, also referred to a kind of BLE peripheral device that has this protocol. VG02 as a Bluetooth Beacon device, it is usually placed in a certain place, and it broadcasts its beacon signals like UUID, Major, Minor, RSSI etc. to surroundings continuously, and it can not be entered to the connection state to any BLE central device, the advertising data are arranged according to certain rules .

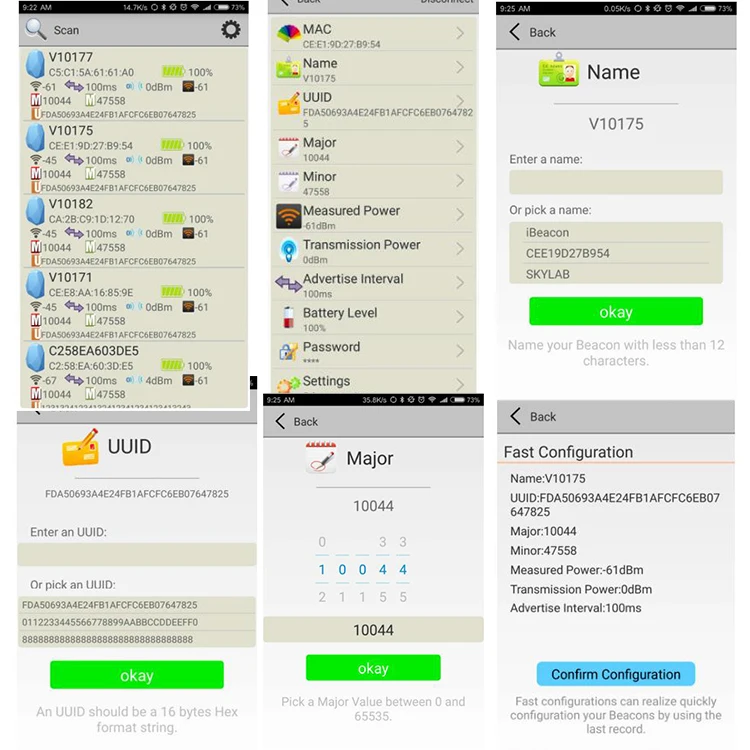

SkyBeacon is a Phone APP for configuring VG02 which is made by Skylab R&D Team. Use this APP to connect to VG02 and modify its parameters such as UUID, Major, Minor, Name and so on. These parameters will be advertised after the VG02 being advertising condition.
| SKYLAB - Bluetooth Beacon | ||||||||
SKYLAB M&C Technology Co., Ltd; www.skylabmodule.com; WeChat/Tel: 008613480657793 Note: Discount offerred base on quantity, please send your Application/Order Quantity/Annual Quantity to get accurate quotation. | ||||||||
| Item No. | Picture | Support | Main Chip | Battery | Transmittion Distance | Battery Lifetime | Program- mable | Note |
| VG01 |
47.5*16.1mm | Eddystone & iBeacon | Nordic nRF51802 | 1*CR2477 | 70m | 20 month @0dBm | UUID Major Minor Device Name etc | - |
| VG02 |

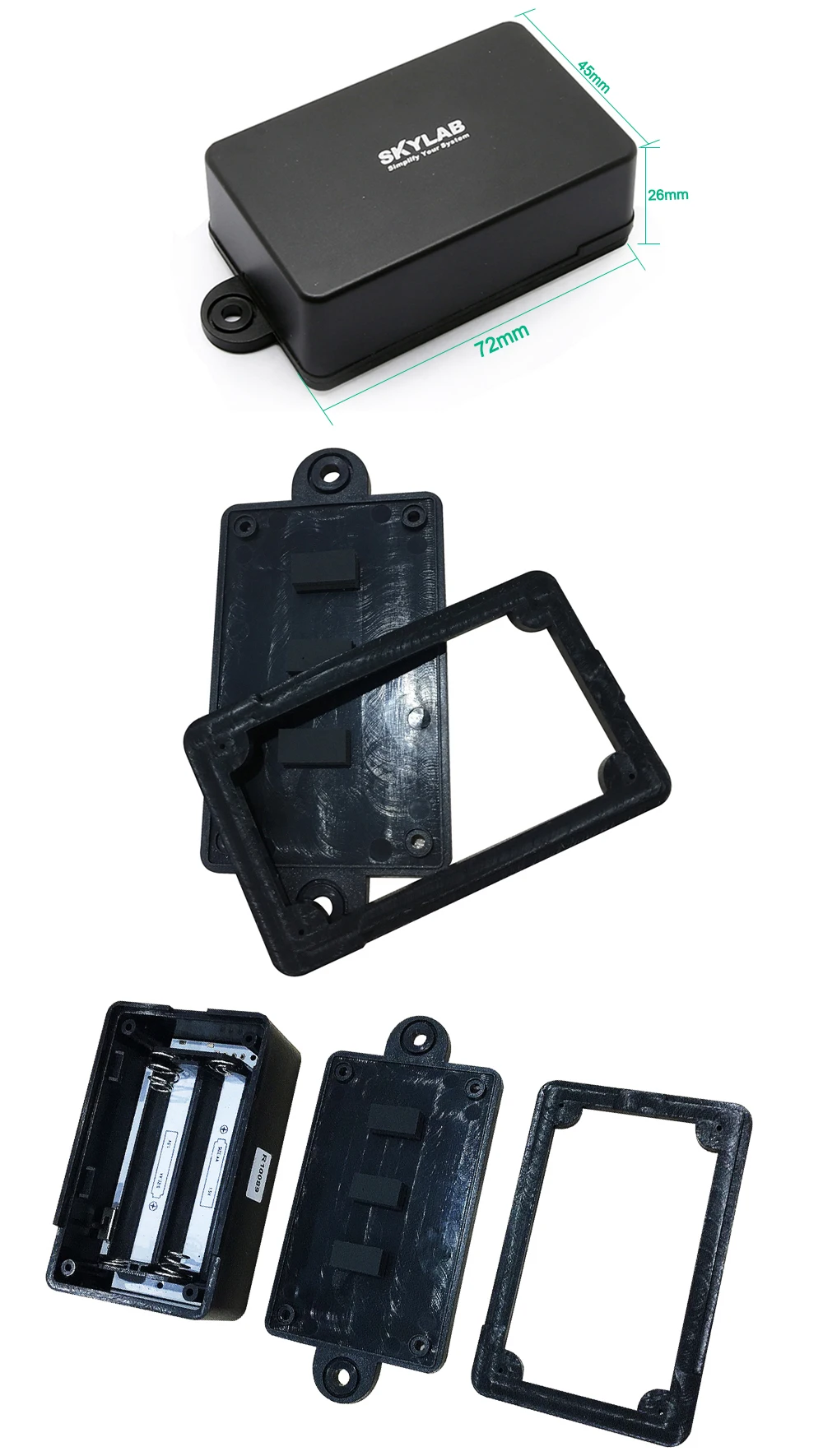

72*45*26mm | Nordic nRF51822 | 2*AA | 95 month @0dBm | Waterproof IP66 | |||
| VG05 |
52.1*23.1mm | Nordic nRF52810 | 2*ER14250 | 160 month @0dBm | ||||
Name:Skylab BeaconDefault Parameters UUID:FDA50693A4E24FB1AFCFC6EB07647825 | Parameters Range Name:1~12 characters. UUID:16 bytes Hex String format Major:0~65535 Minor:0~65535 Advertise interval:100ms~1000ms Measured power:-100~-30dBm Tramsmission power:-30,-20,-16,-12,-8,-4,0,4dBm Password:4 characters |

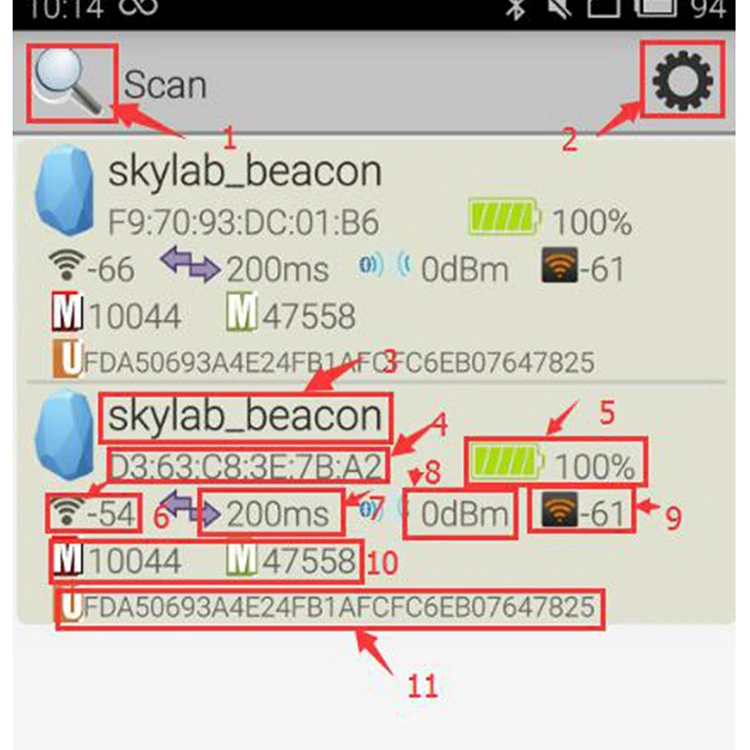

| Connection The Beacon being connected should be happened with a password required action within 30 seconds, so that user get the operation right. Timeout or a wrong password will cause a disconnection from the Beacon. Configure Beacon’s parameters after connection completed, these parameters will be broadcasted when theBeaconbeingadvertising. | APP Main Interface Details 1.Start/Stop scanning icon 2.Settingsicon 3.Beaconname 4.MACaddress 5.Batterylevel 6.RSSIvalue 7.Advertisinginterval 8.Transmissionpower 9.Measuredpower 10.Major&Minorvalue 11.UUID |
More Customer Choice
SKYLAB Team
FAQ
