Миниатюрный электромагнитный клапан 10 мм для вязальной

With solenoid operated for control appropriate flow and direction, provide great performance.

Sturdy body have a long lifespan, perfect for electrically driven pneumatic power control.
*Note: Can be customized according to customer requirements

Features
1). It is available to integrate the direction control valves of the same series to form value group to save space and cost.
2). It is easy to examine ehrn there are faults owning to the unified air intake and exhaust and unified wiring.
3). Flexible combination and strong expansion capability can make any combinationor or expansion of the number of direction control valves that are connected.

Using Environment
1). Fluid: 40 micron filtered air
2). Temperature: 5~50º C

Maintenance Notice
1. Be sure to check up the valve before installation.
2. Before installation, please confirm the voltage connection and direction of the air flow are right.
3. Notice to be dustproof. It is better to install a silencer or speed control silencer in front of solenoid valve.
4. Metal grain, dust and oil stain in pipes and fittings must be washed neatly before connected.

Description:
With solenoid operated for control appropriate flow and direction, provide great performance.
Alloy body have a long lifespan, perfect for electrically driven pneumatic power control.
2 position 5 way with 2 inlet, 1 oulet and 2 exaust.

2 position 3 way with 1 inlet, 1 oulet and 1 exaust.

Feature:

1.Pilot-oriented mode:optional for internal or external;
2.Stucture in sliding column mode:good tightness and sensitive reaction;
3.Three position solenoid valves have three kinds of central function for your choice;
4.Double control solenoid valves have memory function;
5.Internal hole adopts special processing technology which has little attrition friction,low star pressure and long service life;
6.No need to add oil for lubrication;

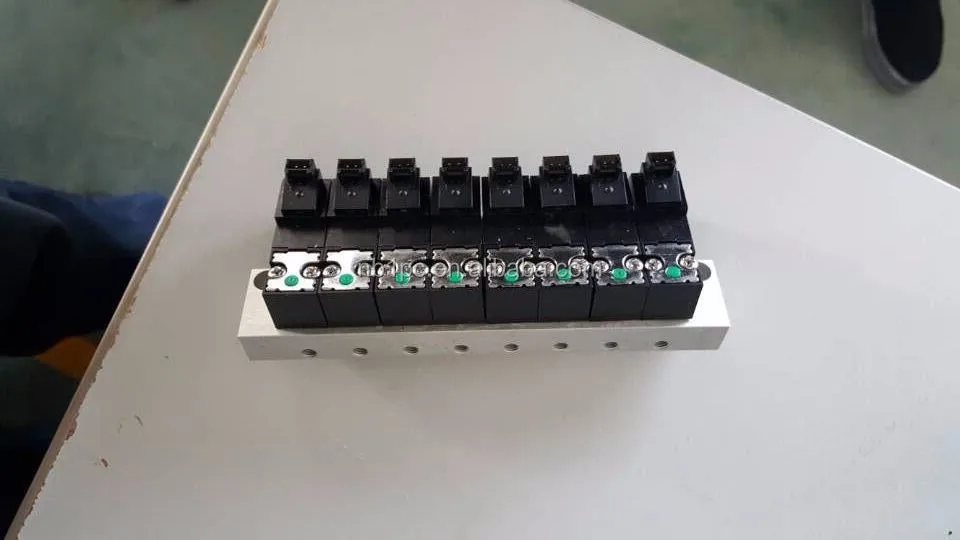

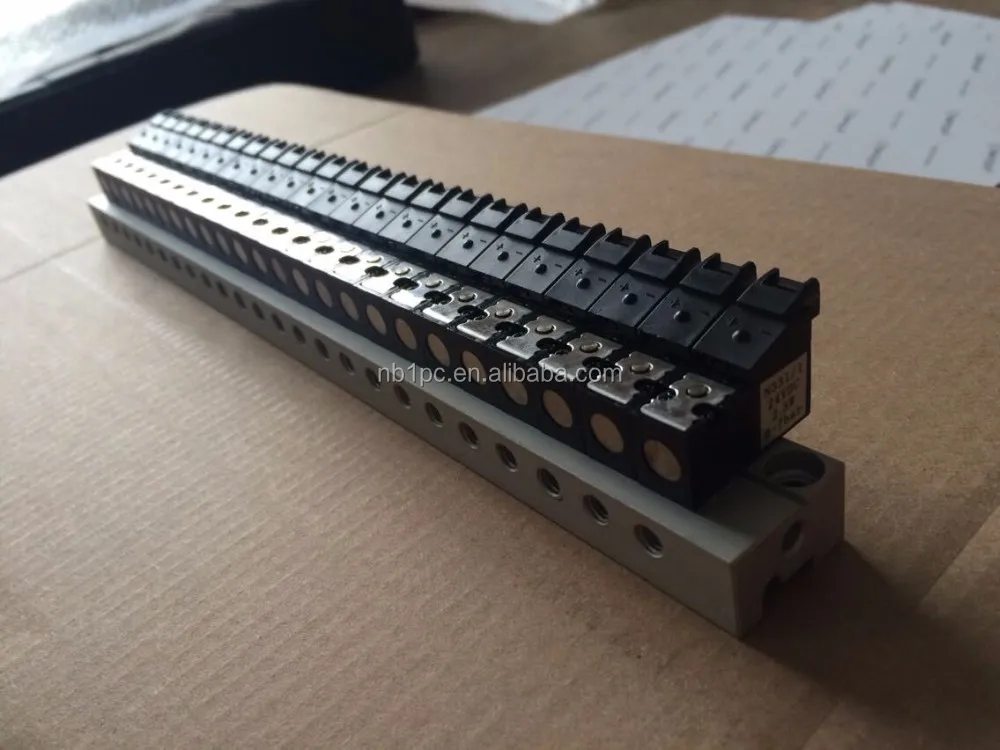

7.It is available to form integrated valve group with the base to save installation space;
8.Affiliated manual devices are equipped to facilitate installation and debugging;
9.Several standard voltage grades are optional.

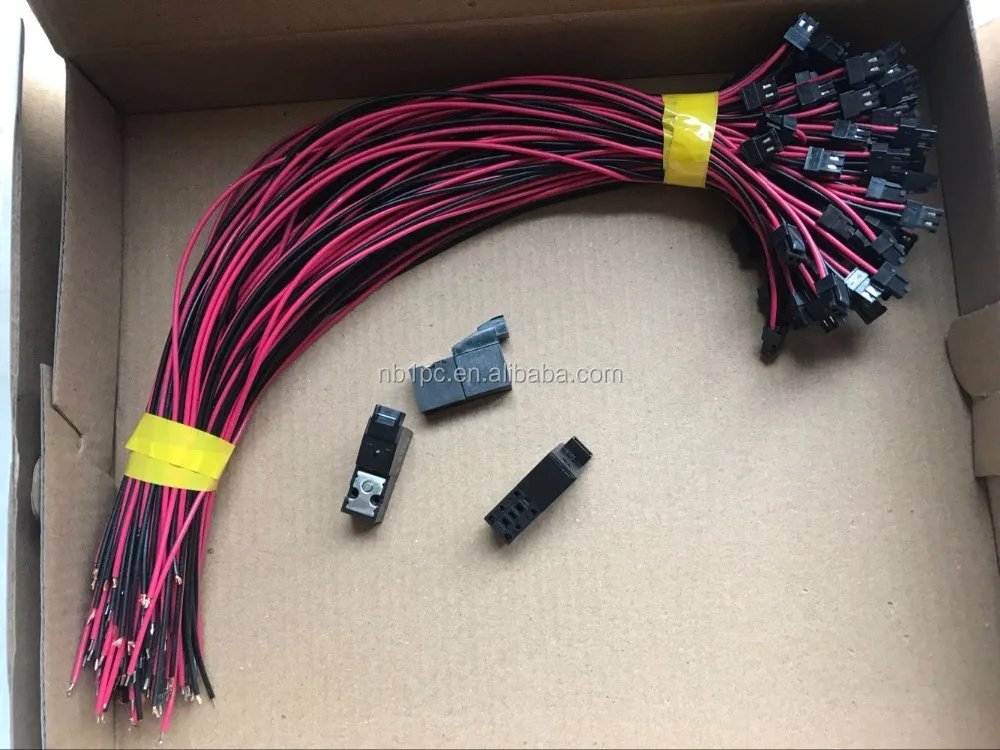

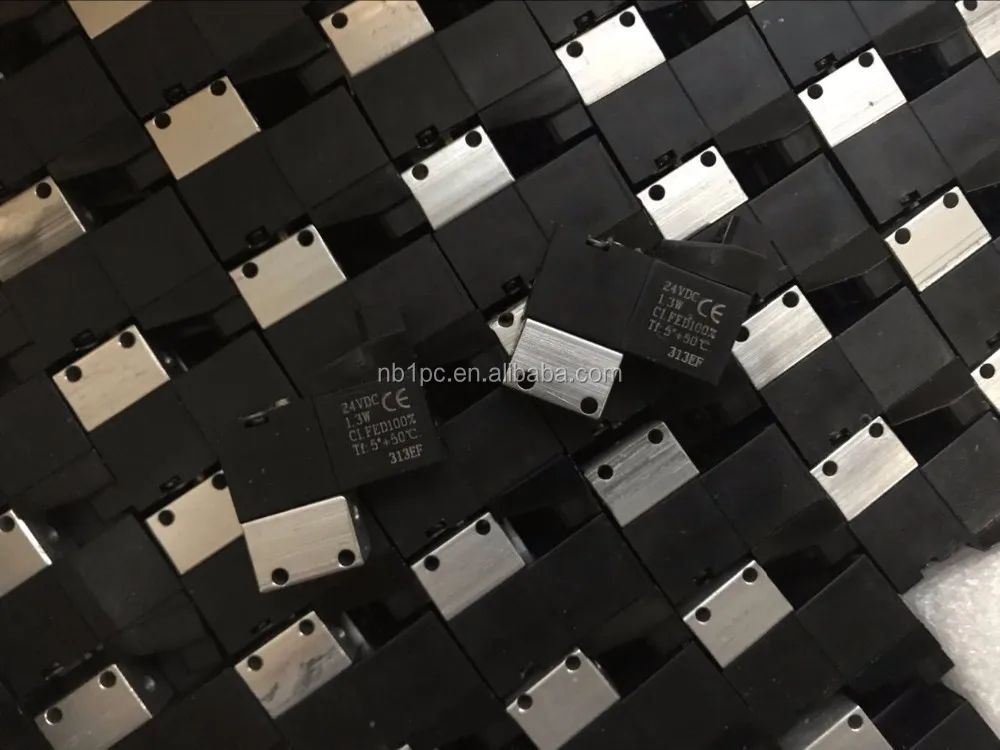

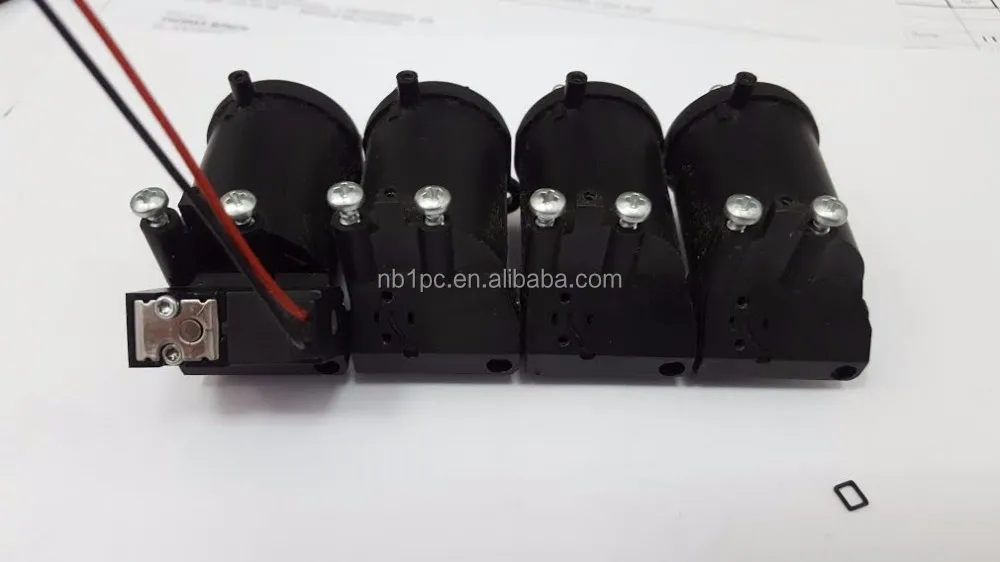

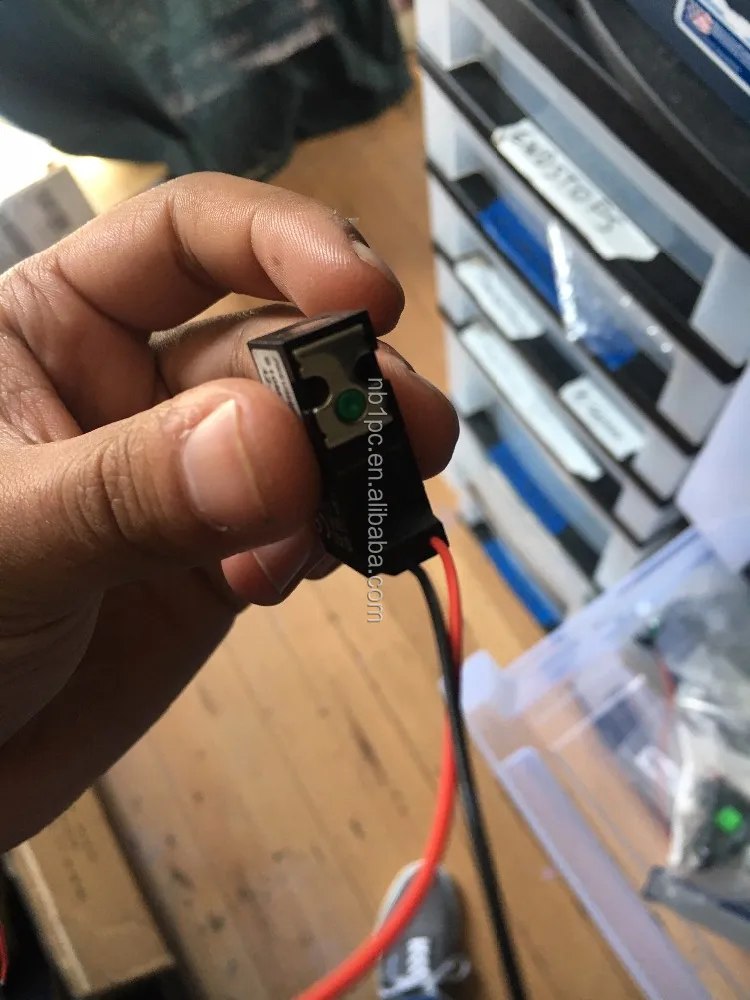

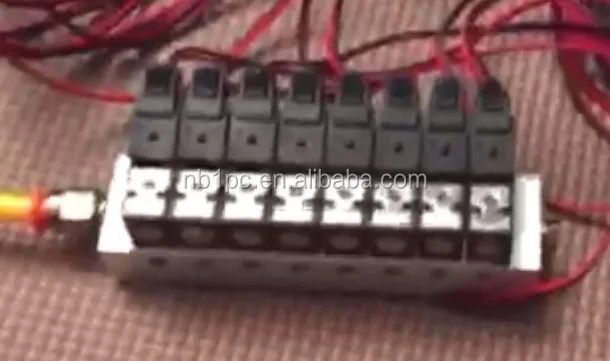

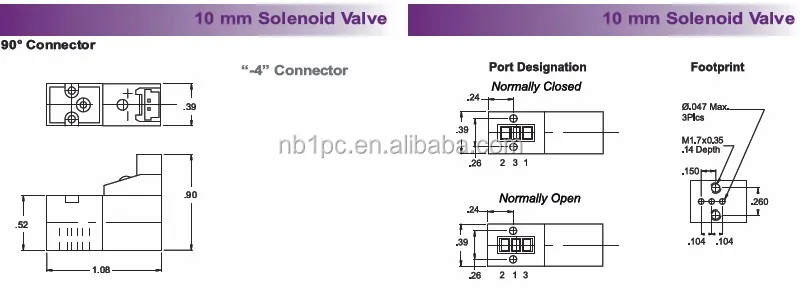

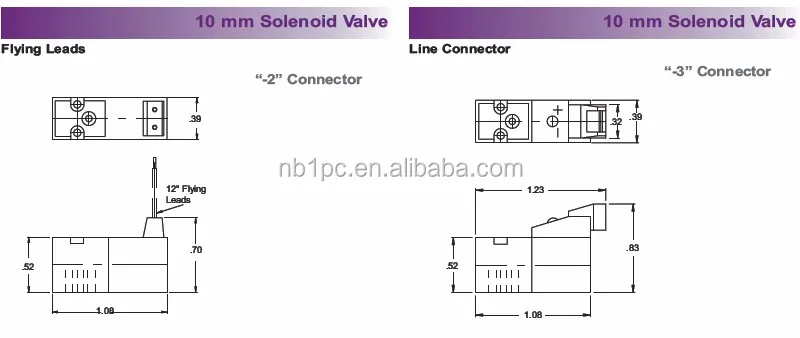

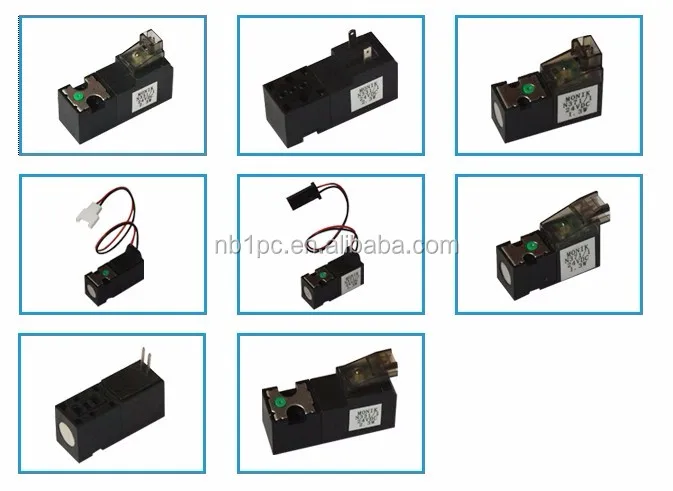

Detailed Images

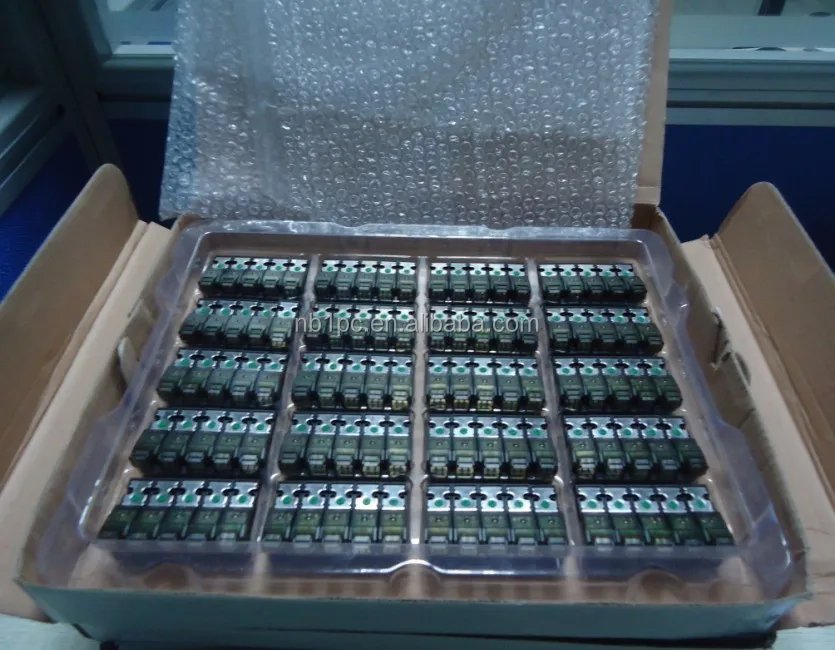

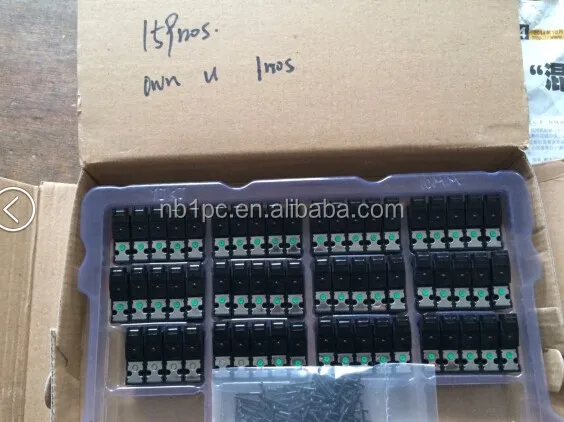

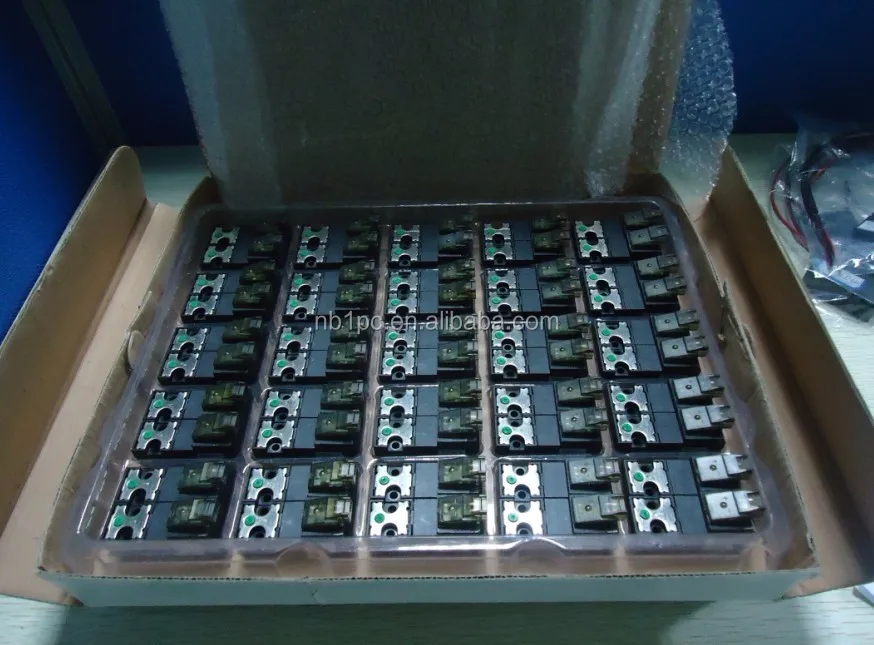

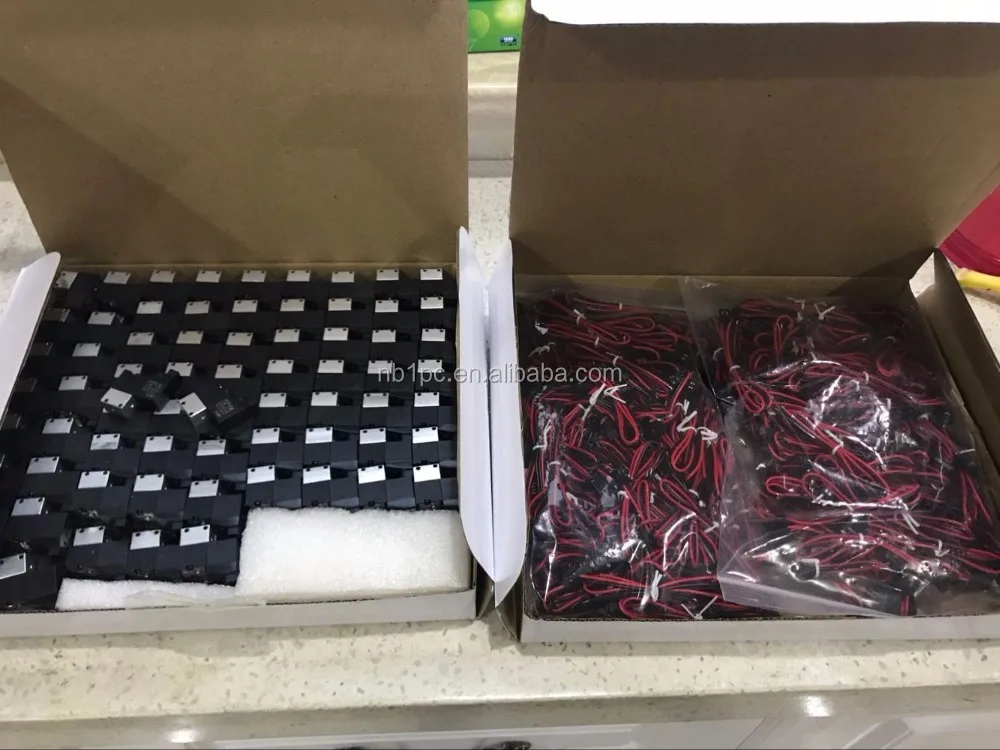

Packing & Delivery
