PRODUCTION DESCRIPTION



Are you worride about your money and quality? Do not worry, the service is not over after shipping the stators. If any issue about product, we will be responsibile for it.



The stator core is assembled by welding, which is punched by stamping die. The stator core can be used in brushless dc motor. As the structure of tooling is fixed, it can only be used to punch the material with 0.5mm. If you think its cost is high, we could make tooling for free if you have big quantity. So it is our advantage. We can design the jig and assemble the cores by ourselves.

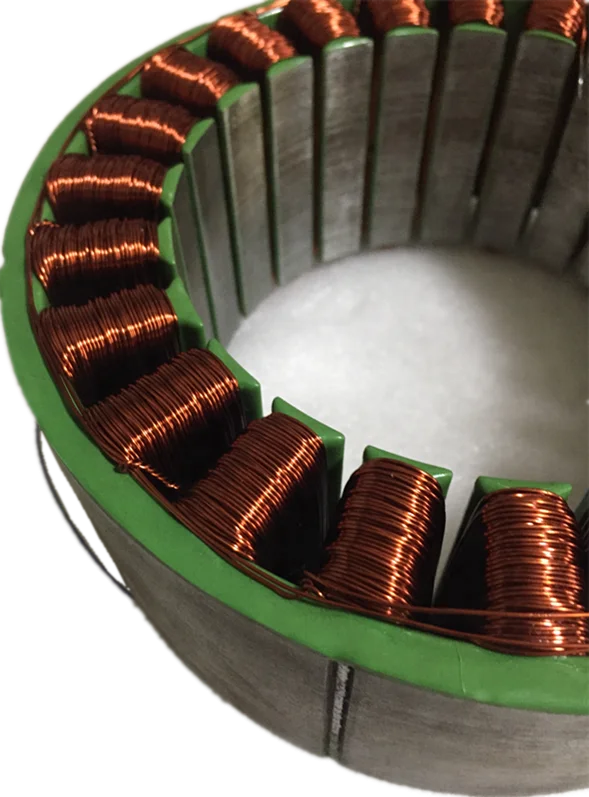

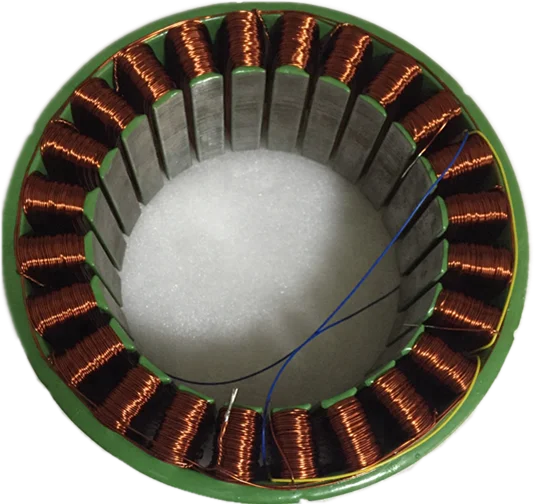

Details pls see below pictures.







OD	ID	Material	Turns of wire	Powder coating thickness	Withstand Voltage	Temperature rating	Wire diameter	Application
200mm	133.5mm	50WW400	140Ts	1.2mm	800-1800V/AC/0.5mA	B, F, H	0.63mm	DC Brushless motor
125.5mm	105mm	304 steel	/	/	/	/	/
