Product Description

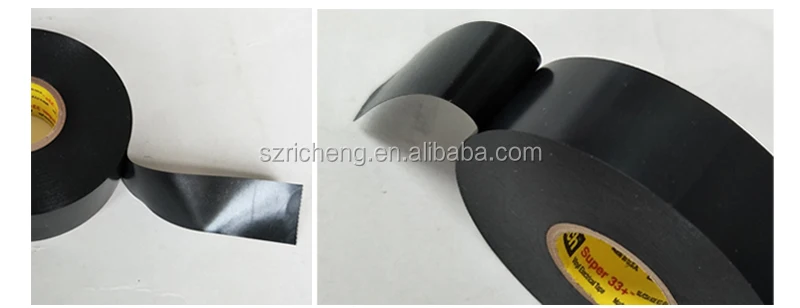

3M Super 33+ Vinyl Electrical Tape
Specifications
Attribute Name | Value |
|---|---|
Adhesion to Steel | 3,0 N/cm |
Adhesive Material | Rubber Resin, The adhesive layer is a rubber-based |
Adhesive Type | Rubber |
Agency Approvals | CSA Certified, UL Listed |
Applications | Electrical Maintenance |
Backing Material | Polyvinyl Chloride, Vinyl |
Backing Thickness (metric) | 0.18 mm |
Brand | 3M, Super 33+™ |
Breaking Strength | 15 lb/in, 27 N/cm |
Chemical Resistant | Yes |
Color | Black |
Dielectric Strength | 1150 V/mil |
Dielectric Strength (V/mil) | 1150, 1150 V/mil |
Elongation | 2.5 %, 250 % |
Elongation at Break | 250% |
Family | 3M® Super 33+™ Vinyl Electrical Tape |
Flame Retardant | Yes |
Insulated | Yes |
Length | 108 Linear Foot, 20 Linear Foot, 36 Linear Yard, 44 Linear Foot, 52 Linear Foot, 66 Linear Foot |
Length (Metric) | 13.4 m, 15.6 m, 20.1 m, 33 m, 6 m |
Material | PVC |
Maximum Operating Temperature (Celsius) | 105 Degree Celsius |
Maximum Operating Temperature (Fahrenheit) | 221 Degree Fahrenheit |
Operating Temperature (Celsius) | -18 to 105 Degree Celsius, Up to 105 Degree Celsius |
Operating Temperature (Fahrenheit) | 0 °F to 220 °F |
Operating Temperature Range (Celsius) | -18 °C to 105 °C |
Operating Temperature Range (Fahrenheit) | 0 °F to 220 °F |
Performance Level | Professional Grade |
Product Family | 3M® Super 33+™ Vinyl Electrical Tape |
Product Type | Vinyl Electrical Tapes |
RoHS 2011/65/EU Compliant | Yes |
RoHS EU Comments | |
Rolls per Carton | 10, 12 |
Rolls per Case | 100, 48 |
Self-Extinguishing | Yes |
Self Sticking/Amalgamating | No |
Shelf Life | 5 Year |
Solution for | Wireless Network: Infrastructure Accessories, Wireless Network: Weatherproofing |
Specifications | ASTM D-3005 Type 1 |
Suitable for High Voltage | No |
Tape Grade | Premium |
Tape Type | Vinyl |
Tape Width (metric) | 19 mm, 25 mm, 38 mm, 50 mm |
Thickness | 7 mil |
Thickness (Metric) | 0.177, 0.177 mm, 0.18 mm |
Total Thickness | 0.18 mm |
Trademark | 3M, 3M® Super 33+™ |
UL File Number | E129200 |
UV Resistant | Yes |
Voltage Application | Low Voltage |
Voltage Rating | 600 V |
Vulcanizing | No |
Width | 0.75 Inch, 1 Inch, 2 Inch, 38 Inch |
Width (Metric) | 19, 19 mm, 25 mm, 38 mm, 50 mm |
Details
- The combination of the pressure-sensitive, rubber-resin adhesive and the PVC backing offers electrical and mechanical protection
- Provides high resistance to UV rays, abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
- Tensile strength rating of 15 lbs. per inch meets professional electrical standards
- Compatible with rubber and synthetic splicing compounds
- Made of black durable PVC
- Withstands a temperature range of 0 to 221 degrees F (-18 to 105 degrees C)
- UL Listed, ASTM Approved, CSA Certified and RoHS 2011/65/EU Compliant
America's #1 professional grade vinyl electrical tape, 3M® Super 33+™ Vinyl Electrical Tape is a premium grade, 7 mil thick, flame-retardant all-weather vinyl-insulating tape for cable splices up to 600V. It is designed to perform continuously between a temperature range of 0–220°F (-18–105°C).
3M® Super 33+™ Tape is an abrasion-resistant tape that offers electrical and mechanical protection with the combination of an aggressive, rubber-resin adhesive and an elastic PVC backing. This tape is highly resistant to UV rays, moisture, alkalis, acids, corrosion and varying weather conditions. It is a ideal choice for providing a protective jacket for low- and high-voltage buses, as well as harness cables/wires. This tape is compatible with solid, dielectric cable insulations, rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins. UL Listed, ASTM Approved, CSA Certified and RoHS 2011/65/EU Compliant
