Instruction:

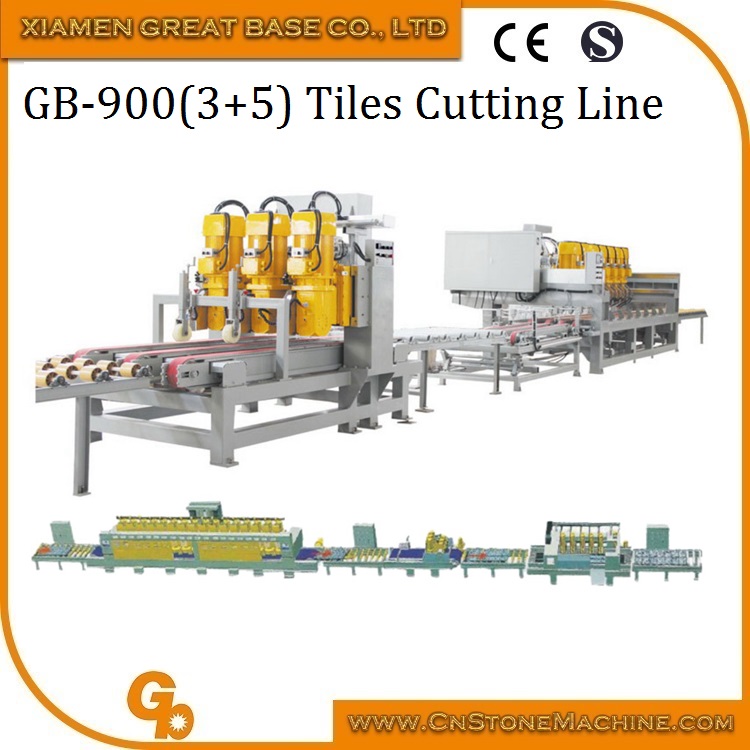

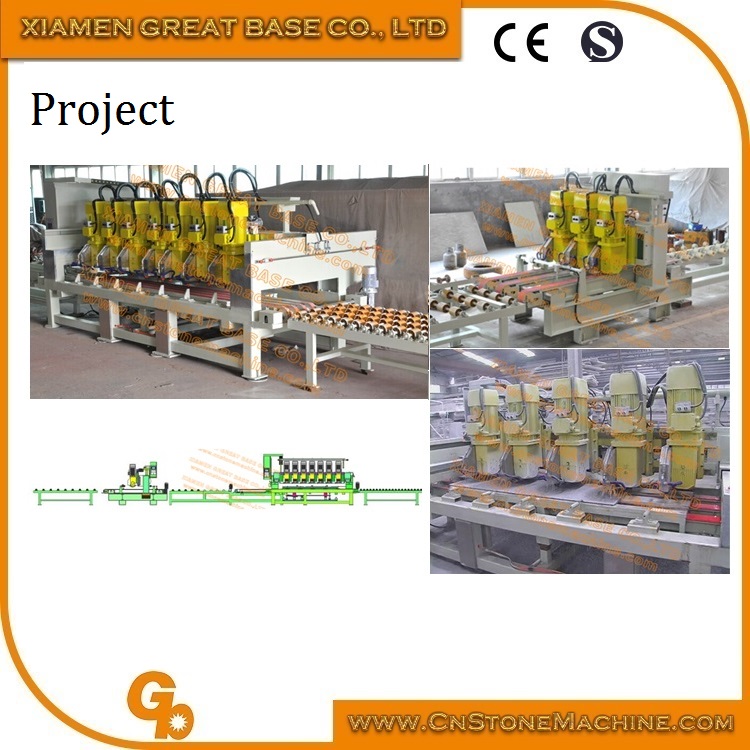

1-This machine is special for cutting to size tiles, it including slab conveyor, GBL-900 Multi Heads Longitudinal Cutting Machine, GBC-900 Multi Heads Cross Cutting Machine

2-Both machine adopts 18.5KW spindle motor, it means the motor drive the saw blade directly, did not transfer by belt, that is very powerful, so if we cut thick hard granite, also easy and do not let slab move during cutting. Conveyor moving speed is controlled by inverter, so you can set this speed according to the different hardness of stone. Also each head go up/down , moving on the beam is by motor,

3-For GBC-900 Multi Heads Cross Cutting Machine, there are several sensor for checking the length of slab in the front, and three narrow belt taking the slab into the machine, then the table will go up, so the slab will lay on the worktable which surface is wood, there are hydraulic cylinder will push the slab to the one guide ruler ,so that fix the slab, then cutter head will move to cut it, after finished, cutter head will move back automatically, then the table will go down, the slab will lay on the belt again, belt moving to take the slab outside of machine.

The distance between each head is controlled by motor;

4-Beam moving speed, belt moving speed are all controlled by inverter, adjustable, when the cutter move the edge of slab, speed will be slower automatically;

5-Machine is with one hydraulic tank, and control the table up and down, and hydraulic cylinder to fix the slab. 18.5KW main motor, powerful enough for cutting5cm thickness slab here.

6-Also you can choose how many head for each machine you need according to the size of your slab and final tiles size you need.

Technical Data

Model		GBL-900/3	GBC-900/5	GBC-900/7
Saw blade size	mm	D.400	D.400	D.400
Max.cutting thickness	mm	50	50	50
Max.cutting width	mm	900	900	900
Main motor	kw	18.5KW (3pcs)	18.5KW (5pcs)	18.5KW (7pcs)
Dimensions(LxWxH)	mm	3550x2000x1800	4550x2000x1800	5200x2000x1800
Approximate Weight	kg	2200	5200	5200

Guarantee & after sale service:
1) Warranty for half year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.

FAQ:
1, How to pay to you?
T/T in advance We accept 30% deposit, 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4, How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading.
