Wholesale waterproof stand alone door access card systems keypad 125khz smart card door rfid access control
Product Description
This Access control is anti-vandal and waterproof design. It support PIN and 125KHZ EM card, 3 access modes optional. Wiegand 26 output & input make it can be used as controller and slave reader. It usually installed on the courtyard, bank, prison etc. where need hign level security. And also can be used for automatic gate by its relay built-in.

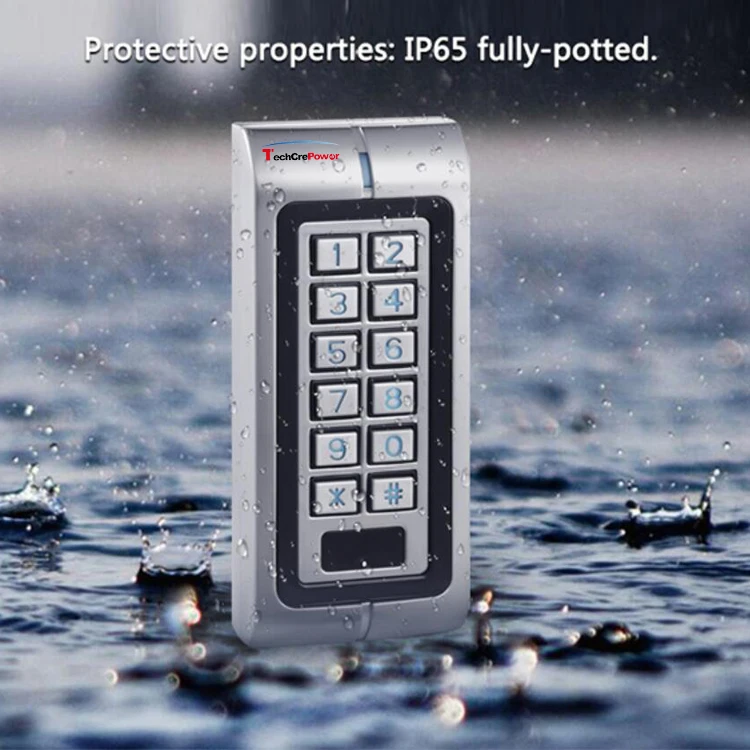

· Metal structure, anti-vandal, more secure, waterproof design · Backlight keypad, convenient for operating in night. · Large capacity: 2,000 users · Support 3 Modes Access: Card, PIN, Card+PIN. · Card Type: 125KHz EM, PIN length: 4~8 digits. · Operating Voltage: 12-18V AC/12-24V DC. · Very low power consumption ( ≤35mA), long service life and stable performance. · High speed search: filled with 2,500 users, the search time < 0.1s · Manage cards: the manage cards can add/delete the users directly, very convenient · Wiegand 26 input & output, can work as Wiegand reader/Controller. · Protective Properties: IP65 fully-potted. with anti-disassemble, alarm function, anti-static interference 15KV.
Specification:
Operating Voltage
12-18V AC/12-24V DC
Adjustable Door Relay Time
0~99s
Static Current
≤35mA
Communication interface
Wiegand 26 bit
Card Read Range
3-6cm
Reader Induction Time
≤0.1s
Operating Temperature
-40℃~60℃
Operating Humidity
0-95%
Lock Output Load
1A
Alarm Output Load
3A
Antistatic
15KV
IP Grade
IP65
Wiring Length
90-100cm
Dimensions
L 135mm×W58mm×H 26mm
Product Display
You may need
Company Information
Certifications
FAQ
1.What is your minimum order quantity?
Actually, we don't have strict rules on MOQ and welcome you to get samples for testing.
2.What is your payment term?
Bank T/T, Paypal, L/C, Western Union and MoneyGram.
3.What about the shipping way?
Generally, the package is delivered by Express DHL/Fedex/TNT/UPS. For big order, we recommend to ship by air or sea to save cost, but it might take longer time. Of course we could ship goods to your forwarder in China according to different customers requirements.
4.How long does it take?
Usually we need 2-8 days differently for preparing and another 3-7 days for delivery. If special products, may need more time.
5.What about the warranty?
We provide 1-2 years warranty from the date of delivery but lifetime technical support.
