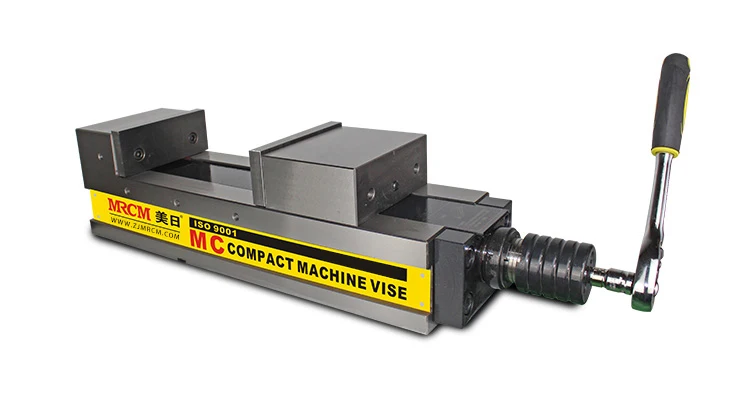

MR- MPL- 160B best selling easy operating mrcm cylinder vice for CNC machine



Product Description


1.MC double force pressure vice.It is suitable for vertical and horizontal integrated cutting machine with FMS system  to do heavy cutting


2.Easy clamping,effivient and labor-saving,can reduce the labor intensity of employees.


3.The high force mechanism can set the clamping force at any timem,andrepeated use many times to maintain a considerable clamping force,and consistent accuracy,and designed to have clamping force overloadprotection device


4.Vice with anti chip design,in order to prevent the processing of iron filings into the drive screw and vice internal,not easy to remove


5.Big opening,it is suitable for large-scale work to do precision machining









































Model:MR-MPL-160B
Drive ModeManual
Metial Spheroidal graphite cast iron
HardnessHRC 52-60
ParallelismWhthin 0.003mm/100mm
SquarenessWithin 0.006mm/100mm
Precision0.008mm
Machine TypeGrinding Machine
PackageCanton




Specification





MR-MPL-160B





        High-precision MC compact Mechanical/Hydraulic Vise/Angle Vise


        MC angle solid / kimbde precision oil pressure vice: high power type omnibearing precision oil pressure vice, suitable for vertical, horizontal comprehensive cutting center, general milling machine, radial drill, planer, boring machine, and other mechanical processing area.

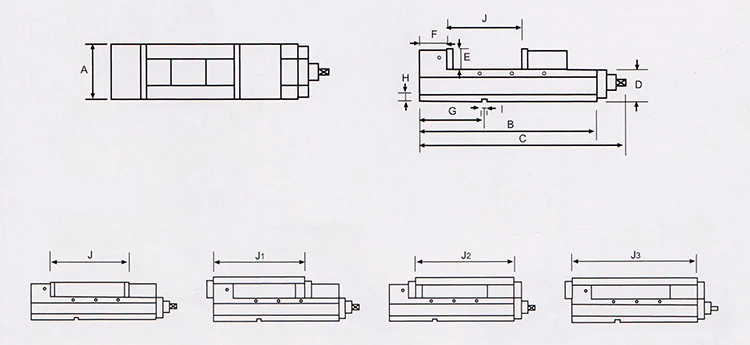

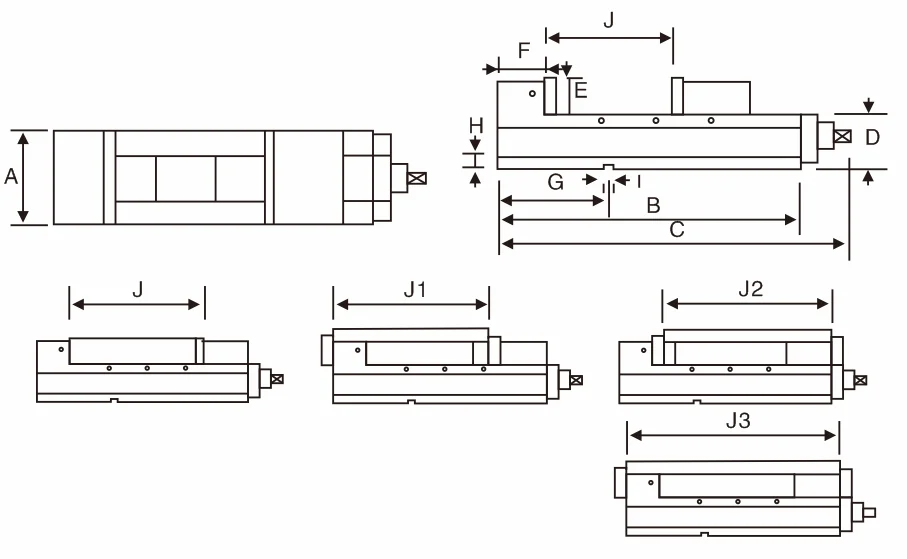

Unit: mm



























































ModeABCDFGJHIJJ1J2J3Clamping forceWeight
MPL-130B13045058095851350-180231624028532040545KN50KG
MPL-160B1605506801001032000-240231630038040050050KN70KG

















Packaging & Shipping


   EXPORTING PACKAGE, SAFE AND STABLE


delivery





Company Information


MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we’ve been committed to research, develop and produce the grinding tools. We’ve been started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively improve the working life of tools and reduce production costs.


 (1)


Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder, saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero positioning, and so on.


Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the domestic and foreign companies. We’ve passed the CE, ISO 9001 certification, have been applied for over 70 national patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as Japan, Europe countries and so on.



HTB13aFImS_I8





FAQ


 1.What is your advance?                                                                                                                                                  A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.


(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
