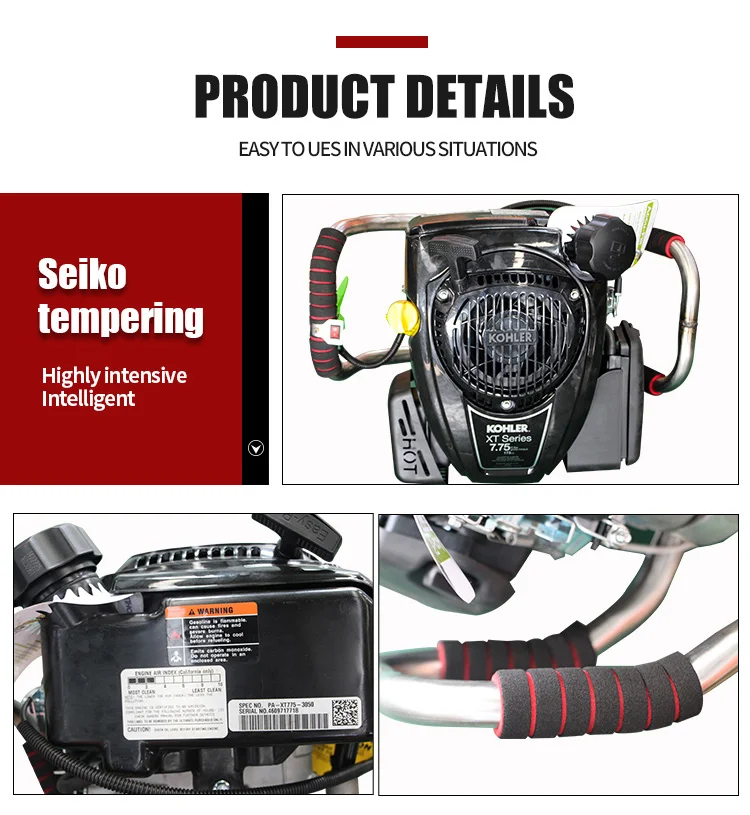

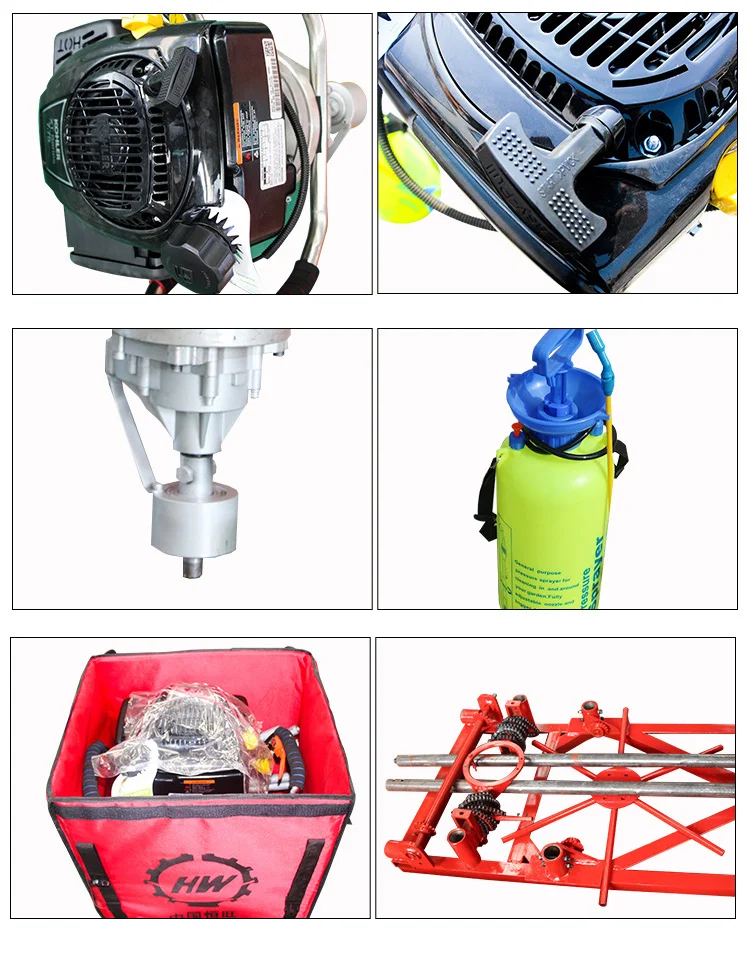

Detailed Images

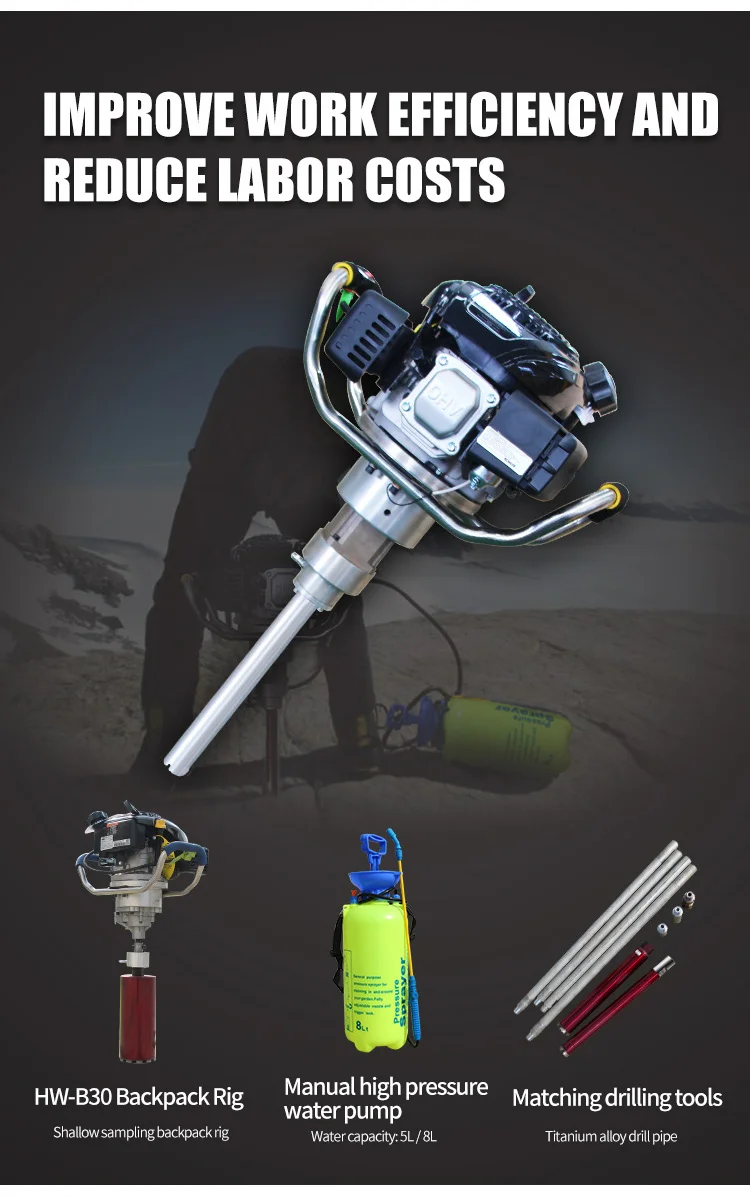

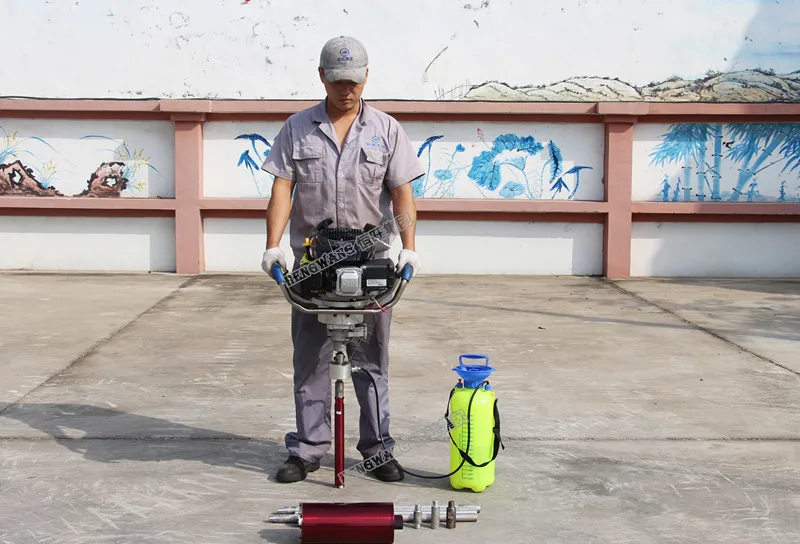

Portable backpack drilling rig rock diamond core sample drill rig machine
HW-B30 is a kind of small portable drilling equipment which is mainly suitable for mountain,transportation and energy.The machinecan replace the traditional manual excavation,tank probe,take samples and so on.It not more efficient,but also reduces vegetation damage and protects the environment.It is an indispensabletechnical means in shallow geological exploration,such as regional geological mapping,geophysical exploration sampling,ancient geomagnetic sampling,and geological disaster prevention.
Application fields:geophysical exploration sampling,regional geological mapping,mining vein exploration,mineral
exploration,geotechnical engineering testing,various drilling.
Application fields:geophysical exploration sampling,regional geological mapping,mining vein exploration,mineral
exploration,geotechnical engineering testing,various drilling.
Features of our backpack:
1.Easy to carry ------------ A set of 3m standard Hengwang backpack rigs weighs only 25kg;
2.Flexible operation ------------ Easy to disassemble and easy to install, fast coring;

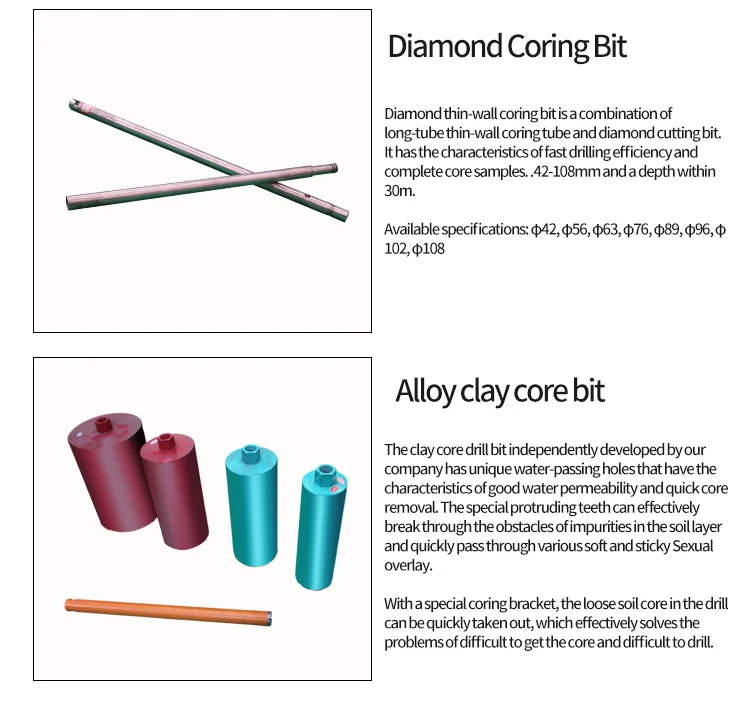

3.Efficient and durable ------------Special material diamond drill bit, fast drilling speed and long service life.
1.Easy to carry ------------ A set of 3m standard Hengwang backpack rigs weighs only 25kg;
2.Flexible operation ------------ Easy to disassemble and easy to install, fast coring;
3.Efficient and durable ------------Special material diamond drill bit, fast drilling speed and long service life.
Size Information
Portable backpack drilling rig rock diamond core sample drill rig machine
Model | HW-B30 | |
Hole diameter | φ40-φ108 mm | |
Drill hole depth | 30m (Diameter 40mm) | |
Application of rock types | Soil,Medium hard | |
Rotation speed | 2200r/min | |
Water consumption | 14.4L/H | |
Power | 173cc | |
Rod rotation speed | r/min0-800 | |
Drill pipe | ||
Drill pipe diameter | φ32mm | |
Drill pipe length | 720mm(including connector) | |
Drill pipe material | Titanium alloys | |
Drill pipe weight | 1.1Kg | |
Hydraulic motor | ||
Power | 7.5hp (KOHLER brand) | |
Main machine weight | 23Kg | |
Product Description
Portable backpack drilling rig rock diamond core sample drill rig machine
Related Products
Packing&Shipping
Portable backpack drilling rig rock diamond core sample drill rig machine

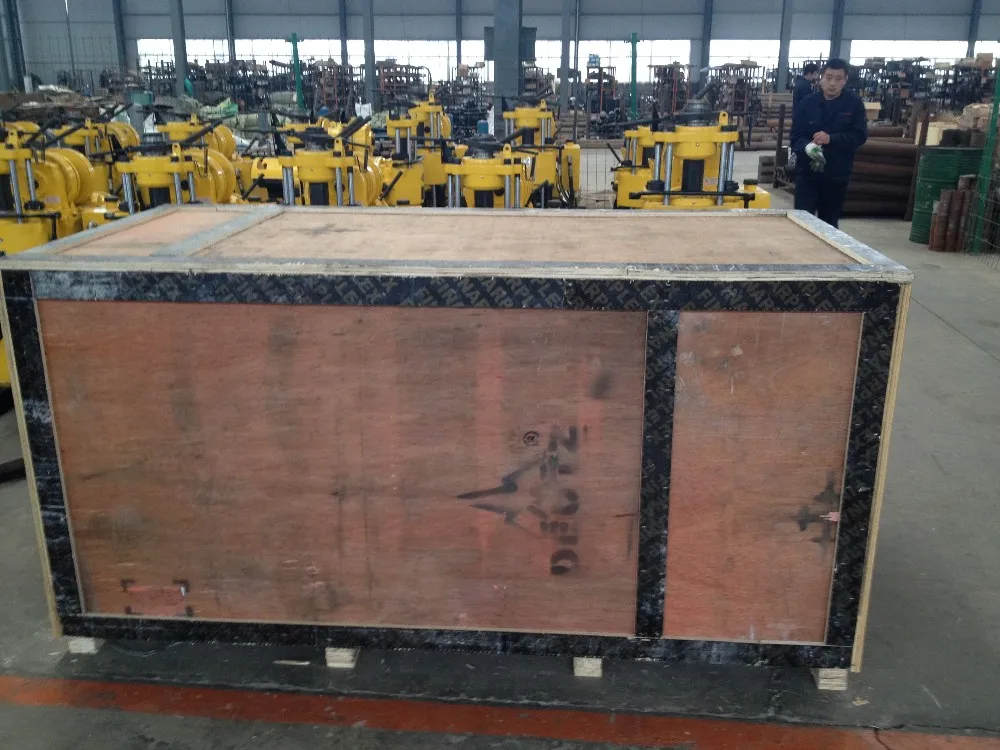

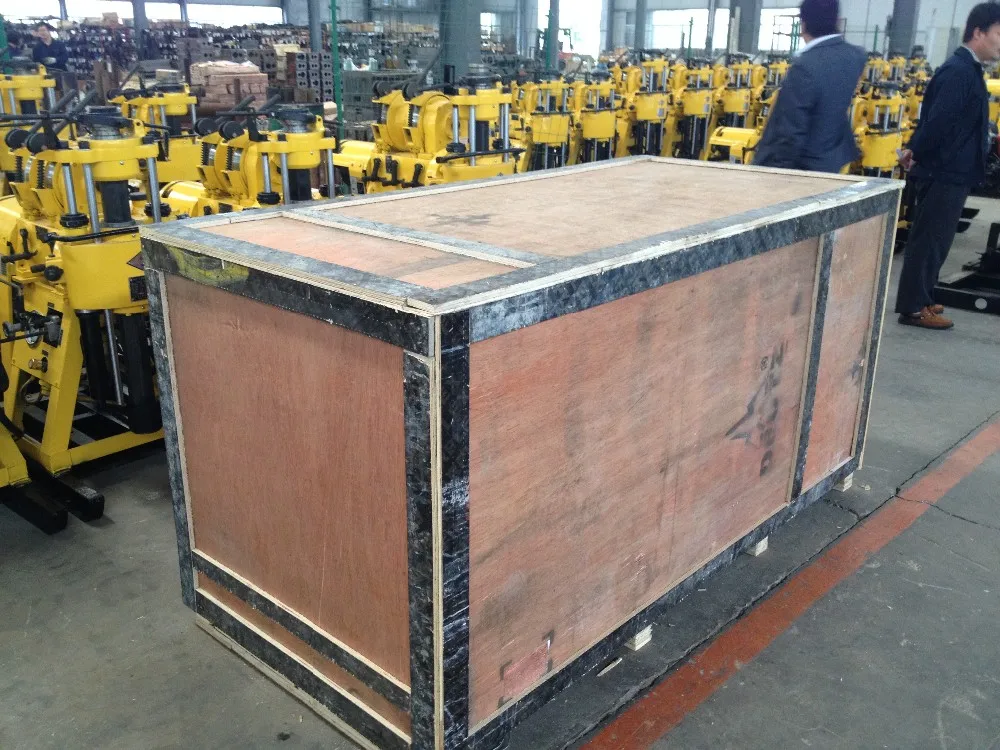

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
After Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use
the machine.
* Engineers available to service machinery overseas.
the machine.
* Engineers available to service machinery overseas.
