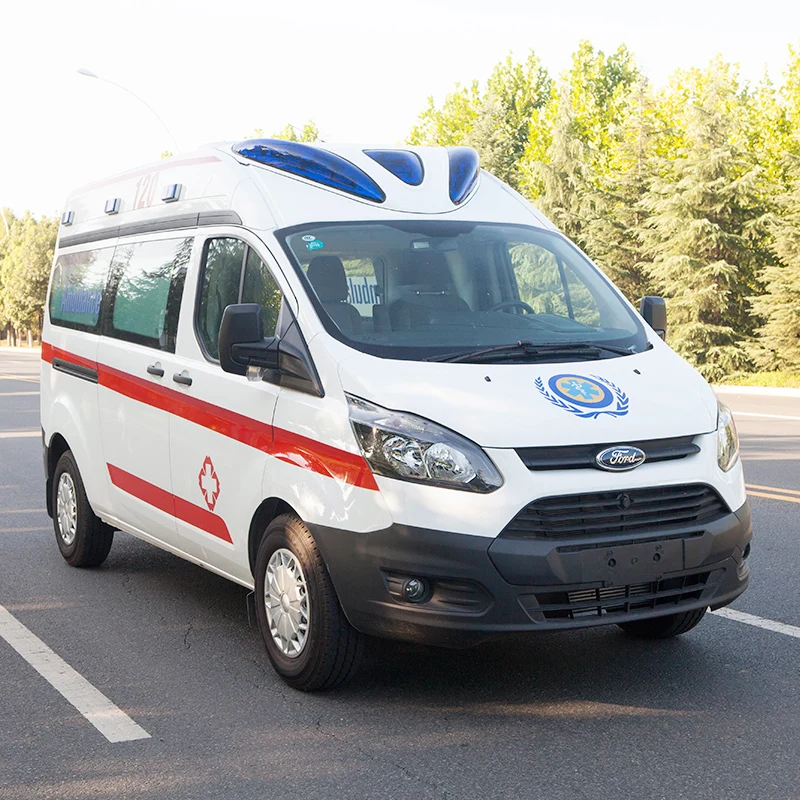

Китайский производитель скорой помощи аварийно-спасательная машина с
- Категории: Ambulance >>>
- Поставщик: Hubei,Xindongri,Special,Vehicle,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification

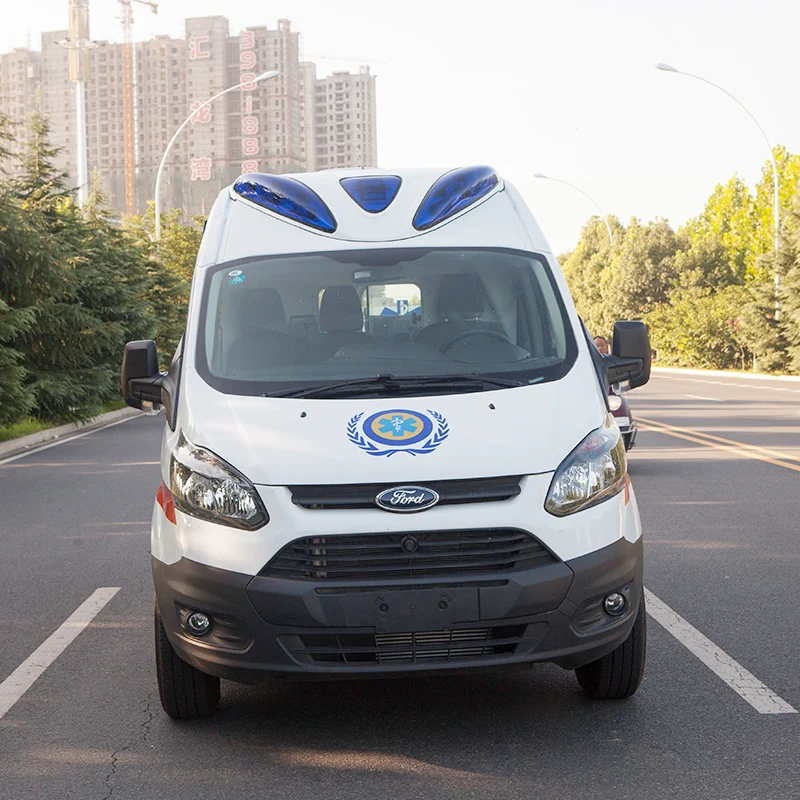

Vehicle Parameters China Ambulance Manufacturer, Disaster Rescue Ambulance Vehicle with ambulance siren light | ||||
General | Vehicle Model | YZR5038XJHJ5 | ||
Vehicle Brand | XDR | |||
Chassis Brand | FORD | |||
Overall Dimension(mm) | 5341×2032×2460 | |||
GVW/Curb Weight(kg) | 3495/2540 | |||
Chassis Parameters | ||||
Cab | Cab Seat | 3-8 | ||
Air Conditioner | YES | |||
Engine | Fuel Type | Diesel | ||
Engine Model | DURATORQ4D205L | |||
Engine Brand | JMC | |||
Power(kw/hp) | 89/121 | |||
Displacement(cc) | 1998 | |||
Emission Standard | Euro5 | |||
Chassis | Drive Type | 4*2 | ||
Transmission | 5 speed, Manual | |||
Wheelbase(mm) | 3300 | |||
Tyre Specification | 215/75R16LT | |||
Tyre No.(pcs) | 4 | |||
Max Speed(km/h) | 156 | |||
Paint | White | |||
Super Structure Parameters | ||||
Standard configuration | See below | |||
No. | Item | Qty | ||||
Basic configuration | ||||||
1 | air conditioner in medical room | 1 | ||||
2 | warm air in medical room | 1 | ||||
Electrical circuits and appliances | ||||||
Alarm, warning system | 1 | long strip standard light alarm | 1 | |||
2 | 100W Alarms and hand-held controls | 1 | ||||
3 | blue flash at rear | 2 | ||||
4 | Left and right rear side blue flash | 2 | ||||
5 | Left and right side white flash | 2 | ||||
Interior power supply system | 1 | 1000W positive wave power invertor | 1 | |||
2 | Integrated circuit control and protection system | 1 | ||||
3 | Integrated switch control panel | 1 | ||||
4 | 220V power port | 3 | ||||
5 | 12V power socket | 1 | ||||
6 | top LED light | 4 | ||||
7 | Sterilizing lamp | 1 | ||||
8 | Ventilator | 1 | ||||
9 | Talkback | 1 | ||||

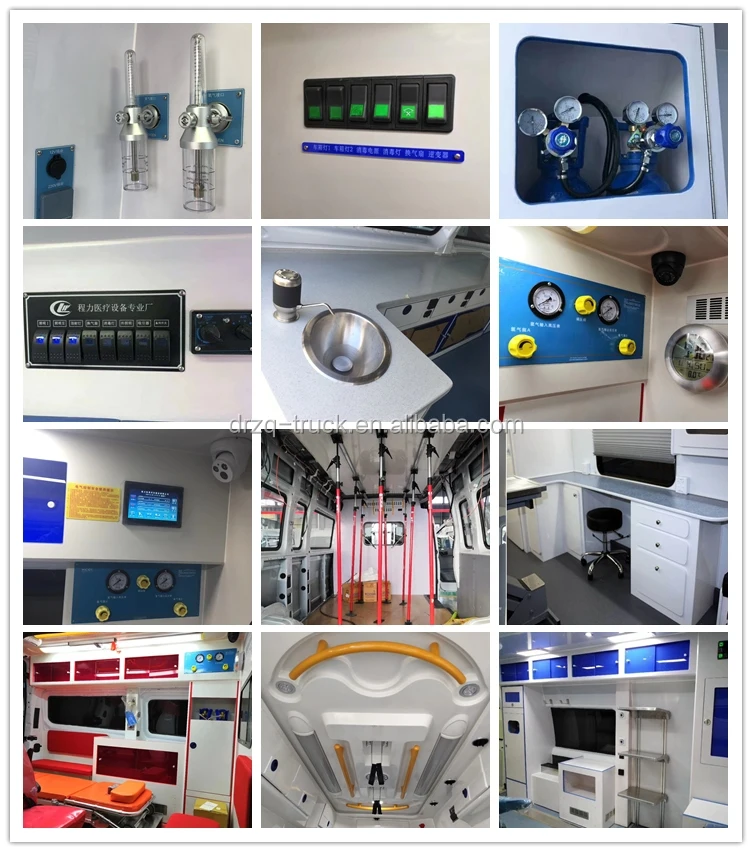

Oxygen path and oxygen | ||||||
Oxygen system | 1 | 10L Medical oxygen cylinder and shock absorber clamp | 2 | |||
2 | Hidden oxygen pipeline system | 1 | ||||
3 | standard oxygen terminal | 2 | ||||
4 | humidification bottle | 1 | ||||

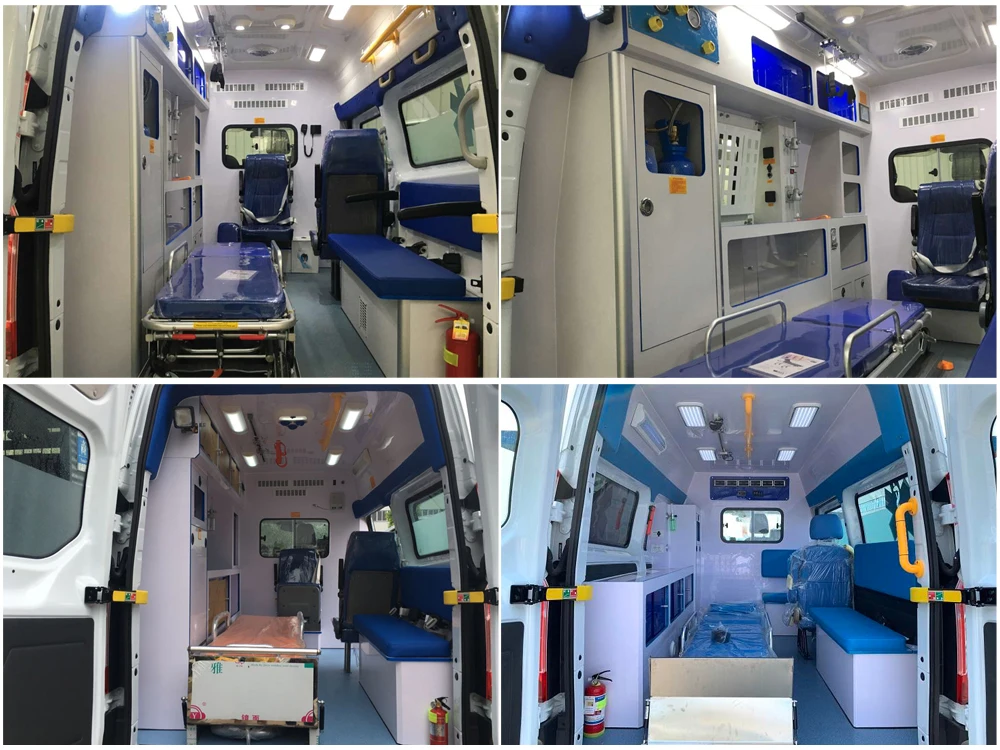

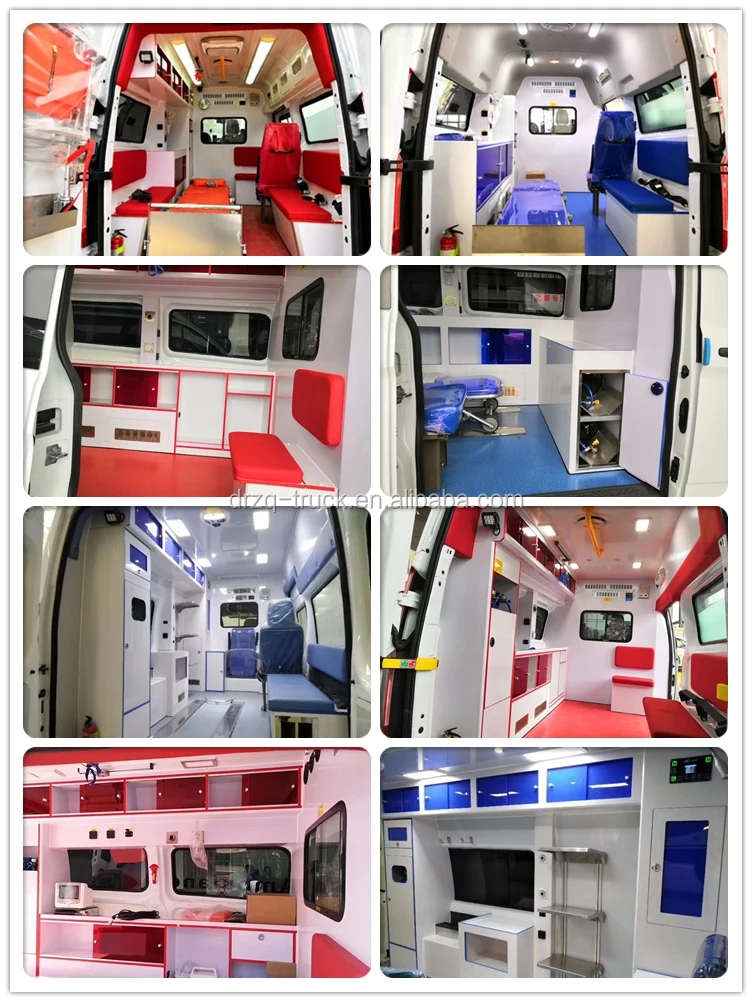

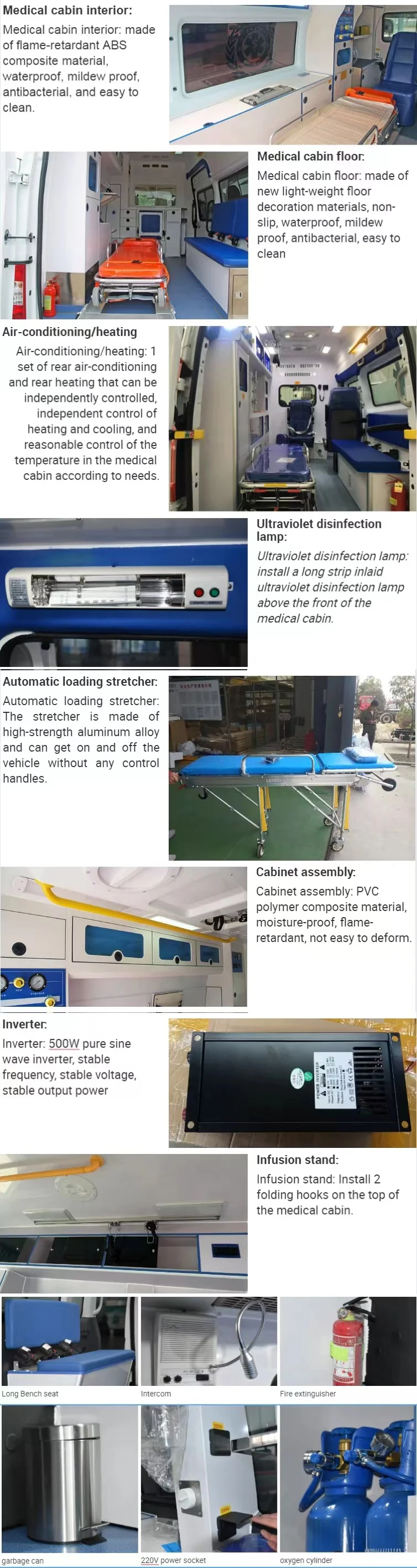

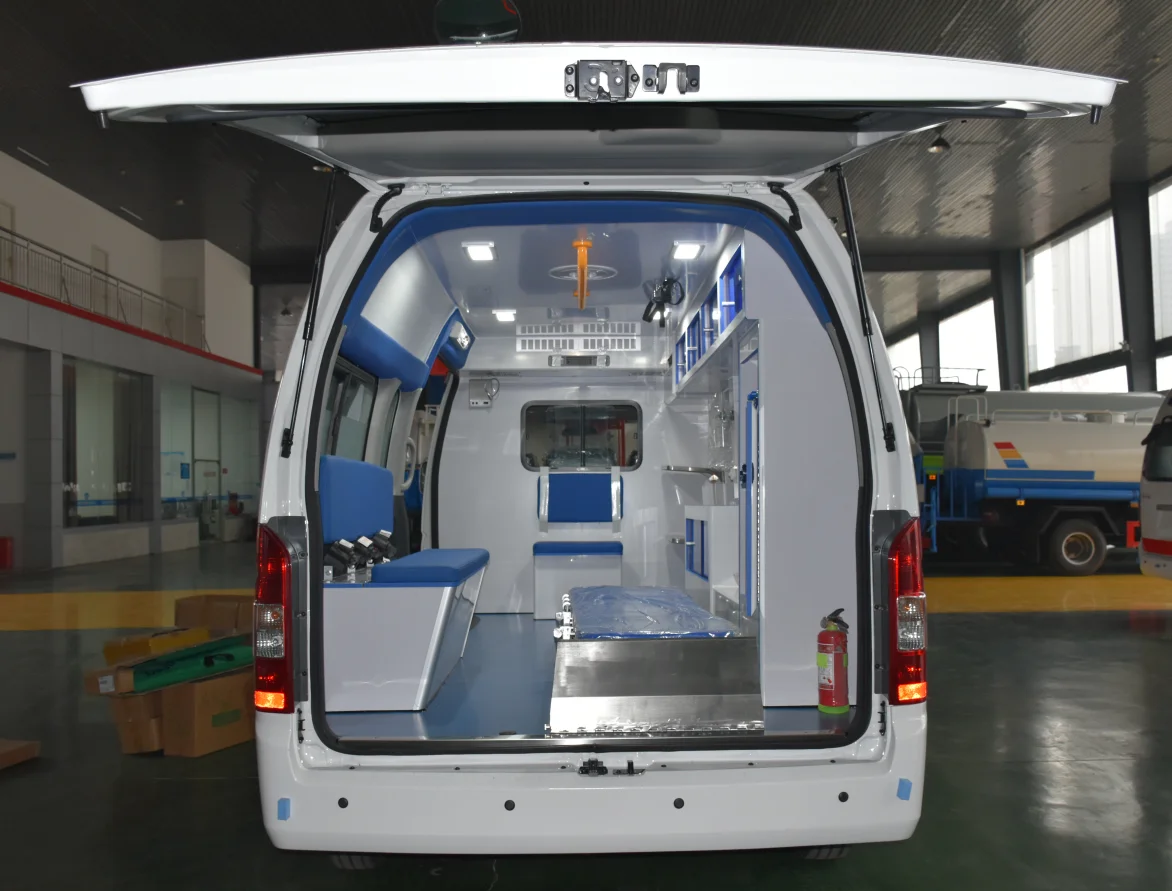

medical cabin making | ||||||
Medical cabin interior | 1 | polymer hardtop interior,easy to clean | 1 | |||
2 | polymer partition wall | 1 | ||||
3 | transparent middle partition wall push and pull observation window | 1 | ||||
4 | medical long wall cupboard (left top) | 1 | ||||
5 | medical equipment cabinet | 1 | ||||
6 | left rear vertical oxygen tank | 1 | ||||
7 | hidden safety embedded-part | 1 | ||||
8 | Full set of blue soft cladding walls | 1 | ||||
9 | Environment-friendly wear-resistant, non-slip medical floor and cushion blue color | 1 | ||||
Seat | ||||||
Seat system | 1 | Right side reverse soft seat | 1 | |||
2 | Right side individual backrest seats | 1 | ||||
3 | right soft bench seats with safety belt for 2 person | 1 | ||||
Emergency auxiliary | ||||||
Medical System | 1 | Automatic stretcher | 1 | |||
2 | stretcher pad and guide plate | 1 | ||||
3 | slidable infusion support | 1 | ||||
4 | fire extinguisher | 1 | ||||
Appearance | ||||||
Appearance | 1 | Black solar film (left side) | 1 | |||
2 | translucent matte film (right and rear ) | 1 | ||||
3 | Standard medical appearance | 1 | ||||
Company Profile

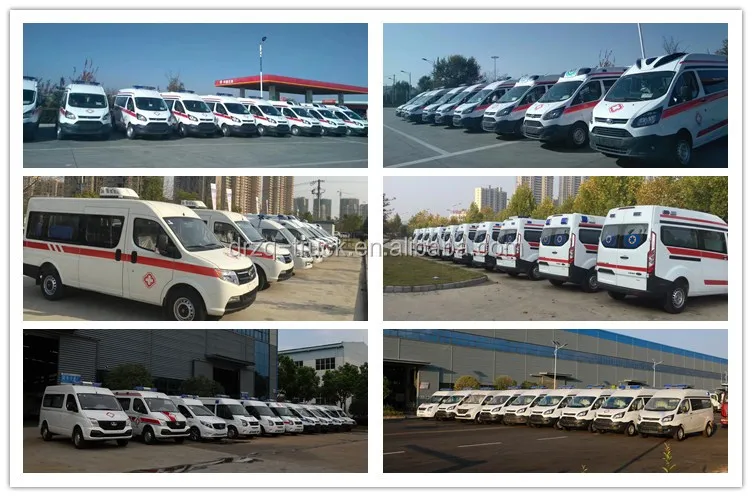

Factory Show
