Насадка На трактор фронтальный backoe экскаватор

Описание и отзывы

Характеристики

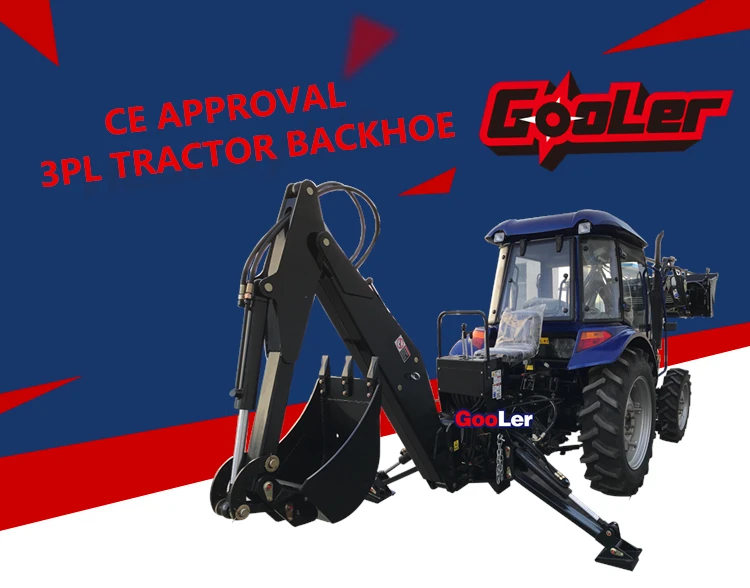

Backhoe for tractor is mainly used for ditching in farms and grazing lands,

digging pool cleaning waterways as well as assistant excavating work

in construction and building roads.

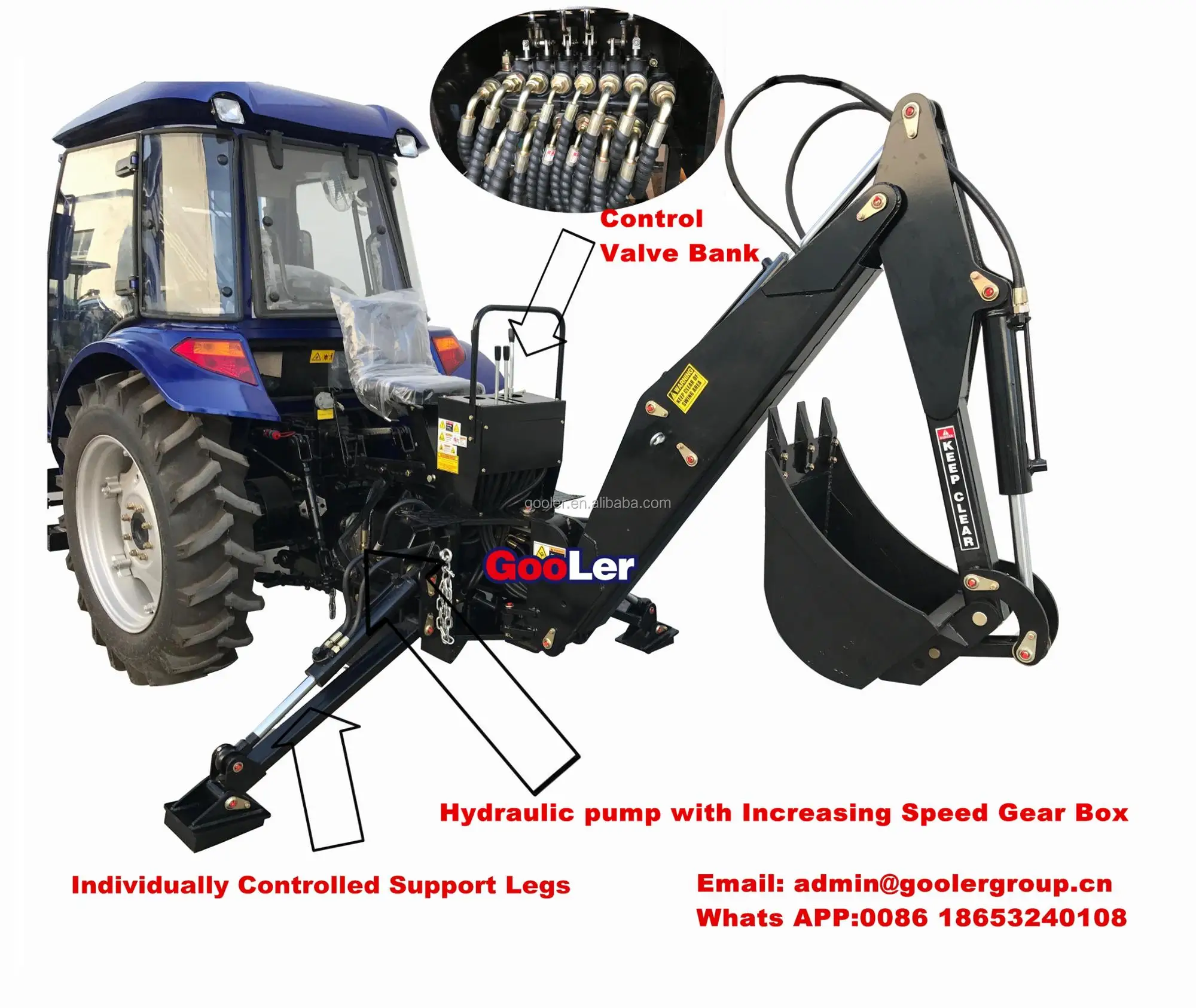

 Feature:



- Suits all types of tractors with Cat 1 or 2, 3-point linkage kit;
- Joystick style control console;
- Tough and reliable hydraulic arm;
- Individually controlled support legs;
- Boom lockout pins for transport

- Quick mounting and dismounting

- Meets multi-working demands with different sizes buckets







Options for Additional Configuration:



1. Different horse power of Tractor use different model of Backhoe
2. Wider or smaller bucket

3. Increasing speed gear box

4. Swing angle 160degree or 180 degree

5. Italy hydraulic control valve bank



Backhoe Model	LW-5	LW-6	LW-6E	LW-7	LW-7E	LW-8	LW-8E	LW-10	LW-10E	LW-12
Matching Tractor (HP)	15-25	20-35		30-55		50-90		70-120		100-180
Max.Digging Depth (mm)	1650	2000		2400		2800		3200		3655
Max.Unloading Height (mm)	1530	1860		2050		2380		2650		3627
Max.Digging Height (mm)	2600	2970		3210		3460		3770		5040
Woking Radius (mm)	2300	2700		3140		3600		3920		4510
Ground Clearance (mm)	450					500				700
Side Shift Distance (mm)	0	0	770	0	770	0	1000	0	1200	0
Min.Transporting Width (mm)	1150	1700	1470	1700	1470	1700	1700	1850	2000	2100
Max.Width of Support legs (mm)	2100	2200	1470	2200	1470	2200	1700	2300	2000	2550
Bucket Width (Inch)	14			16		18		20		22
Bucket Capacit (m³)	0.03	0.04		0.05		0.06		0.07		0.13
Weight (Kg)	360	550	600	560	620	630	700	800	1000	1500
PTO Hydraulic System	6/8/21-Splines,(Option)
Thumb Grab	Option
