Product Description
Product Application
HQZ series dth rock water borehole drilling machines are efficient and multi-functional drilling equipment. It is mainly suitable for industrial, civil and geothermal drilling. The Pneumatic crawler dth drilling rig can be used in various strata, such as water wells, geothermal wells, anchor pile holes and can also use tracing drilling tools.
Our Advantages of dth rock water borehole drilling machine:
1. Compact structure, fast footage, flexible movement and wide application area.
2. Hydraulic control, automatic loading and unloading of drill pipes, crawler chassis
3. High-powered diesel engine. quadrangular hydraulic balance;
4. Stronger topographic applicability.
5. Two gears can meet the different needs of drilling in soil and rock strata.
SPECIFICATIONS FOR rock water borehole drilling machine | ||||||

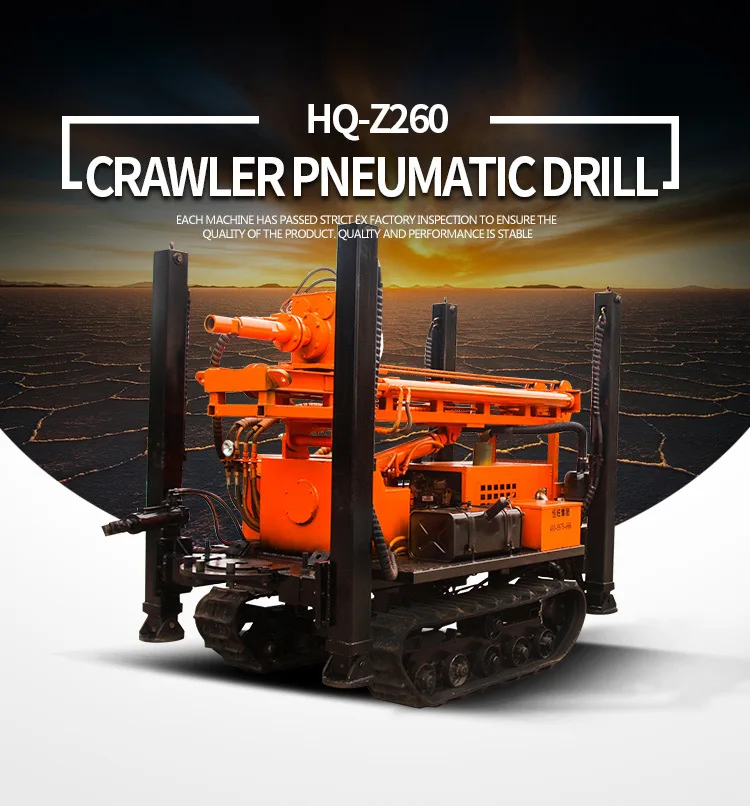

Model | HQZ260L | HQZ320L | HQZ450L | |||
Overall weight(kg) | 6400 | 8000 | 8700 | |||
Dimension(mm) | 4100*1900*2600 | 5500*1950*2780 | 5300*2050*2700 | |||
Drilling diameter(mm) | 140-300 | 140-325 | 130-400 | |||
Drilling depth(m) | 260 | 320 | 450 | |||
One-time advance length of drill(mm) | 3000 | 3000/6000 | 3000/6000 | |||
Traveling speed(km/h) | 2.5 | 2.5 | 6 | |||
Climbing ability(%) | 30 | 30 | 25 | |||
Min. ground clearance(mm) | 250 | 250 | 300 | |||
Working Air pressure(Mpa) | 1.7-3.0 | 1.7-3.3 | 1.7-3.5 | |||
Air consumption(m³/min) | 17-35 | 23 | 17-35 | |||
Main power(kw) | 85/Yuchai | 92/Yuchai | 100/ 6 cylinders | |||
Rotary speed(rpm) | 40-70 | 55-115 | 454-75 | |||
Rotary torque(Nm) | 7000-9000 | 8500-10000 | 9000-10000 | |||
Kindly Reminder:

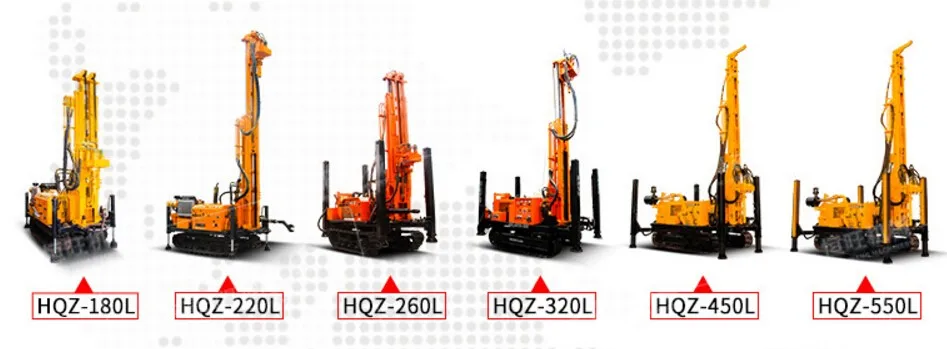

1) HQZ180L with rubber track/crawler, can make short leg and high hydraulic leg.
2) HQZ220 HQZ260Lcan make rubber crawler and steel crawler
3) HQZ320 HQZ450 HQZ550 all with steel crawler.
4) All models can be add winch, electric welding machine, drawbench(tube drawing bench) etc.
5) High cost performance is guarantee
6) Technician on-site guidance
Certifications
Detailed Images

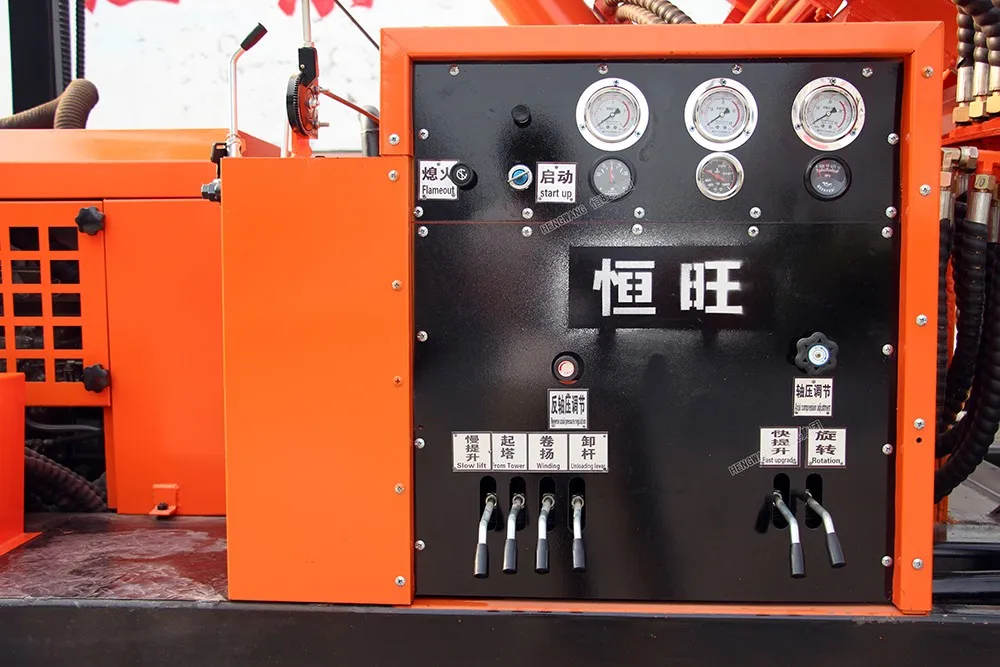

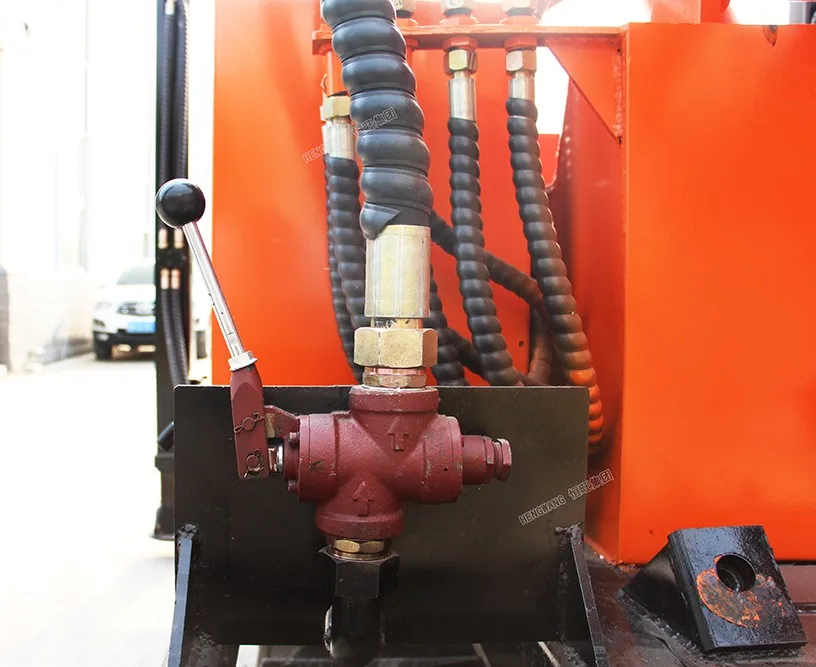

Full hydraulic control system

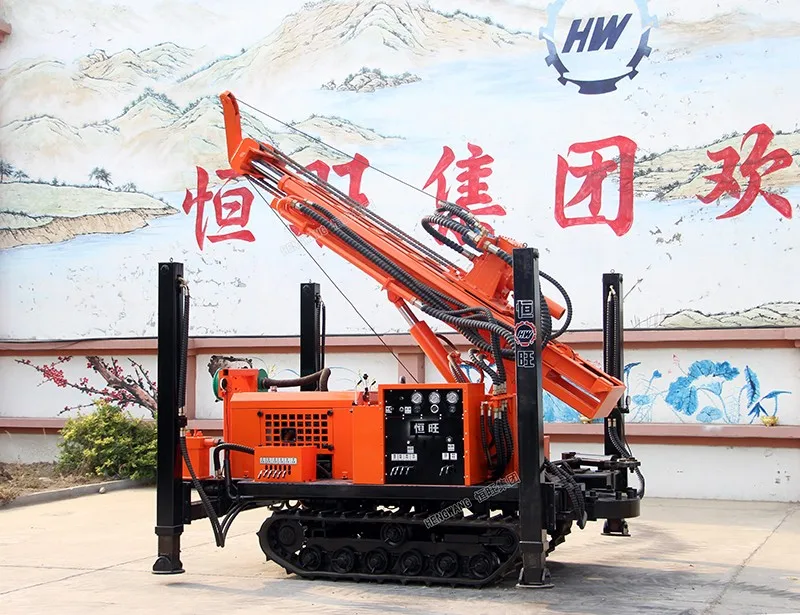

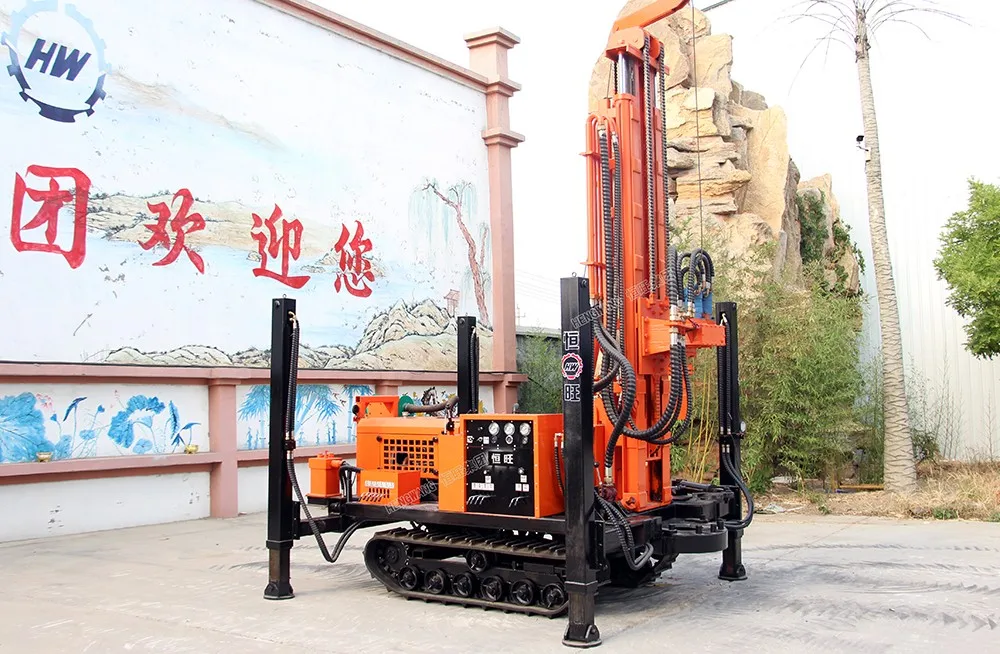

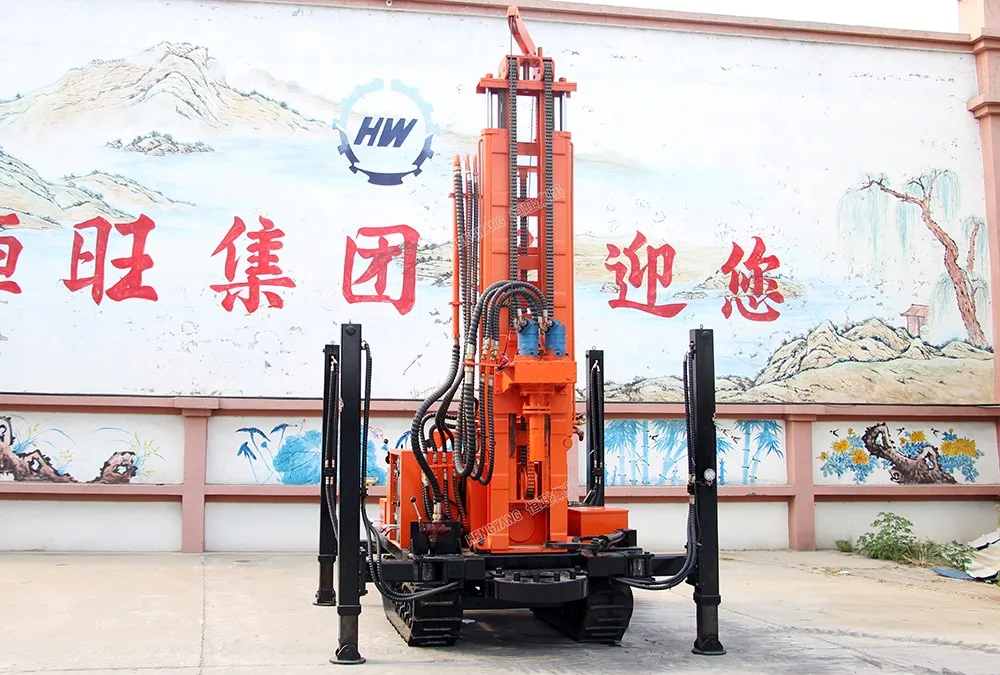

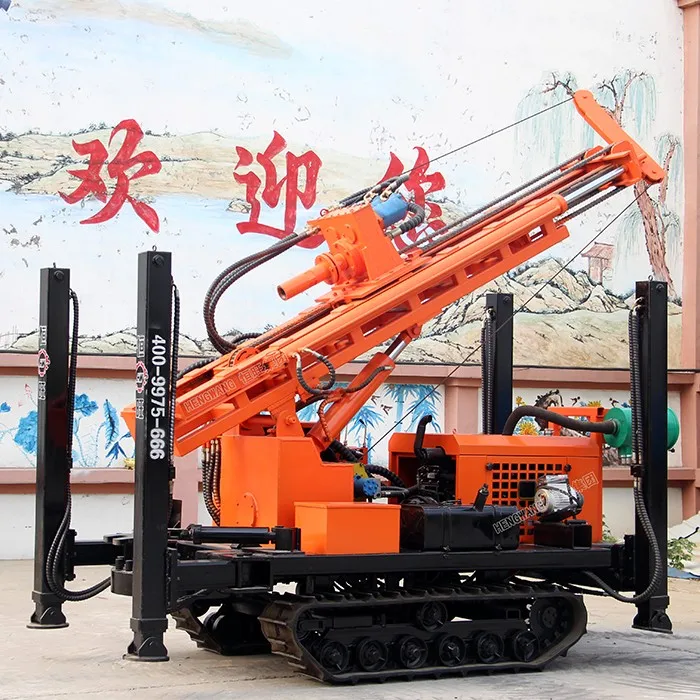

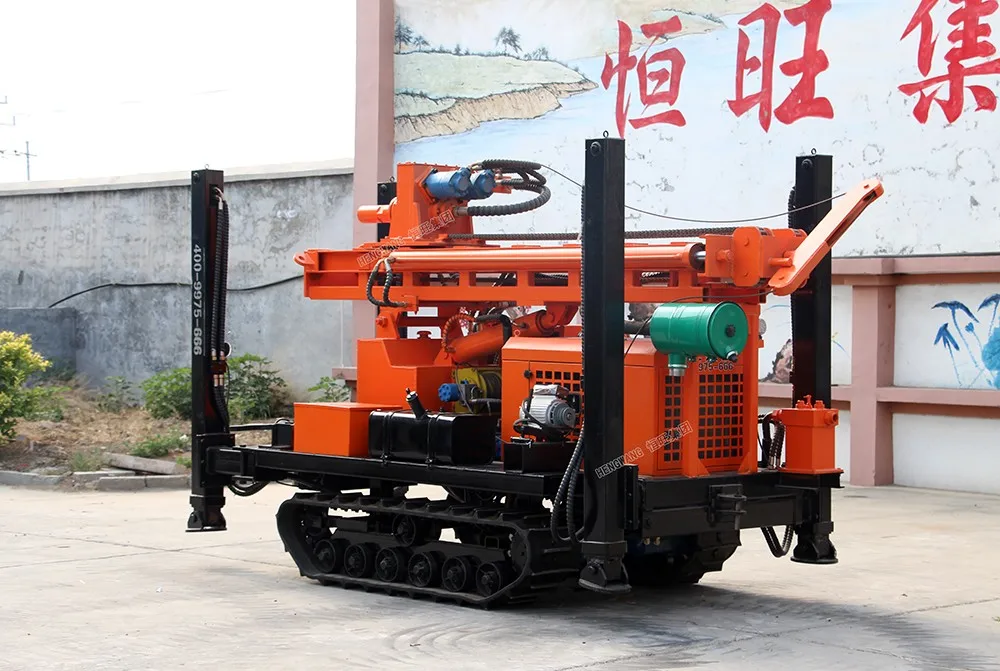

Name: Pneumatic crawler dth drilling rigs
PC-based, It is safer to operate with switch.
It is convenient and flexible to adjust drilling speed, torque, propulsion axial pressure, reverse axial pressure, propulsion speed and hoisting speed at any time to meet the requirements of different drilling conditions and different construction techniques

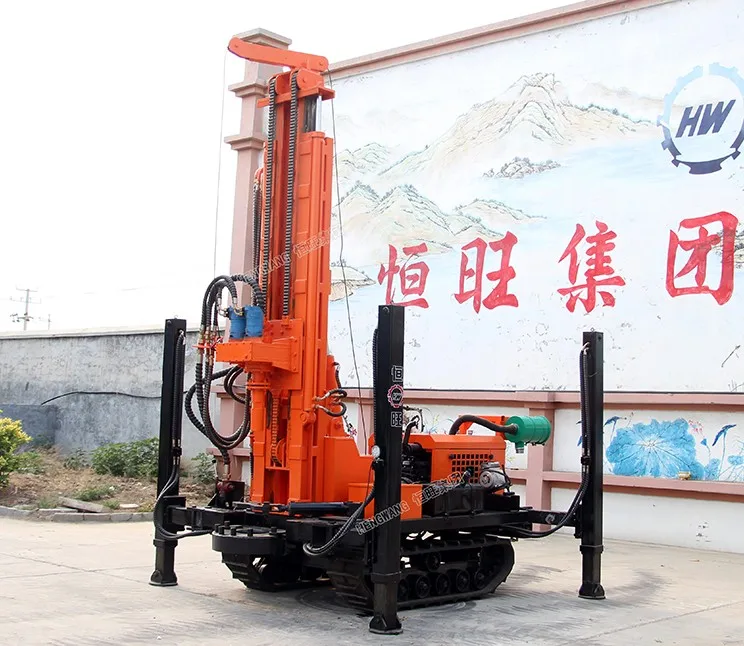

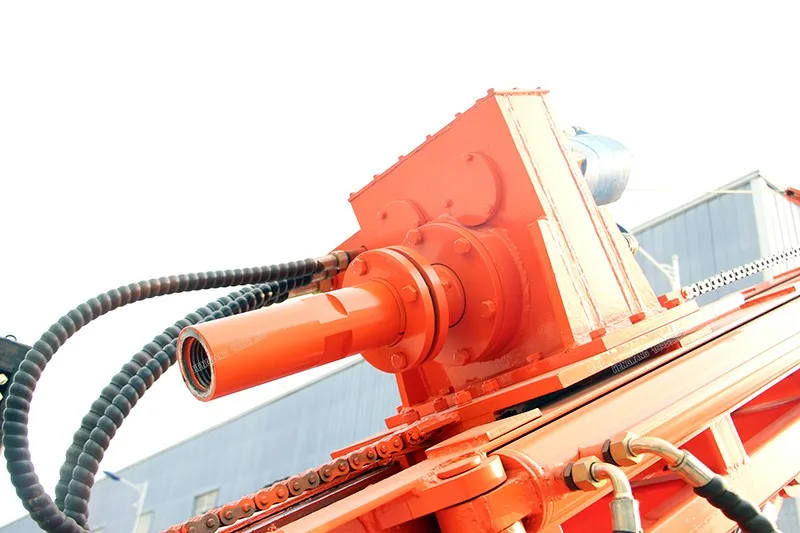

Top drive rotary propulsion
Name: Pneumatic crawler dth drilling rigs
It is easy to connect and unload the drill pipe, shorten the auxiliary time and facilitate the root pipe drilling.
Hydraulic tube/pipes
Imported thickened hydraulic tube/pipe high pressure resistance with long service life.

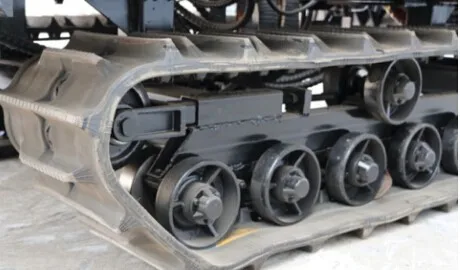

Crawler chassis
We adopt excavator crawler chassis. which has strong cross-country performance.
The chassis is firm and thick, imported crawler motor, steel crawler, fast and stable driving.
The rig can be mounted on the truck to increase its maneuverability, and the crawler walking is more suitable for muddy field movement.

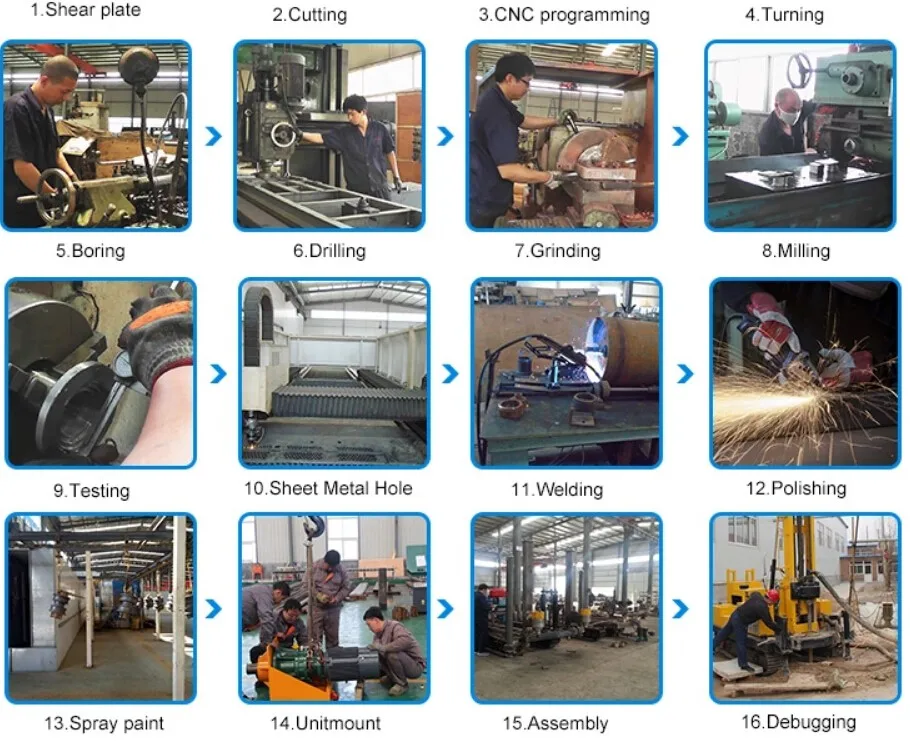

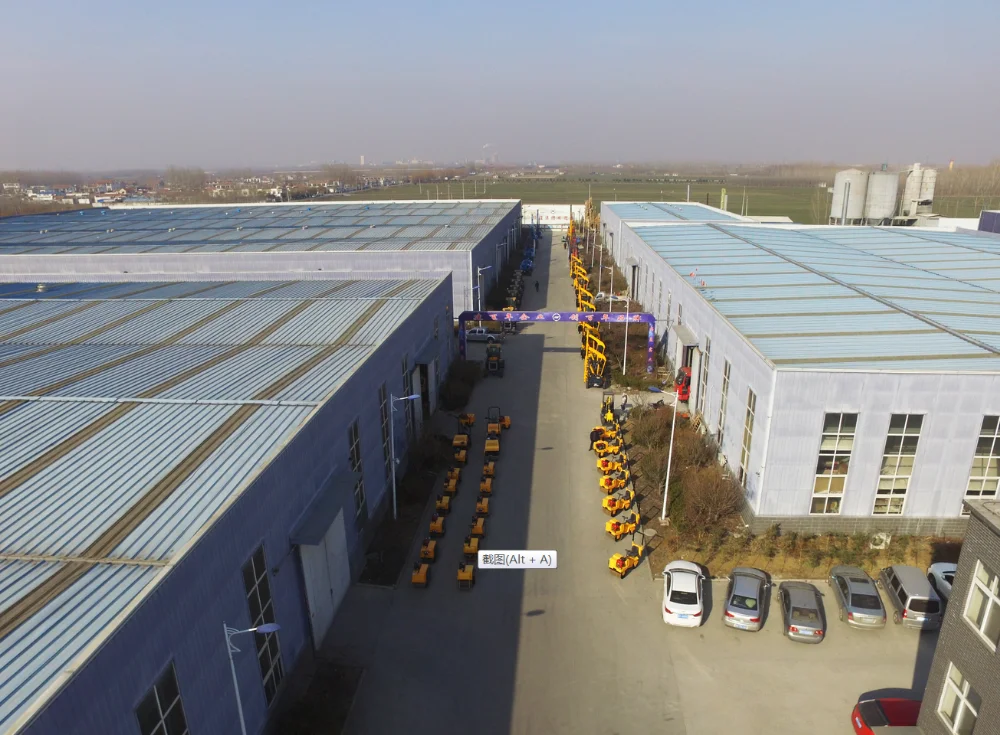

Our Factory
Professional manufacturer for more than 15 years.
Jining Hengwang Mining Machinery Co., Ltd. is located in Jining, Shandong Province, China. Established in 2002, comprehensive enterprise, collection of marketing, scientific research, trade. Registered capital of 10.8 million, Existing staff 200 persons, including 3 engineering experts, senior software engineer 8 persons, network information technicians 28 persons, ecommerce division, more than 80 persons, the international trade commissioner, 18 persons, logistics division 9 persons, all kinds of technical personnel more than 50 persons.
Specializing in the Construction machines, Drilling equipment; Railway equipment; Road machinery; Pumps; Hydraulic tools etc.
Our products sell to Vietnam, Malaysia, South Korea and other southeast Asia, Africa and the Middle East, South America, North America, Europe etc, is popular among the masses of customers.

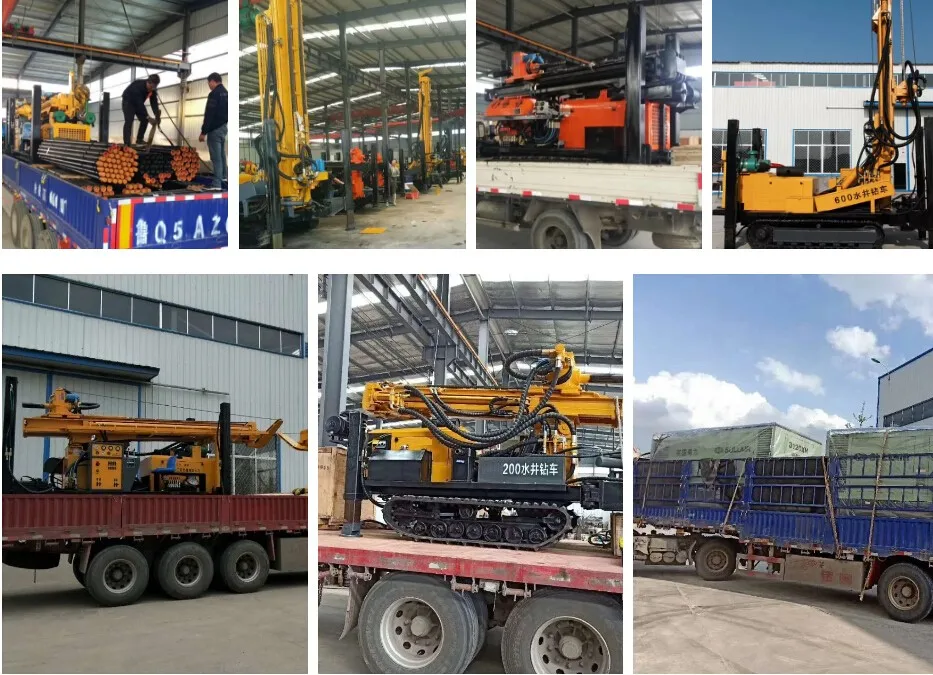

Packing & Delivery
