Промышленный сетевой коммутатор с двойным источником питания 1000 м 1 SFP 8 портов
- Категории: Fiber Optic Equipment >>>
- Поставщик: Shenzhen,Scodeno,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Factory 1000M 1 SFP 8 RJ45 Port Industrial Network Switch with Dual Power Supply
Product Description
Provider Mode Ports | |
Fixed port | 1*1000Base-X, 8*10/100/1000Base-T |
Power interface | Phoenix terminal, dual power supply |
LED Indicators | PWR, OPT, NMC, ALM |
DIP Switch | |
| 1 C/D | Remote PD Reset |
| 2 LGY | Stand/Non-standard PoE Mode |
| 3 VLAN | Port Isolation |
| 4 RST | Reset |
Cable Type&Transmission Distance | |
Twisted-pair | 0-100m(CAT5e,CAT6) |
Single mode optical fiber | 20/40/60/80/100km |
Multi mode (optical) fiber | 550m |
Net Topology&Networking Scale | |
Star topology | Support |
Bus topology | Support |
Tree topology | Support |
Hybrid topology | Support |
Electrical Specifications | |
Input voltage | DC12-58V(Non-PoE), DC48~48V(PoE) |
Power consumption | Non PoE<6W, PoE<246W |
Voltage Alarm | Support |
PoE (Optional) | |
PoE port | 1~8 |
PoE Protocol | 802.3AF ,802.3AT |
PoE Pin Assignment | 1,2,3,6 |
PoE Mode | Standards and non-standards |
Remote PD Reset | Support |
Layer 2 Switching | |
Switching capacity | 26G |
Packet forwarding rate | 19.34Mpps |
MAC address table | 16K |
Buffer | 2M |
Forwarding delay | <5us |
MDI/MDIX | Support |
Flow control | Support |
Jumbo Frame | 10K Bytes |
WatchDog | Support |
| Prot Isolation | Support |
Environment | |

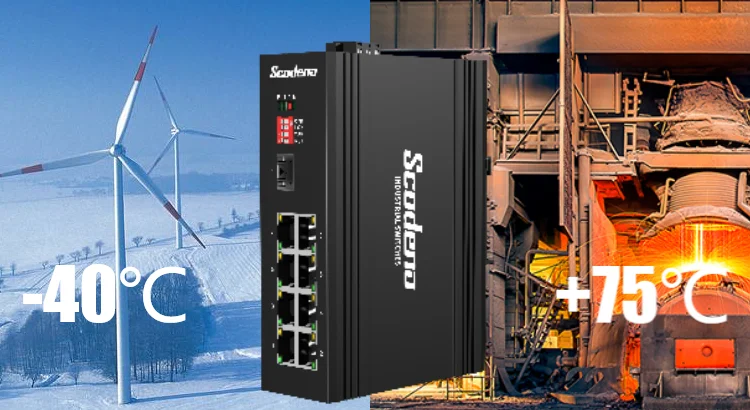

Operating temperature | -40℃-+75℃ The device is tested for 4 hours at temperatures in 85°C |
Storage temperature | -40℃~ +85℃ |
Relative humidity | 5%~95% (non-condensing) |
Thermal methods | Fan-free,natural cooling |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product size | 143X104X48mm |
Installation method | Din-rail |
Weight | 0.6kg around |
EMC&INGRESS Protection | |
IP level | IP40 |
Surge protection of power | IEC 61000-4-5 Level X (6KV/6KV)(8/20us) |
Surge protection of ethernet port | IEC 61000-4-5 Level X (4KV/4KV)(10/700us) |
RS | IEC 61000-4-3 Level 3 (10V/m) |
| EFI | IEC 61000-4-4 Level 3 (1V/2V) |
| CS | IEC 61000-4-6 Level 3 (10V/m) |
| PFMF | IEC 61000-4-8 Level 4 (30A/m) |
DIP | IEC 61000-4-11 Level 3 (10V) |
ESD | IEC 61000-4-2 Level 4 (8K/15K) |
Free-Fall | 0.5m |
>>Click Here for more informatiom
Company Information
Our Partner
Packaging & Shipping
FAQ
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM/OEM?
A: Yes. We provide customized service.
Q: What is your minimum order quantity?
A: MOQ is 1 unit.
Q: What’s the payment type?
A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.
Q: What’s the accepted trade terms?
A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.
Q: How about after-sales service?
A: 7/24 hours online and respond to user's field device problems in time.
Q: How about the warranty?
A: 5 years.
OEM/ODM or more requirements, welcome to
