12U/27u внутренний и наружный серверный шкаф для сетевой передачи данных
US $30.00-$200.00
Настраиваемая 16u 20u 24u 28u внутренняя наружная Водонепроницаемая металлическая серверная стойка сетевой
- Категории: >>>
- Поставщик: Zhongshan,Yishang,Metal,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Company Profile
Products Description
Item Name | Customized 16u 20u 24u 28u indoor outdoor waterproof metal server rack network cabinet | ||||||
Application | Many kinds of industries, such as electrical equipment, wire storage, etc | ||||||
Material | 1.2mm and 1.5mm thick cold rolled steel. | ||||||
Size | 500*500*1700mm and Customized dimensions. | ||||||
Color | Wrinkles gray or wrinkles white. | ||||||
Finish | Powder coated or painted. | ||||||
LOGO | Screen printing: bright colors, cheap price, long shelf life. It is suggested to provide files in AI format for our customization. | ||||||
Standard Configuration | Top cover, braket, front cover 1 - 8 components, front cover, stacking tank, laminate, power connect panel, door panel, left and right side cover, reinforcement, acrylic door plate, door lock, accessories. | ||||||
Services | 1) 3D drawing free of charge for the metal network cabinet, distribution box, electrical cabinet and other metal enclosures. 2) We can customize according to your needs. | ||||||

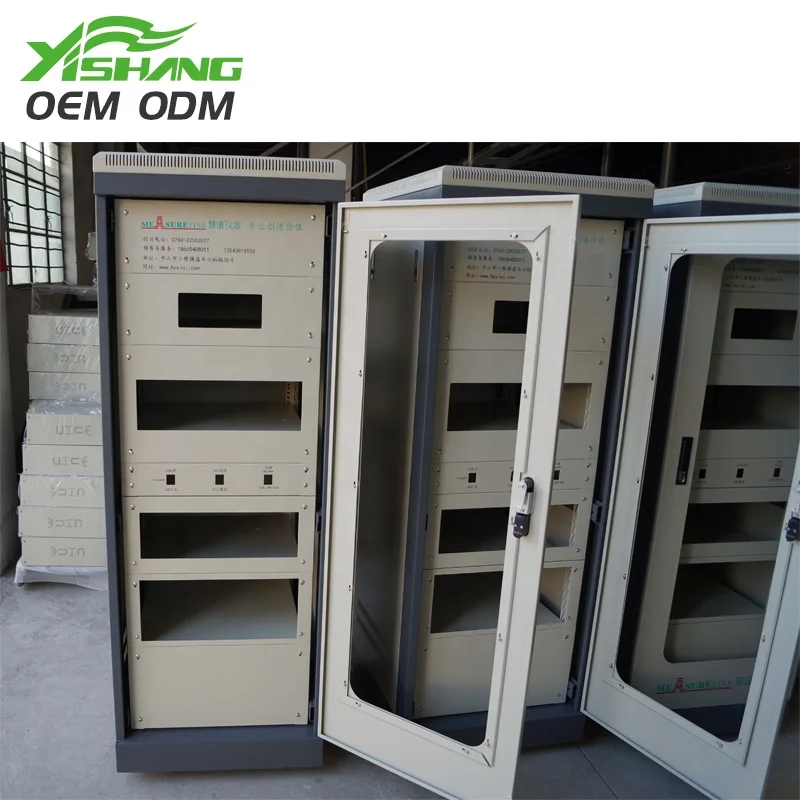

Customized 16u 20u 24u 28u metal indoor outdoor waterproof server network cabinet
The power distribution box is widely used in LED lighting detection instruments, spectral analysis systems, distribution needles and other equipment, providing a good medium for the majority of lighting equipment.The data of testing instruments can be stored and monitored more safely and effectively through the distribution cabinet.
If you are looking for project of metal network cabinet, disdribution box, electrical cabinet, welcome to contact us!
Top Cover:
We adopt rectangular heat dissipation holes, which are distributed around the entire roof so that the heat dissipation of the shell is even.
The top cover can be removed at will and fixed with screws.
The number of cooling holes can be stamped according to your requirements.
1. Bracket:
The movable bracket is the main body of the whole cabinet. Current load-bearing capacity is 15kg - 30kg.
We adopt rectangular heat dissipation holes, which are distributed around the entire roof so that the heat dissipation of the shell is even.
The top cover can be removed at will and fixed with screws.
The number of cooling holes can be stamped according to your requirements.
1. Bracket:
The movable bracket is the main body of the whole cabinet. Current load-bearing capacity is 15kg - 30kg.
2. Power connect panel:
With a hole with a diameter of 12mm, a hole with a diameter of 13mm and a power output hole. The surface shall be treated with anti-static spraying to ensure no electrical conduction when the power supply passes through.
With a hole with a diameter of 12mm, a hole with a diameter of 13mm and a power output hole. The surface shall be treated with anti-static spraying to ensure no electrical conduction when the power supply passes through.
3. Front cover 1 - 8 components:
Adopt precise counting hole punching and precise counting hole bending forming.
4. Front cover:
2 long row cooling holes and power output and input holes. The hole position can be customized according to the shape and size of your device.
5. Stacking tank:
Both sides of the cabinet are equipped with a material groove and M5 riveting nut. The 25mm spacing module holes are densely arranged to ensure the flexibility and versatility of installation. It is easy to adjust. You can adjust the height according to the equipment box.
6. Laminate (1-8 components):
Installation plate of a cold-rolled steel plate with a thickness of 0.8mm is adopted. It is recommended to position the diagonal first during installation. Ensure that the equipment box will not be installed because of the slant of the laminate.
Adopt precise counting hole punching and precise counting hole bending forming.
4. Front cover:
2 long row cooling holes and power output and input holes. The hole position can be customized according to the shape and size of your device.
5. Stacking tank:
Both sides of the cabinet are equipped with a material groove and M5 riveting nut. The 25mm spacing module holes are densely arranged to ensure the flexibility and versatility of installation. It is easy to adjust. You can adjust the height according to the equipment box.
6. Laminate (1-8 components):
Installation plate of a cold-rolled steel plate with a thickness of 0.8mm is adopted. It is recommended to position the diagonal first during installation. Ensure that the equipment box will not be installed because of the slant of the laminate.
7. Door panel:
1. Metal Door Panel:
Adopt a 0.8mm thick cold-rolled steel plate. You can also choose the following thickness: 1.0mm and 1.2mm. Movable bolt is used
for the door plate, which is about 25mm away from the height to ensure a flexible and smooth opening.
2. Door Lock:
We can customize different sizes of holes according to different types of door locks, flexible and convenient cabinet.
3. Reinforcement:
The 25mm spacing module holes densely arranged on the mounting column ensure the flexibility and versatility of the installation.
You can adjust the height according to the equipment box.
1. Metal Door Panel:
Adopt a 0.8mm thick cold-rolled steel plate. You can also choose the following thickness: 1.0mm and 1.2mm. Movable bolt is used
for the door plate, which is about 25mm away from the height to ensure a flexible and smooth opening.
2. Door Lock:
We can customize different sizes of holes according to different types of door locks, flexible and convenient cabinet.
3. Reinforcement:
The 25mm spacing module holes densely arranged on the mounting column ensure the flexibility and versatility of the installation.
You can adjust the height according to the equipment box.

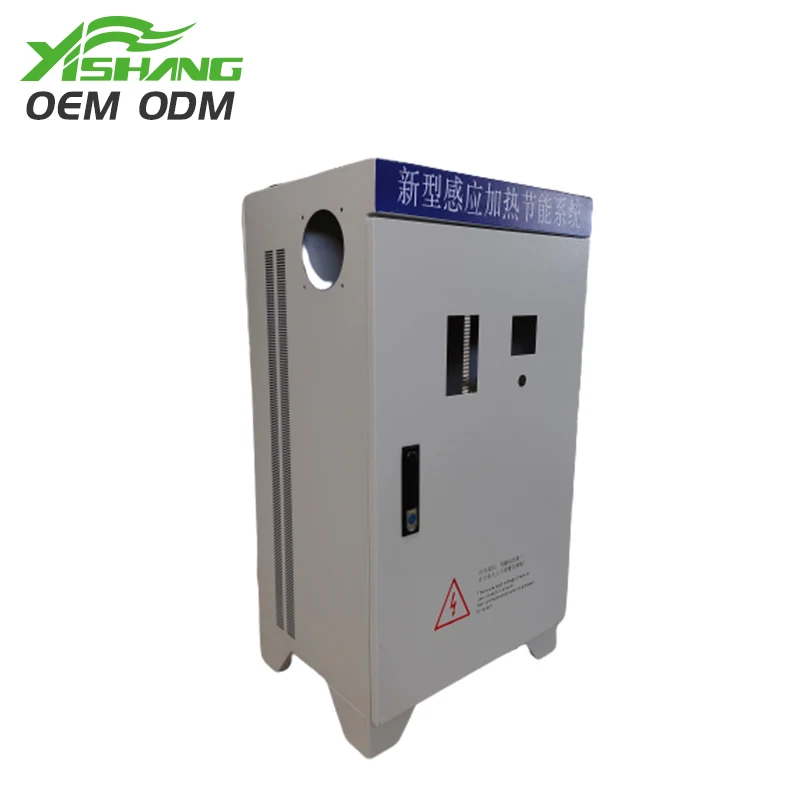

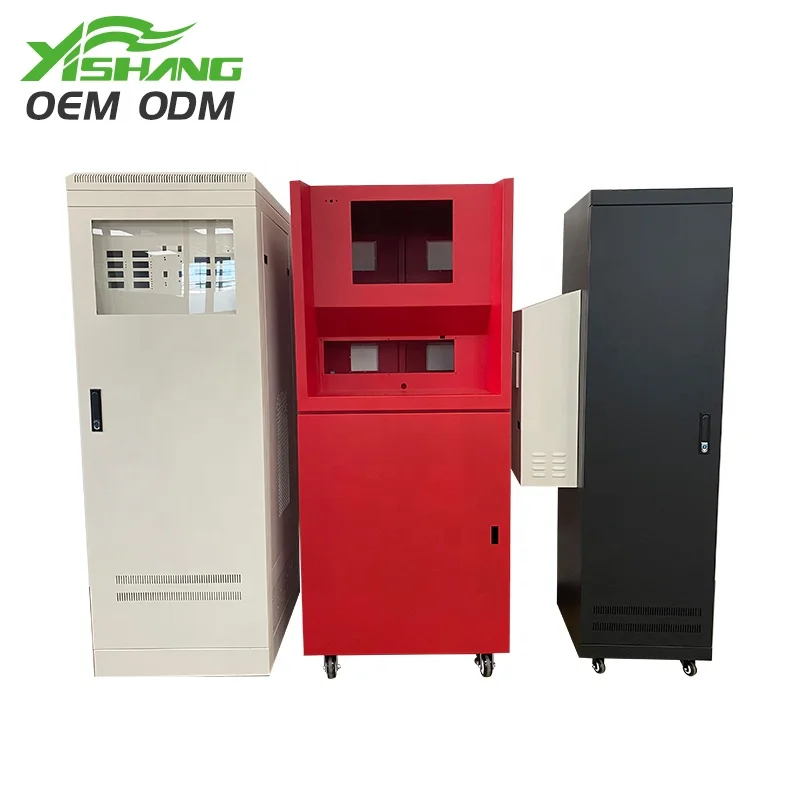

Which kind of cabinet enclosure can we make?
Why Choose Us
Packing and Shipping
