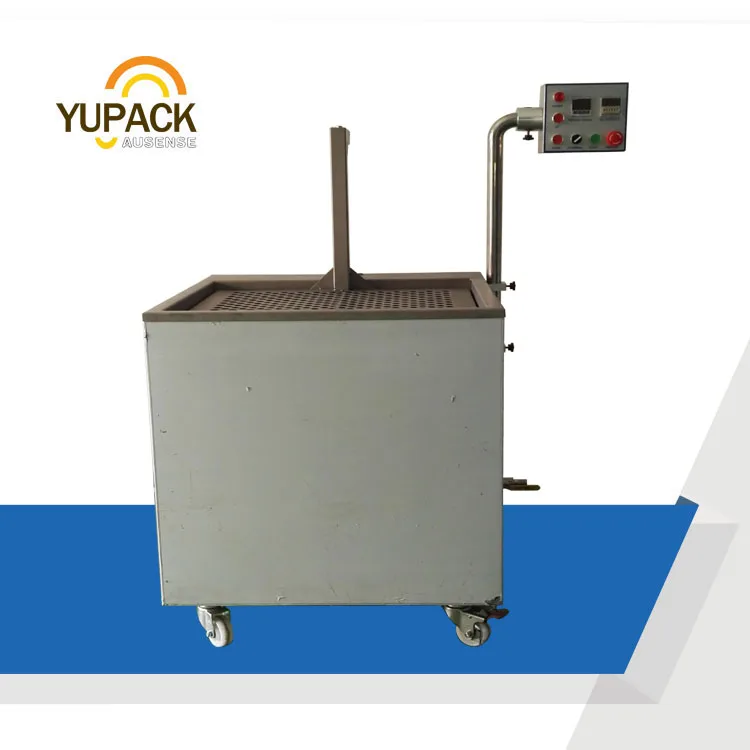

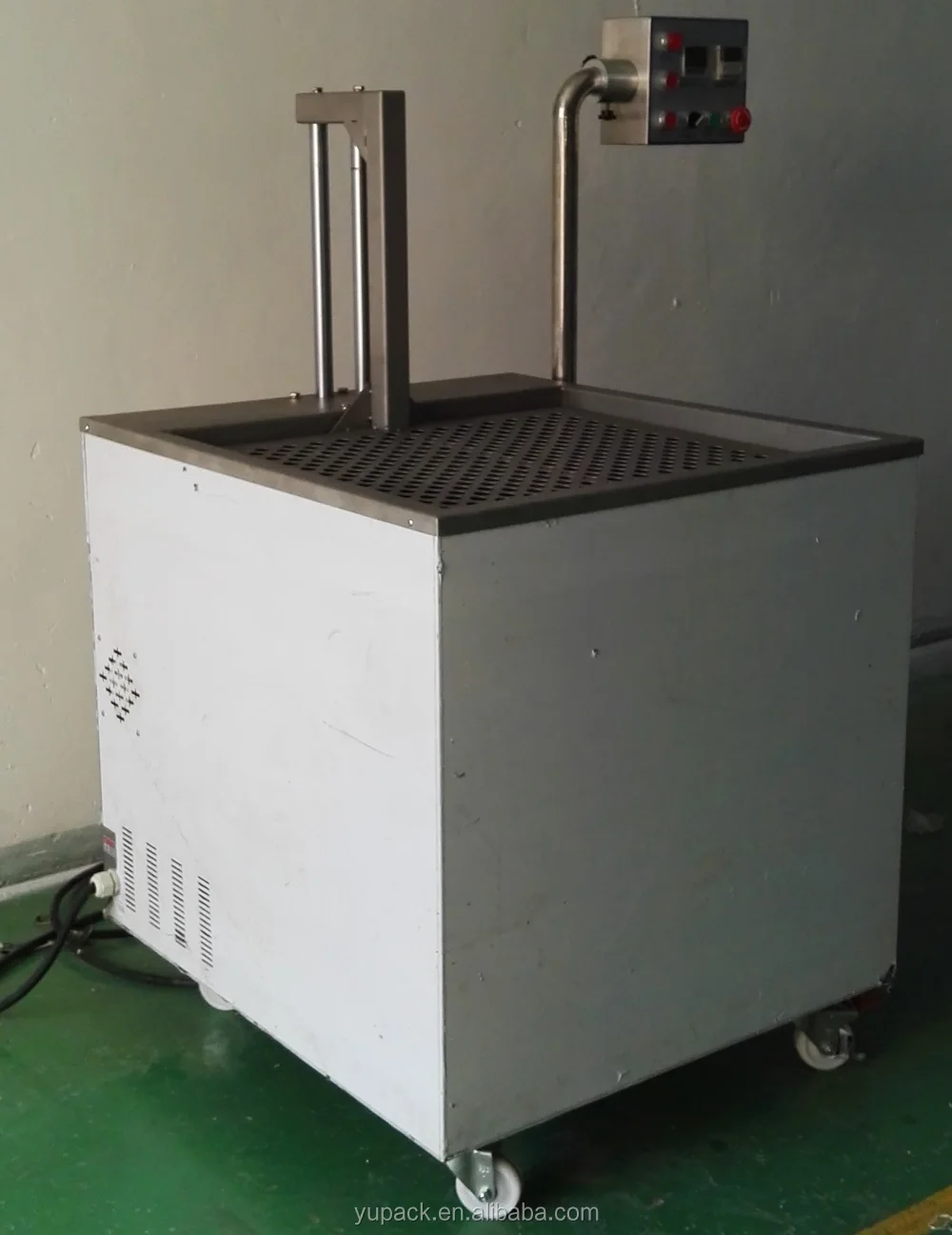

The ST-6050 hot water dip tank is for higher output applications. Designed to be used of vacuum chamber machines or as a stand alone unit, the ST-6050 dip tank offers the performance you want in a dip tank. Maximum shrinkage is achieved by means of complete submersion in the temperature controlled water.

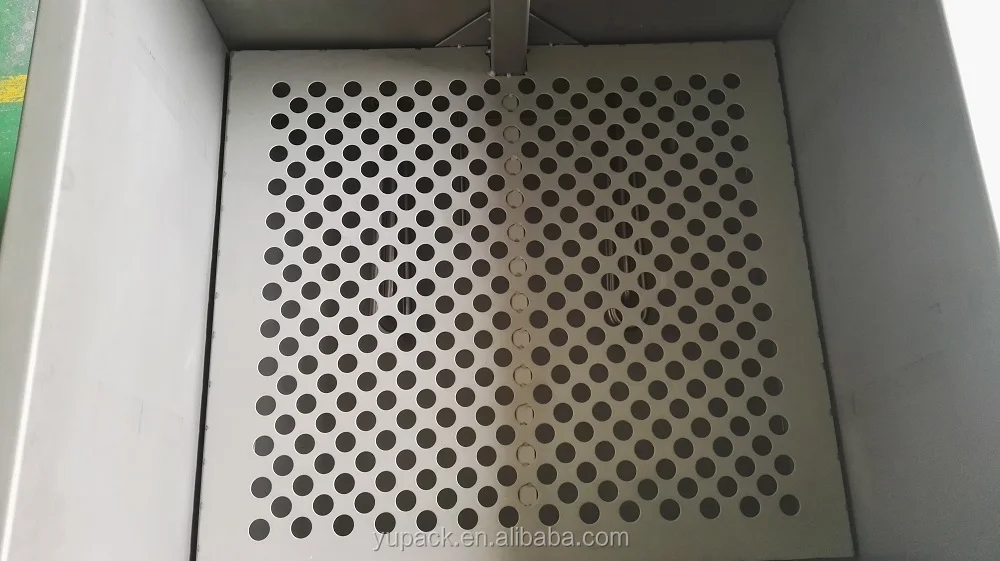

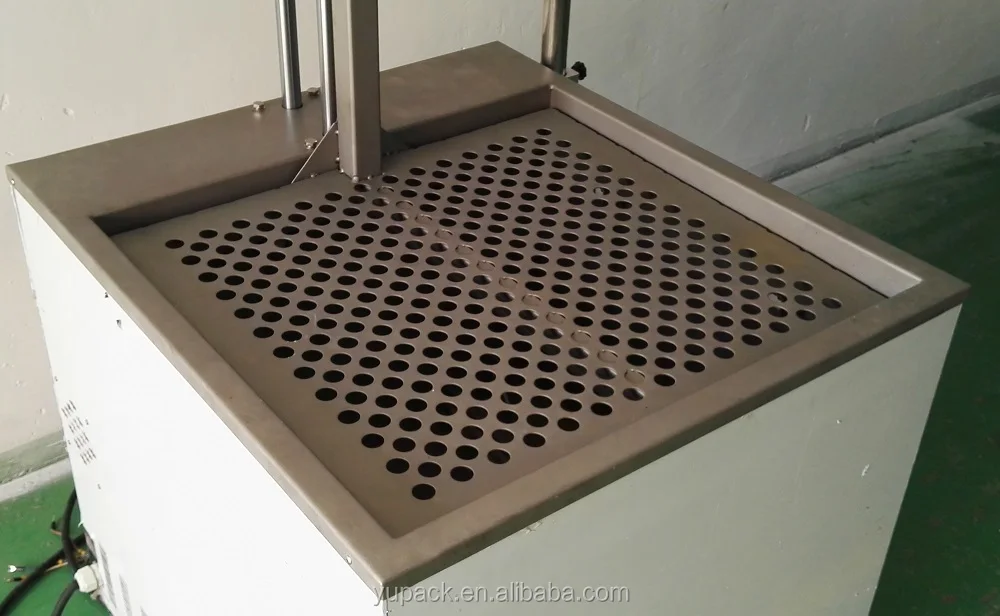

The controls allow for simple adjustment and monitoring of current settings. Fully enclosed and sealed electrical boxes insure years of trouble-free operation and the stainless steel construction provides superior corrosion resistance. The shock-assisted hinged lid gives access to the removable stainless steel conveyor for easy cleaning and inspection.
Standard Features: Stainless Steel Construction for Durability Electric Heating for Trouble-Free and Simple Operation Adjustable Temperature PLC/HMI Controls Low Water Detection with Auto Fill Pivoting control arm for efficiency High Efficiency Insulation Removable Conveyor Adjustable Leveling Feet
Technical Specifications:
Voltage
3P 220-415V 25A
Water tank
0.1494m3
Power
4.5X2KW
Tank dimension
500X600X498mm
Temperature
0-399℃ adjustable
Material
stainless steel
Control
Auto / Manual
Max load
100Kgs
Automatic
0-99seconds adjustable up and down time, start with automatic cycle
manual
Jog up and down function
Travel
330mm
Low level protection
Stop heating when the level is low,and the light will shine
how to operation the machine?

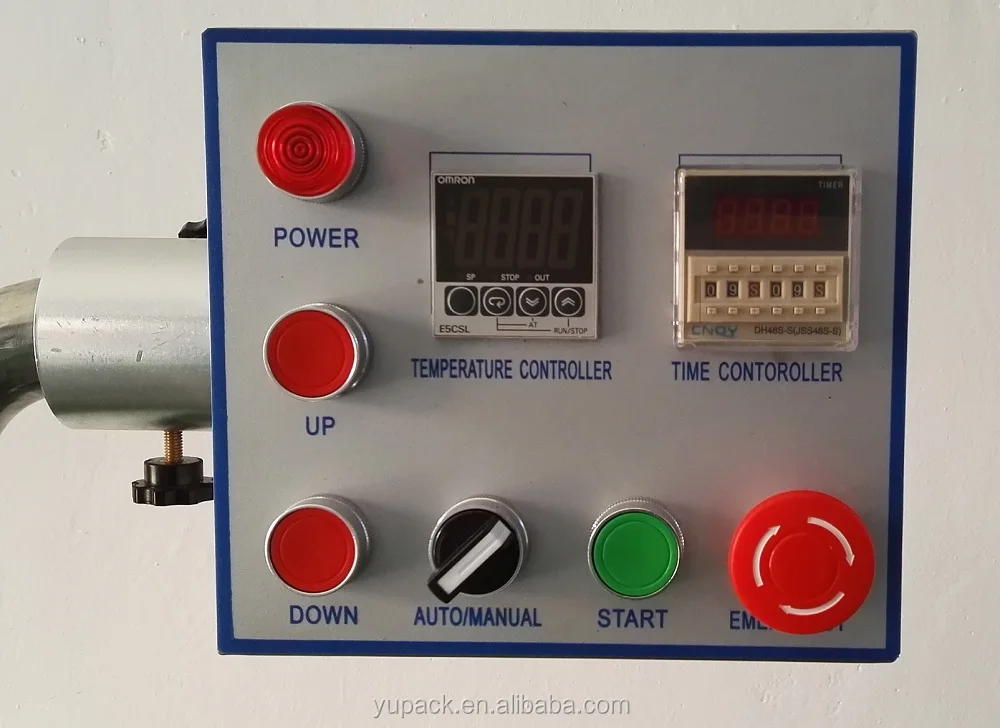

1.According to the power cord plugged into a power supply, and reliable grounding. 2.Press power,turn on the light,adjust and set the temperature:press Set ,press < switch the number position,press ∧ ∨ increase or decrease the number, sv means the set value,pv shows the current temperature. Attention:It takes about 10-20 minutes to reach the set temperature. 3.Adjust the time controller,set rise and fall time0 0 s 0 0 s The first group is fall time, 0-99 s adjustable, the second group is rise time, 0-99 s adjustable. 4.Switch to AUTO ,start auto-cycle mode,press Start,machine start working. Switch to Manual,press Start,machine start single cycle mode,if press Up and Down machine jog up and down. 5.When the water low to reach the warning level,the temperature controller stop working,meanwhile the light is shining. When you fill the water into the tank,it resume to work. 6.Press Emergency ,machine stop working immediately,press Start machine reset to the original position.
