6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output:266 HP(196KW)at 2600 rpm
Maximum torque:1100 Nm at 1100-1600 rpm
Number of cylinder :6
Displacement:9.726 L
Bore:126mm
Stroke:130mm
Compression ratio:17.5:1
Specific fuel consumption:198g/KWh
Engine oil filling quantity:19L
Cooling system filling quantity(long-term filling):40 L
Thermostat with 71℃ opening begin
Single cylinder air compressor
Rigid fan
Drive form
Left Hand Drive form
Clutch
430C Pull type diaphragm spring clutch. Friction disk diameter: 430mm
Transmission
HW13710, 10 forward & 2 reverse.
Propeller Shaft
Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle
HF7
Rear Axle
ST13, Central single reduction, full-floating axle shaft, steel plate press-welding axle housing.
Chassis
Frame :U-profile parallel ladder frame with section of 300×80×8 mm, all cold riveted cross members
Front suspension:
9 semi-elliptic leaf springs with hydraulic telescopic double-action shock
absorbers and stabilizer
Rear suspention:
15 leaf semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers
Aluminum fuel tank:
300 l capacity with locking fuel cap, fitted to the off side of the chassis
Steering
ZF8098,hydraulic steering with power assistance.
Brakes
Service brake: dual circuit compressed air brake
Parking brake (emergency brake):
spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
Wheels & Tyres
Rims:8.5-20,10 hole-steel
Tyres:295/80R22.5
Electrics
Operating voltage:24 V, negative grounded
Starter:24 V,7.5Kw
Alternator:28 V,1500 W
Batteries:2×12 V,165Ah
Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light
Dimensions mm
Wheel base:4600
Front wheel track:2022 / 2041
Rear wheel track:1850
Front overhang:1500
Rear overhang:2277
Approach angle(°):23
Departure angle(°):15
Overall dimension(L x W x H mm):8865x2500x3290
Weight kg
Dead weight:8840
Gross vehicle weight:19000
Performance
Maximum driving speed(km/h):90
Maximum gradeability(%):39
Minimum ground clearance(mm):298
Minimum turning circle(m):18.6
Fuel consumption(1/100km):26
Body
Volume of body(m3):12
Volume of filler(m3):2.2
Time of one filling cycle(s):≤30
Lifting time of filler (s):8-10
Time of discharge (s):≤55
Pressure of fluid system (Mpa):20
Front/rear sewage capacity (L):250+150
Max compression force (kg):>25000
Details of Product

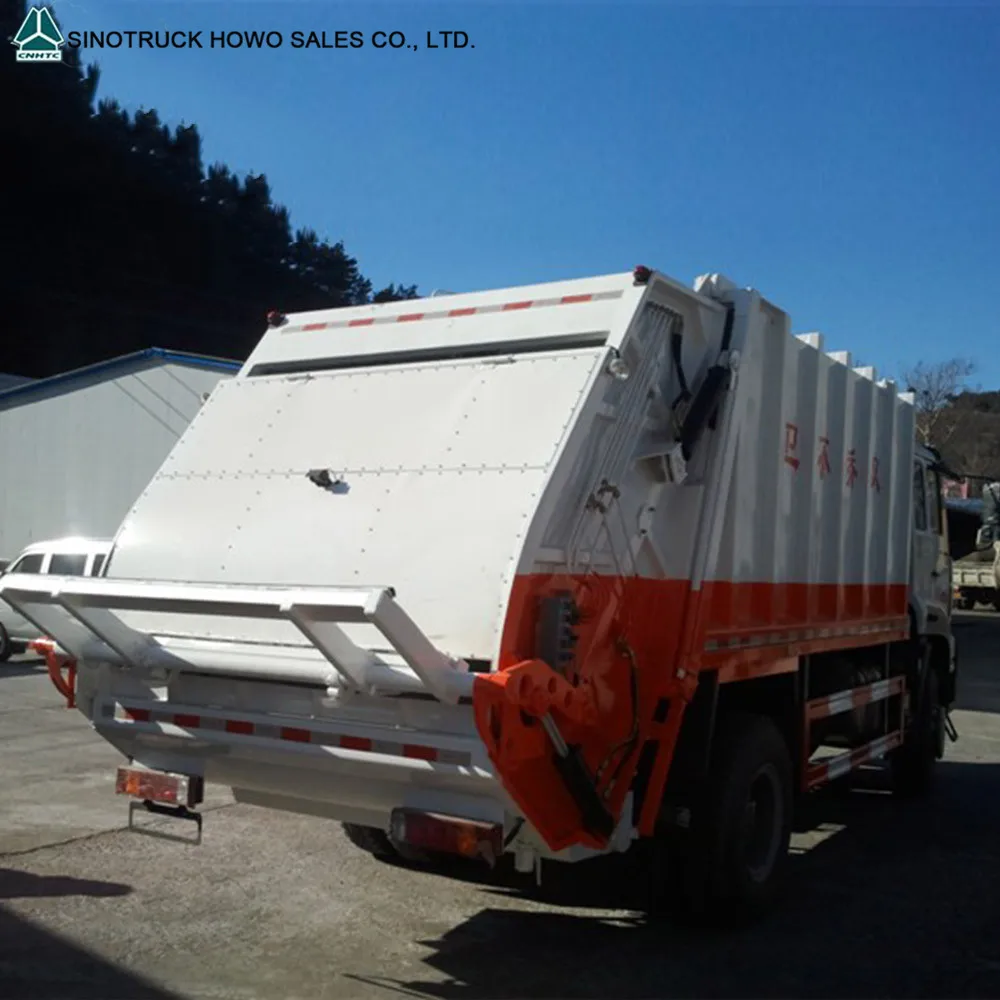

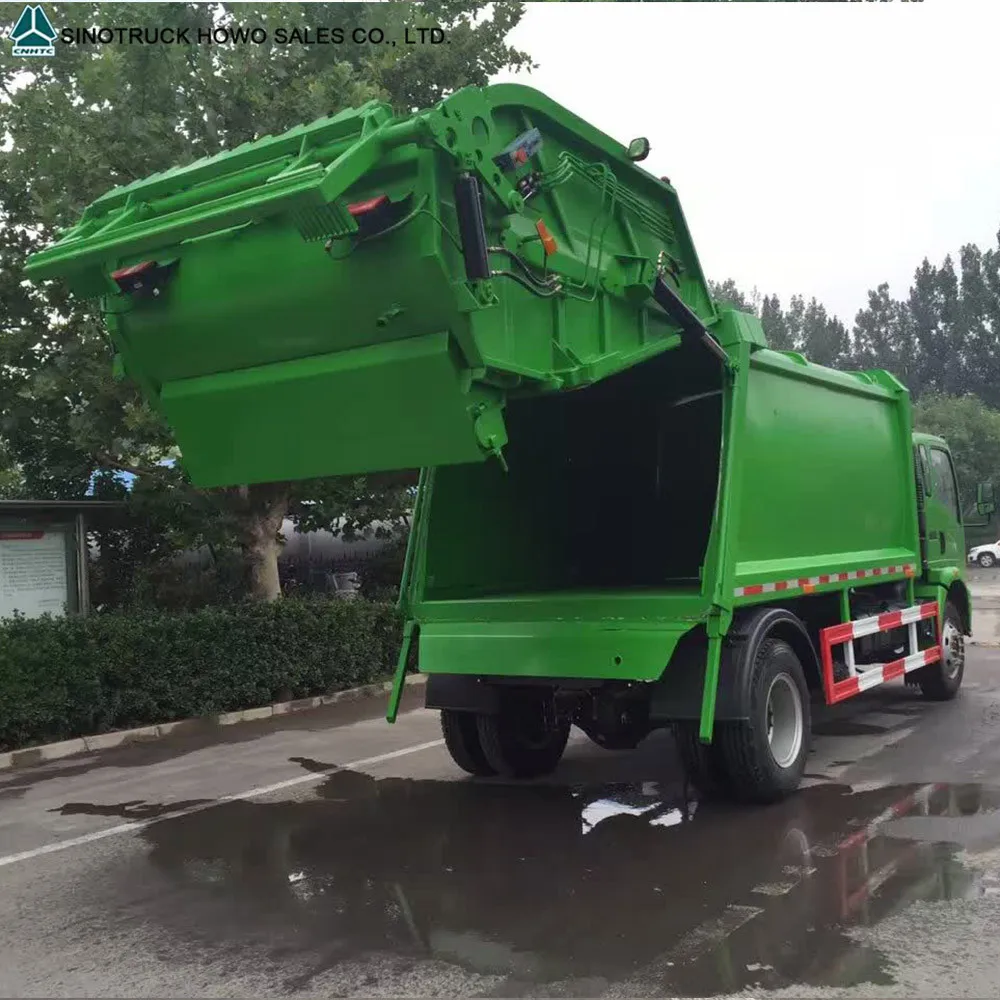

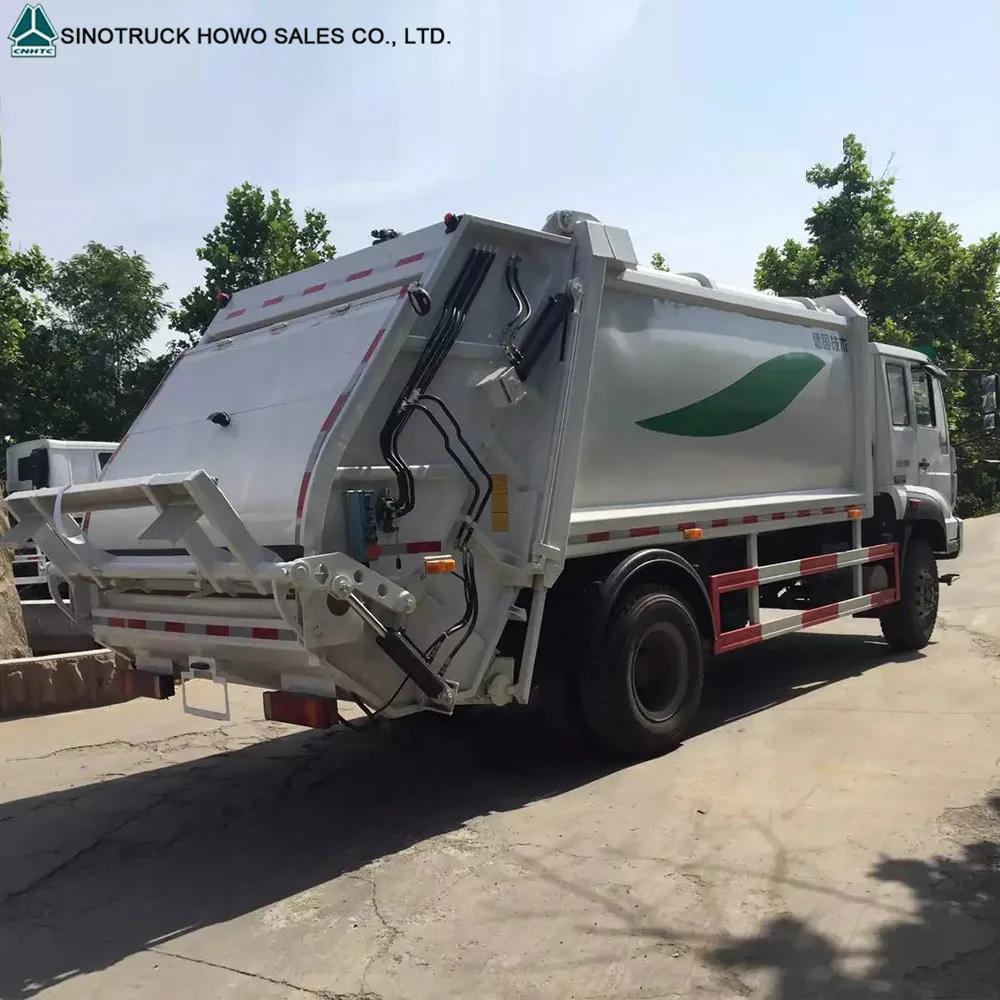

Drawing of SINOTRUK HOWO 4*2 Refuse Compactor Truck
Packaging & Shipping
Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Related Trucks
Our Services
1. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer’s design is available for certain products(OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different kinds of semi trailer can be provided with competitive price.
We can supply kinds of service to customers according to customers' request:
1,We Will Check Again Before delivery or Shipping. We must guarantee our trucks or trailers perfect and pictures will taken and sent to our customers.
2,Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, XCMG, ZOOMLION, SHACMAN, SHANTUI, DONGFENG and so on.
FAQ
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
