Product Description
Detailed Images

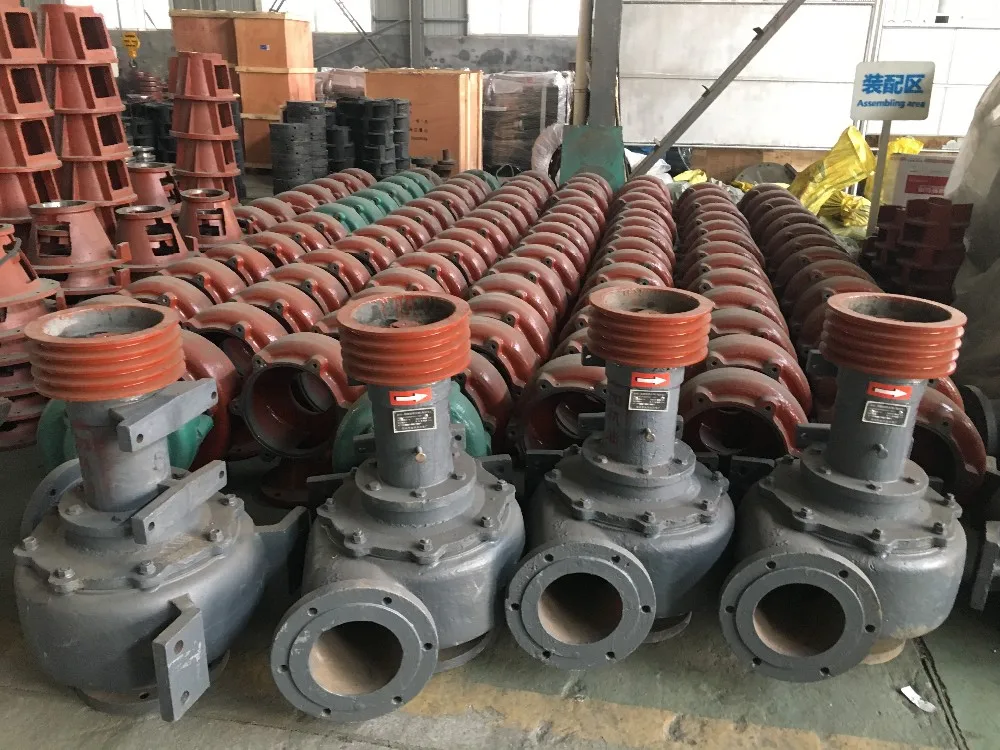

Simple sand pump :
1.Material :Cast Iron and high chrome alloy
2. with flange or without flanges
3. Wear Resistant material
4.Driven by Diesel engine or motor

Sand pump set

1. Driven by diesel engine
2. with pulley belt connected the pump and engine
3. Air coolling engine
4. with common metal base for pump and engine
\t

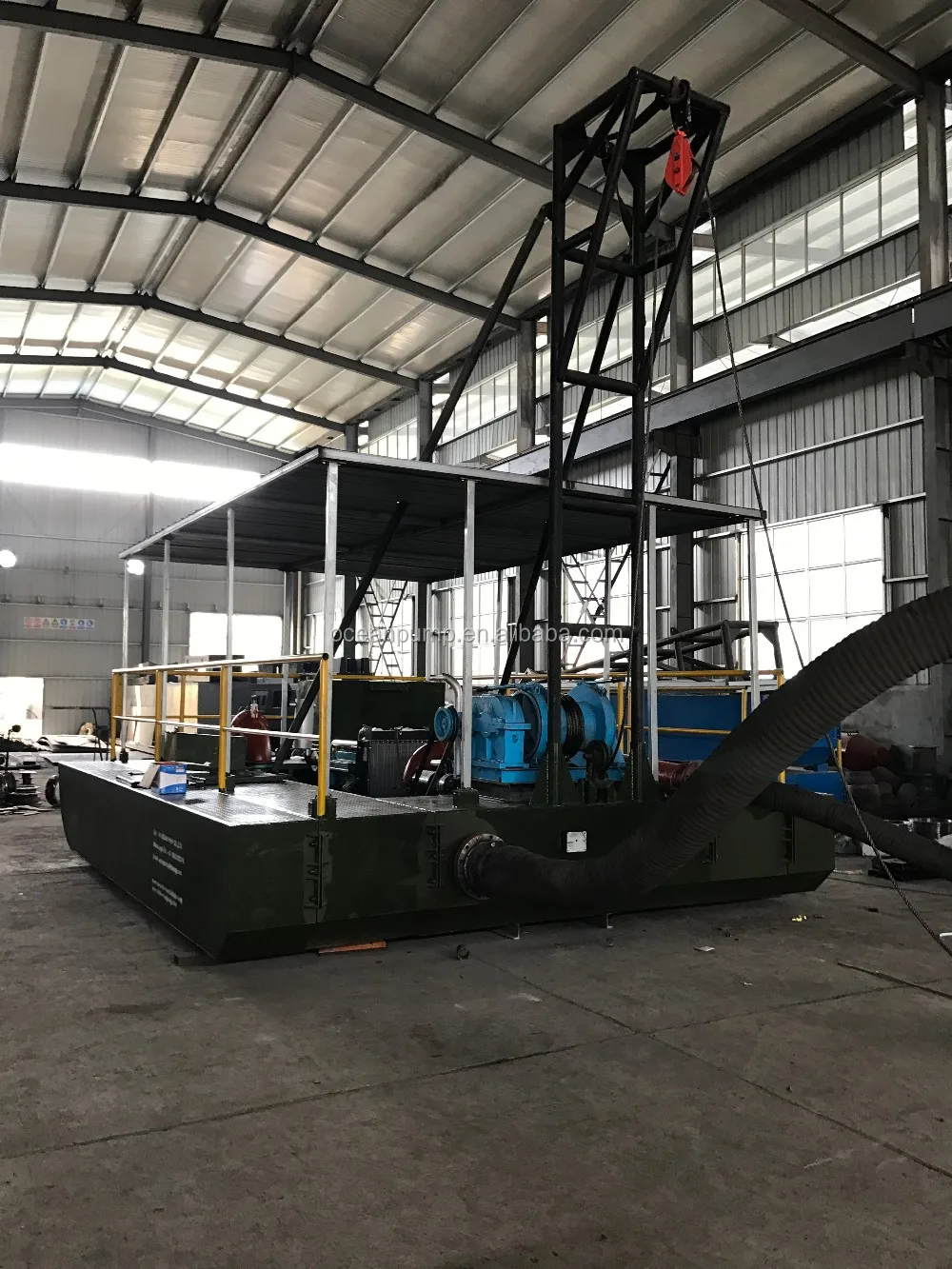

Dredger Hull
\t
L*W*H(M)
\t
4 inch
\t
4.7*2.0*0.7
\t
6 inch
\t
5.8*2.2*0.7
\t
8 inch
\t
5.8*2.2*1
\t
10inch
\t
5.8*4.2*1
\t
Remarks
\t
Also can customized made

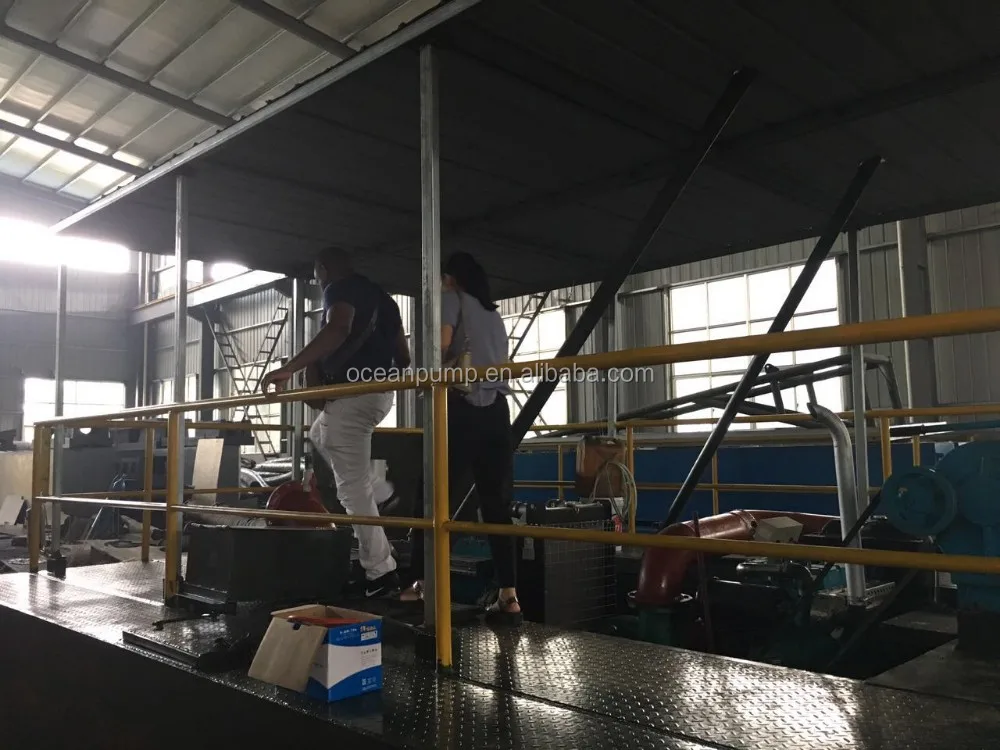

Nigeria customer inspect dredger

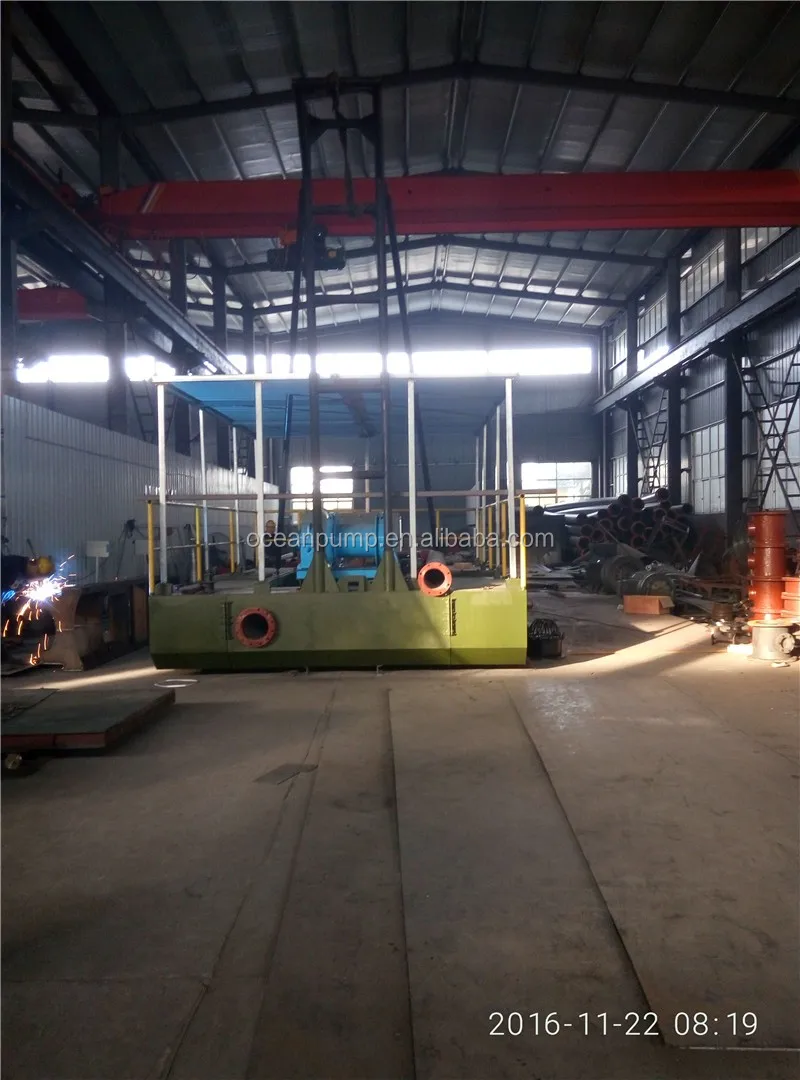

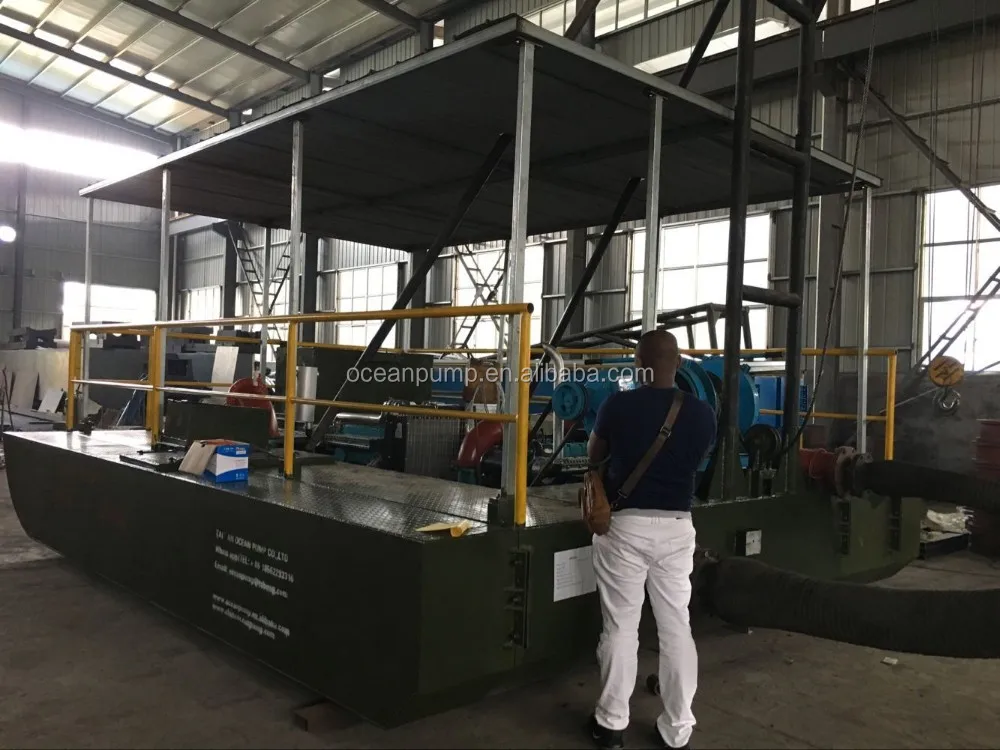

See from back

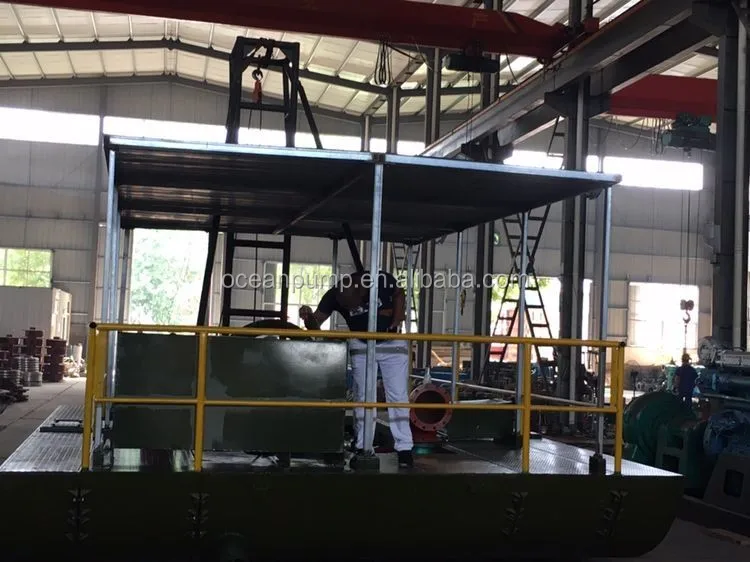

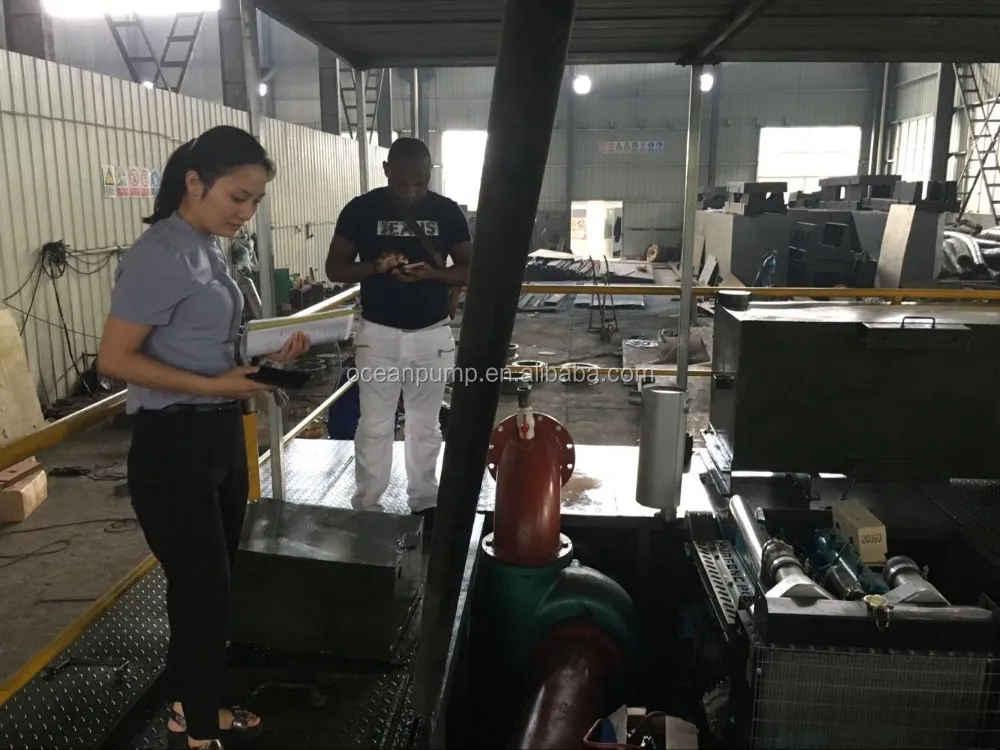

Customer on the dredger

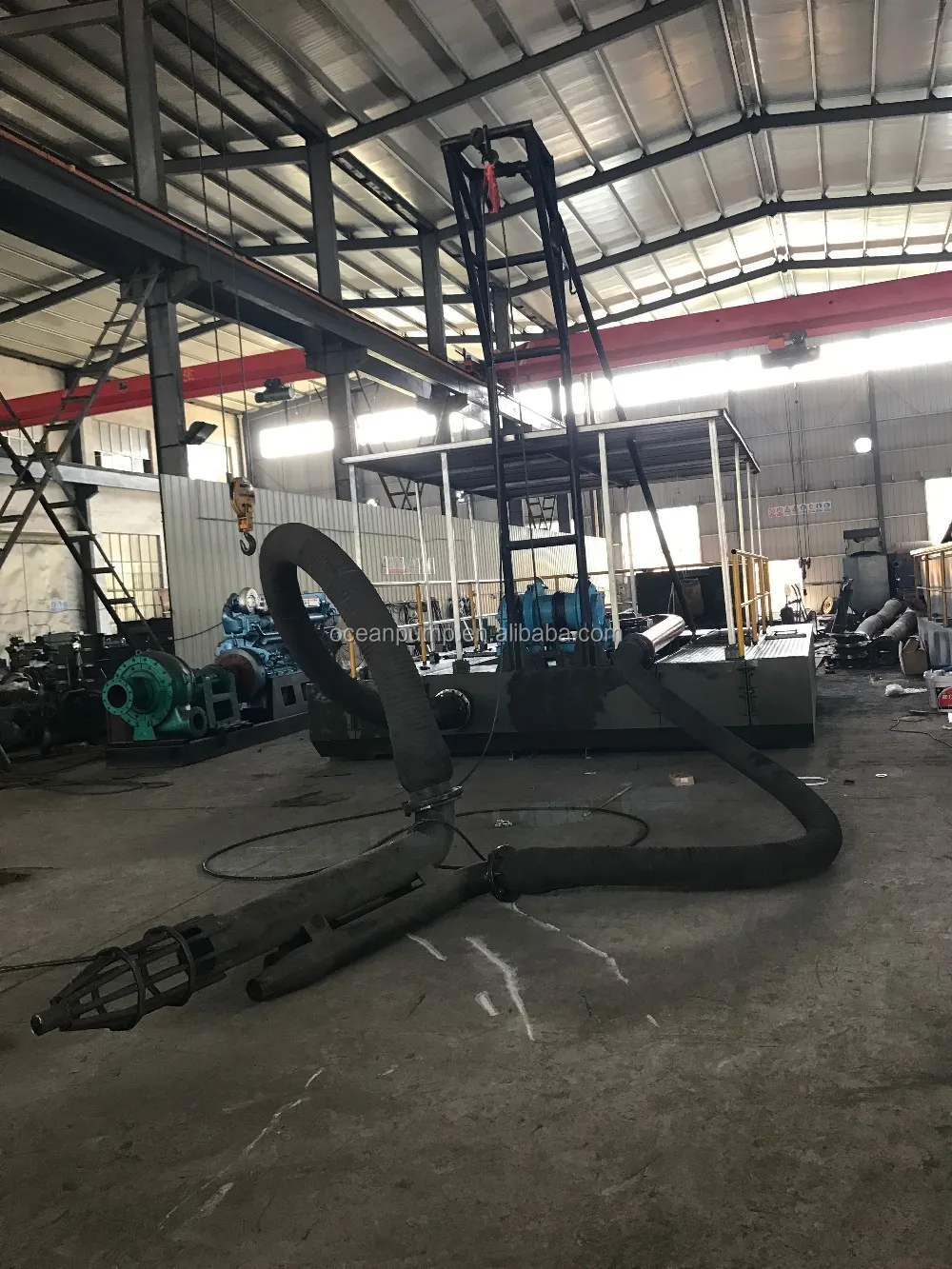

Water suction head

1. connected by flexbile rubber hose for the sand dredge pump ,with high pressure water pump to flush water and sand then pump them .
2. Can provent the big particle pumping and also can protect pump safe .

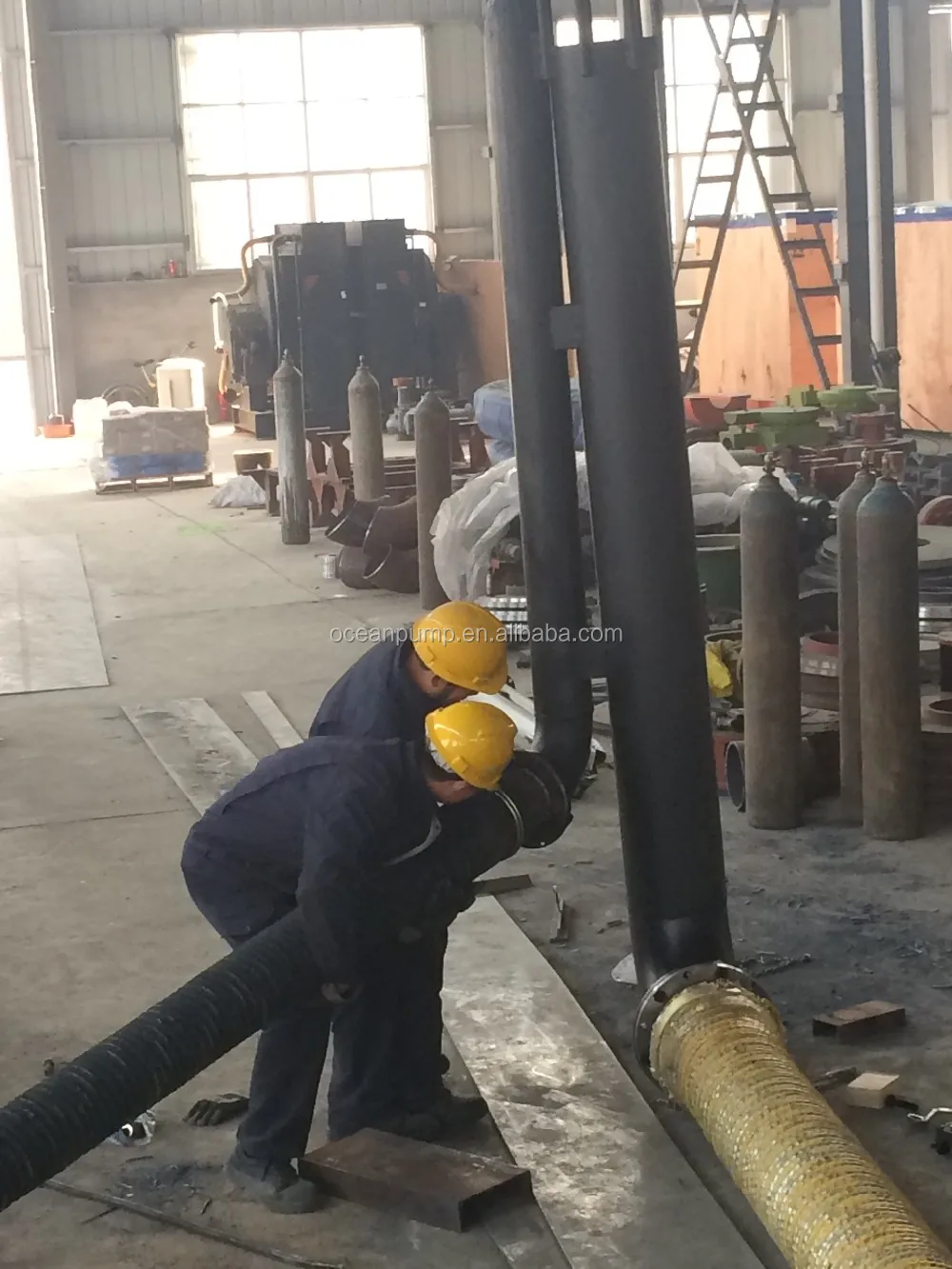

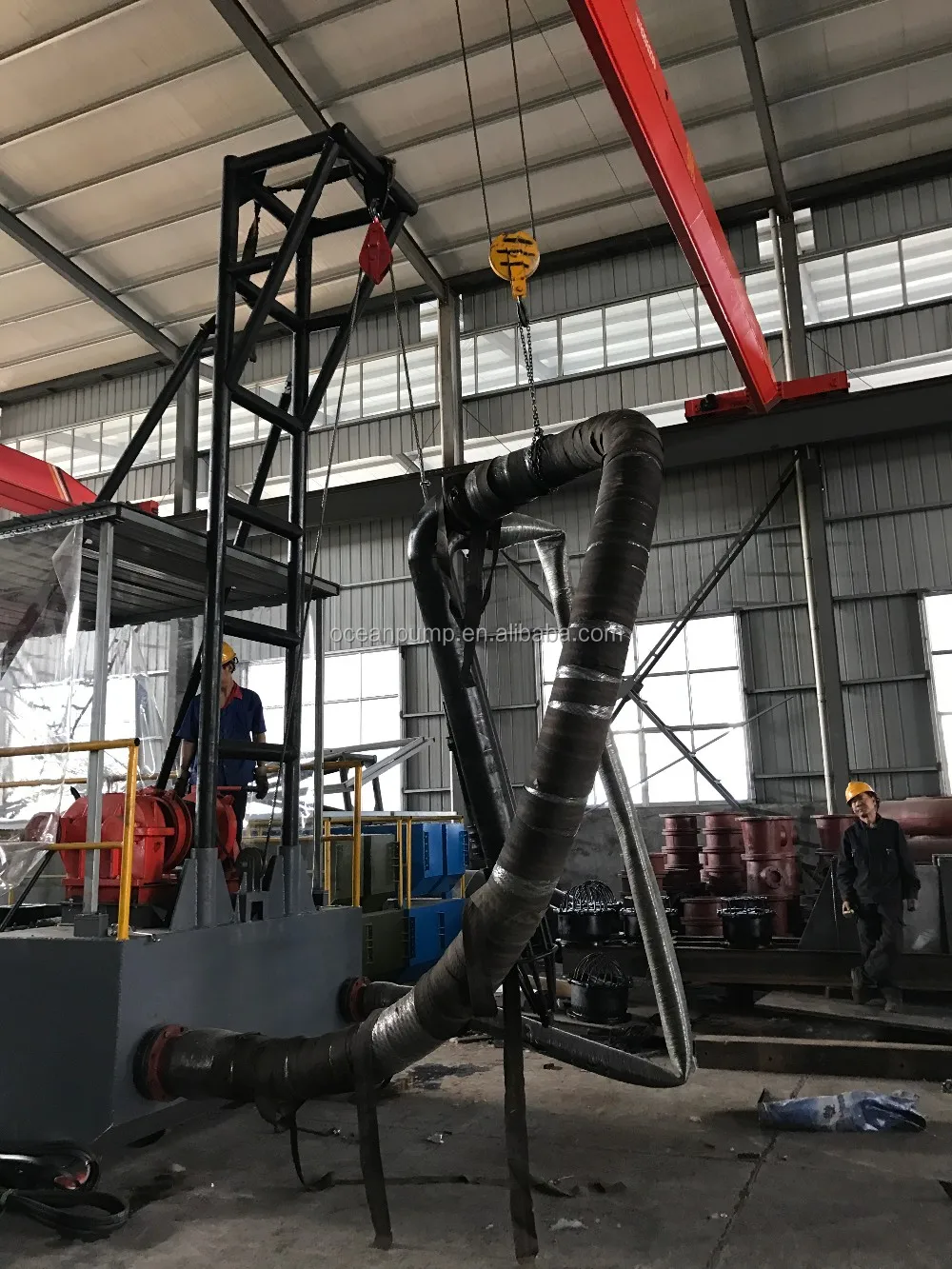

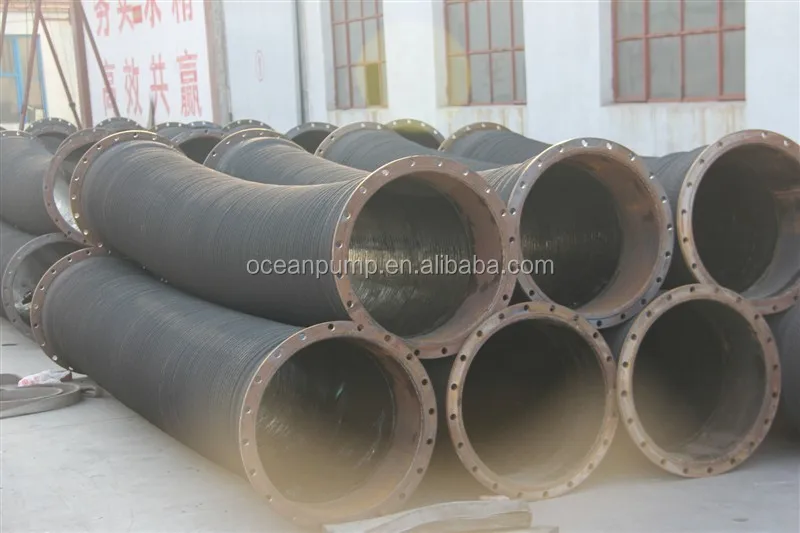

Sand suction hose :

1. With high quality and wear resistant material for sand suction use

2. with double flanges for easy connection




Propeller driven by Diesel engine

the propeller can help dredger move up and down ,and help chang the direction of dredger

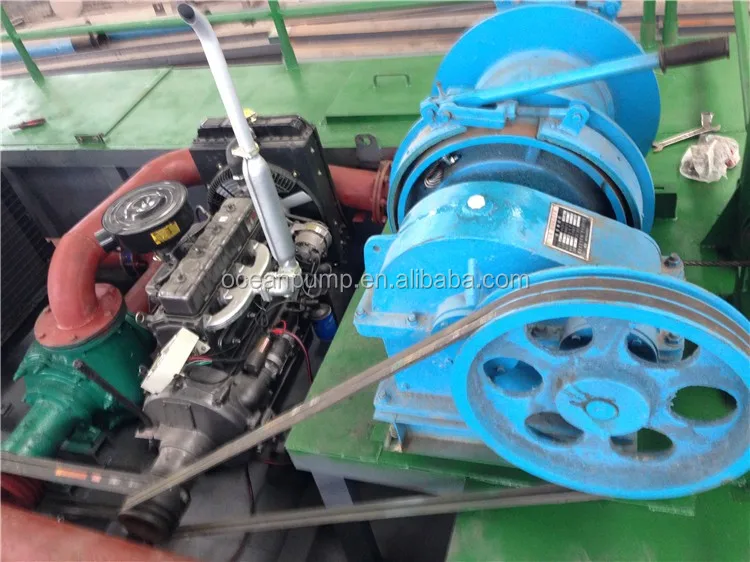

Winch

Driven by diesel engine
We have 1 ton ,2 ton .3ton.4 tons and 5 tons for lift up and down the sand suction hose
\t
Model
\t
Dimension (L*W*H)m
\t
Dredge depth (m)
\t
Sand output(m3/h)
\t
Discharge distance (m)
\t
4 inch sand dredger
\t
4.5*2.0*0.7
\t
5-6
\t
25-35
\t
50-80
\t
6 inch sand dredger
\t
5.8*2.2*0.7
\t
6-8
\t
45-60
\t
80-100
\t
8 inch sand dredger
\t
5.8*2.2*1
\t
8-15
\t
60-80
\t
100-150
\t
10 inch sand dredger
\t
5.8*4.2*1
\t
15-20
\t
80-110
\t
150-200

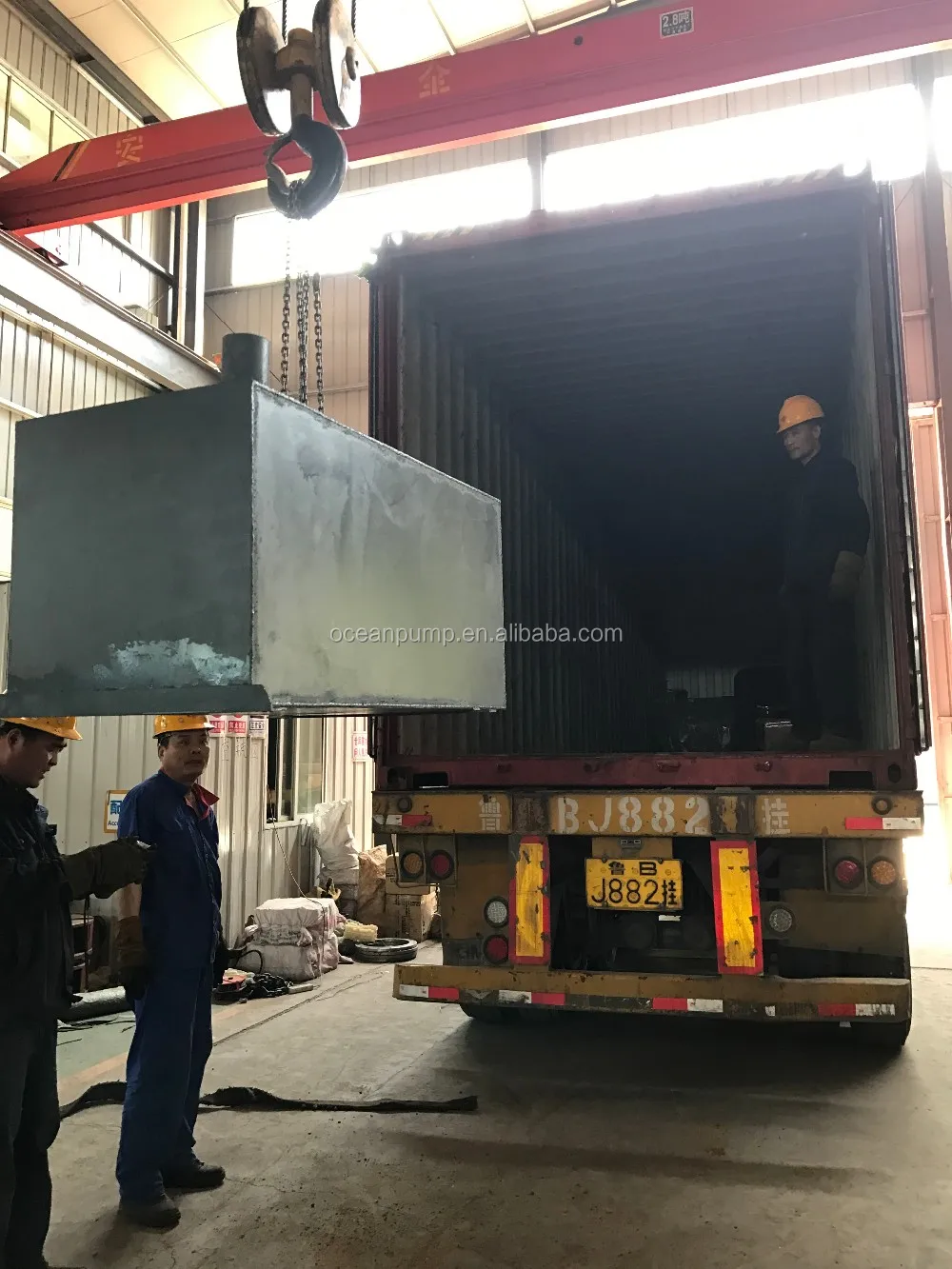

Packing & Delivery
