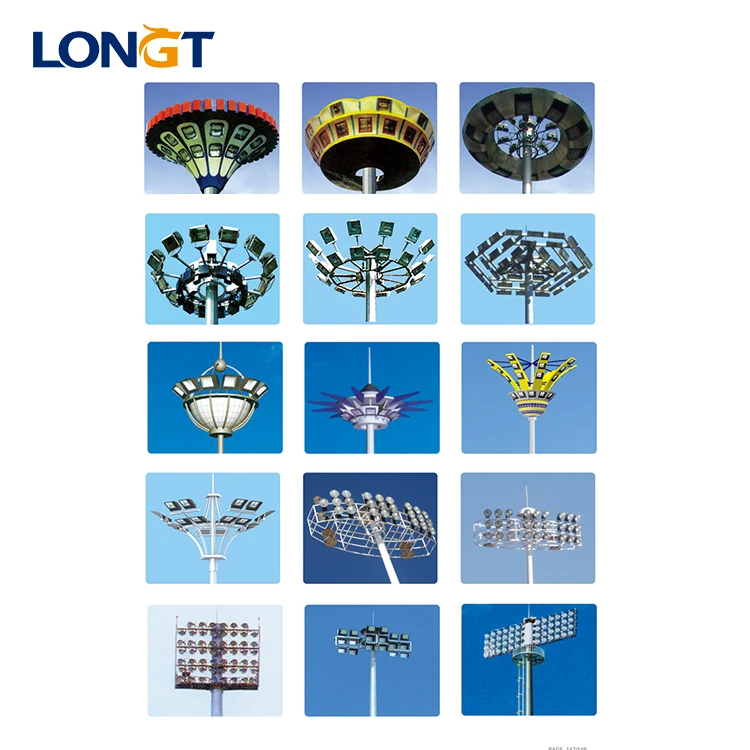

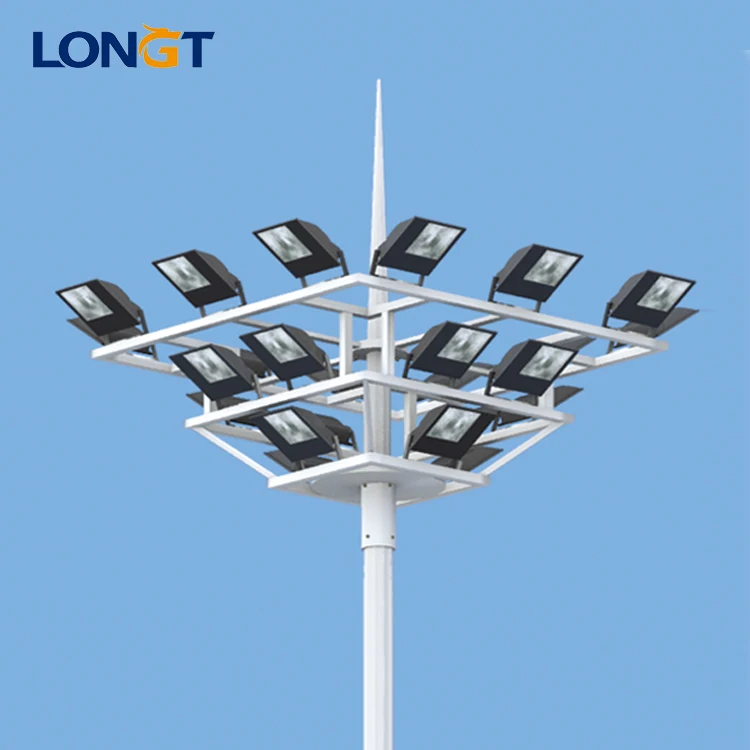

High power 30 meter high led high mast lighting with good heat sink









1. The shape usually are dodecagon or octagonal conical pole, by high strength steel plate after cutting, bending,

     automatic welding, the general height is 25m, 30m and 35, the maximum wind resistance design of up to 60 meters / second.
2. In the functional framework, but also to decorative materials mainly to steel, steel pipe, lamp post, lamp plate are hot dip galvanizing.

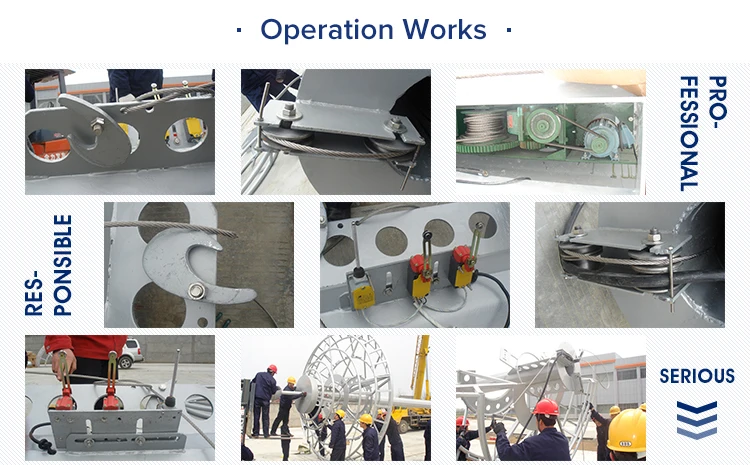

3. Electric lifting system consists of electric motor, winch, three sets of hot dip galvanized steel wire rope and cable and so on.

     The inside of the lamp post is mounted with a lifting speed of 3 to 5 meters per minute.
4. The guiding and unloading system is composed of guide wheel and guide arm to ensure that the lamp plate does not move transversely

     during the lifting process. When the lamp plate is in place, the lamp plate can be automatically dropped and locked by the hook.
5. lighting electrical system is equipped with 6 to 24 lamps, 400 W, 1000 W, metal halide (white light), light and floodlight.

     The computer time controller can automatically control the switching time, part lighting or full illumination.
6. lightning protection system: the lamp top is equipped with 1.5 meters long lightning rod,

     the underground foundation is equipped with 1 1 meter long grounding wires and is welded with the underground bolt.

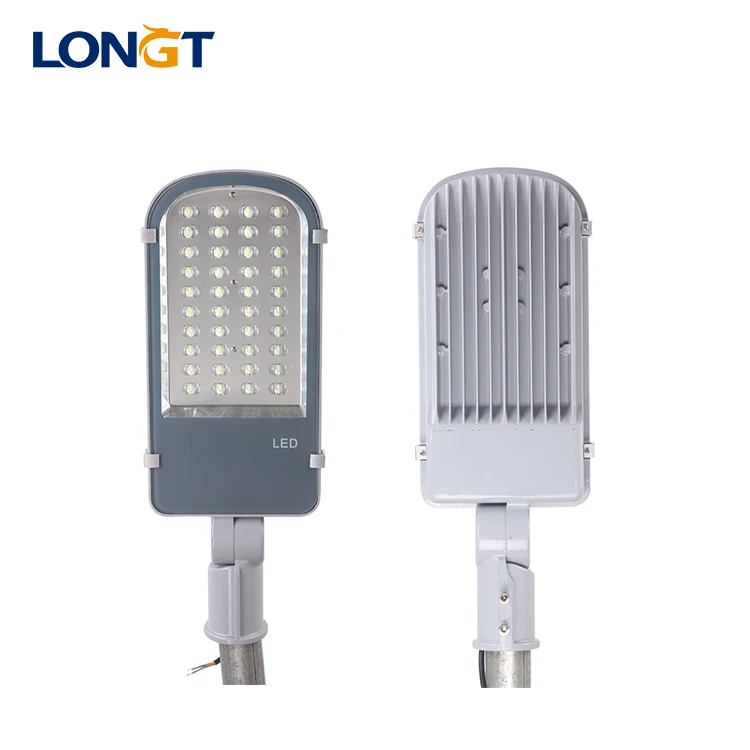

	Lamp Body: Die-Casting Aluminum. Corrosion Resistant Application with Polyester Substance in its Surface. Implement of Reflect: Made of High Purity Aluminum. Cover: High Strength and High Transparent Toughened Glass  Fastener Bolt and Screws: Stainless Steel Arm Diameter: 48 - 60mm  IP65
	Finish: Black; hot dip-galvanized (HDG) only; HDG plus powder coated Galvanization standard: ASTMA123/EN ISO1461 Welding: AWS D 1.1/BS EN 1011-1,BS EN 1011-2 Design: We have our standard pole with our design, OEM and ODM is also acceptable Package: Standard seaworthy Delivery time: with two weeks after confirm the order Thickness: 1mm to 4mm

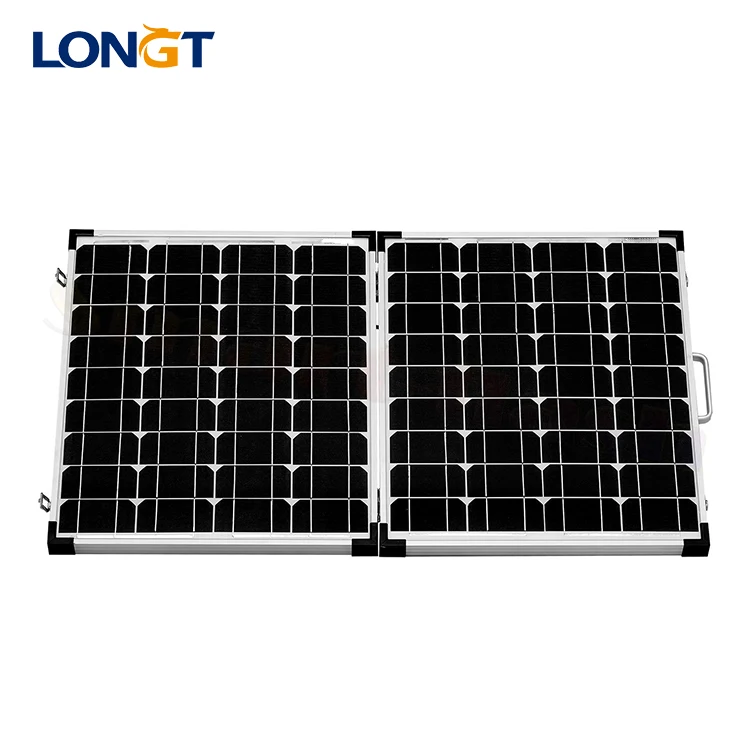

	Types of solar panel: Mono crystalline silicon & Poly crystalline silicon Monocrystalline Solar panel , efficiency of more than 18.5% Polycrystalline solar panel, efficiency of more than 17.8% A GRADE high efficient solar panel Hydrophobic layer with higher light absorption and minimal surface dust 10 years warranty for solar panels

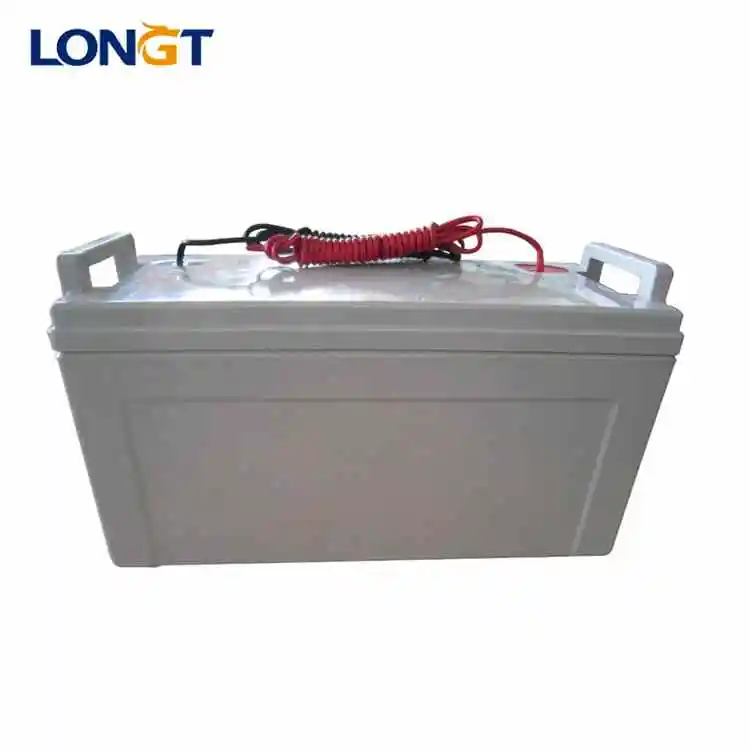

	Low-internal resistance clapboard, low internal resistance, good battery capacity Self-discharging rate less than 3% every month Gassing rate of gelled batteries is only 5% of ordinary sealed batteries. The lifespan is greater than 1000 times at 25C°
