X-133402 Бесплатная колеса клатчи Sprag один способ вращения
- Категории: Другие подшипники >>>
- Поставщик: Changzhou,Suma,Precision,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
X-133402 Free Wheel Clutches Sprag One Way Rotation Bearing
Product Description
Data Sheet
| Item | X-133402 |
| Material | Chrome Steel GCr15 |
| Surface hadrness | HRC60 to 62, for a depth of 0.6mm minimum |
| Inside shaft dia. | 85.776 mm |
| Outside shaft dia. | 104.775 mm |
| Max. width | 25.4 mm |
| Rated drag torque | 3090 Nm |
| Delivery time | 1-2 days |
| Port | Shanghai;Ningbo |
| Package | Carton package or as your requirements |
Different Sizes Of Sprag Freewheel Cage X,BW,BWC
| Type | Inside shaft Diameter | Outside Shaft Diameter | Maximum Width | Rated Drag Torque | ||
| D1 | Sprag Space | De | Sprag Space | B | N.M (kgf.m) | |
| x-135006 | 54.572 | +0.008-0.005 | 71.211 | ±0.013 | 20.5 | 799 (81.5) |
| BW-13231 | 54.765 | - | 71.427 | - | 13.5 | 402 (41.0) |
| BW-13214 | 15.9 | 363 (37.0) | ||||
| BW-13167 | 15.9 | 569 (58.0) | ||||
| BW-13209 | 57.760 | - | 74.427 | - | 13.5 | 554 (56.5) |
| BWC-13239B | 15.9 | 711 (72.5) | ||||
| BW-13238 | 21.0 | 1050 (107) | ||||
| X-133401 | 59.538 | - | 76.200 | - | 25.4 | 1350 (138) |
| BW-13243 | 72.217 | - | 88.882 | - | 13.5 | 637 (65.0) |
| BWC-13168 | 21.0 | 1510 (154) | ||||
| BWC-13229 | 21.6 | 1325 (135) | ||||
| BW-13255 | 26.7 | 1920 (196) | ||||
| X-133614C | 83.596 | ±0.013 | 102.555 | - | 25.4 | 3040 (310) |
| X-133402 | 85.776 | - | 104.775 | - | 25.4 | 3090 (315) |
| BWC-13251 | 103.231 | - | 119.944 | - | 15.4 | 789 (80.5) |
| BWC-13261 | 15.4 | 1580 (161) | ||||
| X-133639 | 103.231 | - | 122.230 | - | 25.4 | 4410 (450) |
| X-133403 | 123.881 | - | 142.880 | - | 25.4 | 5740 (585) |

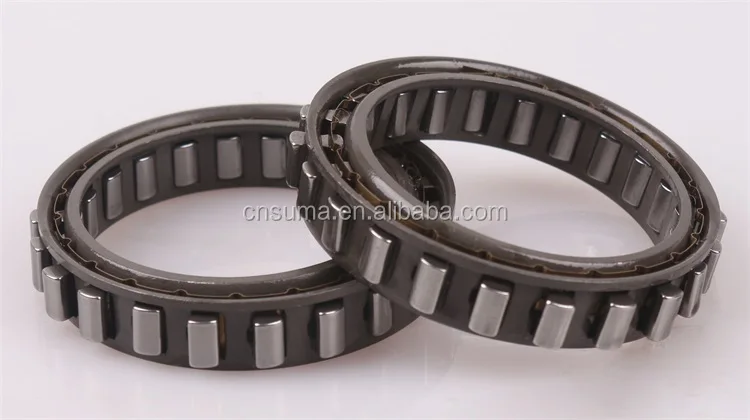

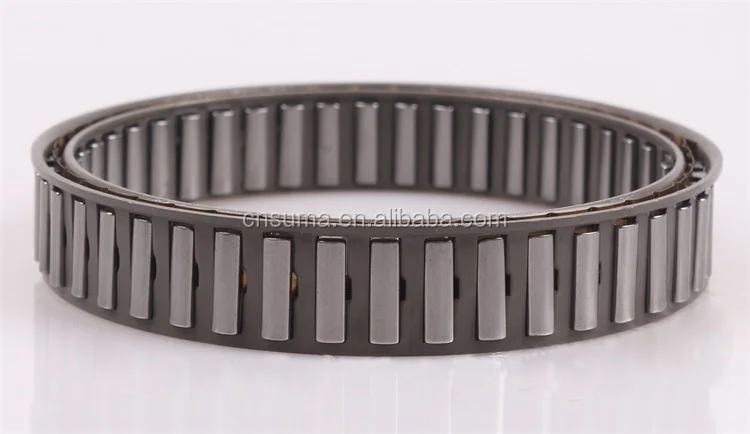

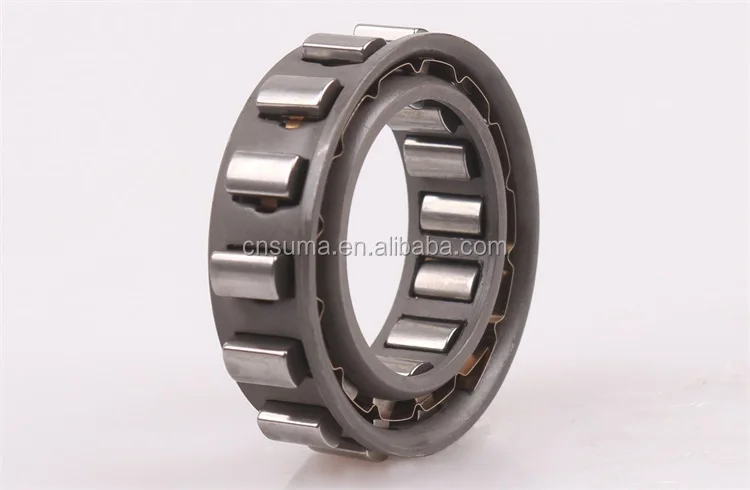

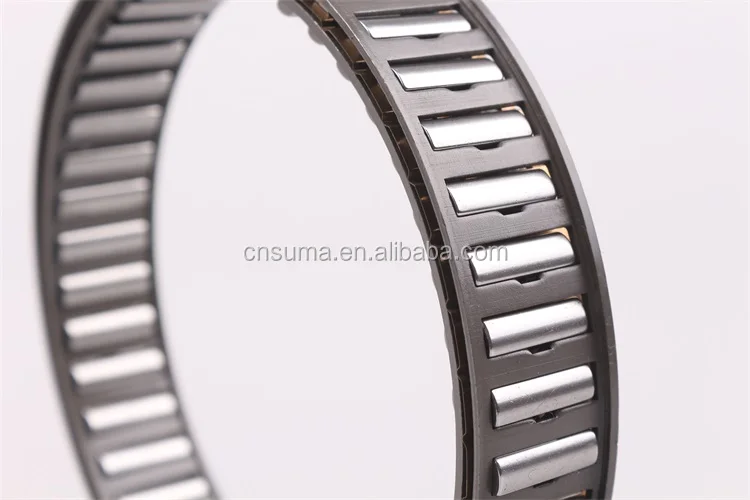

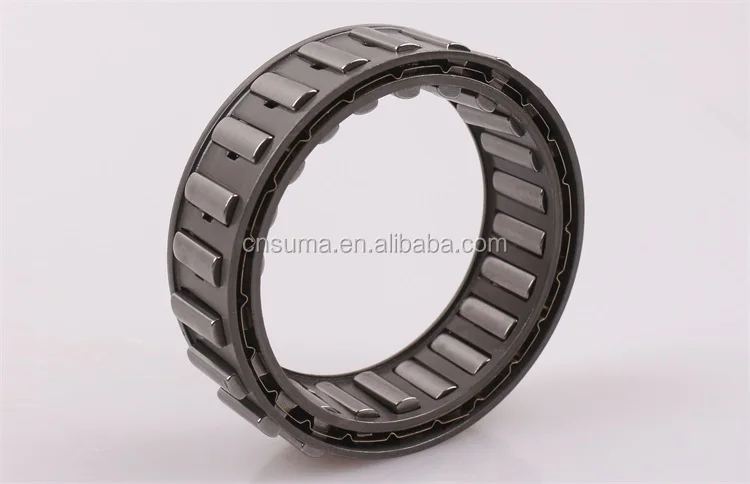

Detailed Image
Our Services
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
