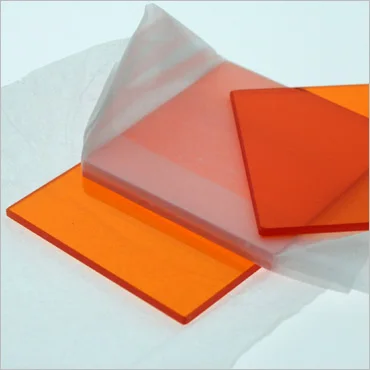

Оптический цветной фильтр фильтры из оранжевого стекла и

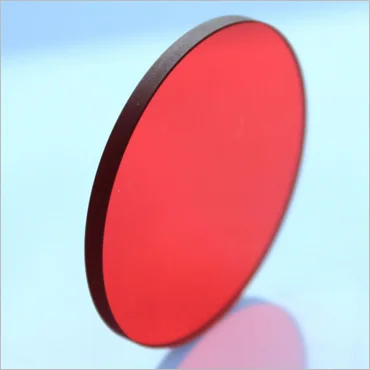

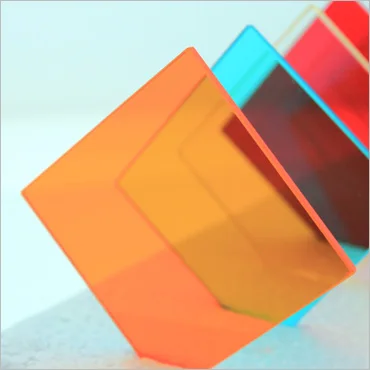

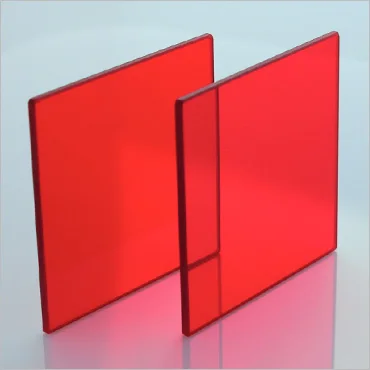

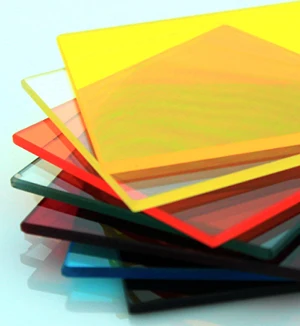

Color Glass Filter ( Colored optical glass filters )

Optical color glass can selectively transmit special wavelength of light, or a portion of wavelengths in a continuous spectrum, or reduce transmission evenly across visible spectrum by absorbing or reflecting the portion of the light that is not being transmitted.

Optical color glass is also called Colored optical glass filters. It is mainly used as filters for observing, photograph, infrared instrument in order to improve the visibility or meet special spectrum requirements. It can be also made into colored glasses.

Worldhawk can provide various color glass filters or its substitutes.

include cut-off type glass filter, selective absorption type glass filter, heat-absorbing glass and neutral grey colored glass.

Application: Environmental displays  Industrial applications
Optical metrological instruments  Laser protective windows
Machine vision devices  Optical detection instruments
A digital optical  Optical test instruments
Electro-optic displays  Medical optical  Infrared thermograph

Type

Thickness

A[2856k]

D65

Chemical Stability

ND

α×10-7

Tg

Ts

S

(mm)

x

y

Y

x

y

Y

DA

DW

(/℃)

(℃)

(℃)

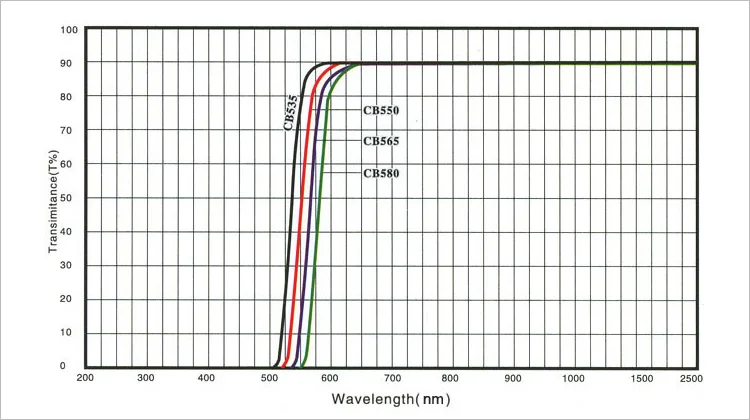

CB535

2

0.549

0.448

82.2

0.504

0.492

70.2

3

2

1.523

103

527

605

2.64

CB550

2

0.594

0.405

63.6

0.569

0.43

48.4

3

2

1.523

103

527

605

2.64

CB565

2

0.622

0.377

51.6

0.605

0.395

36.7

3

2

1.523

103

527

605

2.64

CB580

2

0.658

0.342

35.9

0.649

0.351

23.3

1

2

1.523

103

527

605

2.64

Type

Thickness

λtj

λ0

Tλ0

K

Bubble

Stripe

Stress

(mm)

(nm)

(nm)

(%)

CB535

2

535 ± 10

650

≥88.7

≥1.2

C-B

3C

3

CB550

2

550 ± 10

650

≥88.7

≥1.2

C-B

3C

3

CB565

2

565 ± 10

650

≥88.7

≥1.2

C-B

3C

3

CB580

2

580 ± 10

680

≥88.7

≥1.2

C-B

3C

3

Type

Thickness

A[2856k]

D65

Chemical Stability

ND

α×10-7

Tg

Ts

S

(mm)

x

y

Y

x

y

Y

DA

DW

(/℃)

(℃)

(℃)

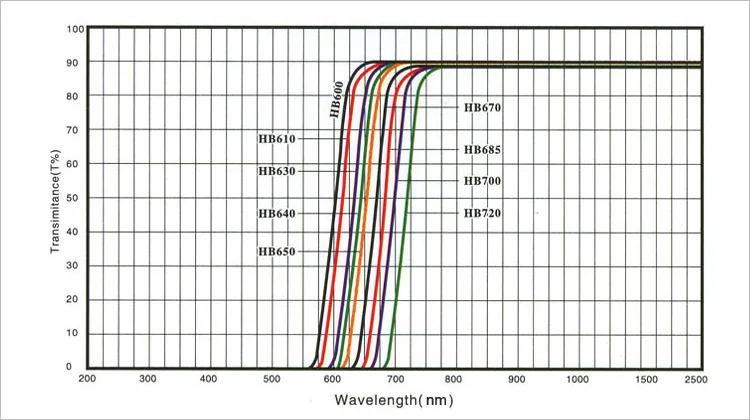

HB600

2

0.68

0.319

27

0.675

0.325

16.5

1

2

1.523

103

527

605

2.64

HB610

2

0.695

0.305

18.4

0.69

0.31

10.7

1

2

1.523

103

527

605

2.64

HB630

2

0.713

0.287

10.4

0.711

0.289

5.5

1

2

1.523

103

527

605

2.64

HB640

2

0.724

0.276

5

0.723

0.277

2.4

1

2

1.523

103

527

605

2.64

HB650

2

0.728

0.272

3.2

0.728

0.272

1.5

1

2

1.523

103

527

605

2.64

HB670

2

0.731

0.269

1.1

0.73

0.27

0.5

1

2

1.523

103

527

605

2.64

HB685

2

0.734

0.266

0.3

0.734

0.266

0.1

1

2

1.523

103

527

605

2.64

HB700

2

0.735

0.265

0

0.735

0.265

0

1

2

1.523

111

534

592

2.64

HB720

3

5

4

1.532

111

534

592

2.77

Type

Thickness

λtj

λ0

Tλ0

K

Bubble

Stripe

Stress

(mm)

(nm)

(nm)

(%)

HB600

2

600 ± 10

680

≥88.7

≥1.2

C-B

3C

3

HB610

2

610 ± 10

680

≥88.7

≥1.2

C-B

3C

3

HB630

2

630 ± 10

700

≥88.7

≥1.2

C-B

3C

3

HB640

2

640 ± 10

720

≥88.7

≥1.2

C-B

3C

3

HB650

2

650 ± 10

720

≥87.5

≥1.0

C-B

3C

3

HB670

2

670 ± 10

750

≥87.5

≥1.0

C-B

3C

3

HB685

2

685 ± 10

800

≥83.6

≥0.8

C-B

3C

3

HB700

2

700 ± 10

800

≥79.8

≥0.8

C-B

3C

3

HB720

3

720 ± 10

800

≥80.0

≥0.8

C-B

3C

3
