Smart Package Locker Software Central Control Module PCB Board
If you want to know more details, please contact us.
Product Parameter
Brand | KERONG |
Model | KR-CU |
Definition | Electronic rotary latch controller |
Function | Receive commands to control lock and feedback status |
Dimension | L200*W140*H15mm |
Material | PCB (Printed Circuit Board) |
Dimension of protect shell | L210*W150*H35mm |
Material of protect shell | ABS |
Micro processor module | STM8S103K3T6 QFP32(P0.8mmBS7*7mm) |
Connector model | RJ45, 8P8C |
Working voltage | 12V~24V |
Stand-by power consumption | 60mA |
Dynamic power consumption | 200mA~3000mA |
Reaction time | Less than 1s |
Working temperature | -25℃ ~ +65℃ |
Working humidity | 5% ~ 95%RH |
Working life | 500,000 times |
OEM | Accepted |
Certification | CE; FCC; RoHS |
Products Description
Features
1, For network communication. Transfer TCP/IP commands (from PC) to 485 format (to CU).
2, Open developed, you can design software completely as you want.
3, Support networking.
4, Can co-work with computer, pad, Raspberry Pi.
5, Works well on IOS, Windows and Linux.
6, Suit for multiple application: parcel delivery locker, public storage locker etc.
7, High quality modules, working stably.
8, Working temperature: -25℃~65℃.
9, With protect box, anti-dust.
2, Open developed, you can design software completely as you want.
3, Support networking.
4, Can co-work with computer, pad, Raspberry Pi.
5, Works well on IOS, Windows and Linux.
6, Suit for multiple application: parcel delivery locker, public storage locker etc.
7, High quality modules, working stably.
8, Working temperature: -25℃~65℃.
9, With protect box, anti-dust.

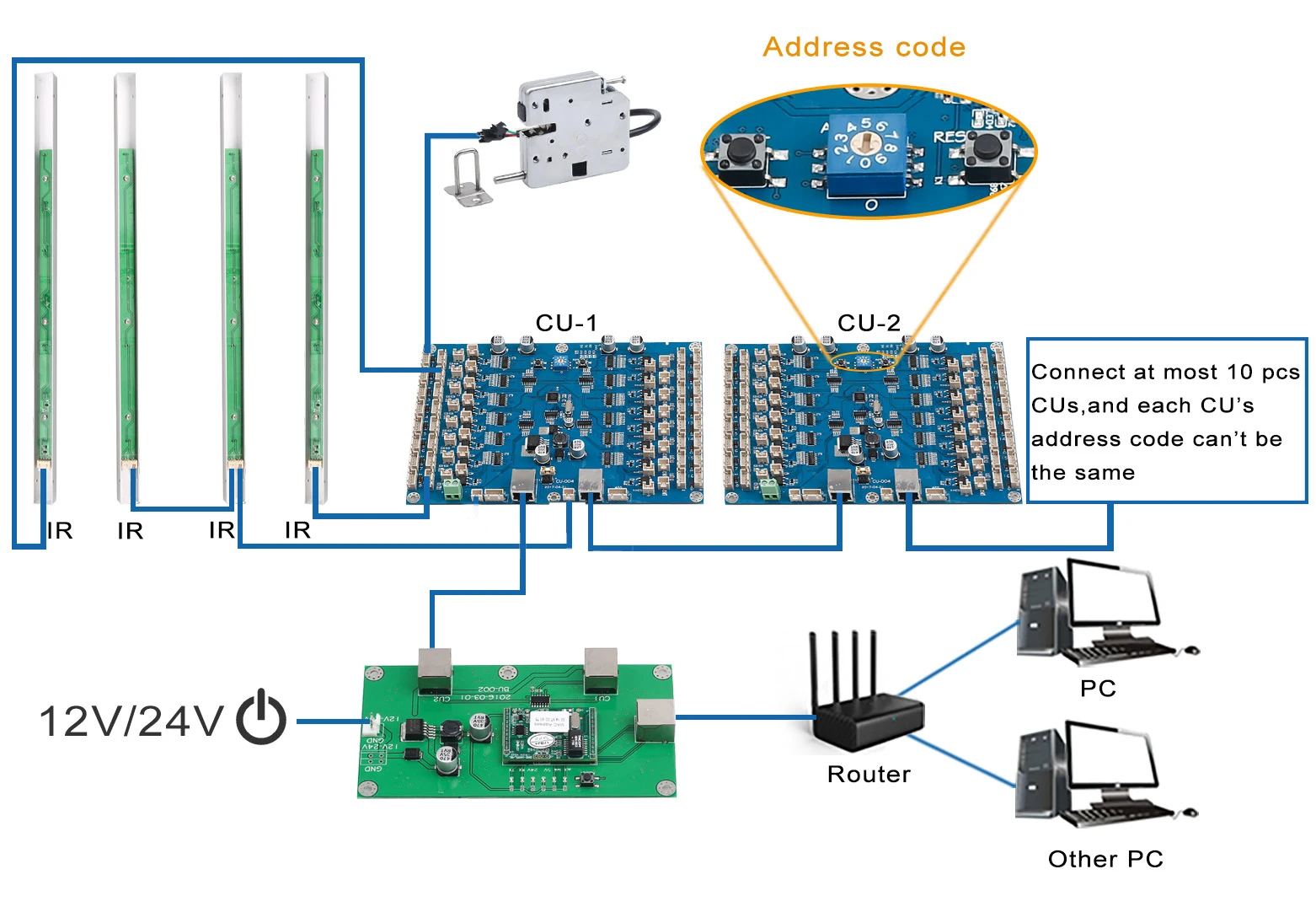

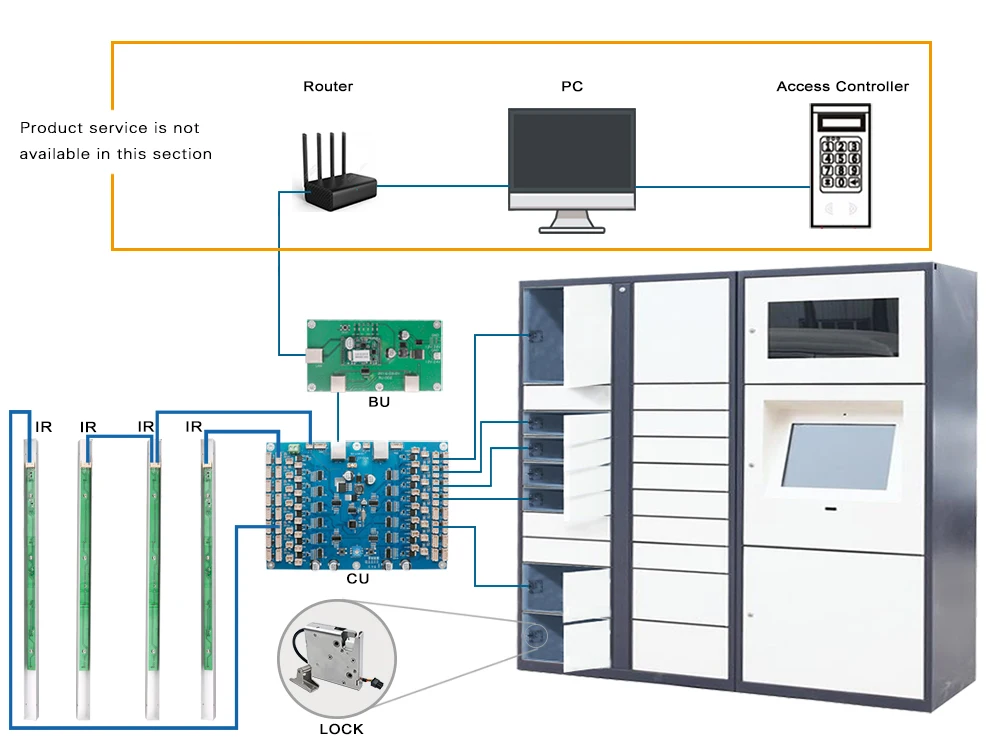

PC: With software to manage all parts.
Router: Providing internet.
BU: Basic unit. For network communication. And transfer TCP/IP commands (from PC) to 485 format (to CU).
CU: Control unit. Receiving commands from BU/ PC and sending commands to locks. Get feedback from locks and send to BU/PC.
IR: Infrared sensor(optional). Connect to CU. Detecting locker condition(empty or occupied) and feedback to CU. Supply light when locker is open.
Lock: With lock tongue detection. Unlock when received commands from CU. Send lock condition (locked or not) to CU.
Router: Providing internet.
BU: Basic unit. For network communication. And transfer TCP/IP commands (from PC) to 485 format (to CU).
CU: Control unit. Receiving commands from BU/ PC and sending commands to locks. Get feedback from locks and send to BU/PC.
IR: Infrared sensor(optional). Connect to CU. Detecting locker condition(empty or occupied) and feedback to CU. Supply light when locker is open.
Lock: With lock tongue detection. Unlock when received commands from CU. Send lock condition (locked or not) to CU.
1,connecting locks, supply power to locks and detect lock’s condition (open/close);
2,connecting IR and LED light; IR to check is the locker empty or not; LED light to lighting the locker when lock is open;
3,connecting IR feedback light(bi-color); light can be extended to every single locker. Locker is empty, light turns green; locker
is occupied, light turns red.
4,connecting lock feedback light; light can be extended to every single locker, to show whether the lock is closed or not. Lock
open, light turns on; lock close, light turns off.
2,connecting IR and LED light; IR to check is the locker empty or not; LED light to lighting the locker when lock is open;
3,connecting IR feedback light(bi-color); light can be extended to every single locker. Locker is empty, light turns green; locker
is occupied, light turns red.
4,connecting lock feedback light; light can be extended to every single locker, to show whether the lock is closed or not. Lock
open, light turns on; lock close, light turns off.

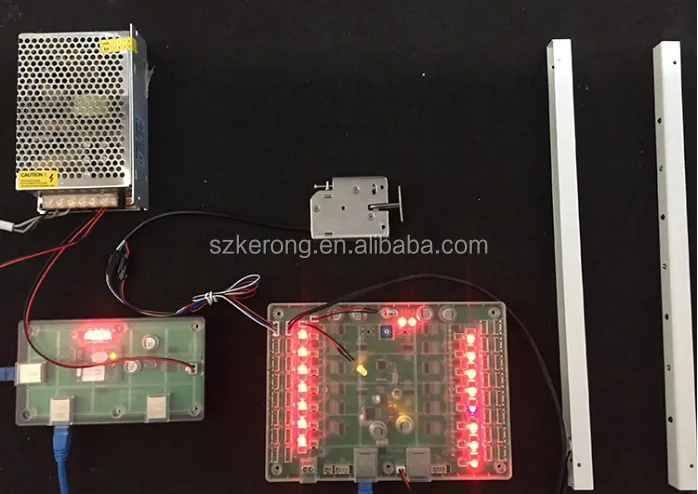

Product Show

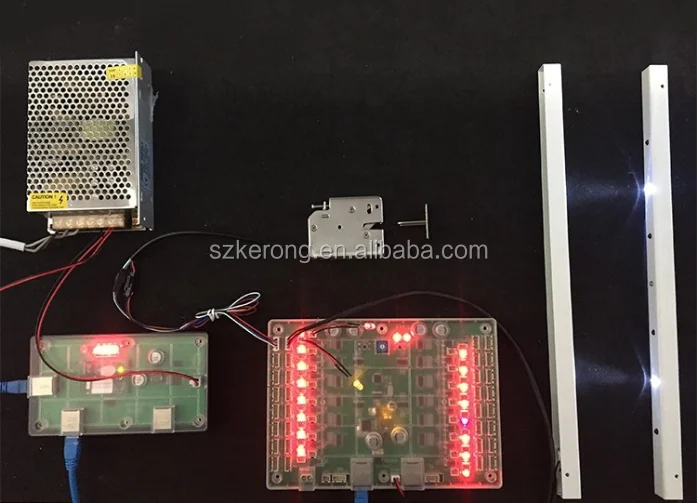

Unlocked
Recommend Products
Application
Locker Control Board is widely applicated in Cabinets, mailbox, drawers, lockers, deposit lockers, logistics cabinets/lockers,express lockers, parcel lockers, gym lockers, sauna lockers, wardrobe lockers, document cabinets,wardrobes, vending kiosk locker,phone charging cabinets, shoe cabinets,centralized control box ark, etc.
