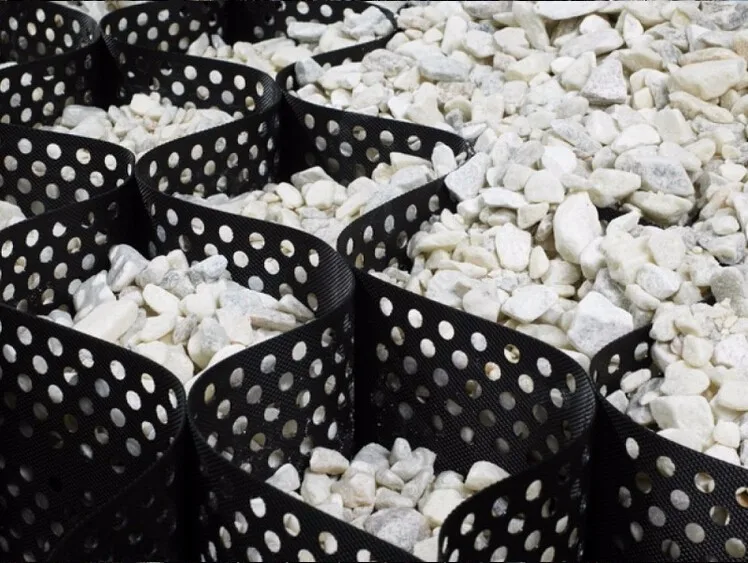

BPM geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
Technical parameter :
Product Type
Height(mm)
Welding Distance(mm)
Thickness (mm)
Tensile Strength of Welding Points(N/cm)
Tensile Strength of Connection of Cells(N/cm)
Tensile Strength at Yield of Each Sheet(Mpa)
Smooth and Not Perforated
50≤H≤250
330≤A≤1000
1.0~1.4
≥100
≥120
≥20
Smooth and Perforated
50≤H≤250
330≤A≤1000
1.0~1.4
≥100
≥120
≥20
Textured and Not Perforated
50≤H≤250
330≤A≤1000
1.5~1.7
≥100
≥120
≥20
Textured and Perforated
50≤H≤250
330≤A≤1000
1.5~1.7
≥100
≥120
≥20
Remarks: 1. This is a basic technical specification. 2. All of the technical indexes can be reached according to the customers' demand, and the other special standards will be carried out by agreement or contact.

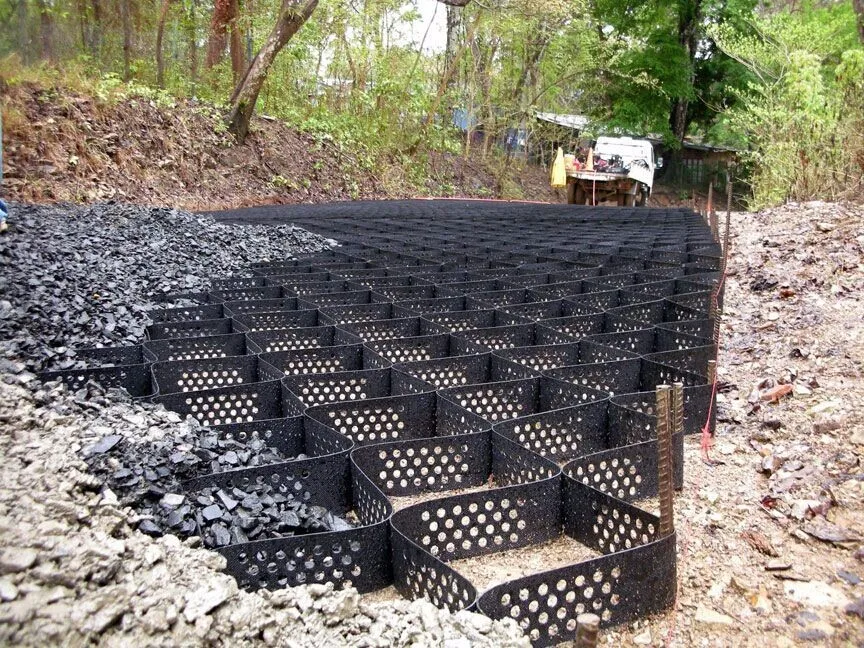

Applications:
1.Load support: solve unacceptable road,parking, and yard surface problems.
2.Slope protection: create a stable environment for long-term sustainability of embankment material.
3.Channel protection:Ensure stability and protection of channels exposed to all types of erosive conditions.
4.Vegetated retaining walls;includes steepened slopes, retaining walls, gravity walls and so on.
Packaging :
If you have any question ,don't hesitate to send me the email
