Product Description



1.Application of PVC powder pelletizing line

With different designs of screw, this machine can be applied to granulate the recycled material of rigid PVC, soft PVC and waste PVC.

 It can be stopless in the course of production.

It used pneumatic conversion and strong-wind blowing. At the same time can adjust stainless  steel

storage  container and can run at high speed for a long time while extrude stably.



2.Features of PVC powder pelletizing line

 1,advanced equipment, precise pelletizing and high producing capacity.
2, Conical double-screw extruder, very suitable to process PVC powder with high capacity
3, Pelletizing style: Hot-cutting on mould face, even cutting ensures good shape.
4,Auxiliary machine: Pellets cooling & classifying

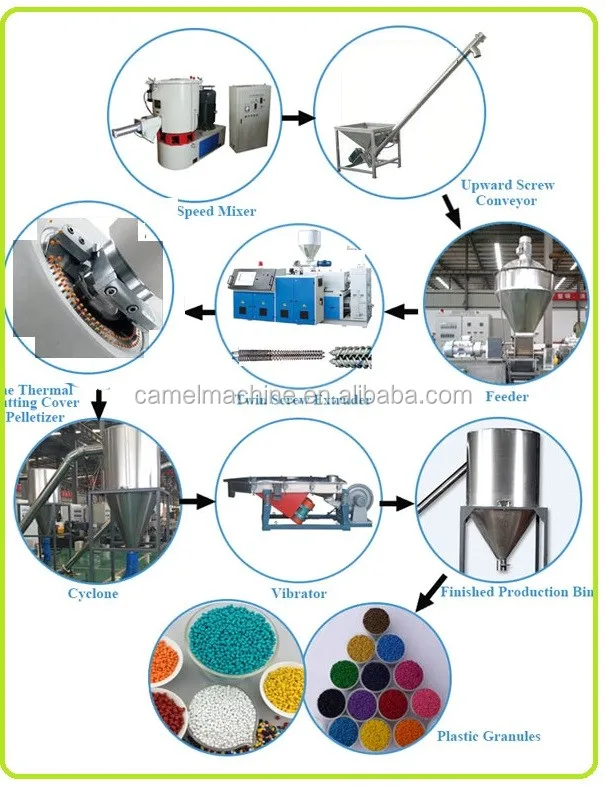

3.Process flow of  PVC powder pelletizing line:

 Raw material+ additive → Mixing → Conveying feeding → hopper feeding →

Conical twin screw extruder → Hot face cutting → Cyclone separator →

 Vibration sieve → Blowing system → Storage hopper → Finished product packing



 4.Technique parameterof PVC powder pelletizing line



Model number	Screw diameter (mm)	Rotational speed of screw (rpm)	Pellets size(mm)	Main motor power (kw)	Heating power of Barrel (kw)	Production capacity (kg/h)	Central height of machine (mm)	Net weight	Overall size (mm)
SJSZ45	45/90	1-45	3-4mm	15	9.6	70-80	1000	2800	3300*1200*2000
SJSZ51	51/105	1-45.5	3-4mm	22	11.5	80-120	1000	3000	3360*1290*2100
SJSZ55	55/110	1-40	3-4mm	22	18	150-180	1000	3500	3620*1350*2200
SJSZ65	65/132	1-38	3-4mm	37	24	250-300	1000	4000	4235*1520*2450
SJSZ80	80/156	1-36.9	3-4mm	55	36	320-450	1000	5000	4750*1550*2460
SJSZ92	92/188	1-34.7	3-4mm	110	88	650-800	1000	5500	6000*1600*2500

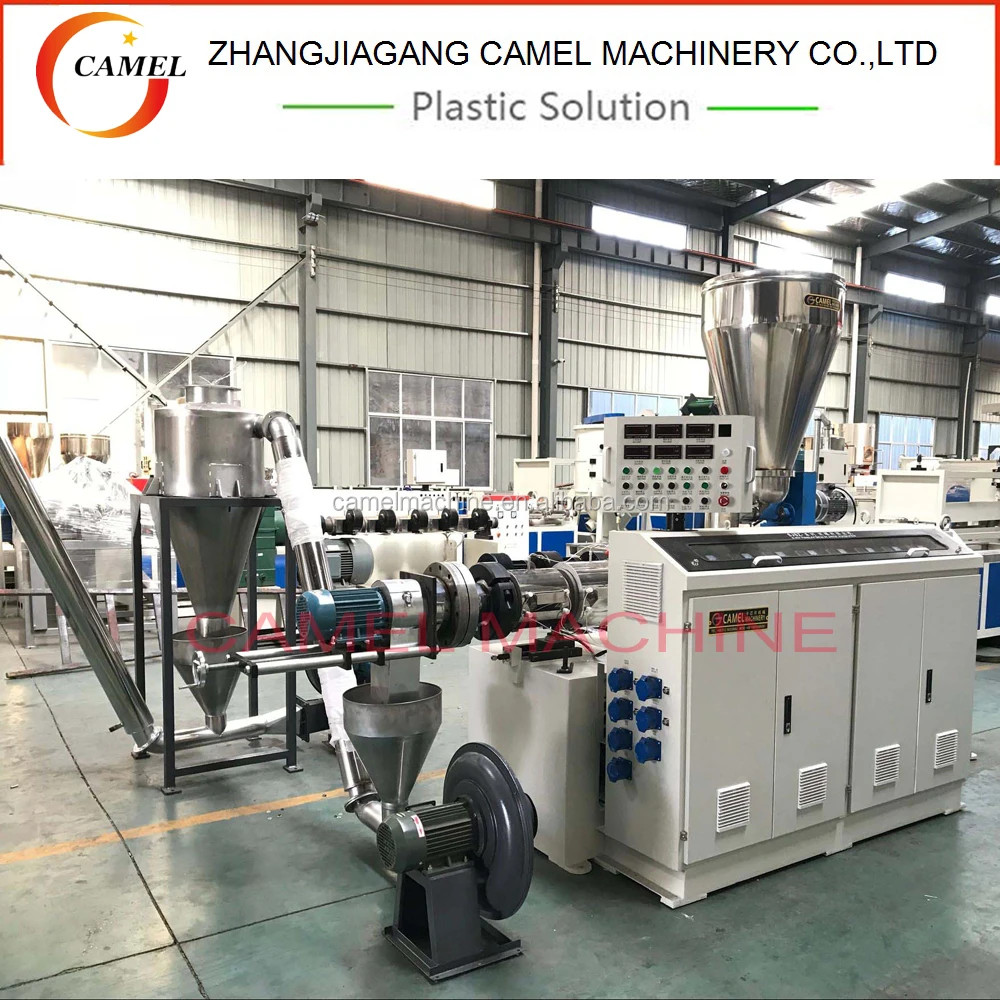

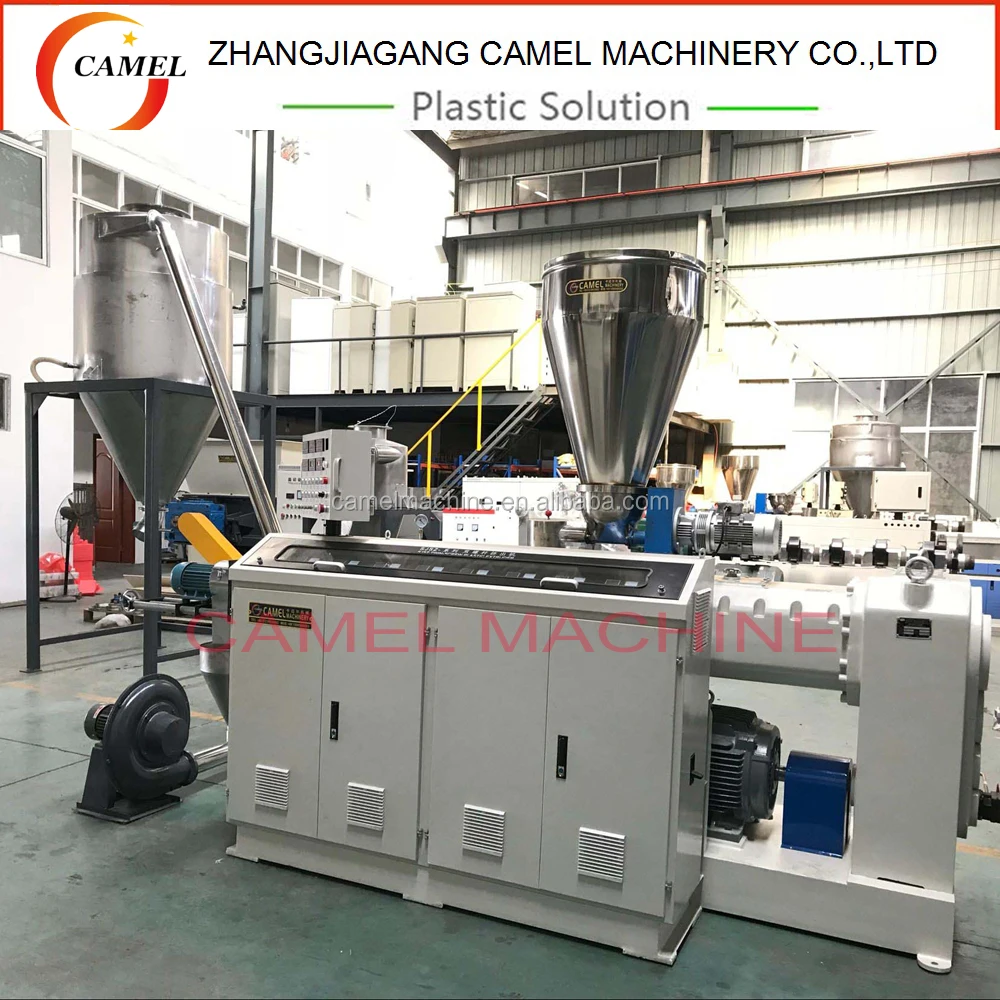

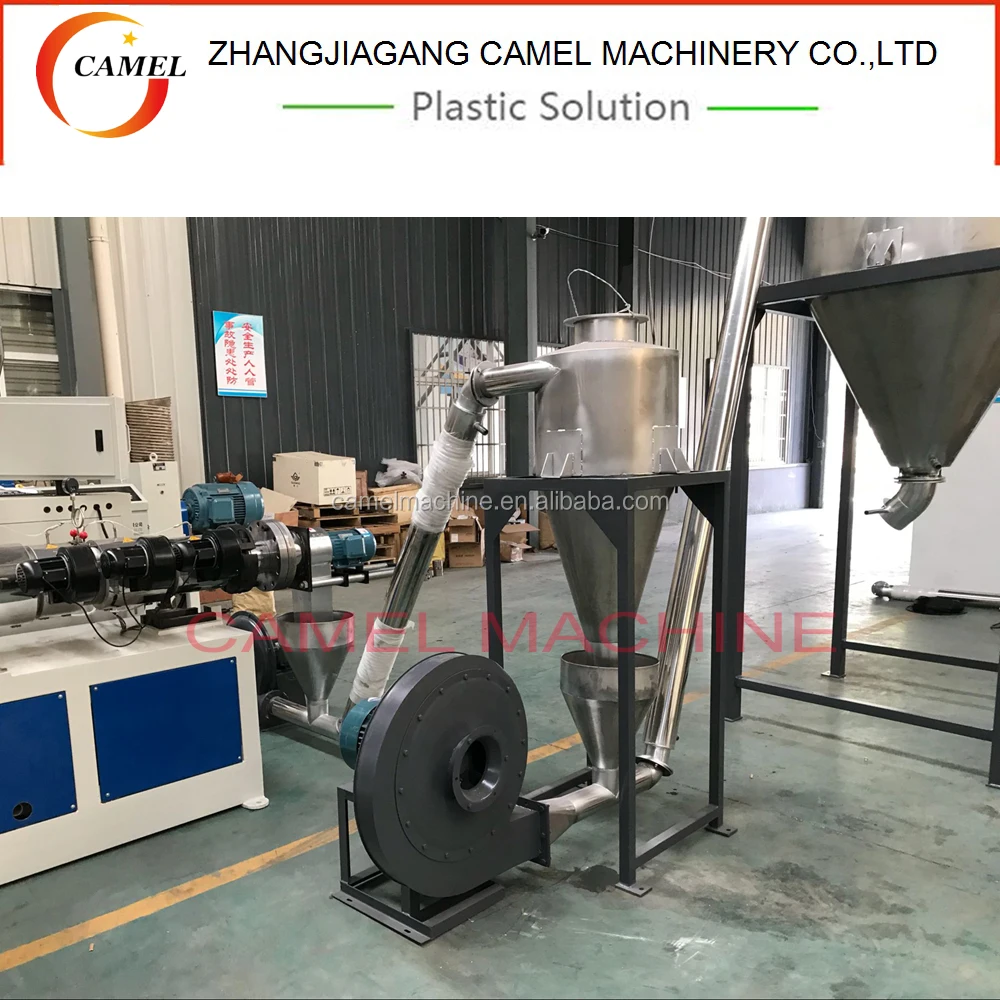

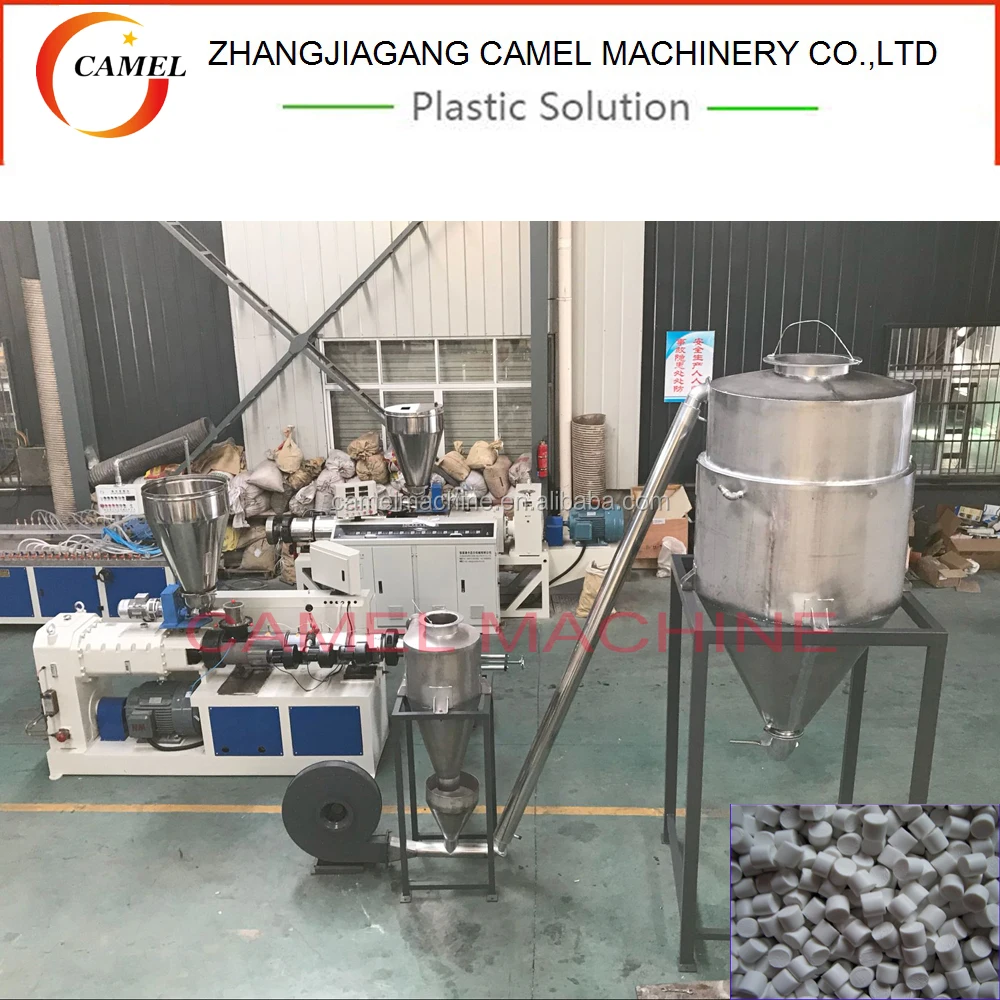

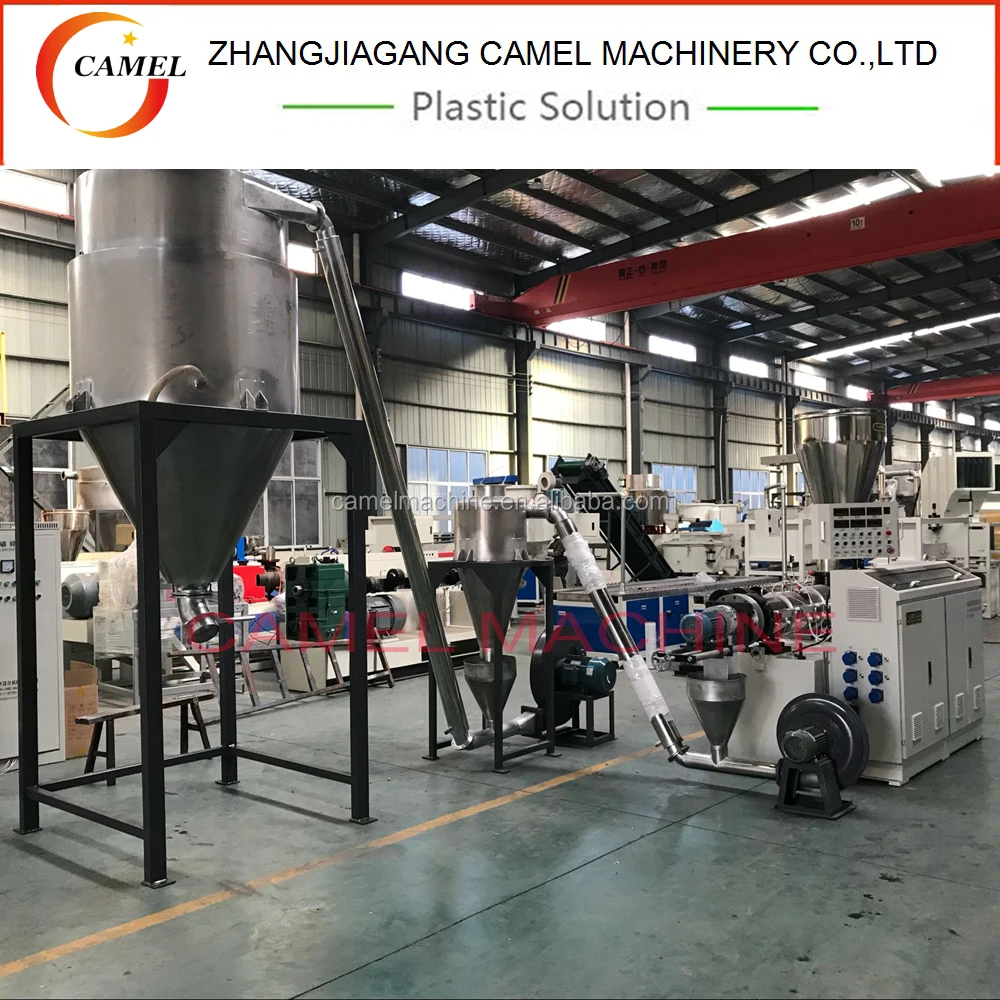

Detailed image

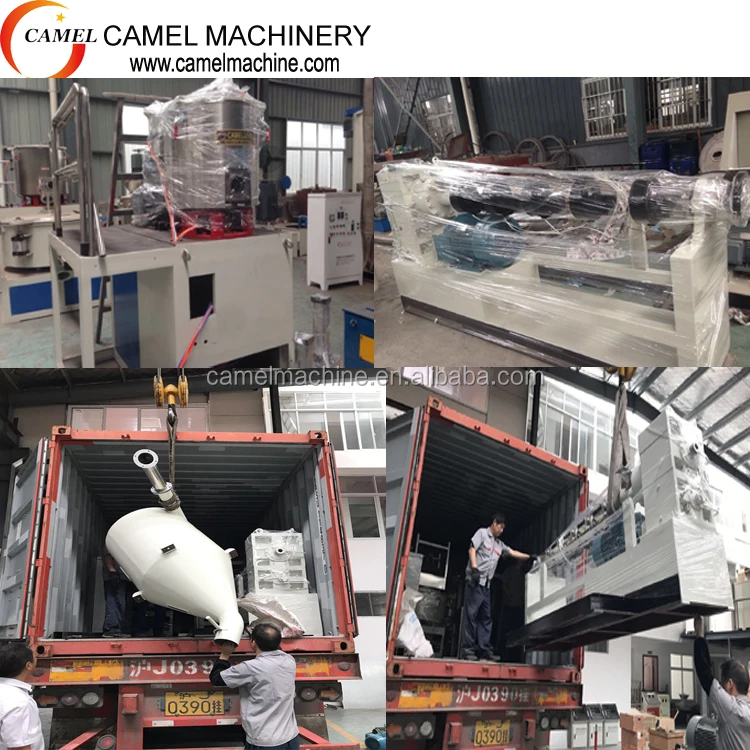

Packing & Delivery

Certificate

Our customer

Our service

We will test machines in our factory before delivery. Customer check machines running in our factory, after customer is fully satisfied with the quality, then delivery, when machines arrive in customer’s factory, we will send our engineer to test the machine in customer’s factory

We supply machines technical support, material formulation; guarantee machines and spare parts supply

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: 30% T/T in advance ,70% balance before shipment or Negotiable
