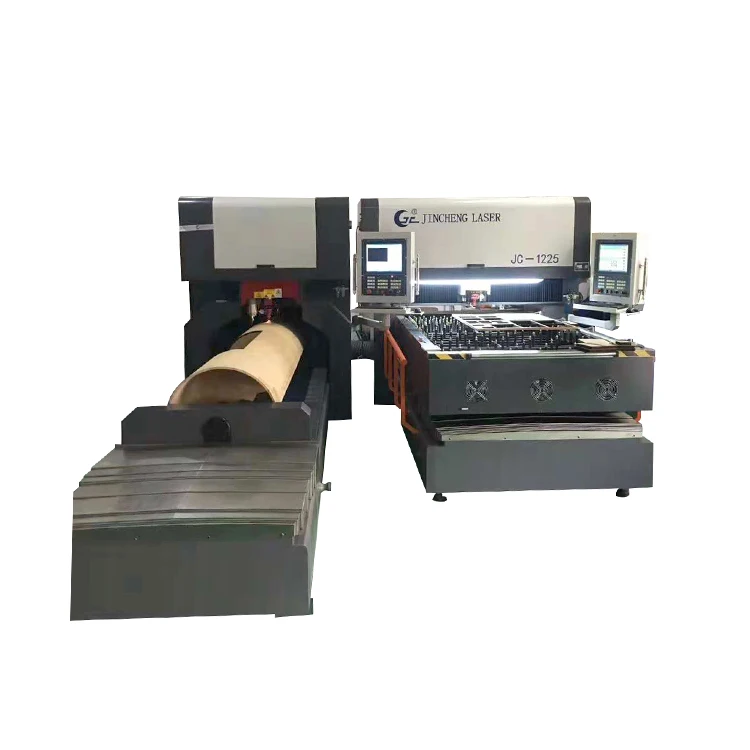

Комбинированная плоская и роторная лазерная машина для лазерной
- Категории: >>>
- Поставщик: Yi,Tai,Packing-Material,Accessories,(kunshan),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Who am I
We are yitai die making supply. We are professional supplier of flat and rotary die making materials, machines and technology output. Our jincheng laser machine is professional for flat and rotary die board cutting.
Machine parameters
Model no | JCFR-1500W | ||||
Power | 1500W | ||||
Laser output power | High power axial flow CO2 laser source | ||||
X-axis travel | 2400mm | ||||
Y-axis travel | 1200mm | ||||
Z-axis travel | 120mm | ||||
The maximum cutting board size | 170~800*3000mm | ||||
Re-Positioning Precision | ≤0.02mm | ||||
Controlling system | Germany PA | ||||
Transmission system | Ball screw & Linear guide (TAIWAN) | ||||
Driving system | Japan high-precision servo motors | ||||
Optical system | US | ||||
Laser generator gas matched | He ,N2 ,CO2(99.99%) | ||||
Certifications
Sales network
We service hundreds of die makers or box makers in the global market. Our laser machines export to Australia, New Zealand, Saudi Arabia, Russia, Chile, Peru, Mexico and etc.
Machine advantages

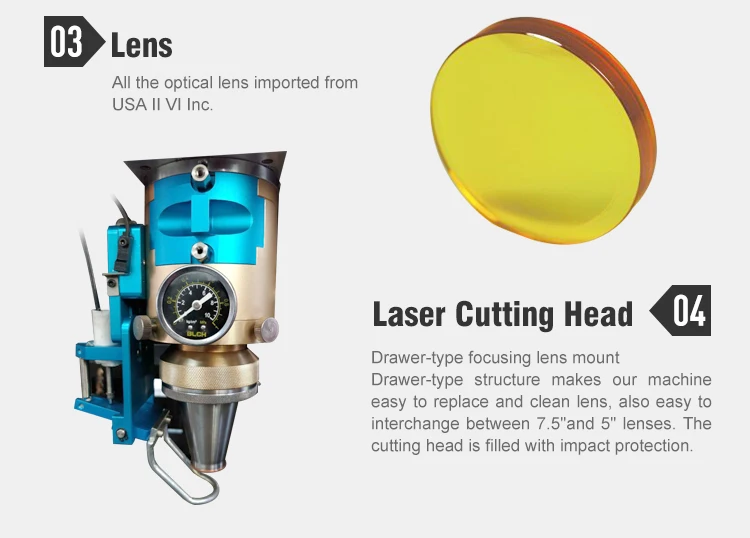

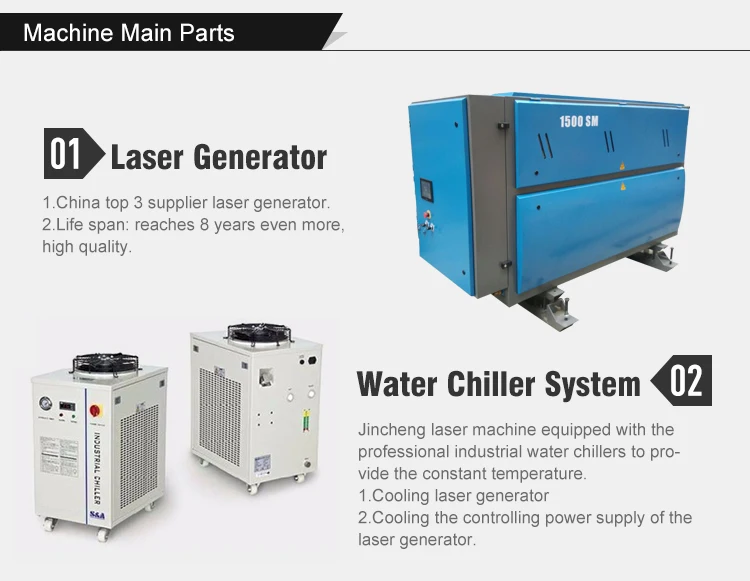

Machine Parts
Contact Us
FAQ
