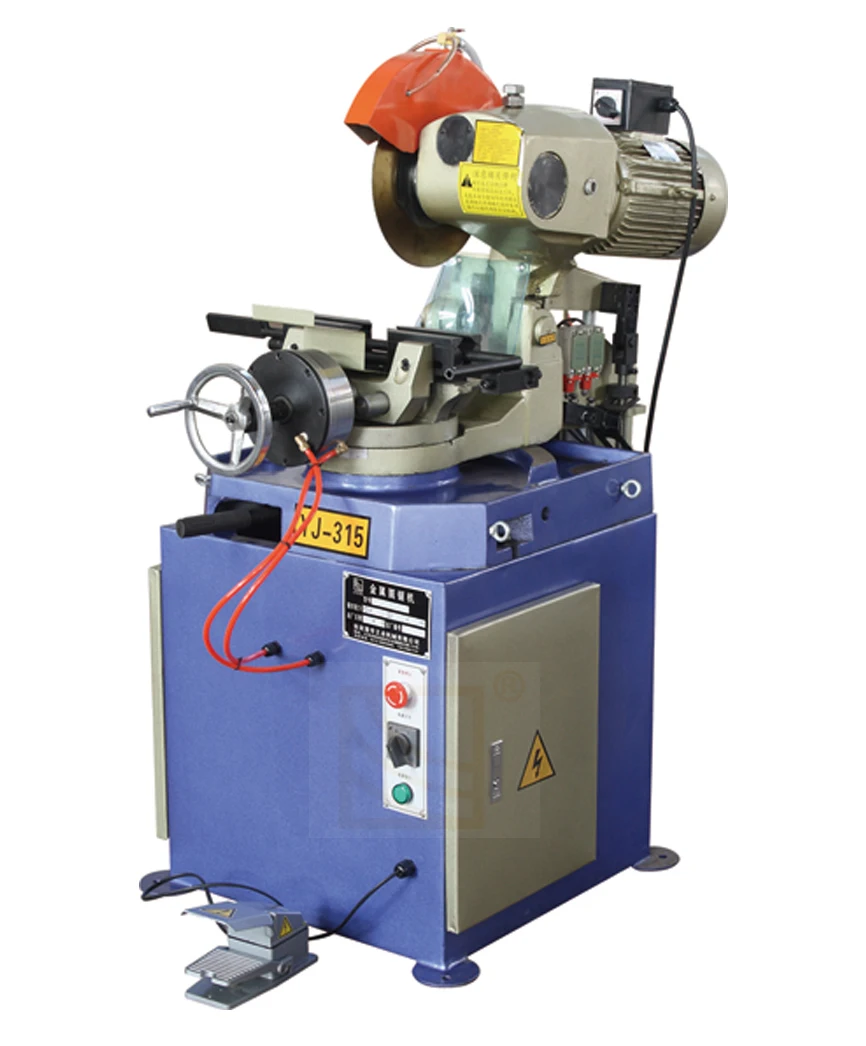

YJ-315Q Pneumatic nc circular sawing machine for metal pipe
Metal circular saw The best weapon to cut tubes/ profiles
European-style high-strength machine head, high-efficiency worm provided, turbine drive, reaching high cutting efficiency, no noise or burrs. The machine head can turn for 45° on the left and right, angle is made clearly, which makes adjustment easier. Manual and pneumatic

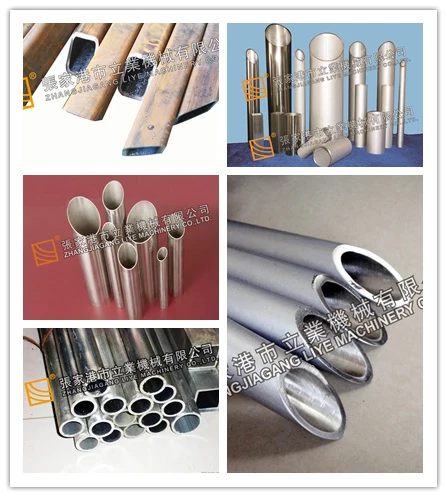

Sample:
Specification:
Specification
YJ-315Q
Max. Pipe Cutting Ability
Φ 95mm
Saw Blade Drive Motors
2.4/3.0 KW / 380V/50HZ or support customized
Saw Blade Speed
60/120 RPM
Clamping Vise
Bilateral
Coolant Pump Motor
40W
Air Pressure(Consumption)
6~8kg/cm²(120L/Min)
Measurement Size of Machine
650 * 1200 * 1350 mm
Cutting material
Iron, stainless steel, copper metal pipe material, solid rod, Angle iron, channel steel, special profile
Weight of Machine
280KG
Warranty
1 Year
Feature:
No burrs and no dust

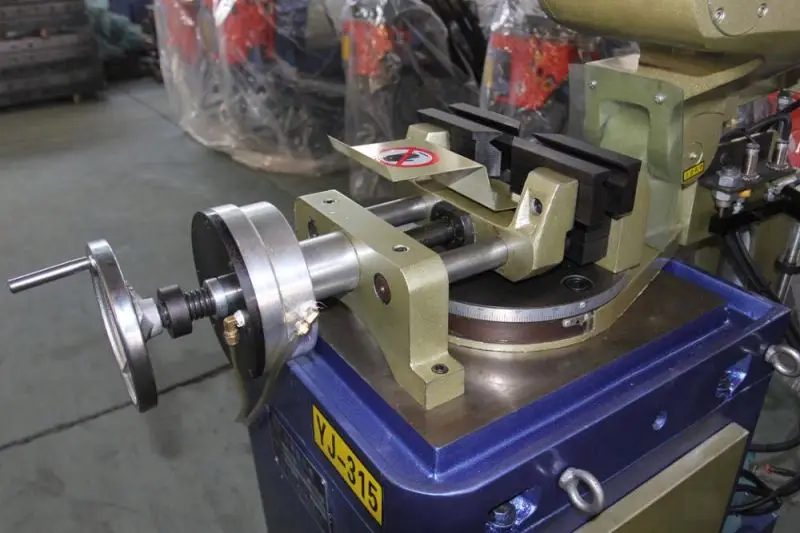

The bilateral and bi-directional clamps at both sides fix parts and ensure smooth cutting face without burrs. The saw cutting causes low noise and pollution.
Accurate-quick-bright and clean
Cutting prevision and speed are superior to that of band saw and bow saw. Meanwhile, the cutting face is bright and clean without heat generation, avoiding secondary processing.
Beveling or groove milling
Machine head can be adjusted to left or right for beveling or groove milling. The angle is accurate and the joint is perfect.
Cooling pump
The circulating cooling system has a large-capacity water tank to ensure service life of saw web and smooth cutting face.
