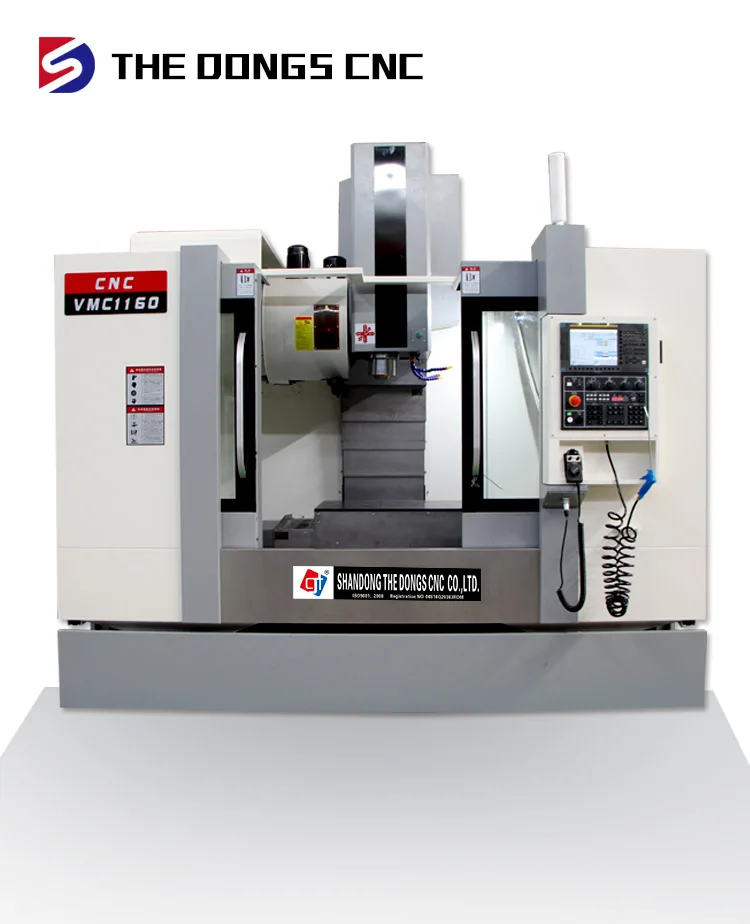

3 оси 4 cnc вертикальный обрабатывающий центр с ЧПУ

Technical Parameters

Unit

Specifications

Table size

mm

1300*600

Table maximum load

kg

800

X/Y/Z axis travel

mm

1000*600*600

Distance between spindle center and column guide surface

mm

600

Distance between spindle end face and worktable surface

mm

180-780

X/Y/Z Max.feed speed

mm/min

10000

X/Y/Z Max.rapid traverse

m/min

20/20/15

The spindle maximum speed

R/min

8000

The spindle taper hole

type

BT40

Spindle motor

km

11/15

X/Y/Z axis servo motor

kw

2.5/2.5/2.5

X/Y/Z motor connection

The workbench T slot

mm

5-18*120

Repeat positioning accuracy

mm

+-0.004

Max.toll weight

kg

8

Max.toll length

mm

250/350

Electric capacity

kva

16

Machine size(L/W/H)

mm

3340*2800*2700

Net.weight(about)

kg

7000
