Technical Specification for the walk behind floor scrubber | ||
Suction vacuum | 1720mmH2O | |
Brush speed | 200RPM | |
Charger | DC24V/20A | |
Machine dimension | 120*54*93CM | |
Carton dimension | 135*67*110CM | |
Working efficiency | 2200m2/h | |
Rated power | 1150W | |
Maximum solution supply | 2.6L/min | |
Tractuon motor | / | |
Duration of working | 3-5h | |
Scrubbing width | 51cm | |
Squeegee width | 75cm | |
Vacuum motor | 550W | |
Minimum radius | 75cm | |
Brush motor | 550W | |
Operating voltage | DC24V | |
Maximum gradient | 2% | |
Solution tank capacity | 40L | |
Recovery tank capacity | 60L | |
Driving speed | <30kg.f | |
Brush pressure | manual | |
Noise level | <70dB | |
Net weight | 100KG |

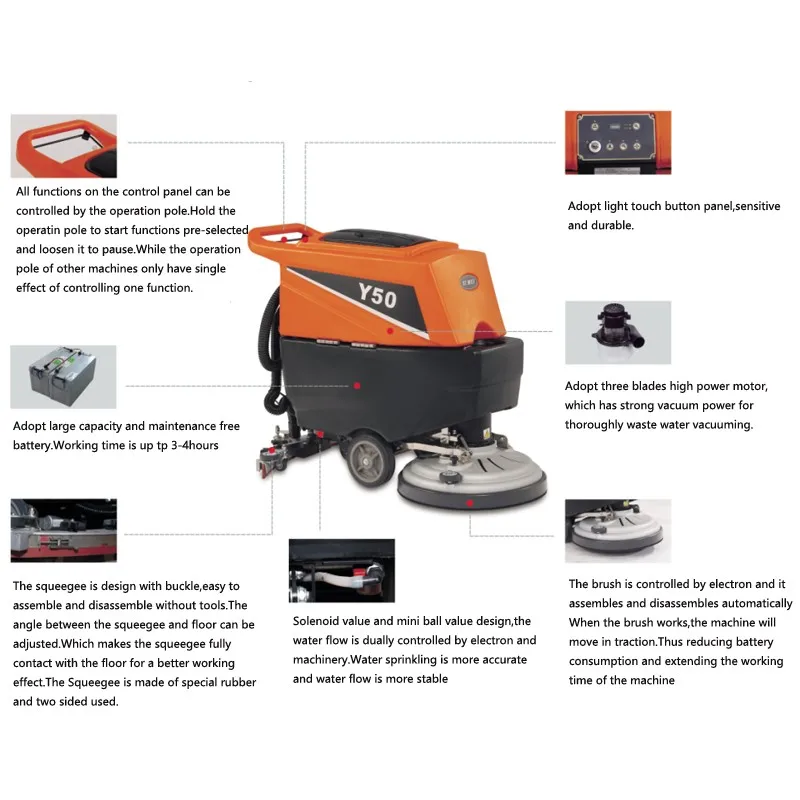

1)Automatic and manual operation mode are both optional
2) The squeegee us design with buckle,easy to assemble and disassemble without tools.The angle between the squeegee and floor can be adjusted
3) Solenoid value and mini ball value design,the water flow is dually controlled by electron and machinery
4) The brush is controlled by electron and it assembles and disassembles automatically.
5) When the brush works,the machine will move in traction

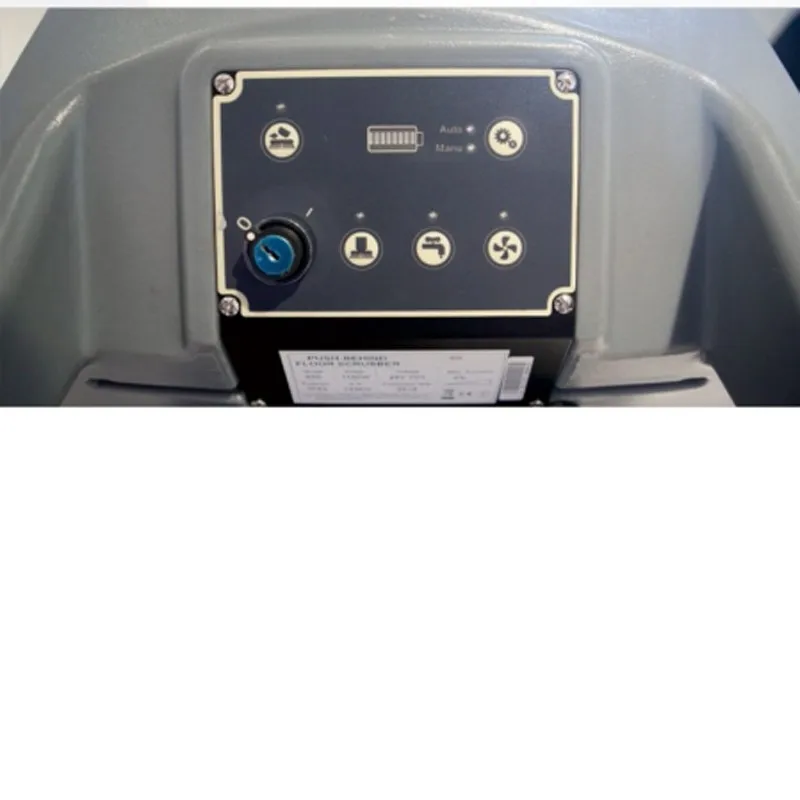

Automatic and manual operation mode are both optioanl with the intelligent touch panl and all the function in one board ,easy to choise the function you needed.
Adopt three blades high power motor,which has strong vacuum power for thoroughly waste water vacuuming
Solenoid value and mini ball value design,the water flow is dually controlled by electron andmachinery.
The brush is controlled by electron and it assembles and disassembles automatically.When the brush works,the machine will move in traction
The handle is made by new PP material by rotational moulding technical.easy to operate.
Adopt the 5mm thickness floor squeegee which import from Malaysia. It is more thickness than other supplier the 3mm one So it is have long life and can be used with four-sided.
1: General packing: the machine will be packed with four carton ,they are machine body. battery .charge and brushes and the packing size is 135*67*110CM by wooden pallet and paper carton cover.
2: OEM packing: still will be used the same material packing carton.But the design you can do according to your needed.
