HL-120H-C1400A 150 Вт Светодиодный драйвер постоянного тока 1400mA IP65 питание
- Категории: Светодиодный драйвер >>>
- Поставщик: Hangzhou,Jiang,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
HL-120H-C1400A 150W LED Driver Constant Current 1400mA IP65 Power Supply Meanwell
Product Description
Features:
- Mean Well Power Supply Meanwell
- Constant current mode output
- Metal housing with Class 1 design
- Built-in active PFC function
- IP67 / IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming
- Typical lifetime>62000 hours
- 7 years warranty
Applications:
- LED street lighting
- LED fishing lamp
- LED harbor lighting
- LED building architectural lighting
- LED greenhouse lighting
- LED bay lighting

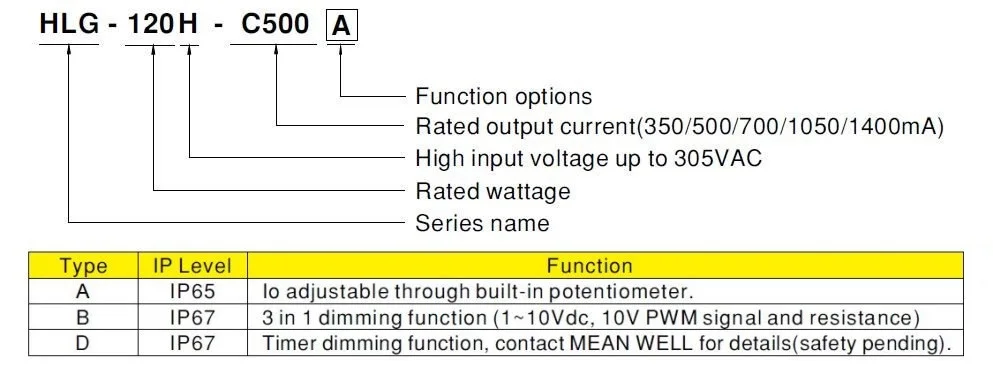

Model Encoding:
Model Series:
HL-120H-C350A / HL-120H-C500A / HL-120H-C700A / HL-120H-C1050A / HL-120H-C1400A
Details:
| MODEL | HL-120H-C350A | HL-120H-C500A | HL-120H-C700A | |
| OUTPUT | RATED CURRENT | 350mA | 500mA | 700mA |
| RATED POWER | 150.5W | 150W | 150.5W | |
| CONSTANT CURRENT REGION | 215 ~ 430V | 150V ~ 300V | 107V ~ 215V | |
| CURRENTADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | |||
| 175 ~ 350mA | 250 ~ 500mA | 350 ~ 700mA | ||
| CURRENT RIPPLE | 8.0% max. @rated current | |||
| CURRENT TOLERANCE | ±5% | |||
| SETUP, RISE TIMEH | 1000ms / 115VAC 500ms / 230VAC | |||
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127VDC ~ 431VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| POWER FACTOR | PF>0.98/115VAC, PF>0.96/230VAC, PF>0.93/277VAC at full load (Please re fer to "Pow er Factor Characteri stic" curve) | |||
| TOTAL HARMONIC DISTORTION | THD< 20% when out put loading≥50% at 11 5VAC/ 230 VAC input and output loading≥75% at 277VAC input | |||
| EFFICIENC Y | 94% | 94% | 94% | |
| AC CURRE NT | 2A/115VAC 1A/230VAC 0.85A/277VAC | |||
| INRUSH CURRENT | COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | <0.75mA / 277VAC | |||
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 475 ~ 495V | 335 ~ 355V | 240 ~ 260V | |
| Protection type : Shut down o/p volt age with auto-recovery or re-power on to recovery | ||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70°C (Refer to "Dera ting Curve") | ||
| MAX. CASE TEMP. | -40 ~ +80°C, 10 ~ 95% RH | |||
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |||
| STORAG E TEMP., HUMIDITY | -40 ~ +80°C, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | |||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min.each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | U8750, CSA C22.2 No. 250.12-13, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP65 or IP67, J61347-1, J61347-2-13 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P: 3.75KVAC I/P-FG:2K VAC O/P-FG : 1.5KVAC | |||
| ISOLAT ION RESIS TANCE | I/P-O/P,I/P-FG, O/P-FG :100M Ohms/500VDC/25°C/70% RH | |||
| EMC EMISSION | Compliance to EN55015,EN61000-3-2 Class C (≥50% load); EN61000-3-3 | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547, heavy industry level (surge L,N-FG:4KV),criteria A | |||
| OTHERS | MTBF | 191.1K hrs min. MIL-HDBK-217F (25°C) | ||
| DIMENSION | 220*68*38.8mm (L*W*H) | |||
| PACKING | 1.04Kg; 12 pcs/13.5K g/0.8CUFT | |||
| MODEL | HL-120H-C1050A | HL-120H-C1400A | |
| OUTPUT | RATED CURRENT | 1050mA | 1400mA |
| RATED POWER | 155.4W | 151.2W | |
| CONSTANT CURRENT REGION | 74V ~ 148V | 54V ~ 108V | |
| CURRENTADJ. RANGE | Adjustable for A-Type only (via built-in potentiometer) | ||
| 525 ~ 1050mA | 700 ~ 1400mA | ||
| CURRENT RIPPLE | 8.0% max. @rated current | ||
| CURRENT TOLERANCE | ±5% | ||
| SETUP, RISE TIMEH | 1000ms / 115VAC 500ms / 230VAC | ||
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127VDC ~ 431VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| POWER FACTOR | PF>0.98/115VAC, PF>0.96/230VAC, PF>0.93/277VAC at full load (Please re fer to "Pow er Factor Characteri stic" curve) | ||
| TOTAL HARMONIC DISTORTION | THD< 20% when out put loading≥50% at 11 5VAC/ 230 VAC input and output loading≥75% at 277VAC input | ||
| EFFICIENC Y | 94% | 93.5% | |
| AC CURRE NT | 2A/115VAC 1A/230VAC 0.85A/277VAC | ||
| INRUSH CURRENT | COLD START 50A(twidth=300μs measured at 50% Ipeak) at 230VAC | ||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | ||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 165 ~ 175V | 120 ~ 130V | |
| Protection type : Shut down o/p volt age with auto-recovery or re-power on to recovery | |||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70°C (Refer to "Dera ting Curve") | |
| MAX. CASE TEMP. | -40 ~ +80°C, 10 ~ 95% RH | ||
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | ||
| STORAG E TEMP., HUMIDITY | -40 ~ +80°C, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | ||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min.each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | U8750, CSA C22.2 No. 250.12-13, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP65 or IP67, J61347-1, J61347-2-13 approved | |
| WITHSTAND VOLTAGE | I/P-O/P: 3.75KVAC I/P-FG:2K VAC O/P-FG : 1.5KVAC | ||
| ISOLAT ION RESIS TANCE | I/P-O/P,I/P-FG, O/P-FG :100M Ohms/500VDC/25°C/70% RH | ||
| EMC EMISSION | Compliance to EN55015,EN61000-3-2 Class C (≥50% load); EN61000-3-3 | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547, heavy industry level (surge L,N-FG:4KV),criteria A | ||
| OTHERS | MTBF | 191.1K hrs min. MIL-HDBK-217F (25°C) | |
| DIMENSION | 220*68*38.8mm (L*W*H) | ||
| PACKING | 1.04Kg; 12 pcs/13.5K g/0.8CUFT | ||

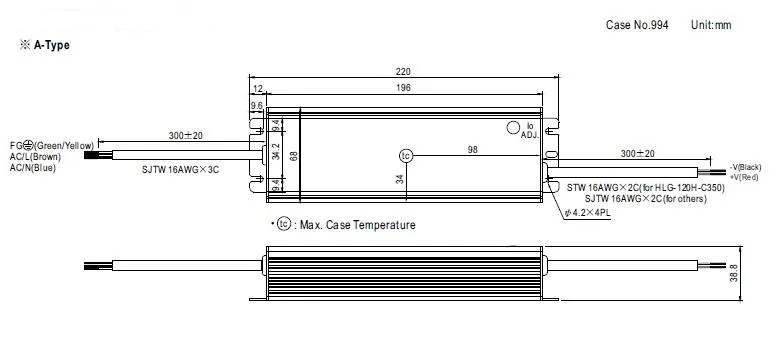

Mechanical Specification:
HL-120H-C1400A 150W LED Driver Constant Current 1400mA IP65 Power Supply Meanwell
Packing
Packing:
Shipping:
Factory View
Strict, professional production and test, large stock for fast shipping.
Certifications
What Certification do we have?
Application
What our Power Supply can do for you?
Why Choose us?
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
SUCCESS IS A RESULT OF OUR COMMITMENT TO A QUALITY SERVICE IN PARTNERSHIP WITH OUR CLIENTS
1. What we sell is 100% Genuine Mean Well Power Supply;
2. Small quantity orders acceptable;
3. We will choose the most suitable shipping way for you and inform you the cost advance, decision will be made by you;
4. We have larger stocks and this support us can make a very prompt shipping;
5. To assure you the maximum comfort and satisfaction, we accept pay via T/T, Paypal, Western Union;
6. Price could be negotiated for more and large quantity;
7. Your enquiry will be quickly responsed, we will choose the most suitable products and quote the most competitive price for you.
