Роторный гидравлический цилиндр серии SRC25 32 40 50 63-90 90 градусов пневматический роторный с обеими

Описание и отзывы

Характеристики

SRC Series Rotary Hydraulic Brake Head Gasket Acetylene Engine Aquarium Cylinder, Pneumatic Rotary Cylinder Diesel Engine





Features:





1:SRC Pneumatic Cylinder-SMC Type Pneumatic Clamping Cylinder
2:Bore size: 25-63mm
3:right and left direction for select.

SRC Pneumatic Cylinder-SMC Type Pneumatic Clamping Cylinder

1).Bore:25mm, 32mm, 40mm, 50mm, 63mm
2).Small size and light weight.
3).Long service of life, easy to control and maintain.
4).Interchange with SMC

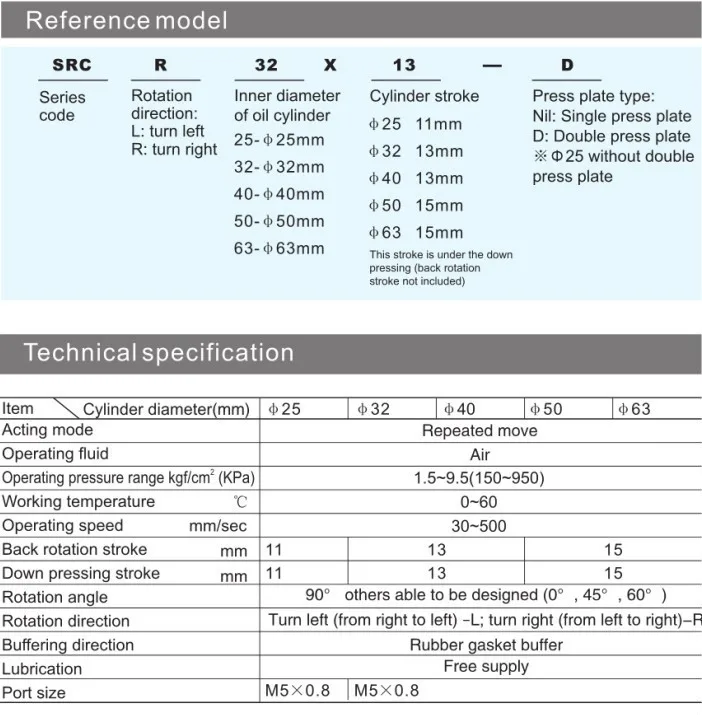

Bore  size(mm)	25	32	40	50	63
Fluid	Air(no lubrication)
Working Type	Double acting
Working temperature	0.15~0.95MPa
Working temperature	0~60 degree
Working speed(mm/sec)	30~500
Rotate stroke	11	13		15
Rotate angel	90 degree(can customize 0/45/60 degree
Rotate direction	left(anticlockwise),right(clockwise)
Port size	M5x0.8
