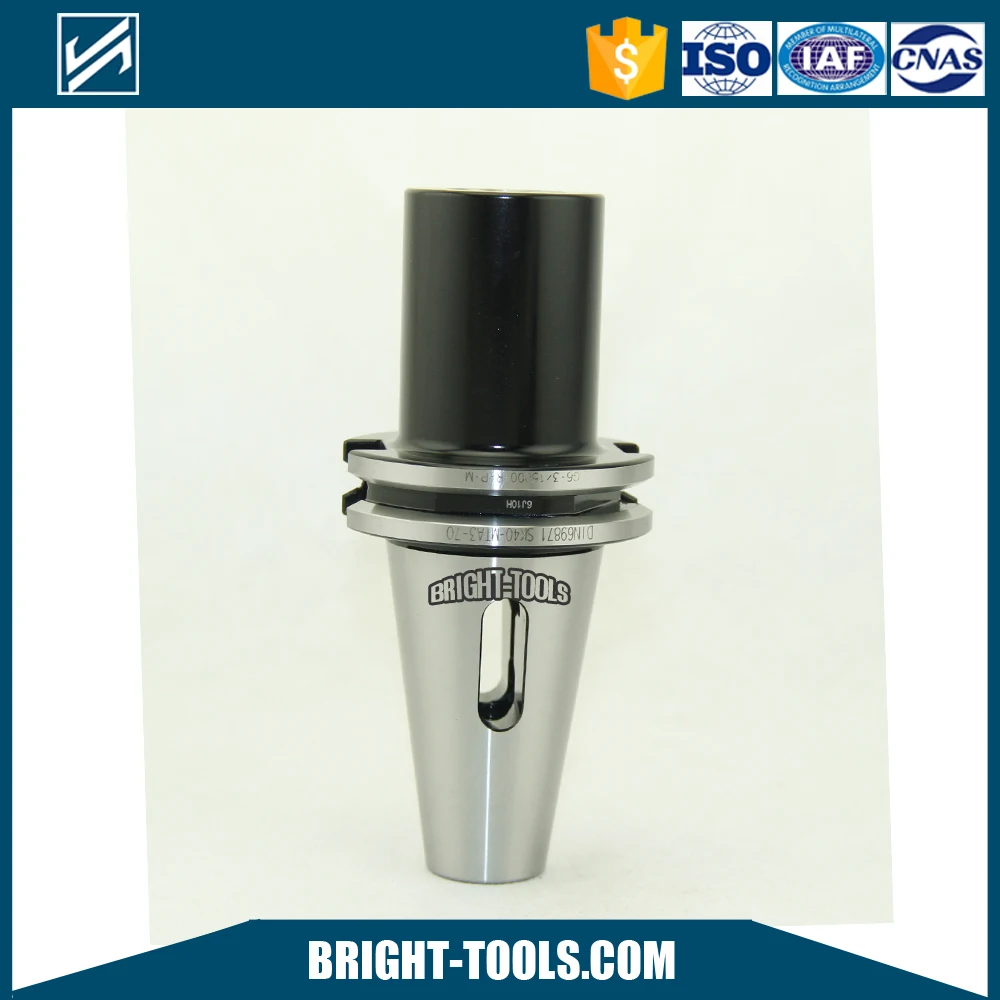

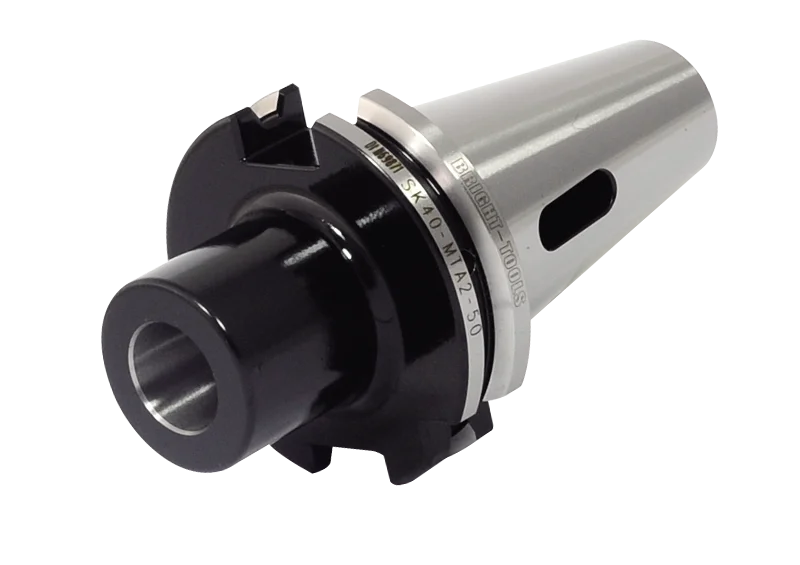

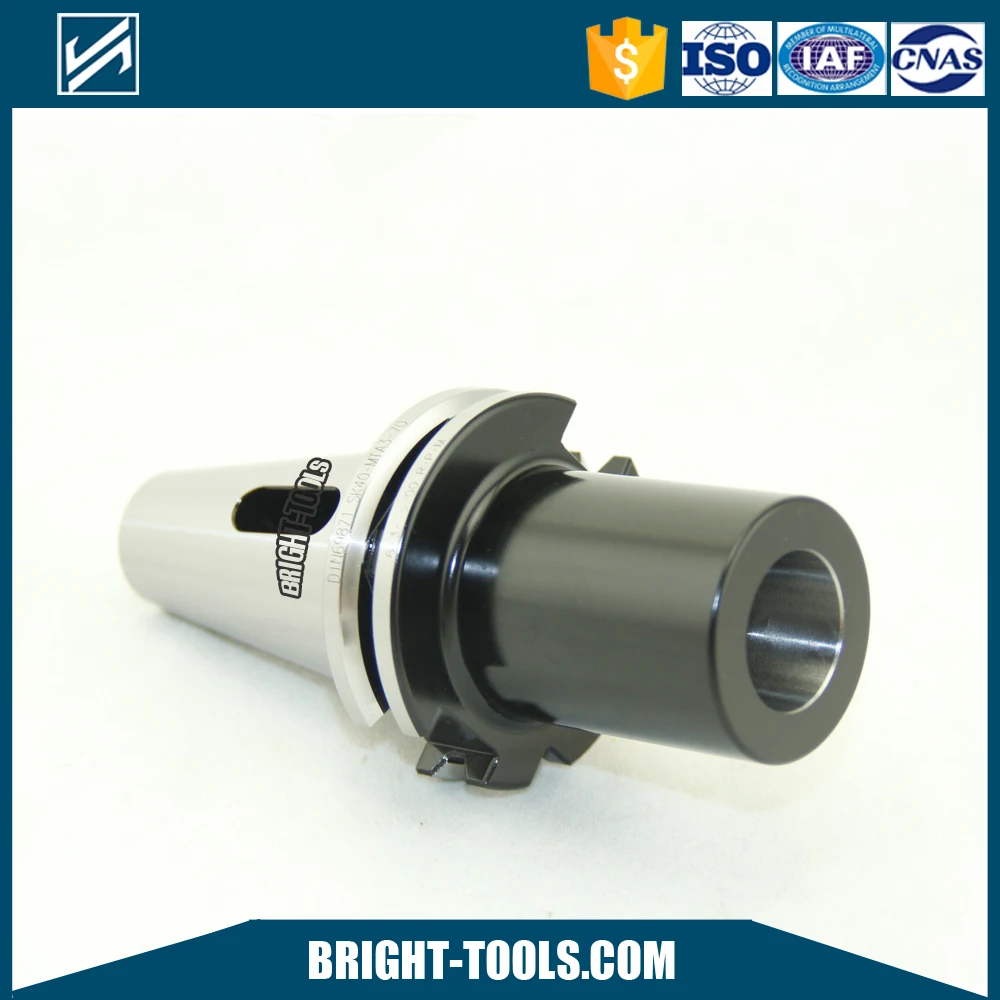

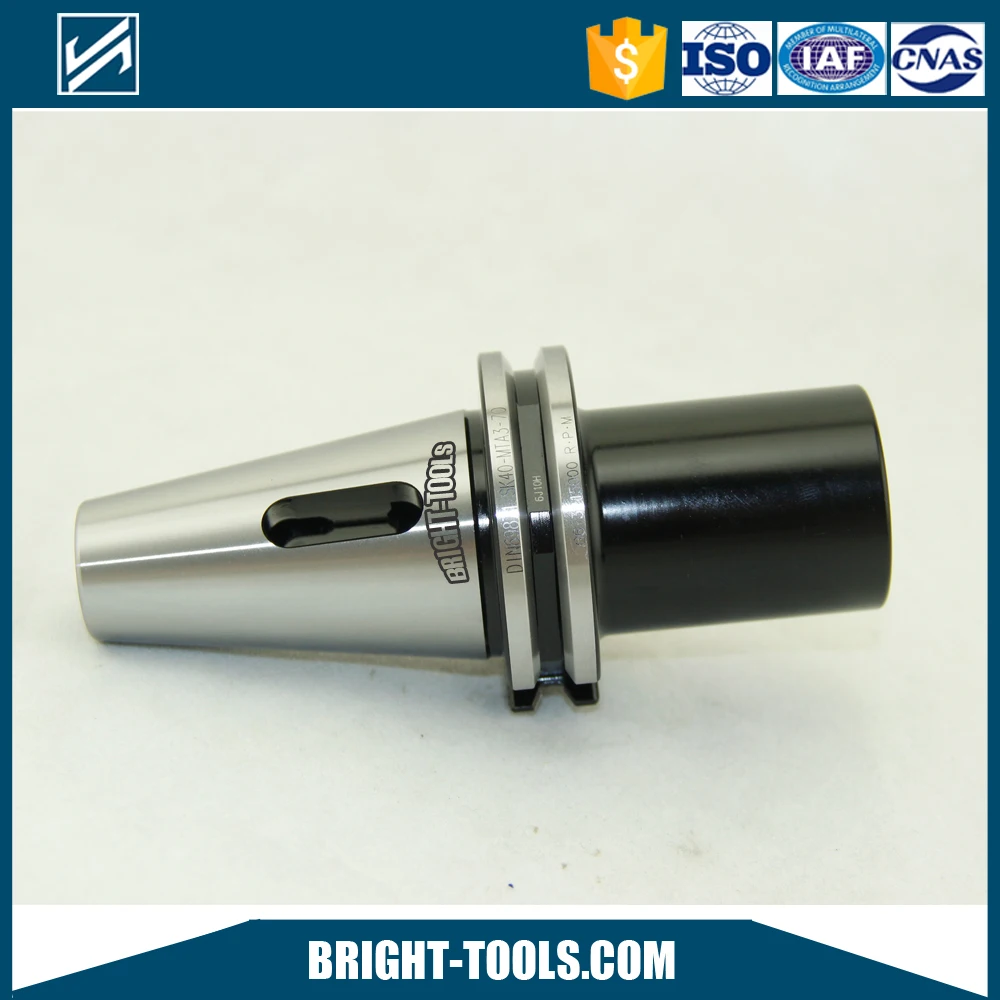

Manufacturer Supply MTA Morse Taper Adapter SK30/40/50 DIN 69871 Tool Holder



Brand Name: Bright-tools

Runout: 0.005mm

Cooling:AD/AD+B can be made by request.

Balancing: G6.3/15000 RPM.

Usage: For holding tools with Morse taper and tang according to DIN228-1 form A.



 Manufactured from alloy steel with good core strength and long wear life.

Taper shank is case hardened to 58-62 HRC

Taper ground to AT3 or better accuracy standard for maximum contact with spindle

All critical surface are precision ground

Dynamically balanced to 15,000RPM at G6.3 by Haimer balancing machine at all location for consistent balance, G2.5/25000 RPM can be provided as well.



Size	MT. NO.	D	L	Wt(kg)
SK30-MTA1-50	1	25	50	1.6
SK30-MTA2-50	2	32	50	0.8
SK30-MTA3-75	3	40	75	0.9
SK40-MTA1-50	1	25	50	1.3
SK40-MTA2-50	2	32	50	1.5
SK40-MTA3-70	3	40	70
SK40-MTA4-95	4	48	95	2.4
SK50-MTA1-45	1	25	45	4.1
SK50-MTA2-60	2	32	60	4.4
SK50-MTA3-65	3	40	65	4.5
SK50-MTA4-95	4	48	95	4.9
SK50-MTA5-105	5	63	105	5.2
