Лучший дизайн шестиколесная машина для нанесения цементного

Описание и отзывы

Характеристики

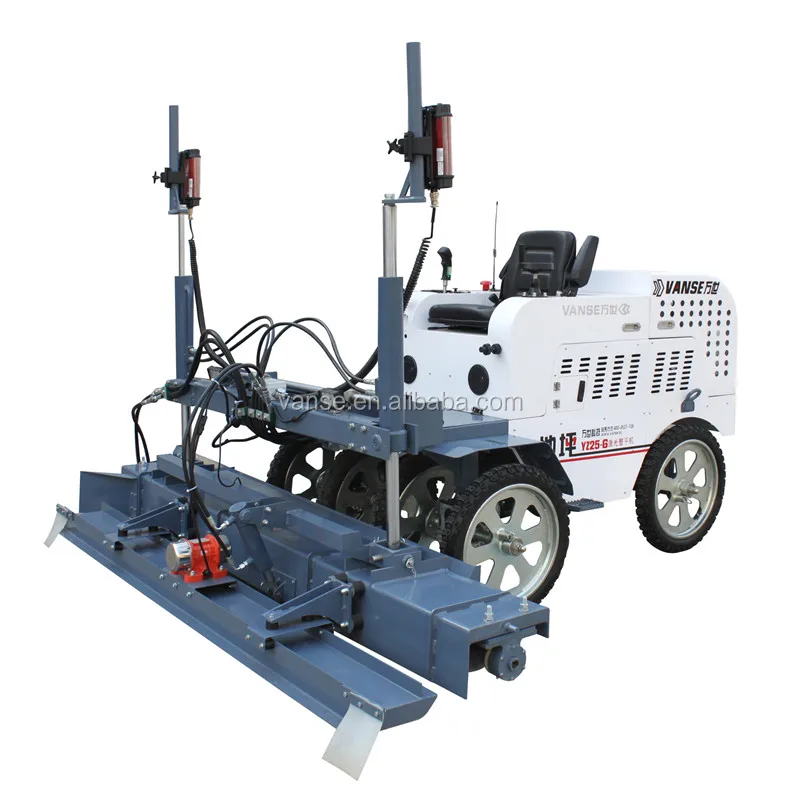

YZ25-6 Cement Sand Screed Machine

High quality and efficiency concrete equipment with automatic laser system control.

Function and Characteristics of Concrete Laser Screed

The Laser screed machine is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.

1. Use precision laser technology, closed loop control technology and highly sophisticated integrated hydraulic system, and the microcomputer automatic control.

2. Use hydraulic drive system, with laser systems and computer control system to make automatic level and at the same time to finish leveling work.

3. The Laser Emitter which used to control the ground elevation is independent layout, so as the ground elevation won't produce accumulative error.

4. Laser Emitter, can auto control the flat surface and two-way slope.

YZ25-6 Concrete Laser Screed Parameters:

Product type	Name	Six wheel concrete laser screed machine	Unit
	Type	YZ25-6
Engine	Mode	Honda GX690
	Type	petrol,Air cooled 4 stroke,Double cylinder
	Power	25	HP
	Lubrication oil level	1.9
	Fuel tank volume	34	L
Leveling system	Working mode of screed head	Stationary type
	Screed width	2500	mm
	Paving mode	Screw conveyor spreading
	Paving thickness	60-300	mm
	Screw conveyor power	Low speed large torque cyclindal hydraulic motor
	Control mode of vibrating system	Vibration motor
	Excitation force	2000	N
	Vibration frequency	50	Hz
Laser system	Control mode of laser system	Microcomputer laser scanning
	Control effect of laser system	Flat surface,Slope,Double slope(three-dimensional)
Driving system	Drive type	Reducer+Motor
	Wheel	Solid puncture proof tyre
	Speed	0-40	m/min
Operation modes	Seat position	Rear-position
	Forward, back away	Handle control,Stepless speed change
	Turning	Hydraulic power assisted,Steering wheel control
Cleaning system	Power	External motor
	Theoretical flow	20	L/min
	Rated pressure	7	Mpa
Size and weight	Outline dimension	2820*2915*1775	mm
	Net weight	880	Kg

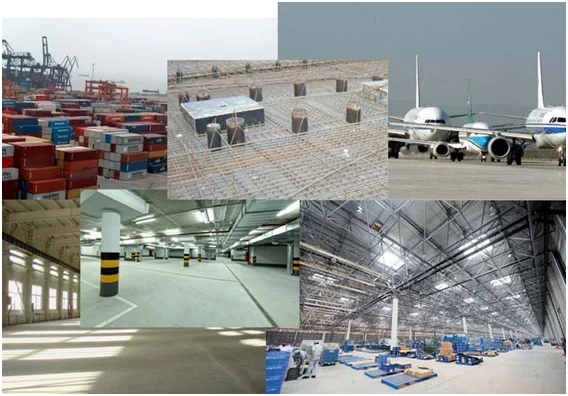

Application Range of Concrete Laser Screed:

Indoor Floors such as workshop, plants and warehouses; clean workshop for electronics and appliance, food material warehouses, Medicine factories and warehouses and bulk supermarkets, logistics centers, conference and exhibition centers, etc.

Outdoor Ground such as docks, container yards, storage yards; Airfield runway, landing fields and parking lots; and squares, residential area squares and municipal roads.

A. High quality

a. Our machine working width is 2.5 meters

b. The laser transmitter brand is Leica from Switzerland. It is the best brand in this industry

c. The walking motor is from Germany

d. The electric elements are all Mitsubishi from Japan

e. The gasoline is Honda brand from Japan

f. The wheels are solid wheels

g. The plug is air plug.

h. The screed is independently suspended. It has automatic induction system, can always keep screed to be flat.

i. Can use gasoline or electric, 2 kinds power source.

j. High accuracy, can reach 3mm in every 3 meters.

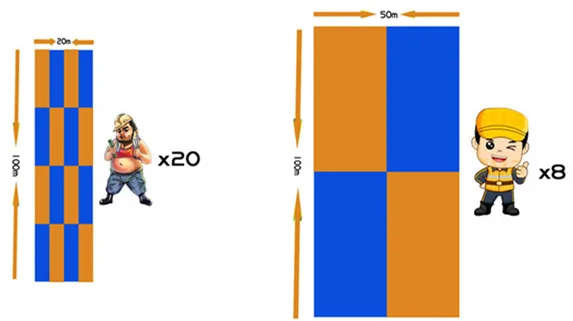

B. High efficient

It is suitable for large area. Every working team needs 5 workers. They can finish 300 sq.m /h.

C. Reduce cost

It has high degree of automation. So it can reduce the cost of plywood, steel frame and workers. Also with high quality of the finished surface, the cost of maintenance is very little.

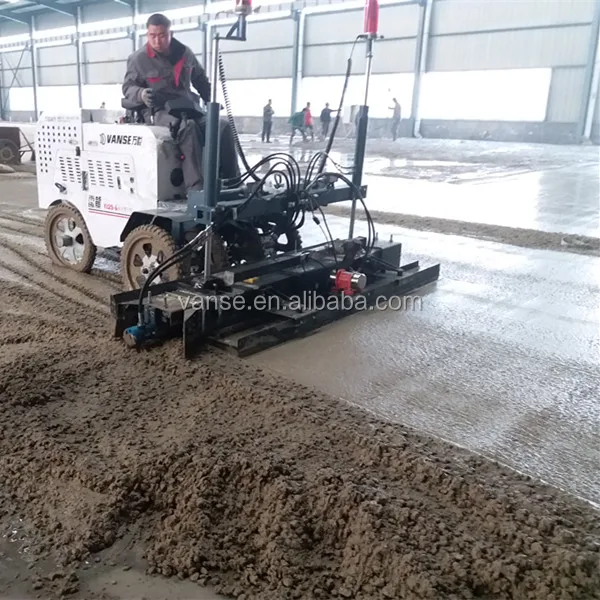

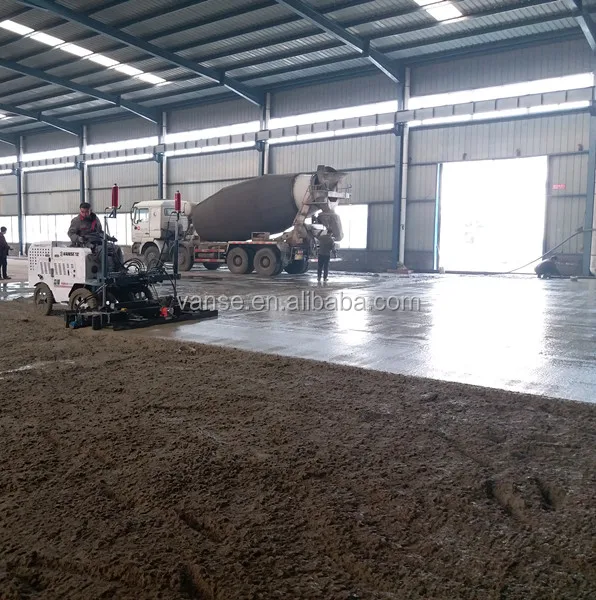

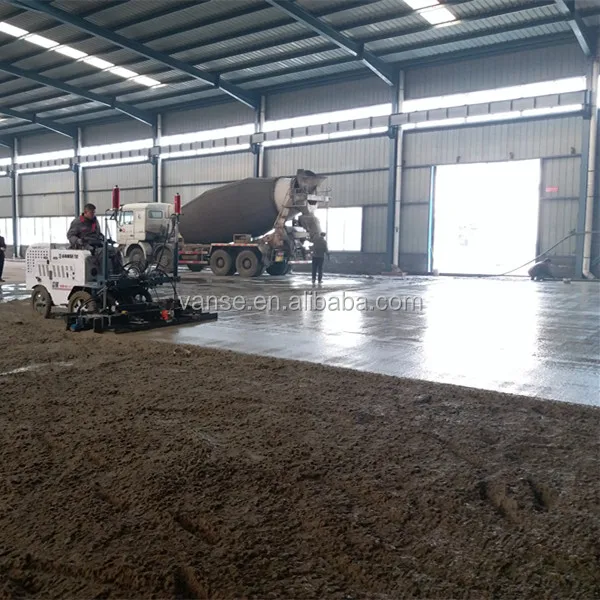

Photos of Classic Construction Cases and Exhibition

Company Information

SHANDONG VANSE MACHINERY TECHNOLOGY CO., LTD. is located in Jining City of Shandong Province, the home of the far reaching Confucian Culture. VANSE covers an area of 66000 sq. meters with 26000 sq. meters as workshop, enjoying great natural and culture resources as well as transportation advantages.

The company employs 5 R&D professionals, production engineers and technical support experts, provides self-development patented concrete laser screed, concrete pavers,  concrete trowel, light-weight handheld mortar mixer, hand screed, etc. With years of experience in R&D and a rich fund of knowledge, VANSE established products line in 4 models of Two-wheeled Laser Screed Machine, Four-wheeled Laser Screed Machine, as well as supporting equipments like Walk-behind Laser Trowel, Vibration Ruler, etc.

So far, VANSE’s products have undergone three generation, all with Independent Intellectual Property Rights for the core parts. The fourth generation is under R&D process. With major auxiliary parts imported from Germany, USA, and Japan, VANSE’s equipments are more durable , safe and reliable performance to meet customers’ need in a better way.

Packing and Delivery

All the equipments we sell to abroad are packed in Fumigation free wooden cases.
