Станков с чпу ER хомутик патроны HSK63A-ER32-75 держатель

Описание и отзывы

Характеристики

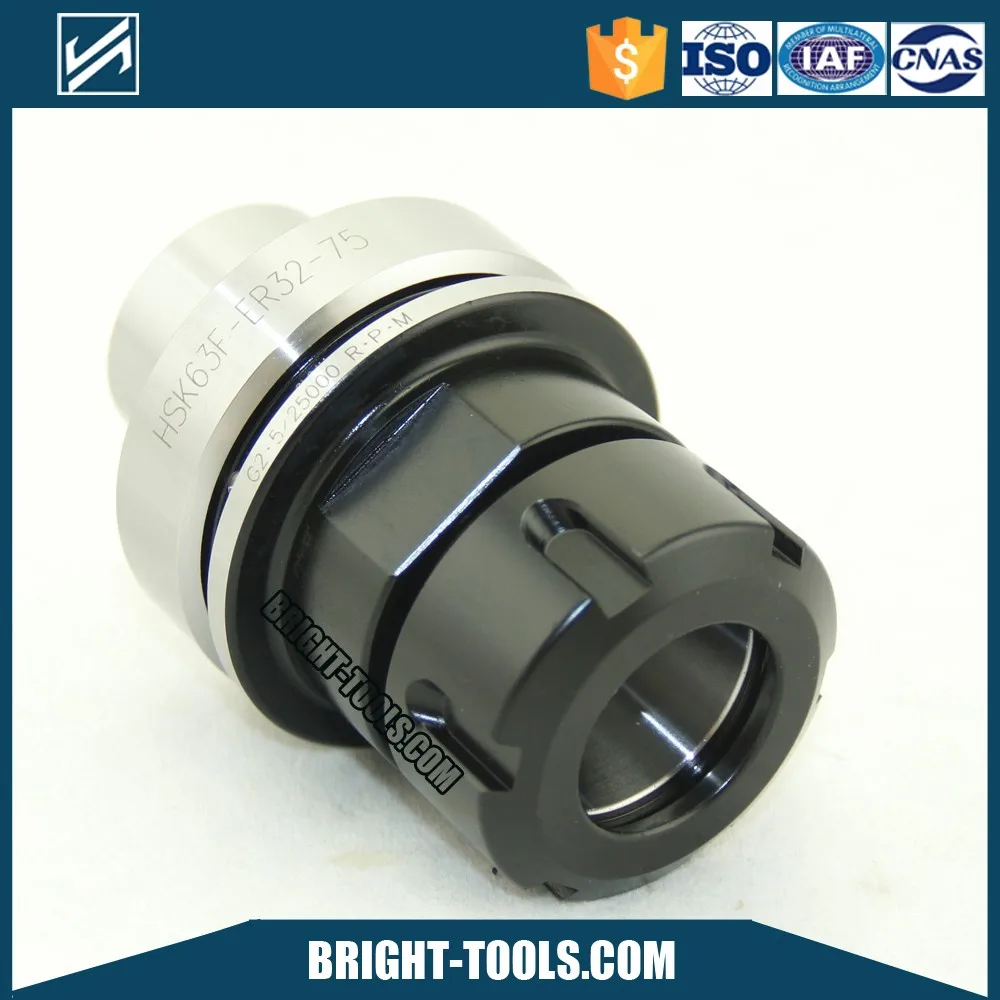

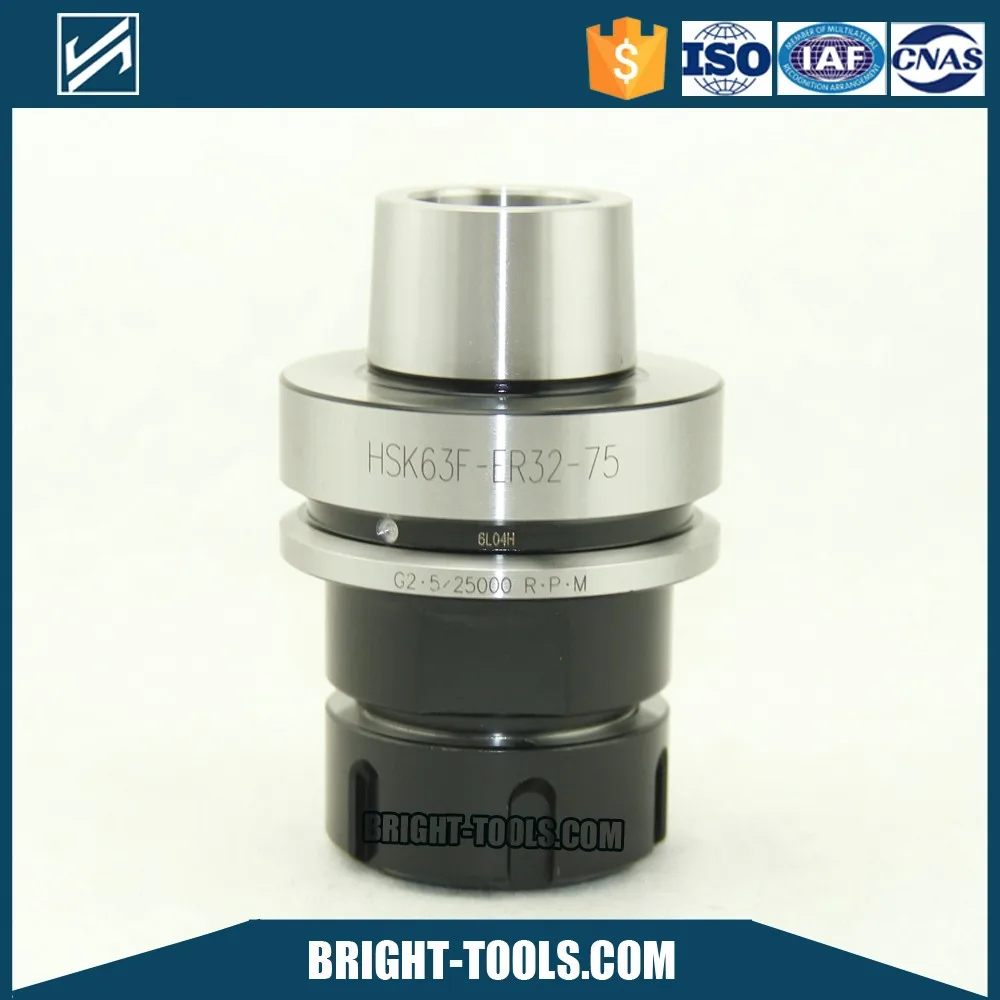

Professional Factory Supply ER Collet Chucks HSK63A-ER32-75 Tool Holder



Brand Name: Bright-tools

Taper tolerance: < AT3

Runout: 0.005mm

Usage: For clamping tools with straight shank in collets of DIN 6499



Manufactured from alloy steel with good core strength and long wear life.

Taper shank is case hardened to 58-62 HRC

Taper ground to AT3 or better accuracy standard for maximum contact with spindle

All critical surface are precision ground

Dynamically balanced to 25,000RPM at G2.5 by Haimer balancing machine at all location for consistent balance.



Size	D	L1	Capacity
HSK32A-ER16-80	28	80	1-10
HSK32A-ER25-80	42	80	2-16
HSK32A-ER32-50	50	50	3-20
HSK40A-ER16-80	28	80	1-10
HSK40A-ER25-80	42	80	2-16
HSK40A-ER32-80	50	80	3-20
HSK50A-ER16-80	28	80	1-10
HSK50A-ER20-80	34	80	1-13
HSK50A-ER25-80	42	80	2-16
HSK50A-ER32-100	50	100	3-20
HSK63A-ER16-75	28	75	1-10
HSK63A-ER20-75	34	75	1-13
HSK63A-ER25-75	42	75	2-16
HSK63A-ER32-75	50	75	3-20
HSK63A-ER40-90	63	90	4-26
HSK63A-ER16-100	28	100	1-10
HSK63A-ER20-100	34	100	1-13
HSK63A-ER25-100	42	100	2-16
HSK63A-ER32-100	50	100	3-20
HSK63A-ER16-120	28	120	1-10
HSK63A-ER20-120	34	120	1-13
HSK63A-ER25-120	42	120	2-16
HSK63A-ER32-120	50	120	3-20
HSK63A-ER40-120	63	120	4-26
HSK63A-ER16-160	28	160	1-10
HSK63A-ER25-160	42	160	2-16
HSK63A-ER32-160	50	160	3-20
HSK63A-ER40-160	63	160	4-26
