Алюминиевый сплав пользовательские радиатор экструзии
US $4.00-$10.00
Растопыренными Круглый Pin-fin пассивный радиатор 130 мм
- Категории: Heat Sinks >>>
- Поставщик: Dongguan,Renxin-Seiko,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
item | value |
Type | Heat Sinks |
Lighting solutions service | Lighting and circuitry design |
Product Weight（kg） | 2.5 |
Surface Treatment | Many color can be anodized |
Warranty(Year) | 5 |
Process | Aluminum Extrusion |
IP Rating | IP55 |
Certification | RoHS |
Place of Origin | China |
Guangdong | |
Brand Name | Renxin |
Body Color | Black |
Shape | Round |
Body Material | Aluminum |
Item name | splayed pin heatsink |
Application | LED |
Watts | 55-95watts |
Size | OD150mm, Height70mm |
Base thickness | 10mm |
Material | Aluminum 1070 (99.5%) |
Product name | Splayed round pin fin passive heatsink 130mm of led. |
Product Description
Feature :

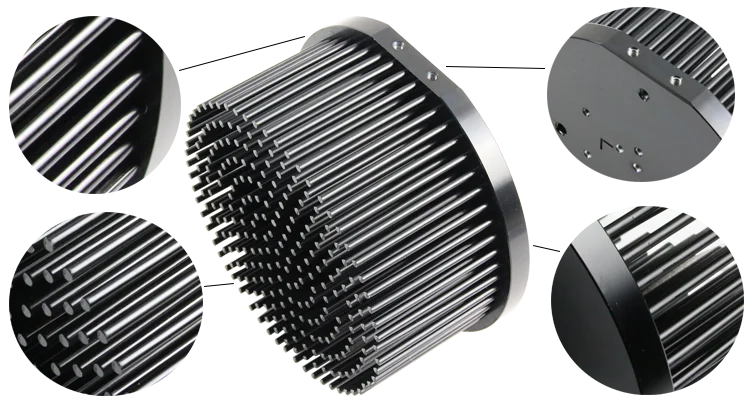

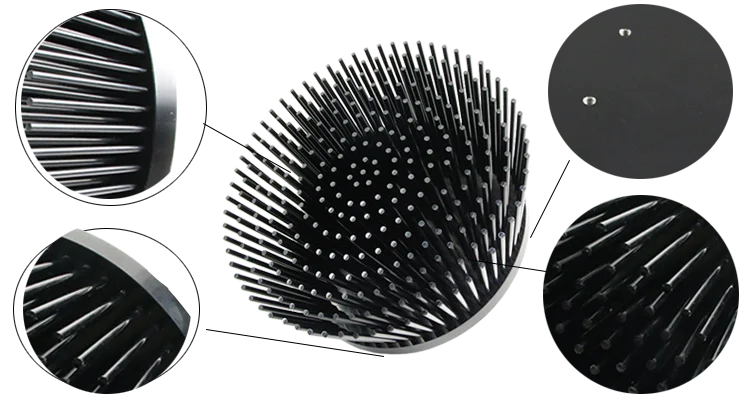

Splayed pin heatsinks are relatively new derivatives of the standard pin fin heatsinks. Unlike standard pin fin heatsinks, which contain an array of vertically oriented pins, splayed pin fins features pins that gradually bend outward. Curving the pins in this way increases the spacing between the pins and allows surrounding air streams to enter and exit the pin array more efficiently without sacrificing surface area.
The impact of increased pin spacing on heatsink performance is magnified at lower air speeds because weak air streams have less power to penetrate the array of pins. In low air speed environments and in natural convection, the increased spacing between the pins reduces the heatsinks' thermal resistance by up to thirty percent versus a standard pin fin heatsink. As a result, splayed pin fins are recommended for low and moderate airspeed environments and for natural convection cooling
The impact of increased pin spacing on heatsink performance is magnified at lower air speeds because weak air streams have less power to penetrate the array of pins. In low air speed environments and in natural convection, the increased spacing between the pins reduces the heatsinks' thermal resistance by up to thirty percent versus a standard pin fin heatsink. As a result, splayed pin fins are recommended for low and moderate airspeed environments and for natural convection cooling
Dimensions and Drilled
A >Pre drilled for Cree CXB 3590 with Ideal Holder 50-2303CR+reflector adapter 50-2300AN and LEDiL F13838_ANGELINA-XW
B >Pre drilled for Cree CXB 3590 with Ideal Holder 50-2303CR + 100mm Glass lens with 112mm diagonal mounting positions

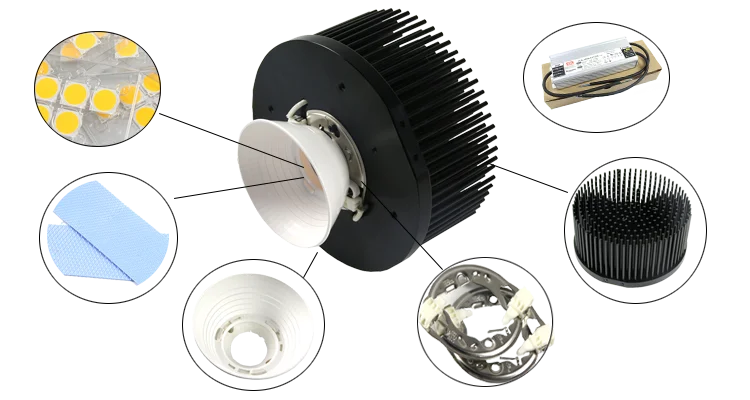

C >Pre drilled for Citizen CLU-048 with Ideal Holder 50-2204CT + reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW
D > Pre drilled for Citizen CLU-048 with BJB Holder 47.319.2030.50+reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW
E > Pre drilled for Bridgelux Vero 29 with reflector adapter LEDiL C13584_CLAMP-VERO29 and LEDiL F13838_ANGELINA-XW
F > Pre drilled for Bridgelux Vero 29 with 100mm Glass lens with 112mm diagonal mounting positions
B >Pre drilled for Cree CXB 3590 with Ideal Holder 50-2303CR + 100mm Glass lens with 112mm diagonal mounting positions
C >Pre drilled for Citizen CLU-048 with Ideal Holder 50-2204CT + reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW
D > Pre drilled for Citizen CLU-048 with BJB Holder 47.319.2030.50+reflector adapter 50-2100AN and LEDiL F13838_ANGELINA-XW
E > Pre drilled for Bridgelux Vero 29 with reflector adapter LEDiL C13584_CLAMP-VERO29 and LEDiL F13838_ANGELINA-XW
F > Pre drilled for Bridgelux Vero 29 with 100mm Glass lens with 112mm diagonal mounting positions
Details：Dimens

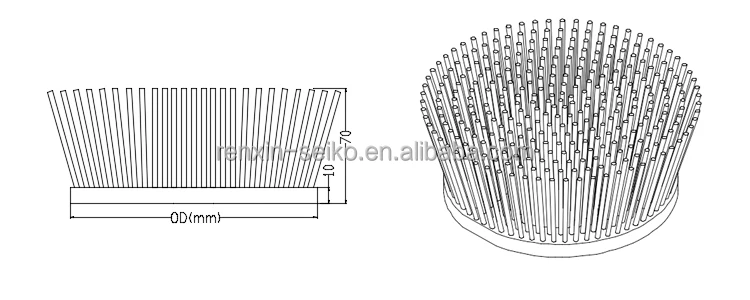

Drawing：
Item | Part Number | Watts | OD (mm) | Base Height (mm) | Total Height (mm) |
1 | RX613-120-XX | 33-70Watts | Ø120 | 10 | 70 |
2 | RX613-133-XX | 50-75Watts | Ø133 | 10 | 70 |
3 | RX613-140-XX | 55-85Watts | Ø140 | 10 | 70 |
4 | RX613-150-XX | 65-100Watts | Ø150 | 10 | 70 |
5 | RX613-163-XX | 70-105Watts | Ø163 | 10 | 70 |
6 | RX613-180-XX | 75-110Watts | Ø180 | 10 | 70 |
Packing & Delivery
Splayed round pin fin passive heatsink 130mm of led.
We are individually packaged for each product ,double carton.
We are individually packaged for each product ,double carton.
