Products Description

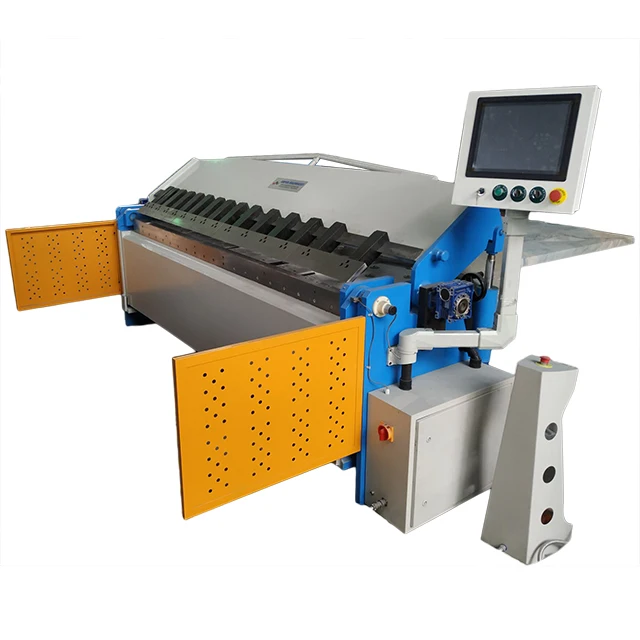

Full Automatic CNC Sheet Metal Folding Machine
Structural & Operating Features;
* Hydraulically operated folding and clamping beam for efficient heavy duty operation.
* High Structural Rigidity from Heavy Plate steel box construction with continuous welded seams.
* Folding beam powered by dual hydraulic cylinders.
* Fully integrated and enclosed electric/ hydraulic system with large oil reservoir.
* High load dual spherical plane bearings utilized at folding beam pivots and over-centre clamp bearings.
* Precise electric/ hydraulic controls with manual inching of folding beam.
* Utilization of easy to set micro-switches provides accurate adjustable angle control to the folding apron.
* Comprehensive equipment protection from electric and hydraulic overload systems
Hydraulic System;
* High quality components ensure reliable performance for years of continuous operation
* Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation.
* Unique electric/ hydraulic control ensures safe and simple operation.
Specifications;
* Up to 4000 mm folding length available - Capacity 4.0 to 6.0 mm available
* High bending angle of 0-135° - Up to 145mm depth of box bent - Up to 150mm lift of clamping beam
* 24V control wiring – segmented folding tools made from hardened material maximizing life
* Instruction, Hydraulic and Electrical Manuals – CE Marked
* Hydraulically operated folding and clamping beam for efficient heavy duty operation.
* High Structural Rigidity from Heavy Plate steel box construction with continuous welded seams.
* Folding beam powered by dual hydraulic cylinders.
* Fully integrated and enclosed electric/ hydraulic system with large oil reservoir.
* High load dual spherical plane bearings utilized at folding beam pivots and over-centre clamp bearings.
* Precise electric/ hydraulic controls with manual inching of folding beam.
* Utilization of easy to set micro-switches provides accurate adjustable angle control to the folding apron.
* Comprehensive equipment protection from electric and hydraulic overload systems
Hydraulic System;
* High quality components ensure reliable performance for years of continuous operation
* Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation.
* Unique electric/ hydraulic control ensures safe and simple operation.
Specifications;
* Up to 4000 mm folding length available - Capacity 4.0 to 6.0 mm available
* High bending angle of 0-135° - Up to 145mm depth of box bent - Up to 150mm lift of clamping beam
* 24V control wiring – segmented folding tools made from hardened material maximizing life
* Instruction, Hydraulic and Electrical Manuals – CE Marked
Feature
* 14′-1″ bending width, 14 gauge maximum thickness
* Box and Pan upper clamp
* Advanced Computer Control
* Draw desired shape on touch screen, adjust lengths and angles, adjust bend sequence, save part, run part, bend part. Very easy to use.
* Servo controlled Backgauge
* Light curtain – safety device
* Video of operation available
* CE&ISO 9001:2000.
* Box and Pan upper clamp
* Advanced Computer Control
* Draw desired shape on touch screen, adjust lengths and angles, adjust bend sequence, save part, run part, bend part. Very easy to use.
* Servo controlled Backgauge
* Light curtain – safety device
* Video of operation available
* CE&ISO 9001:2000.
Options
*E21s control panel
* Rear ball roller table * Back gauge extend
* Pnematic back gauge block finger
Product Paramenters
Model | Capacity(mm) | Folding angle(o) | Open Height(mm) | Motor Power(kw) | Net Weight(kg) | Dimension (L*W*H)(mm) |
W62K | 2*2500 | 0~120 | 110 | 2.2 | 1700 | 3300x850x1550 |
W62K | 2*3200 | 0~120 | 110 | 2.2 | 3600 | 4100x1550x1550 |
W62K | 3*2500 | 0~120 | 110 | 4 | 3100 | 3450x1130x1800 |
W62K | 3*3200 | 0~120 | 110 | 4 | 3800 | 4150x1130x1800 |
W62K | 3*4000 | 0~120 | 110 | 4 | 6100 | 4900x1150x1900 |
W62K | 4*1320 | 0~120 | 110 | 4 | 1800 | 2270x1130x1800 |
W62K | 4*2000 | 0~120 | 110 | 4 | 2500 | 2900x1130x1700 |
W62K | 5*2500 | 0~120 | 110 | 5.5 | 4000 | 3500x1130x1800 |
W62K | 5*3200 | 0~120 | 110 | 5.5 | 5500 | 4150x1130x1900 |
W62K | 2*4300 | 0~120 | 110 | 4 | 6100 | 5400*1150*1650 |
W62K | 1.5*6300 | 0~120 | 110 | 5.5 | 12000 | 7100*1850*1650 |
Graphic touch panel (standard)
Button panel (optional)
Digital read out panel (optional)
Standard back gauge (servo motor drive , linear guide and ball screw)

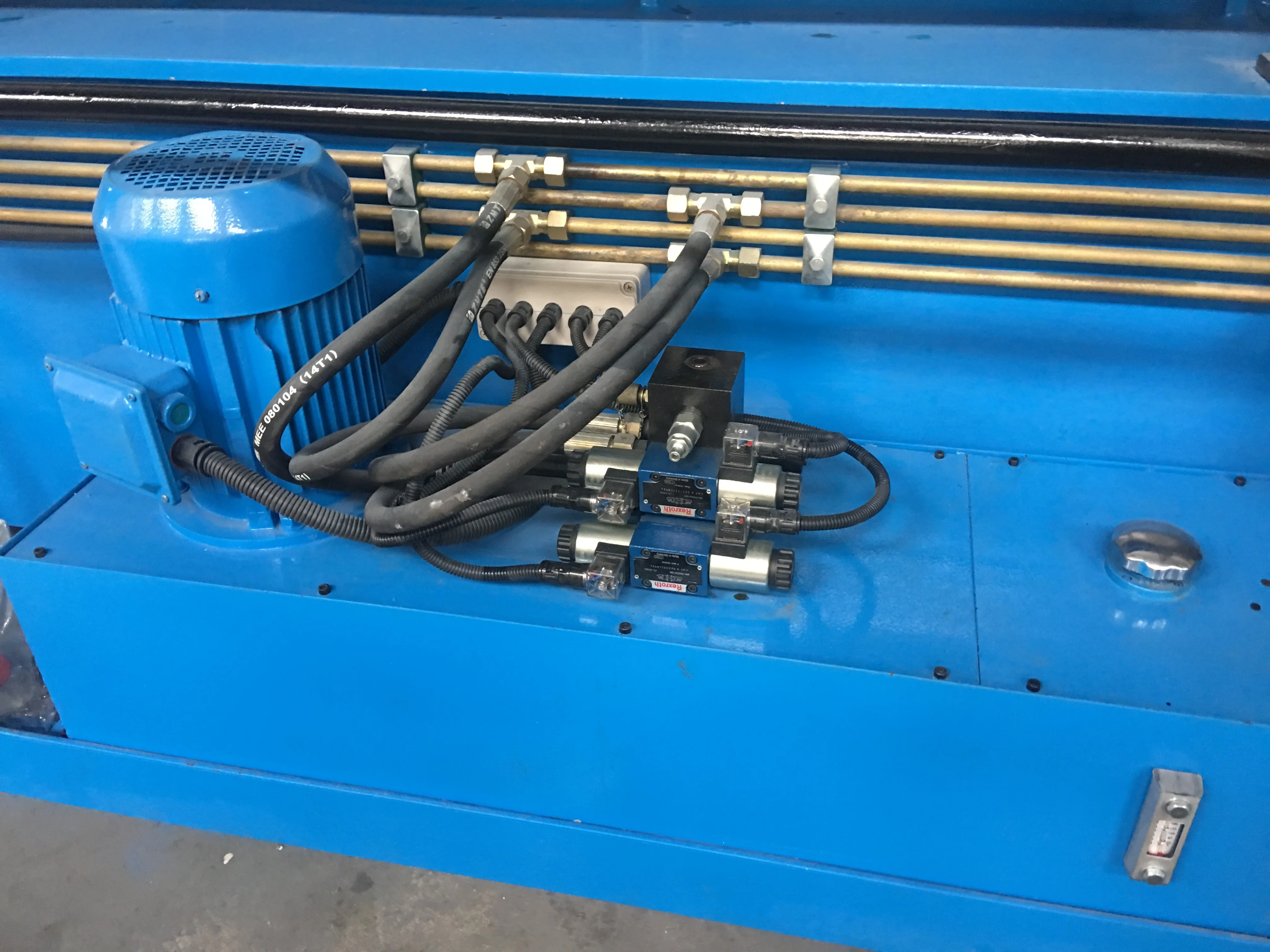

Main motor(siemens), magnetic valve (rexroth),hydraulic system

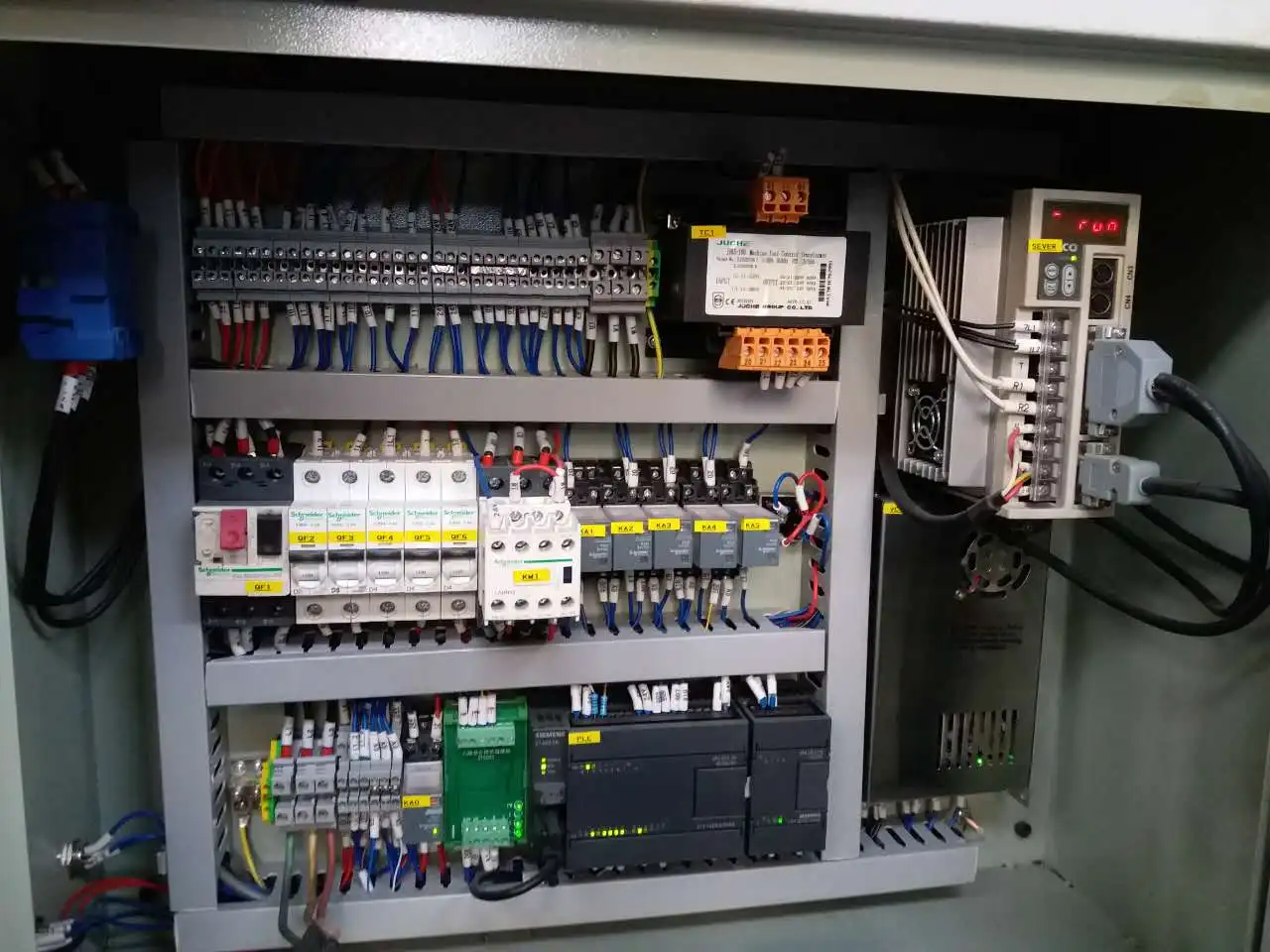

Electric componet(Schneider) , PLC+touch screen (Xinjie)

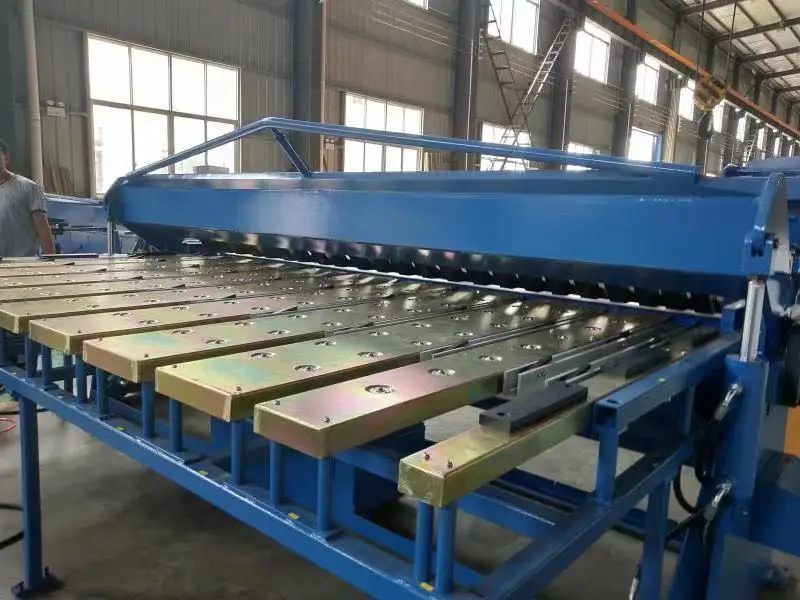

Rear roller table and pnematic block finger (optional)
CNC folding brake samples
Sheet metal box and pan folding brake machine options:
A. Hydraulic with manual back gauge
B. 1-axis digital CNC for bending angle / back gauge with manual back gauge / bending angle.
C. 2-axis graphic CNC for bending angle and back gauge
B. 1-axis digital CNC for bending angle / back gauge with manual back gauge / bending angle.
C. 2-axis graphic CNC for bending angle and back gauge
