Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Small and compact size
Fully isolated plastic case
Class 2 power unit, no FG
Pass LPS
IP42 design
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Low cost, high reliability
2 years warranty
Model Series:

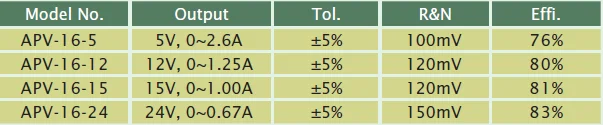

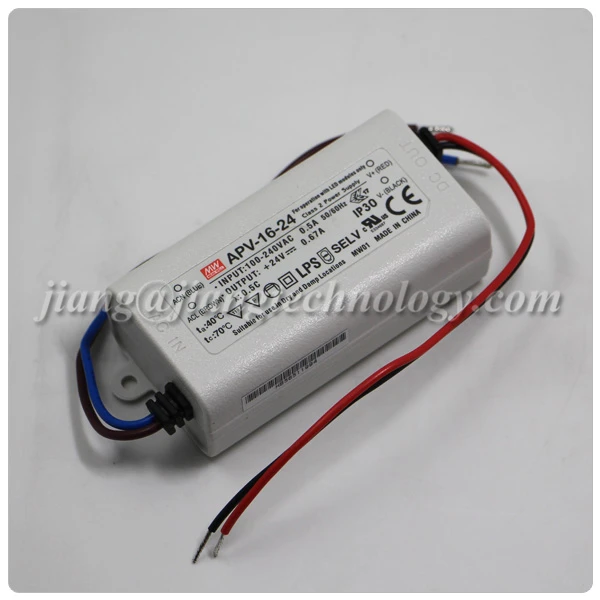

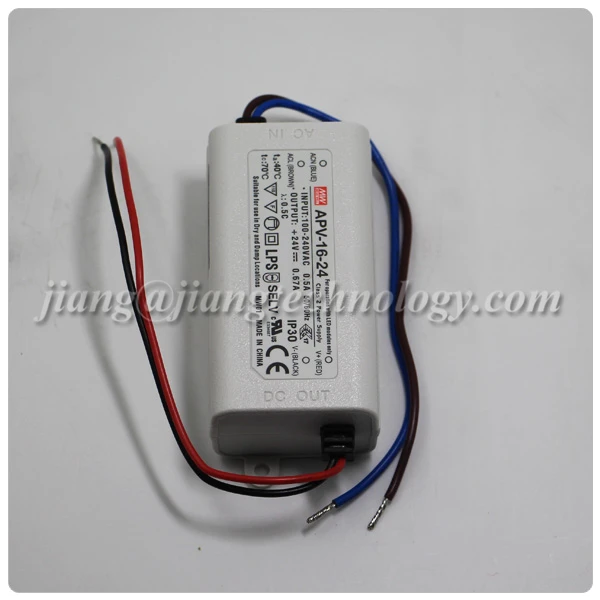

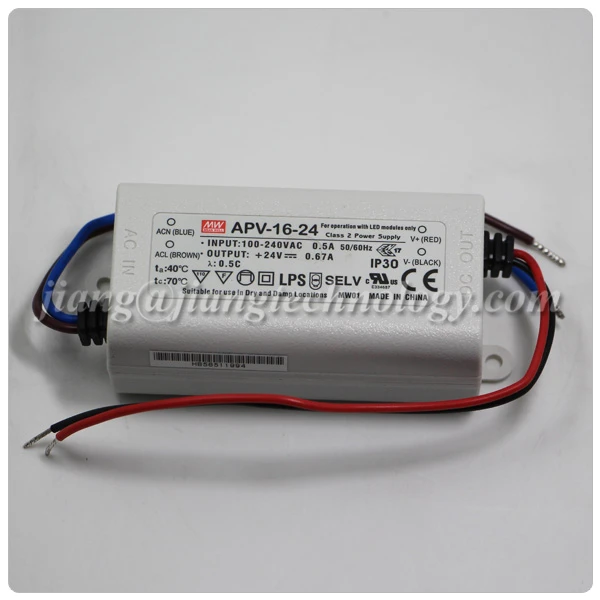

APV-16-5 / APV-16-12 / APV-16-15 / APV-16-24
Details:
MODEL
APV-16-5
APV-16-12
APV-16-15
APV-16-24
OUTPUT
DC VOLTAGE
5V
12V
15V
24V
CURRENT RANGE
2.6A
1.25A
1A
0.67A
RATED CURRENT
0~2.6A
0~1.25A
0~1A
0~0.67A
RATED POWER
13W
15W
15W
16.08W
RIPPLE & NOISE
100mVp-p
120mVp-p
120mVp-p
150mVp-p
SETUP, RISE TIME
1500ms, 30ms / 230VAC 1500ms,30ms / 115VAC at full load
HOLD UP TIME
20ms/230VAC 15ms/115VAC at full load
INPUT
VOLTAGE RANGE
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY
76%
80%
81%
83%
AC CURRENT
0.3A/230VAC 0.5A/115VAC
INRUSH CURRENT
COLD START 35A/115VAC 70A/230VAC
LEAKAGE CURRENT
0.25mA / 240VAC
PROTECTION
OVER LOAD
Above 105% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V
13.8 ~ 16V
17.5 ~ 21V
28 ~ 32V
Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
WORKING TEMP.
-30 ~ +70°C (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
SAFETY & EMC
SAFETY STANDARDS
U8750 , CSA-C22.2 No. 250.0-13 approved; design refer to EN60950-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 Class A,EN61000-3-3
EMC IMMUNITY
Compliance to EN61547,EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A
OTHERS
MTBF
1145.7K hrs min. MIL-HDBK-217F (25°C )
DIMENSION
77*40*29mm (L*W*H)
PACKING
0.1Kg; 120pcs/ 14Kg/ 0.93CUFT

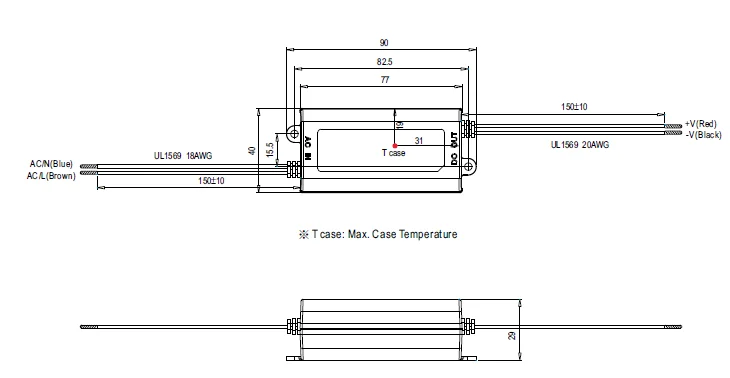

Mechanical Specification:

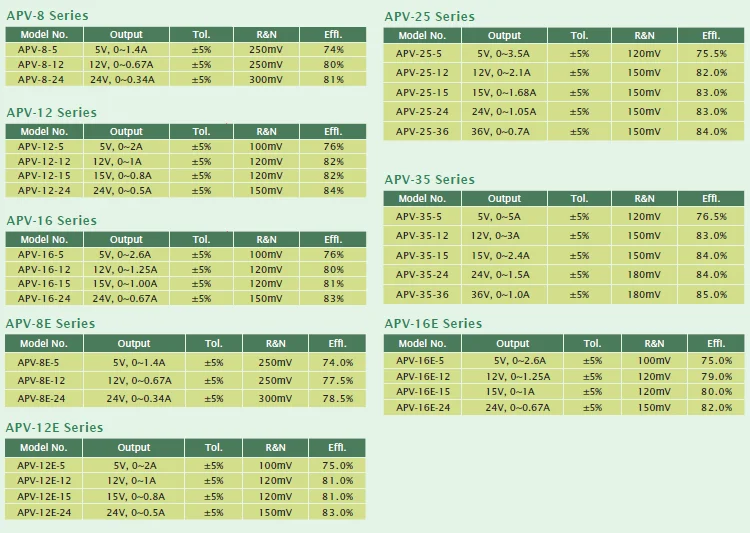

More Series For Choose:
