Веб-камера ELP с низким уровнем освещенности UVC OTG 1080P 30 кадров в секунду камера H.264 IMX322/323 CMOS HD мини-USB модуль камеры
- Категории: Mini Camera >>>
- Поставщик: Shenzhen,Ailipu,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
SHENZHEN AILIPU TECHNOLOGY CO LTD
USB Camera Module, model: ELP-USBFHD08S-LC1100
2 Megapixel USB Camera with 3.6mm lens, Sony IMX 323 Image Sensor+0.01LUX Low Illumination+H.264 Compression Format+Can support IR CUT Webcam usb camera module
Products Description
Features
*Ultra Low light Camera, Minimum illumination 0.01lux
*Highly advanced Sony IMX323 Color Image Sensor , 1/2.9 inch
*Max resolution :1920*1080P ,2.0 Megapixel
* Compression format : H264 /MJPEG / YUV2(YUYV)
*Come with microphone on the board which support single channel and dual channel.
*Support IR Cut, optional to add IR LED Board for night vision
*Equiped with mini M12 3.6mm lens ,fixed focus lens
*USB 2.0 High speed port
*Support OTG protocal: can connect your mobile via OTG cable
*White balance adjustable: Resolve color reduction and tone processing issues
*Highly advanced Sony IMX323 Color Image Sensor , 1/2.9 inch
*Max resolution :1920*1080P ,2.0 Megapixel
* Compression format : H264 /MJPEG / YUV2(YUYV)
*Come with microphone on the board which support single channel and dual channel.
*Support IR Cut, optional to add IR LED Board for night vision
*Equiped with mini M12 3.6mm lens ,fixed focus lens
*USB 2.0 High speed port
*Support OTG protocal: can connect your mobile via OTG cable
*White balance adjustable: Resolve color reduction and tone processing issues
Product Specifications
Model : ELP-USBFHD06H-L36 (Standard 3.6mm lens) | ||||||
Optional Models | ELP-USBFHD06H-L21 (2.1mm) ELP-USBFHD06H-L28 (2.8mm) ELP-USBFHD06H-L60 (6mm) ELP-USBFHD06H-L80 (8mm) ELP-USBFHD06H-L12 (12mm) ELP-USBFHD06H-L170 (fishye lens, HFOV about 130 degree) ELP-USBFHD06H-L180 (fisheye lens, HFOV >180 degree) ELP-USBFHD06H-A100 or L100 (No distortion lens) All above models, specifications are same, just lens different | |||||
Resolution & frame rate | H264: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps MJPEG: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps YUV: 320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps | |||||

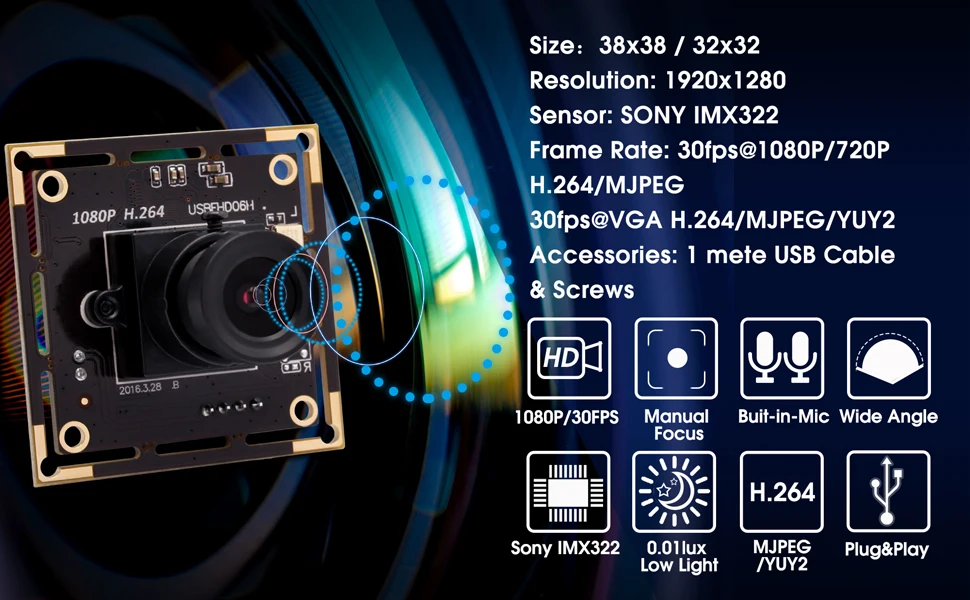

Sensor | 1/29 inch SONY IMX323 | Picture format | H.264/MJPEG / YUY2(YUYV) | |||
image area | 2000(H)X1121(V) approx. 2.24 M pixels | Lens Parameter | Standard 3.6mm, optional 2.1/2.8/3.6/12mm, FOV(D) 170/180 Degree | |||
Pixel Size | 12.8μm x 11.6μm | USB Cable | Standard 1M/ Optional 2m,3m,5m | |||
Max. Resolution | FULL HD 1920(H)x1080(V)pixels | Board Size/ Weight | 38*38mm/32mm*32mm optional / about 30g | |||
S/N Radio | 42dB | Mini illumination | 0.01lux | |||
Dynamic Rangde | 86dB | Sensitivity | 5V/lux-sec@550nm | |||
Interface | USB2.0 High speed | Shutter Type | Electronic rolling shutter / Frame exposure | |||
Support free driver | USB Video Class(UVC) | Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Exposure White balance, Backlight Contrast, | |||
USB Protocol | USB2.0 HS/FS | Digital Audio | High quality digital MIC, support single, dual channel | |||
OTG protocol | USB2.0 OTG | AEC, AEB,AGC | Supoort | |||
Power Supply | DC 5V | Working temperatur | -10~70 degree | |||
Working Current | 130mA~190mA | Storage temperatur | -20~85 degree | |||
LED board power connector | Support 2P-2.0mm socket | IR CUT Connector | Support 2P-1.25mm socket | |||
Support OS | Windows / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above | |||||
Product Picture Show

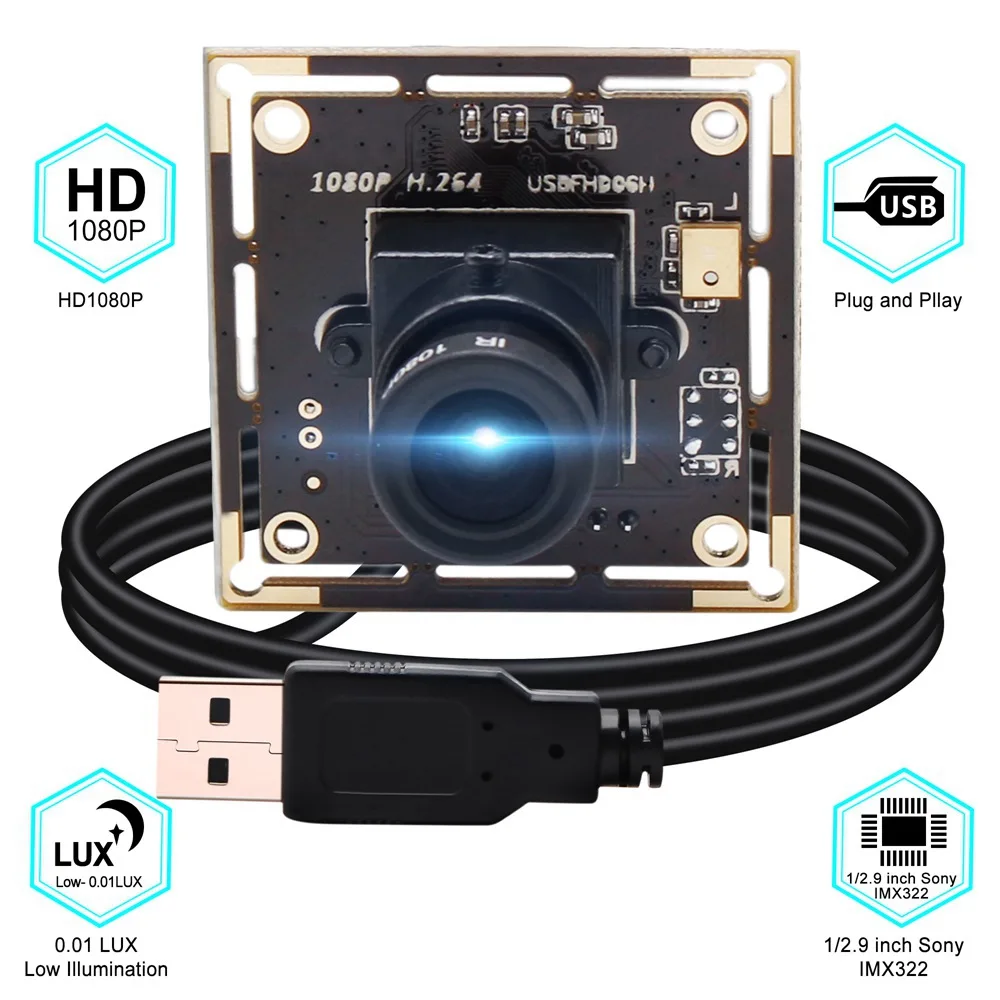

Sony IMX32 Low Illumination Mini USB Camera Module Board Full HD 1080P Webcam
* 2MegaPixels USB Camera ,
max resolution 1920x1080P
*Sony IMX323 Image Color Sensor 1/2.9"
* Fixed focus camera ,M12 Mount 3.6mm
*USB with camera , standard 1m USB Cable supplied .
*Audio Camera ,inbuilt Microphone
*Low Light camera, mini 0.01lux
*Output :H.264 ,MJPEG ,YUY2
* Performance :
1920x1080P @ 30fps
1280x720P @ 30fps
640x480 P @ 30fps

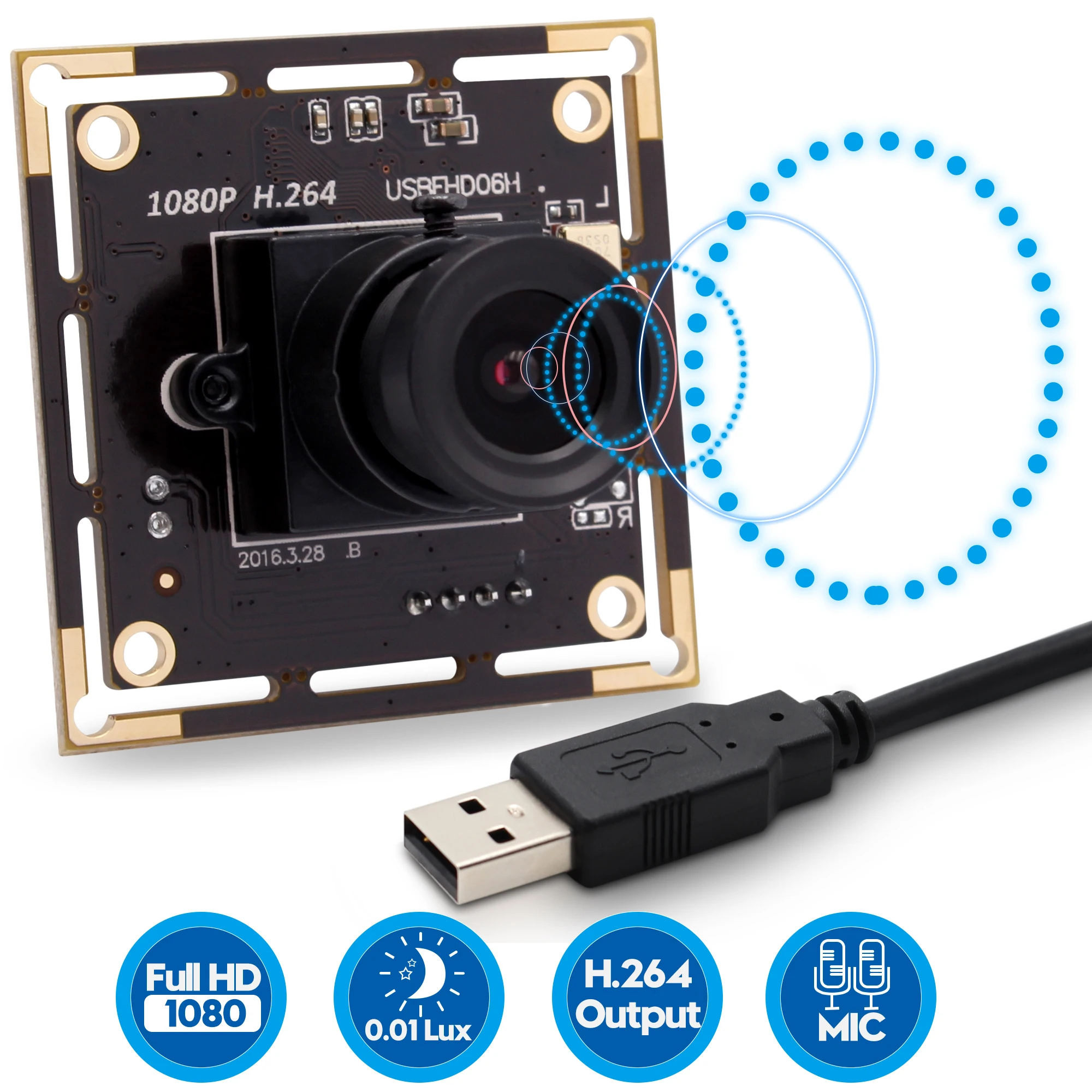

1080P Camera H.264 Low light Cam
2.0MP Sony IMX323 Sensor Mini USB Camera Module 1080P Webcam usb,
Low Illumination Camera for Weak Light Condition,H.264 (Fixed focusl 3.6mm M12 mount lens)
Sony IMX323 USB Camera
The 2MP Camera module Embedded with HD CMOS Sony IMX323 Sensor ,offer image quality and sensitivity performance. also helps to produce cost-effective products.
USB With Camera, default 1m cable

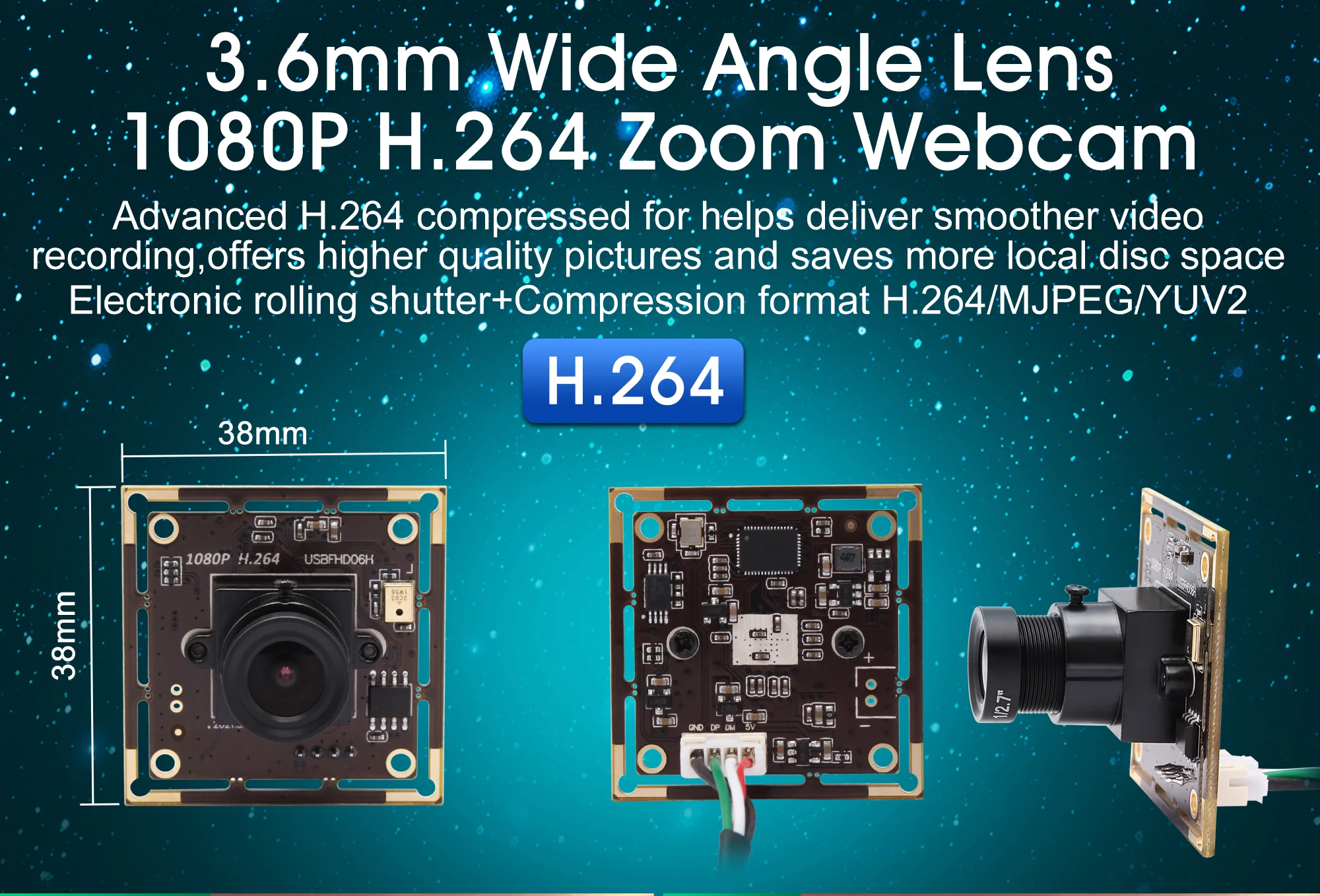

Mini Camera ,size 38mm*38mm/32mm*32mm)
2MP Camera equipped with 1m USB Cable .High speed USB2.0 interface, plug and play ,easy to work .
H.264 Camera Module
2MP USB Camera 1080P support H.264 uncompression format, takes up less space and disk space ,fast upload speed .

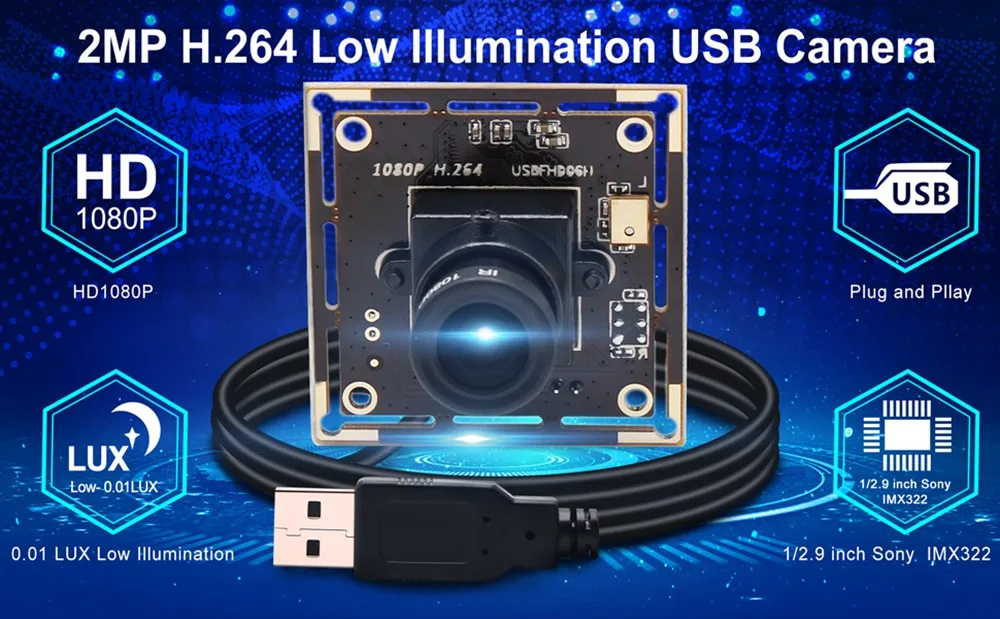

Low Light USB Camera
0.01 LUX low illumination USB camera makes it offer better performaNce in weak lighT condition .

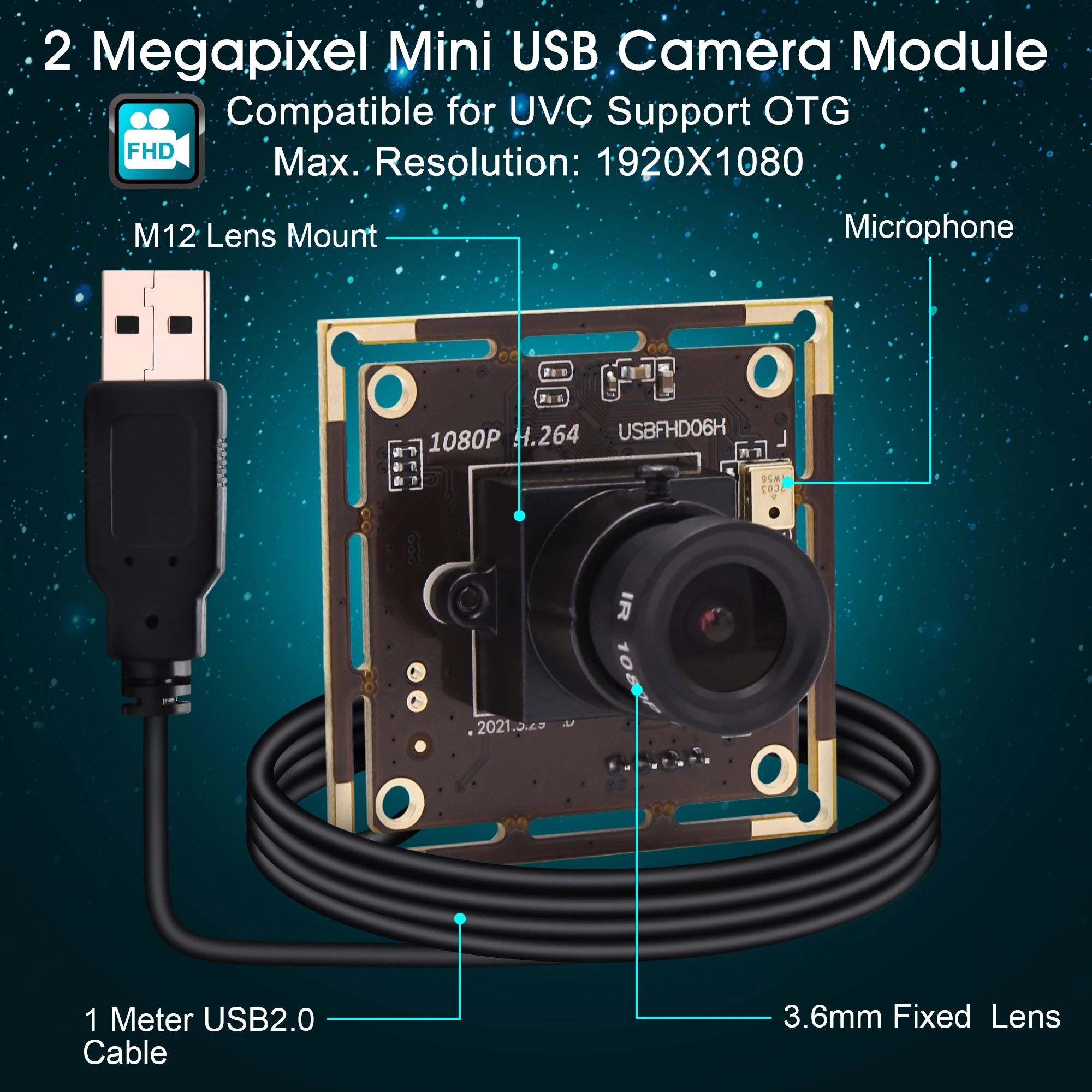

1080P H.264 USB Camera ,M12 Fixed Focus Camera Module ,Default 3.6mm lens
The camera lens is interchangeable ,available to change to other M12 Mount lens

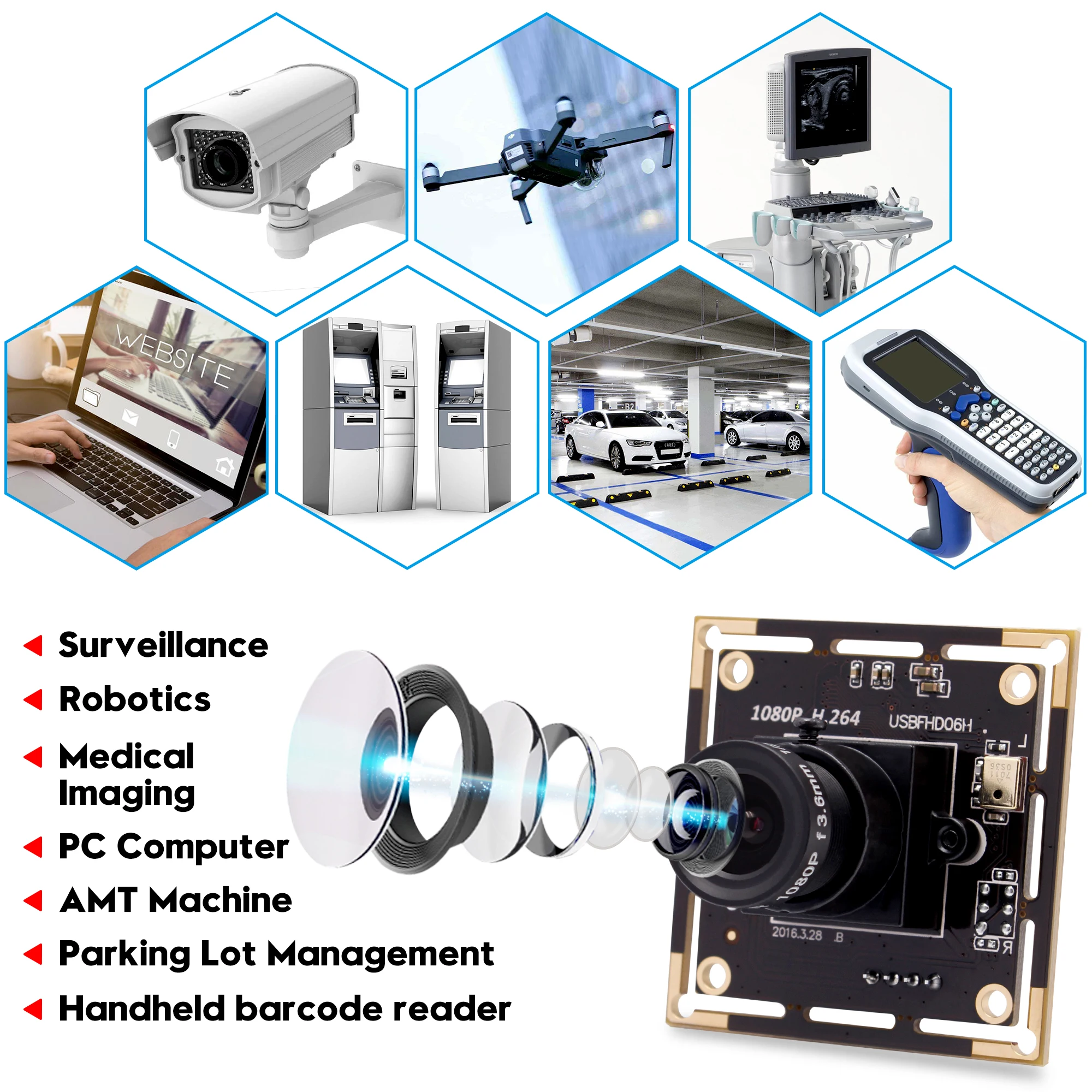

Widely Appication
2MP USB Camera wide application
Robot , virtual Dressing mirror , Bank safety surveillance , video conference , Machinery equipment, all-in-one machine,POS equipment ,smart box TV BOX, Advisement player,LED display,automatic vending machine,safety box,notebook,video door phone, MID, Tablet external, evaluator,medical Equipment ,and etc
USB Camera Module work with all kinds of machine vision device
1. Barcode scanning camera ,
2. 3D scanner
3.ATM,Kiosk,POS machines
4.Robot Camera
5. Advertising cameras
6. Electronic microscope
7. Automatic vending machine
8. Automated image acquisition system
10: Medical diagnostic image acquisition
11: fingerprints, palm prints reader
12:video door phone
13:HD surveillance
3.ATM,Kiosk,POS machines
4.Robot Camera
5. Advertising cameras
6. Electronic microscope
7. Automatic vending machine
8. Automated image acquisition system
10: Medical diagnostic image acquisition
11: fingerprints, palm prints reader
12:video door phone
13:HD surveillance

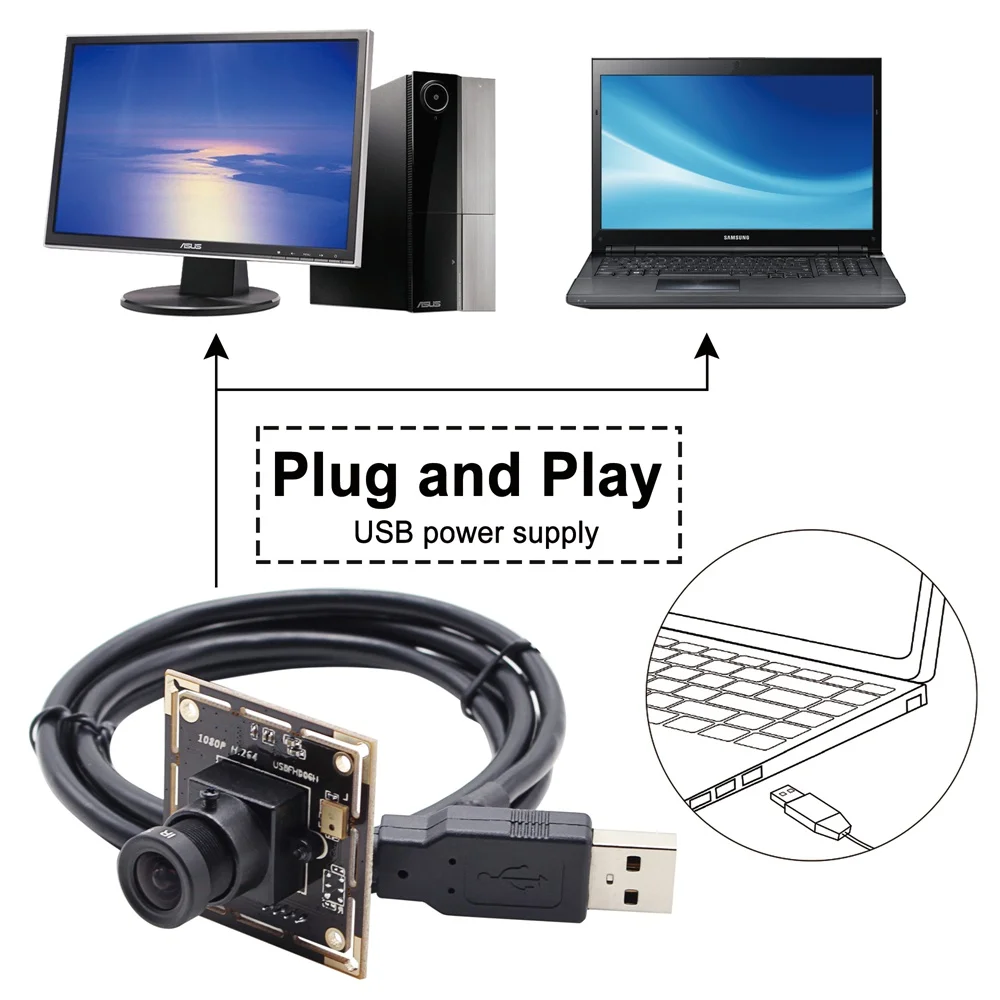

How to use
Plug & Play , Free Driver Camera .
Compatible with most video software and operation system
Steps to run this camera :
1-Look up the USB Port in your device
2-Plug our camera USB Cable to your USB port
3-Open your video software , and select the USB Cable as video out put
2-Plug our camera USB Cable to your USB port
3-Open your video software , and select the USB Cable as video out put
ELP USB Camera with UVC, free driver to work in various software and OS, such as Windows, Linux ,Android and Mac . OTG to Android mobile also available .
Recommend Video softwares
Windows : Amcap ,e-CAMView ， Blue iris , Contacam , Yawcam, iSpy ,Webcam Viewer, IP Camera viewer
Linux :Motion Eye OS, V4L2
Android : USB Camera ,Camera Fi
Mac : Facetime, Quick time . Webcam Viewer, Webcam Settings，NCH Software
Linux :Motion Eye OS, V4L2
Android : USB Camera ,Camera Fi
Mac : Facetime, Quick time . Webcam Viewer, Webcam Settings，NCH Software
Company Profile
Shenzhen Ailipu Technology Co., Ltd
Has its own brand ELP , Ailipu now owns its own designing team ,Production Team , and also professional sales team .
ELP is specialize in manufacturing USB Cameras for more than 15 years .Our USB Cameras include 0.3MP ,1MP, 1.3MP, 2MP, 3MP ,5MP, 8MP ,13MP and 4K Resolution .
OEM and ODM service also supported .
We believe details and quality is essential to survival of the enterprise-resistant. We look forward to cooperation with your esteemed company and achieve win-win together .
We believe details and quality is essential to survival of the enterprise-resistant. We look forward to cooperation with your esteemed company and achieve win-win together .
FAQ
*Are you manufacturer?
Yes, we have been designing and manufacturing the USB Cameras with over 15 years experiences .
Yes, we have been designing and manufacturing the USB Cameras with over 15 years experiences .
*Can you OEM camera module?
Yes,OEM Service is available . We can customize camera modules according to customer's different requirement.
*What's your usb cameras' production cycle?
We don't have any plan to stop production with any cameras .We will keep supplying the USB Cameras as long as our customers need it.
Yes,OEM Service is available . We can customize camera modules according to customer's different requirement.
*What's your usb cameras' production cycle?
We don't have any plan to stop production with any cameras .We will keep supplying the USB Cameras as long as our customers need it.
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
Our USB cameras support Android, Windows and Linux System
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
Yes, We can offer Linux, Windows, Android SDK.
