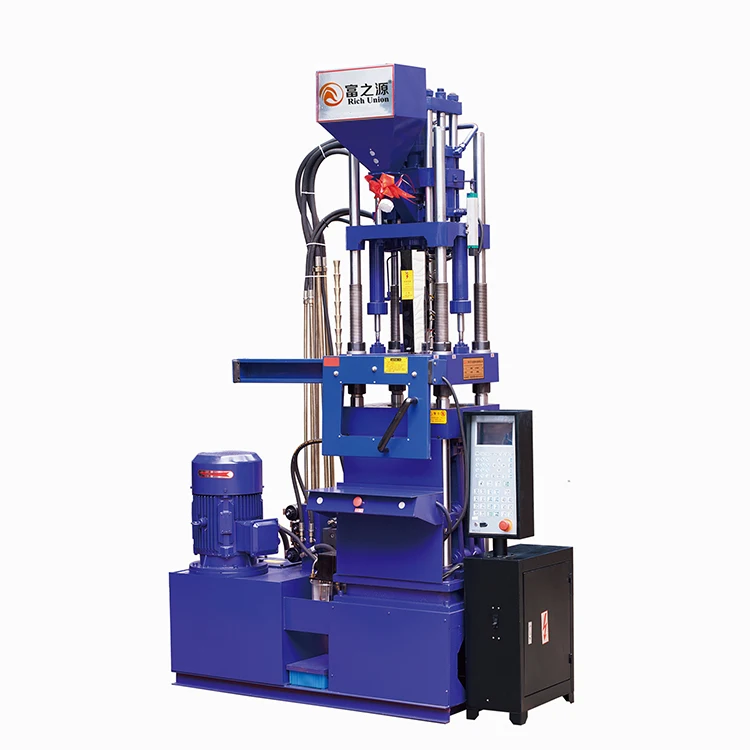

Низкая цена FZY-80 70 тонн малых для литья пластмасс под давлением вертикальная машина по изготовлению пластмассвых
- Категории: Установка для инжекционного прессования >>>
- Поставщик: Guangzhou,Rich,Union,Import,And,Export,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
| INJECTION UINT | ||
| SCREW DIAMETOR | mm | 35 |
| INJECTION PRESSURE | Mpa | 130 |
| THEORETICATION SHOT VOLUME | cm³ | 110 |
| SHOT WEIGHT | g | 100 |
| INJECTION SPEED | (g/s) | 70 |
| CLAMPING UINT | ||
| CLAMPING FORCE | Kn | 700 |
| OPENING STROKE | mm | 250 |
| MOULD THICKNESS | mm | 100-330 |
| SPACE BETWEEN TIE BARS | mm | 360*244 |
| PLATEN SIZE | mm | 525*405 |
| OTHERS | ||
| MOTOR POWER | Kw | 5.5 |
| HEATING POWER | Kw | 4.8 |
| MACHINE WEIGH | Ton | 1.5 |
| MACHINE SIZE | mm | 1600*900*2600 |
| More models can be chosen | |||||
| MODEL | Distance between Tie Bars(MM) | Injection Weight(G) | Opening Stroke(MM) | Clamping Force(KN) | MOTOR POEWER(KW) |
| FZY-50 | 305*206 | 60 | 200 | 550 | 4 |
| FZY-60 | 305*206 | 60 | 200 | 550 | 5.5 |
| FZY-80 | 360*244 | 100 | 250 | 700 | 5.5 |
| FZY-100 | 360*244 | 150 | 250 | 800 | 7.5 |
| FZY-125 | 360*244 | 135 | 250 | 800 | 7.5 |
| FZY-125B | 360*244 | 135 | 320 | 800 | 7.5 |
| FZY-160 | 390*285 | 170 | 320 | 800 | 7.5 |
| FZY-200 | 405*296 | 260 | 310 | 1000 | 11 |
| FZY-300 | 450*325 | 360 | 320 | 1200 | 11 |
| FZY-400 | 450*325 | 420 | 320 | 1200 | 11 |
| FZY-500 | 517*339 | 550 | 310 | 1300 | 13 |
Related Products
Company Information

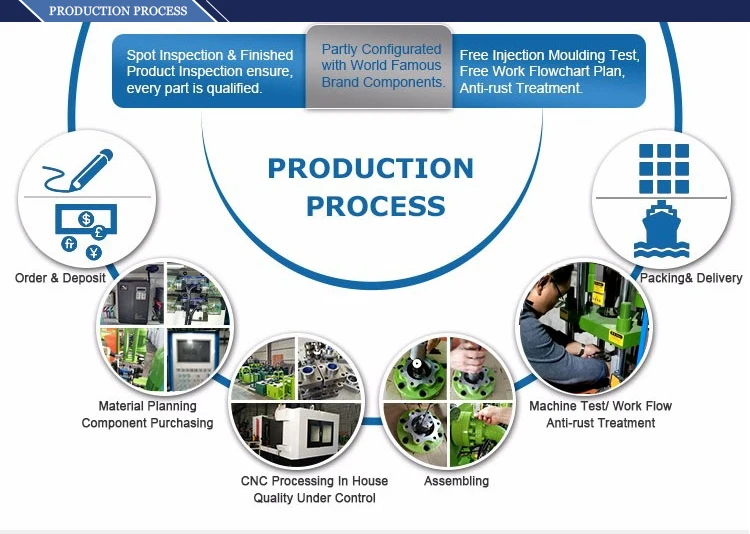

Product Process
FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What are our main machine?
A2: Online printing labeling system;
hang tag plastic machine;
Production management and product quality traceability system;
plastic machine;
Automated packaging overall solution;.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Why choose Guangzhou Fuzhiyuan Import And Export Trading Co., Ltd.?
A4: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
