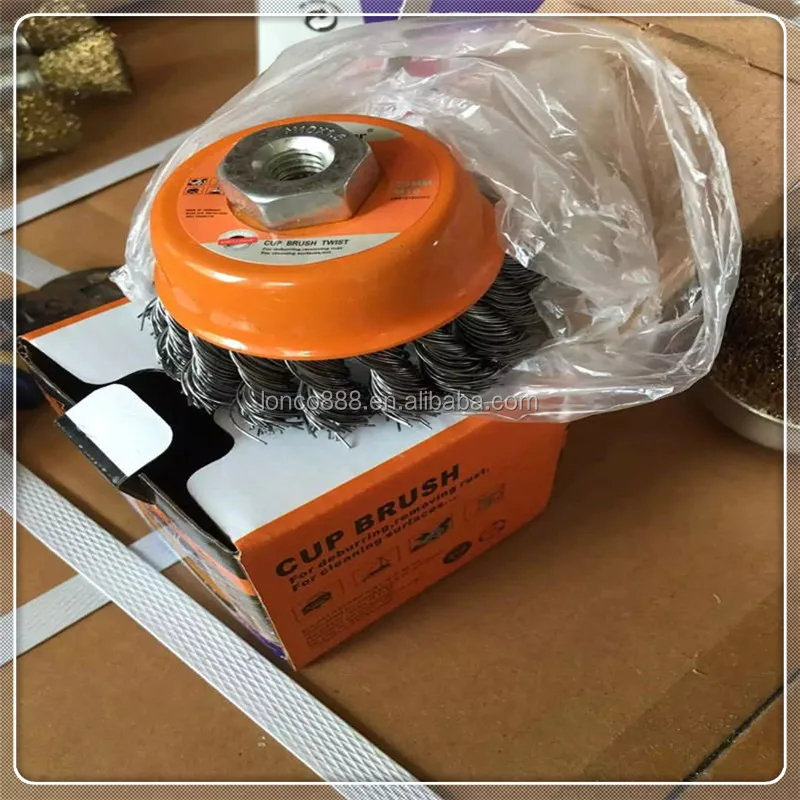

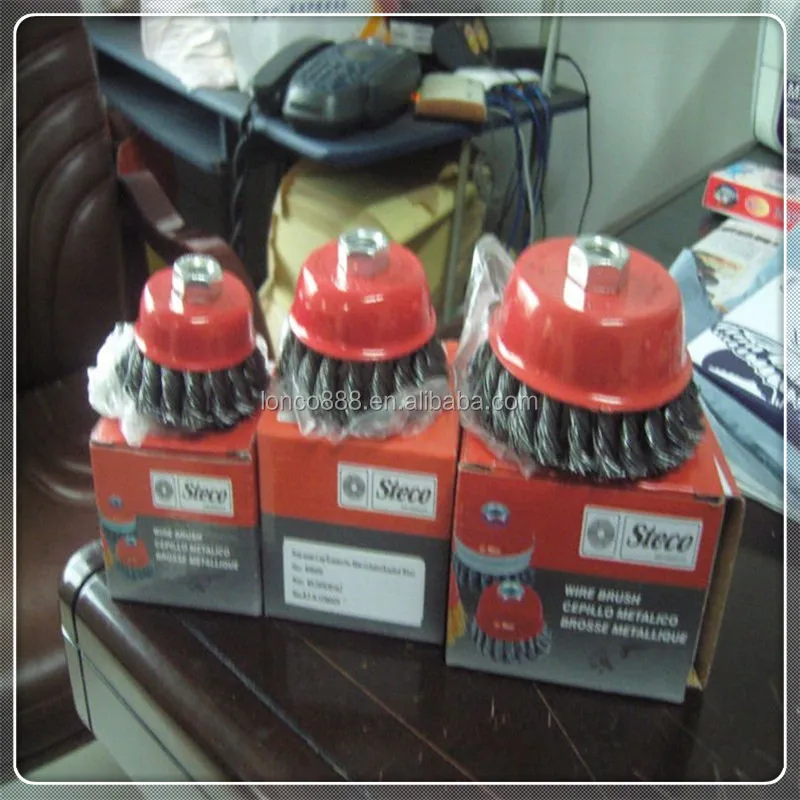

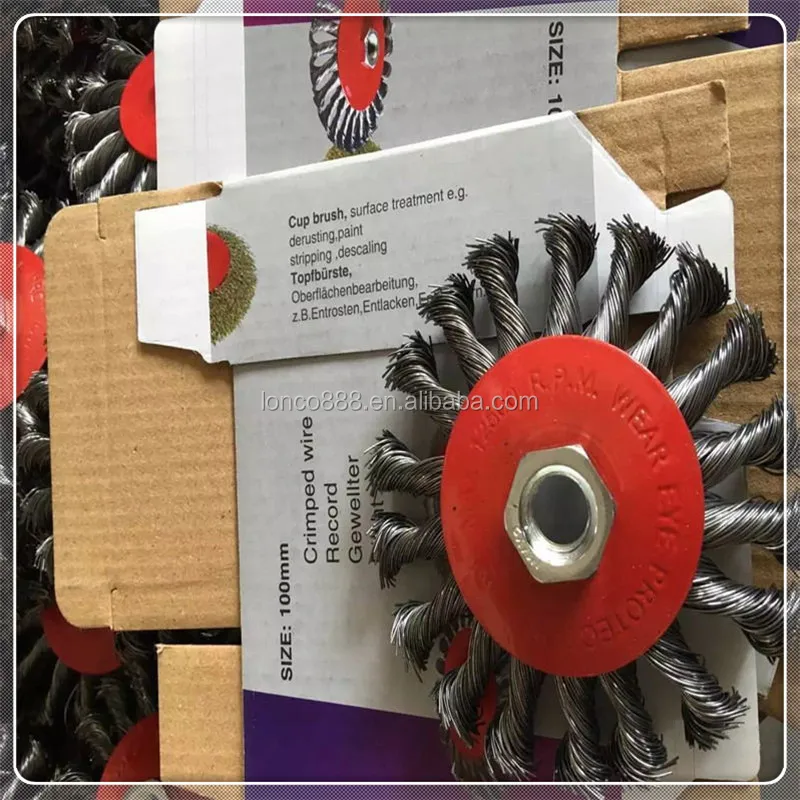

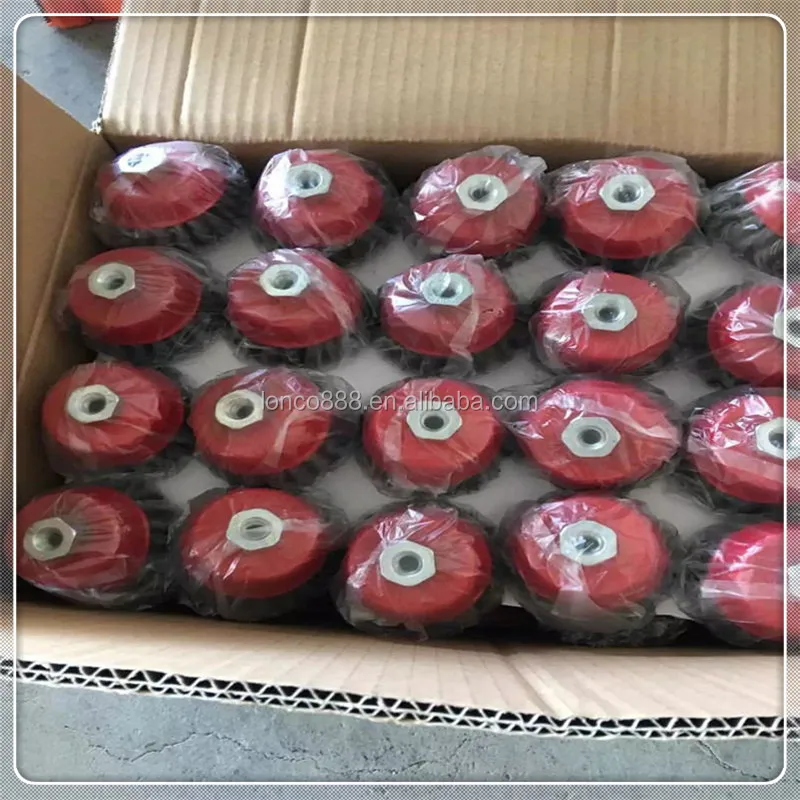

Twisted knot Stainless steel wire cup brush

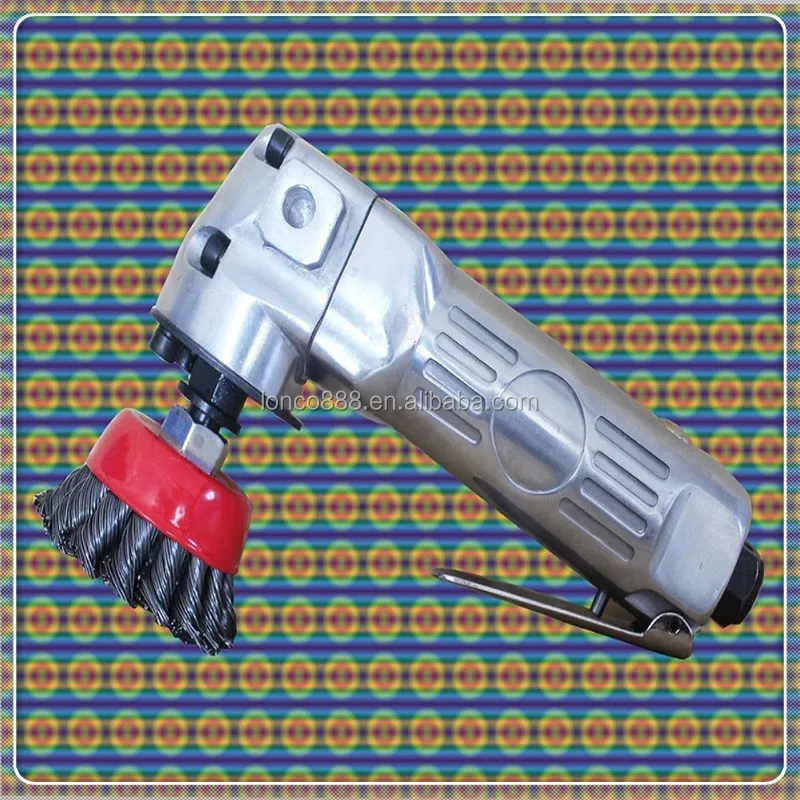

Wire cup brushes are intended primarily for use on portable power tools for addressing larger surface areas more efficiently than a wheel brush. Cup brushes featuring a threaded nut are designed for smooth, efficient operation on angle grinders to make quick work of large jobs. Utility cup brushes featuring a permanently attached 1/4" stem are more suitable for smaller jobs and are recommended for use on high-speed air tools for the most effective brushing action and longest life.
Cup brushes are available in a variety of knot wire and crimped wire configurations for use in a broad range of surface cleaning applications,and they are manufactured with individual knot hole and solid ring construction for high performance and long life. SEB's cup brushes are available in heat-treated steel,stainless steel,and bronze or brass wire.
DIMENSION | FILLTYPE | ||||||||
D | d | T | L | S-T0.35(0.5) | BS0.35(0.5) | SS-0.35(0.5) | RPM MAX | MEAS | QTY |
MM | MM | MM | Art. Number | Art. Number | Art. Number | cm | pc | ||
65 | 16 | M10×1.5 | 20 | A20116510150 | A20126510150 | A20136510150 | 12500 | 39X31X29 | 80 |
M10×1.25 | A0216510125 | A20226810125 | A20236510125 | ||||||
M14×2 | A203165142 | A203265142 | A203365142 | ||||||
M5/8-11NC | A2041655/811 | A2042655/811 | A2043655/811 | ||||||
80 | 22.2 | M10×1.5 | A20518010150 | A20528010150 | A20538010150 | 8500 | 42X34X24 | 60 | |
M10×1.25 | A20618010125 | A2062800125 | A2063800125 | ||||||
M14×2 | A207180142 | A207280145 | A207380145 | ||||||
M5/8-11NC | A2081805/811 | A2082805/811 | A2083805/811 | ||||||
90 | 22.2 | M10×1.5 | A20919010150 | A20929010150 | A20939010150 | 8500 | 54X22X35 | 40 | |
M10×1.25 | A21019010125 | A21029010125 | A21039010125 | ||||||
M14×2 | A211190142 | A211290142 | A211390142 | ||||||
M5/8-11NC | A21211905/811 | A2122905/811 | A2123905/811 | ||||||
100 | 22.2 | M10×1.5 | A213110010150 | A213210010150 | A213310010150 | 8500 | 54X22X35 | 40 | |
M10×1.25 | A214110010125 | A214210010125 | A214310010125 | ||||||
M14×2 | A2151100142 | A2152100142 | A2153100142 | ||||||
M5/8-11NC | A21611005/811 | A21621005/811 | A21631005/811 | ||||||
125 | 22.2 | M10×1.5 | A217112510150 | A217212510150 | A217312510150 | 6500 | 47X26X27 | 20 | |
M10×1.25 | A2191125140125 | A219212510125 | A219312510125 | ||||||
M14×2 | A2193125142 | A2192125142 | A2193125142 | ||||||
M5/8-11NC | A22011255/811 | A22021255/811 | A22031255/811 | ||||||
150 | 22.2 | M10×1.5 | A221115010150 | A221215010150 | A221315010150 | 4500 | 47X32X41 | 20 | |
M10×1.25 | A2221150125 | A2222150125 | A2223150125 | ||||||
M14×2 | A2231150142 | A2232150142 | A2233150142 | ||||||
M5/8-11NC | A22411505/811 | A22421505/811 | A22431505/811 |
