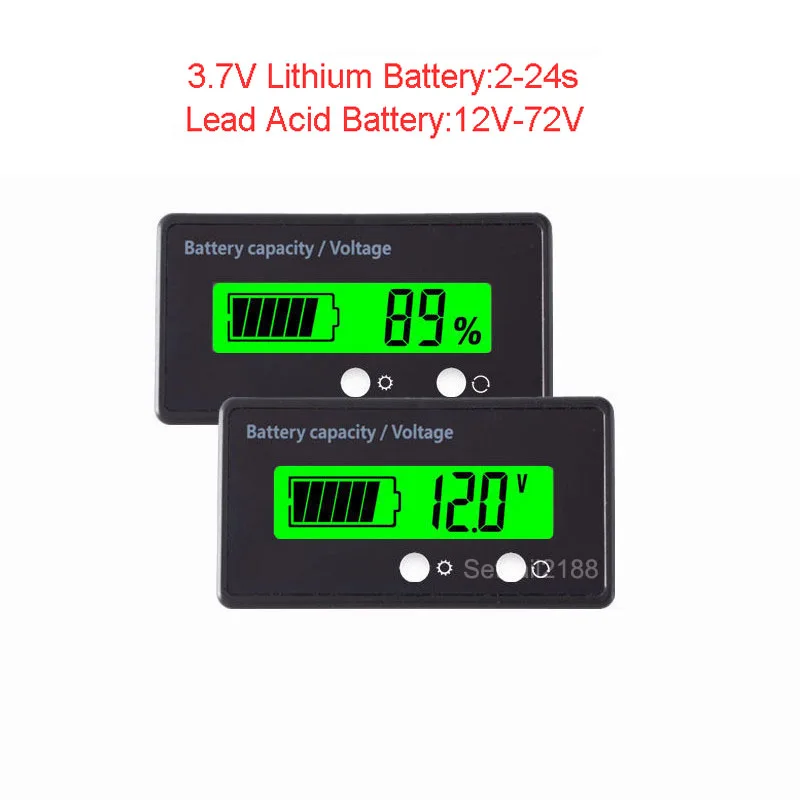

Y6S Y6D Digital Lead Acid Lithium Battery Capacity tester Indicator 12V 24V 36V 48V 60V 72V 2-24S
We have green and blue color.
work for 2-24s 3.7V Lithium Battery,Lead Acid Battery:12V 24V 36V 48V 60V 72V
We will send 2-16s 12V-48V version,if you need 17-24s 60V 72V,pls contact with us.
We have 2-24s for lifepo4 battery
Specification:
Display :power+voltage, close the key for cycle
Voltage Range:6-63v, products will display based on the voltage value. voltage fluctuations ,power meter will be follow as the voltage fluctuation (Comes with reverse polarity protection ,can be guarantee use effecively)
The product is suitable for lead-acid 12v.24v.36v.48v.(can be changes via key, specific please see setup instructions as below)
The product is suitable for 3.7v lithium battery 2s-16s (can be changes via key ,detail information please see as below )
We will send 2-16s 12V-48V version,if you need 17-24s 60V 72V,pls contact with us.
Cable length: 30cm
Instructions:
1 Press and hold switch on the product ,power on ,automatically select the interface (please follow as the code corresponds blow)
2.Select your battery type after corresponding ,for example 3 series lithium battery you need to enter the selection screen ,press the key point to L3 interface ,then off,re-energized,choose success,such as the need to set 12v lead-acid batterise,the key point press to p12v interface ,power ,re-energized, both choose success
3.instruments can be used if you select successful..meter shows the power interface ,tap switch, switch to voltage interface ,click the switch ,turn off the meter ,cycle shown as the code corresponds
Code:Suitable for
L2: 2 string lithium
L3: 3 string lithium
L4: 4 string lithium
L5: 5 string lithium
L6: 6 string lithium
L7: 7 string lithium
L8: 8 string lithium
L9: 9 string lithium
L10: 10 string lithium
L11: 11 string lithium
L12: 12 string lithium
L13: 13 string lithium
L14: 14 string lithium
L15: 15 string lithium
p12v:12v lead-acid
p24v:24v lead-acid
p36v:36v lead-acid
p48v:48v lead-acid
Package:
1*Digital Lead Acid Lithium Battery Capacity tester.
1*power cable
