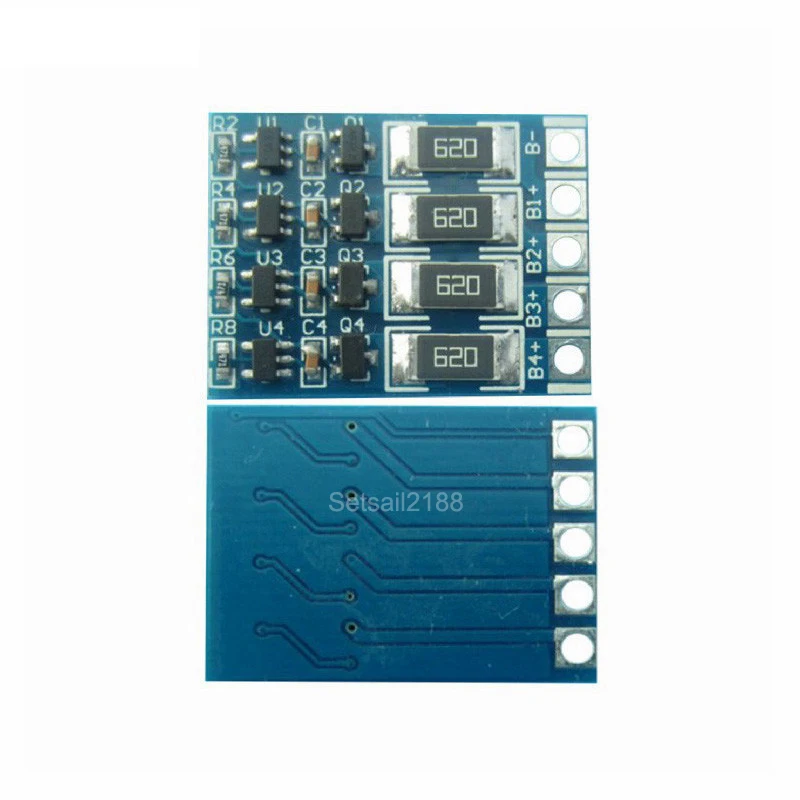

4s 3.2V 3.6V 18650 lifepo4 Lithium iron phosphate battery charger protection balance function board



Note:1.we have 1-30s lithium battery protection board.

          2.work for lithium battery type:3.2V 3.6V 3.7V.

          3.current:1-100A



3.6V equalization effect, the application current is 58mA.
Balanced voltage and balanced current.



Specification:



(1) Built-in high-precision voltage detection circuit;
(2) The charge and discharge of the battery can be controlled through the MOS tube;
(3) Wide operating temperature range: -40°C ~ +85°C;
(4) Low current consumption



work for
4s 3.2V 3.6V 18650 lithium iron phosphate battery.

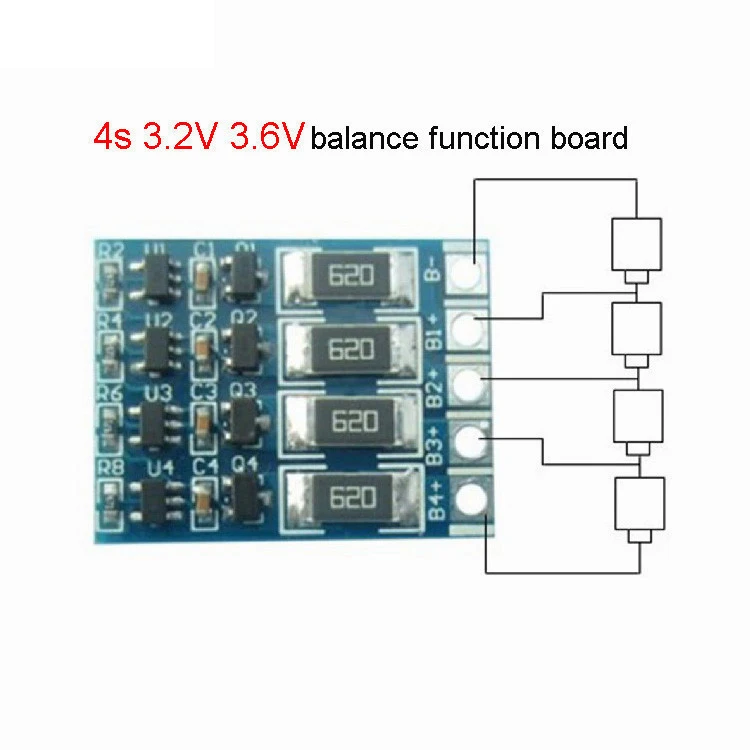

Wiring diagram
B4+ connected to the positive battery;
B3+ connects the contacts in battery 1 and battery 2;
B2+ connects the contacts in battery 2 and battery 3;
B1+ connects the contacts in battery 3 and battery 4;
B- connect the negative pole of the battery pack;



Precautions
1. Please pay attention to the input conditions of the input voltage and load current so that the power consumption in the protection board does not exceed the allowable power consumption of the data sheet.
2. When the battery is connected, there is a possibility that it cannot be discharged. In this case, the connection can be restored to normal operation.
3. When the overcharged battery and the overdischarged battery are mixed together, the charging and discharging states become impossible, and charging and discharging are impossible.
4. Although the protection board has a built-in anti-static protection circuit, do not apply excessive static electricity that exceeds the performance of the protection board circuit to the protection board.



Package:
1*lithium battery charger protection board.
