Цифровой бтиз инвертор газовый экранированный сварочный аппарат

Описание и отзывы

Характеристики



Introduction

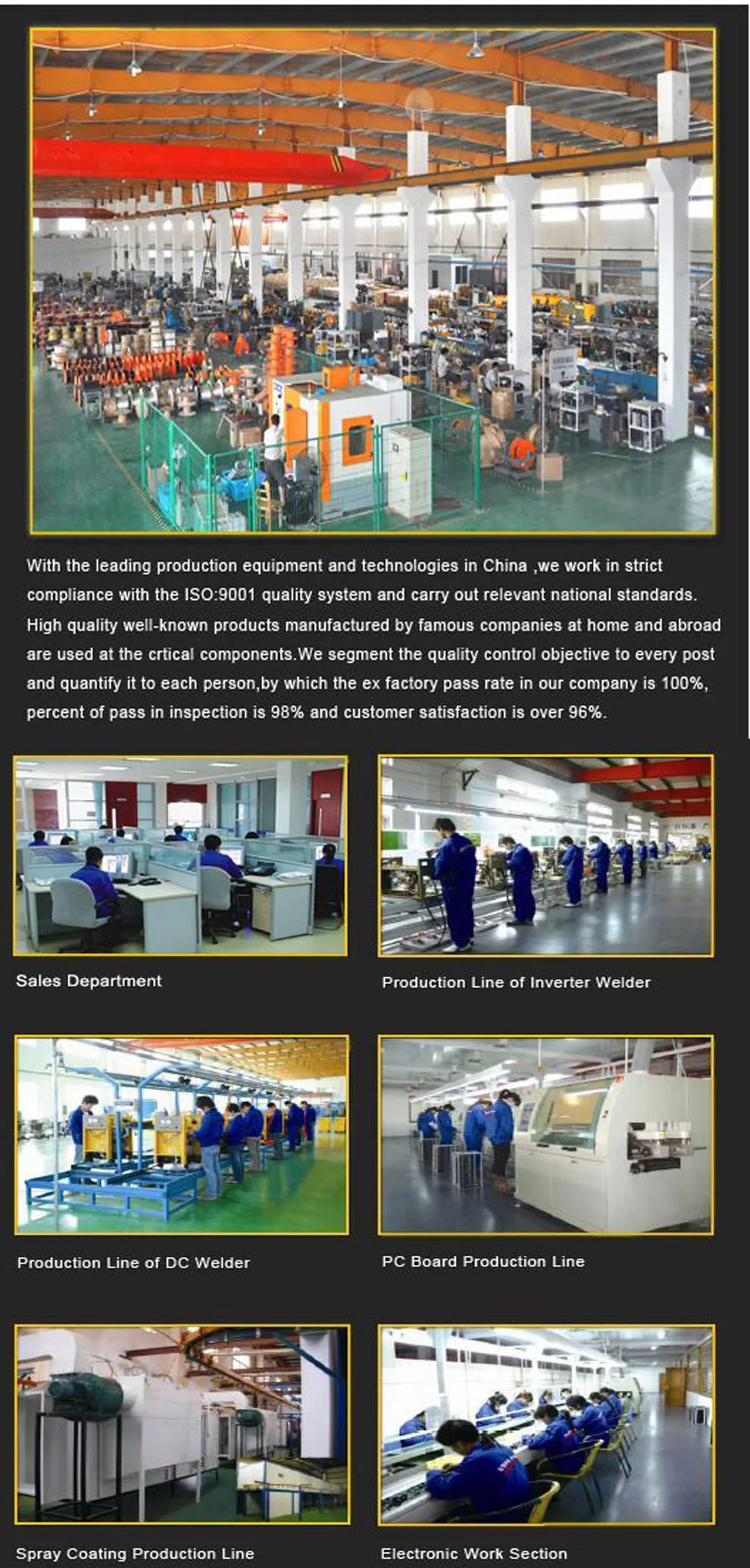

       Comprehensive performance of those products is leading in China and advanced in the World. Holistic marketing network is established with complete service system inside and outside China. The company’s products have been sold to more than 60 countries and regions all over the world in the meantime, eg. Turkey, Russia, UAE, Singapore, Indonesia etc.

Production Description

1.Suitable for welding low carbon steel, alloy steel

2.Adopting soft switch high frequency inverter technique, high reliability, light in weight and energy saving

3.Slow wire feeding arc starting, easy arc starting and high success rate, with close to the ball striking arc function

4.Adopting waveform control technique to improve shipment, reduce splashing, good appearance of weld and high deposition rate

5.Adopting passive power factor correction, and high in power factor

6.Continuous adjustment of current and voltage, widely usage range

7.Be able to use solid wire and flux wire

8.High duty cycle and continuous welding for a long time

9.Digital meter and exactly preset welding parameter



NB(II)Series IGBT Inverter Gas Shielded Welder	NB(II)-350	NB(II)-500	NB(II)-630
Input power voltage(V)	380V±10%	380V±10%	380V±10%
Rated input capacity(KVA)	14	25	37
Rated input current(A)	29	46	66
Voltage adjusting range(V)	14-40	17-50	17-50
Current adjusting range(A)	60-350	60-500	60-630
Welding wire(Ø)	0.8-1.6	1.0-1.6	1.0-1.2
Duty cycle(%)	60%	60%	60%
Full load efficiency	89%	89%	89%
Power factor	0.87	0.87	0.87
Weight(kg)	43	53	56
Overall dimension(mm)	578*330*610	578*330*610	641*360*640

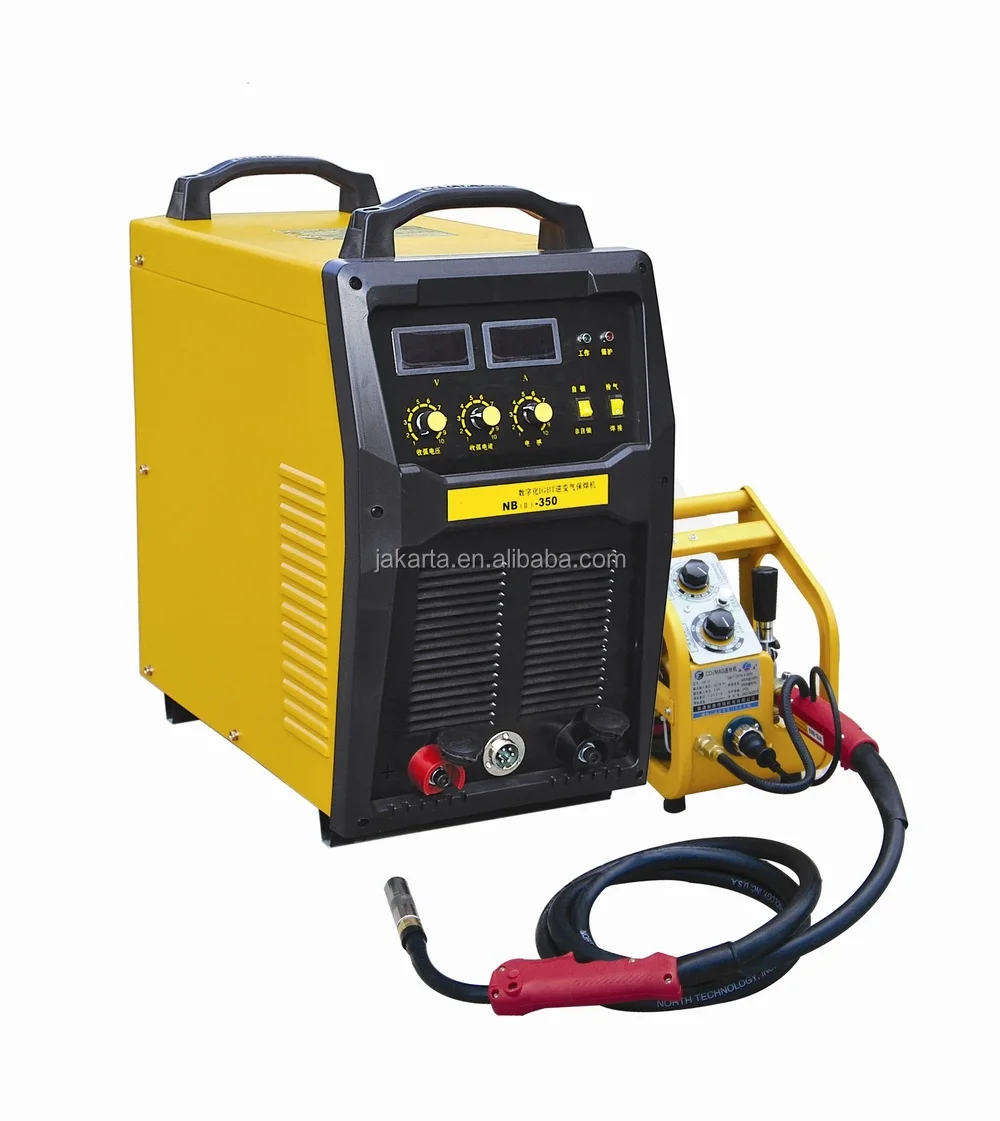

Welder Product picture

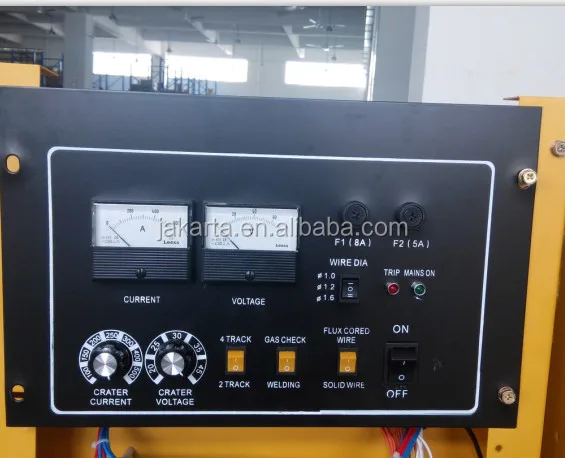

Welder Photo details

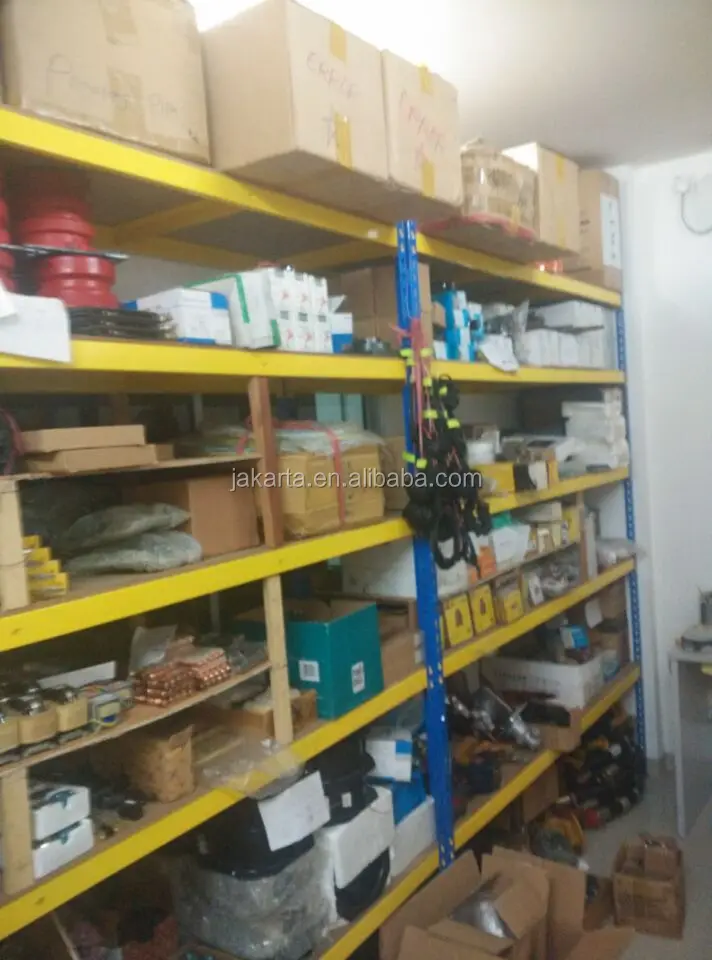

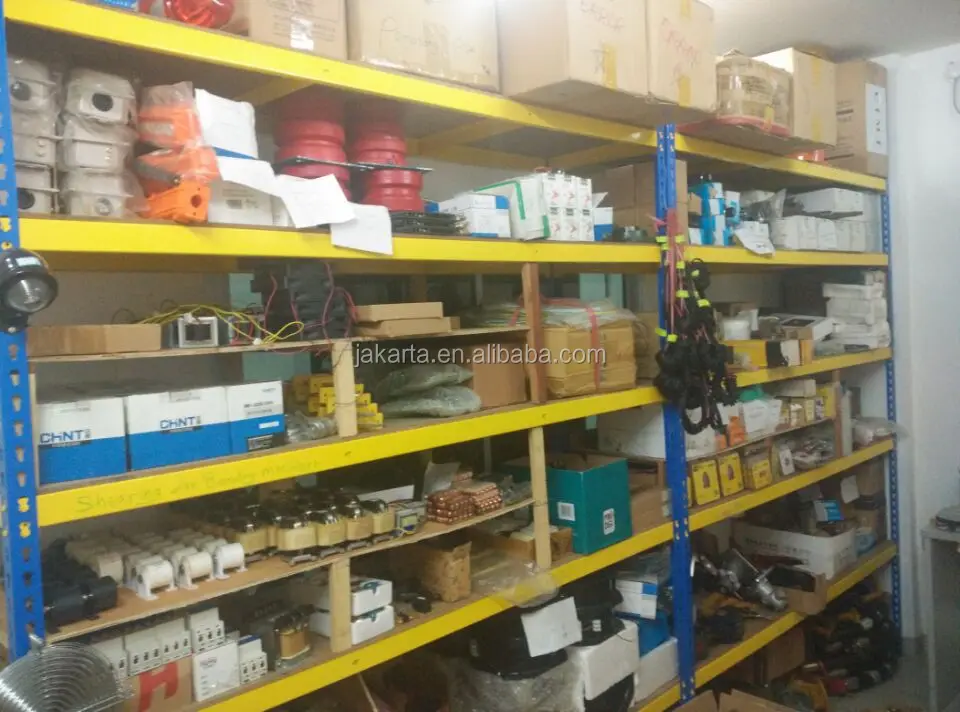

Welder accessories small warehouse

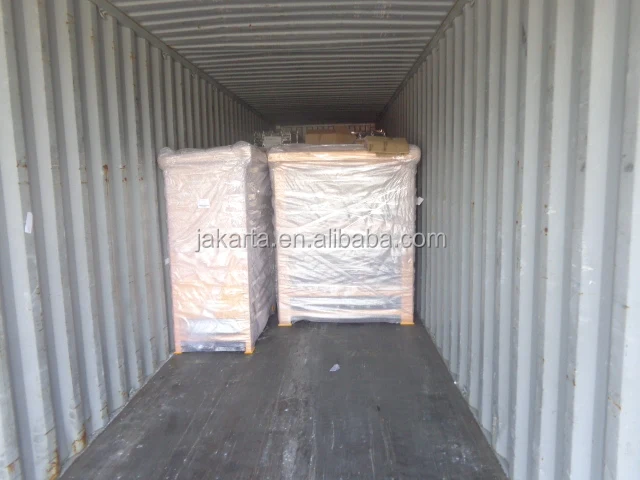

Welder delivery photos
