Новый тип Pt100 воздуховод крепление температуры Hvac
- Категории: Системы ОВКВ и запчасти >>>
- Поставщик: Shanghai,Huikong,Energy,Sources,Consultation,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
New Type Pt100 Duct Mount Temperature Hvac Sensor

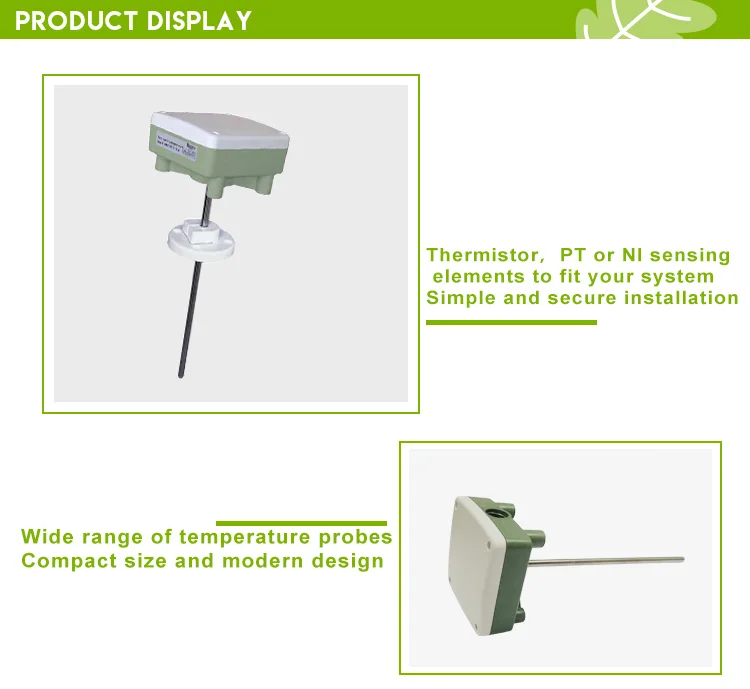

Product display
Specification
Sensing Probe | Thermistor: Range Accuracy | NTC -30----70°C ±0.5k |
Platinum-Film: Range Accuracy | PT, 0.3851ohm/k -30----70°C ±0.3k | |
Nickel Thin Layer Range Accuracy | NI, 5000 ppm/k -30----70°C ±1k | |
Connection | Connection Terminals | 2.5 mm2 |
Environment | Operation | To IEC 721-3-3 |
Transport & Storage | To IEC 721-3-2 and IEC 721-3-1 | |
Standards | conform according to |
|
Automatic electrical controls for household and similar use Special requirement on temperature dependent controls | EN 60 730 1
EN 60 730 2 - 9 | |
Pollution Class | Normal acc. To EN 60 730,RoHS compliant | |
Degree of Protection | IP56 to EN 60 529 | |
Safety Class | III (IEC 60536) | |
Housing Materials | Cover & Mounting Plate | Fire proof ABS plastic Stainless Steel |
General | Dimensions [mm] | Cover: 42 x 112 x 88 (H x W x D) |
Weight (including package) | 135g |
Item name | Sensing element | Curve | Compatible with |
N18 | Thermistor 1.8k at 25 °C | Curve 5 | TAC, CSI |
N3 | Thermistor 3k at 25 °C | Curve 6 | Alerton |
N10 | Thermistor 10k at 25 °C | Curve 24 | Hysine, Alerton,ALC, Delta,Trane, CSI |
N11 | Thermistor 10k at 25 °C | Curve 7 | Andover, Invensys, Carrier, KMC |
N20 | Thermistor 20k at 25 °C | Curve 20 | Honeywell |
N100 | Thermistor 100k at 25 °C | Curve 9 | Siemens SBT |
Tp1 | PT100 | 0.3851ohm/K | Honeywell |
Tp2 | PT1000 | 3.851ohm/K | Johnson Control |
TK5 | NI1000 | 5000ppm/k | Siemens SBT |
Application
Packaging
Related Products
Company Information
Shanghai Huikong Energy was founded in 2004, which specialized in Building Automation System. Products including non-spring return damper actuators, temperature and humidity sensors, air velocity transmitters, co2 sensors, differential pressure transmitters, pressure switches.
Most of our products have been certified to CE and some other Chinese quality certifications. In many museums, hospitals, hotels you can find our sensors and actuators.
We pursue high quality products, provide exceptional and professional after-sales service.
Looking forward to serve and establish business relationship with you.
FAQ
Q1: How to get the latest price?
Tell me the models, quantity, and other special requirement.
Q2: Can I have a sample order?
Yes, welcome to test and check the quality. More details, please contact with us directly.
Q3: Payment terms?
100% T/T in advance.
Q4: Delivery time?
About one week.
Q5: Shippment?
DHL, UPS, TNT, FedEx etc.
Q6: Is OEM/ODM available?
Yes, it's available.
Q7:If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.
Please feel free to contact the supplier if you need more information or help.
